Combination/Point Alignment Lasers

GCL 2-160 Professional

Combination/Point Alignment Lasers

Self-Leveling Cross-Line Laser with Plumb Points

  • All-in-one functionality – highly visible lines and points for horizontal leveling, vertical alignment and plumb point transfer applications

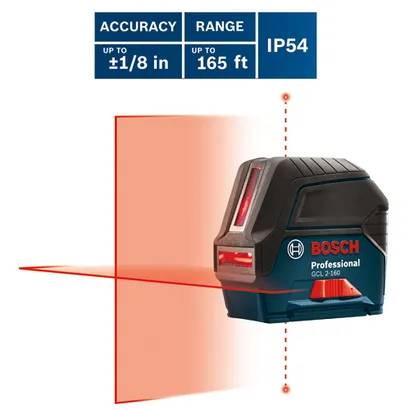

  • Bright laser lines – has a visible range of 65 Ft. with an accuracy of 1/8 In. at a 33 Ft. distance

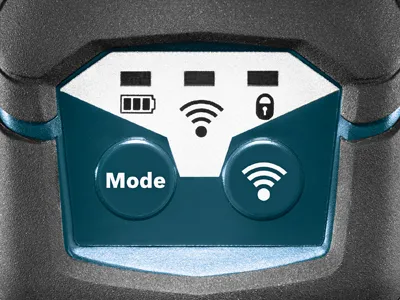

  • Receiver mode – for use with optional line laser receiver (LR 6 or LR 7) for a working range of up to 165 Ft. and/or in bright lighting
  • Smart Pendulum System – self levels and indicates out-of-level condition up to ±4°
  • RM 1 magnetic rotating mount – included accessory rotates 360° while staying centered on the plumb point

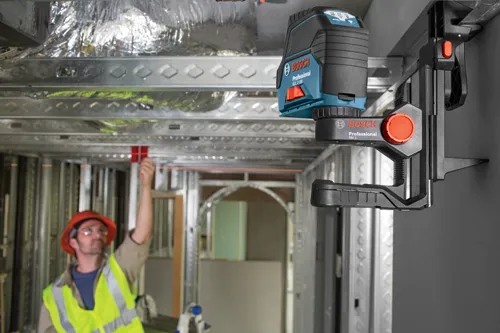

  • Includes a ceiling grid clip – magnetizes to the RM 1 for use in ceiling-grid applications
  • Manual mode – locks lines for use at any angle
  • Robust over-molded construction – IP54 ensures splash water/dust protection for years of dependable operation
  • Built-in VisiMax™ technology – monitors power consumption to maximize line visibility and extend battery life
  • Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
View more View less

GCL 2-160 Professional

GCL 2-160 Professional

Your Selection

Self-Leveling Cross-Line Laser with Plumb Points_GCL 2-160_Hero Laser

Order number: 0601066F12

Technical data

The most important data

Battery (3) AA Batteries
Connected No
IP Rating IP 54
Laser Beam Color Red
Laser Diode Class II 635 - 650 nm
Leveling Type Self-Leveling, Up to 4°
Material Composite
Mount Threading 1/4-20, 5/8-11
Number of Beams 4
Operating Temperature 14° F / -10° C ~1 22° F / 50° C
Range Up to 165-ft.
Weight 1.08 lb
Works With Laser Receivers, LR 6, LR8, Tripods, BT160, BT170HD, BT300HD, BT 150, Telescoping Pole System, BP350, Telescoping Leveling Rods, GR 16, GR500, Mounts and Positioning Devices, WM 4, BM 1, BM3, RM 1, RM 2, LB10
Includes (1) GCL 2-160 Self-Leveling Cross-Line Laser with Plumb Points
(1) RM 1 Magnetic Rotating Mount
(1) Ceiling Grid Clip
(1) Laser Target Plate
(3) AA Batteries
(1) Hard Carry Case

GCL 2-160 Professional: Further information

Product Highlights

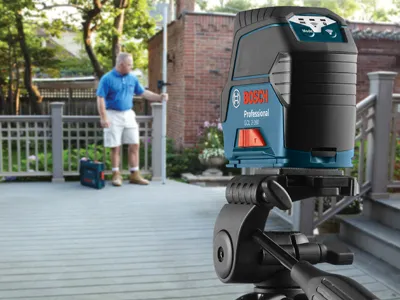

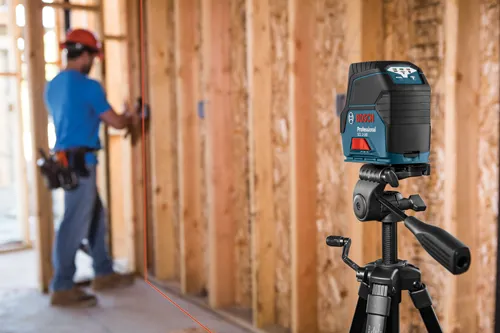

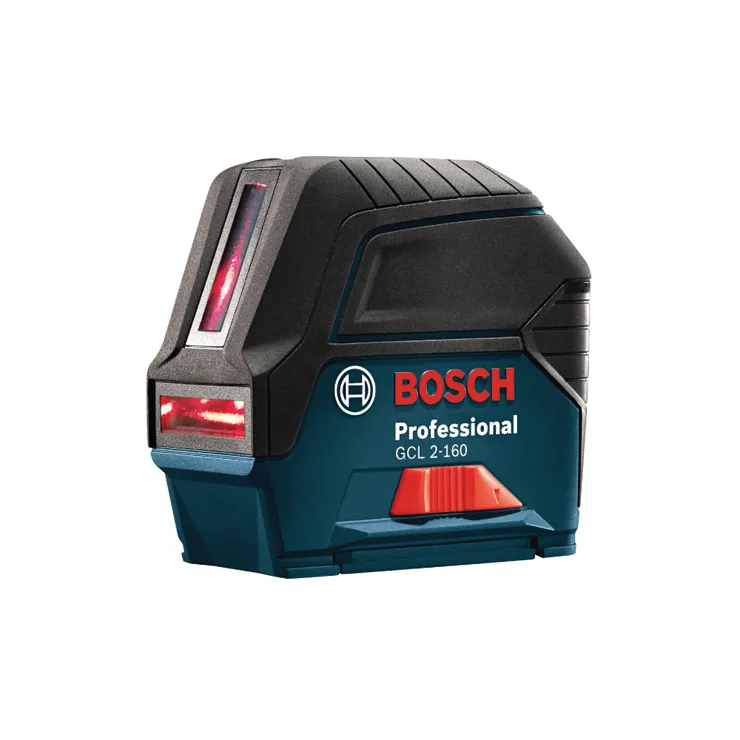

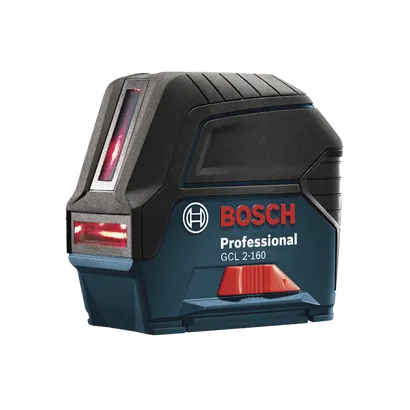

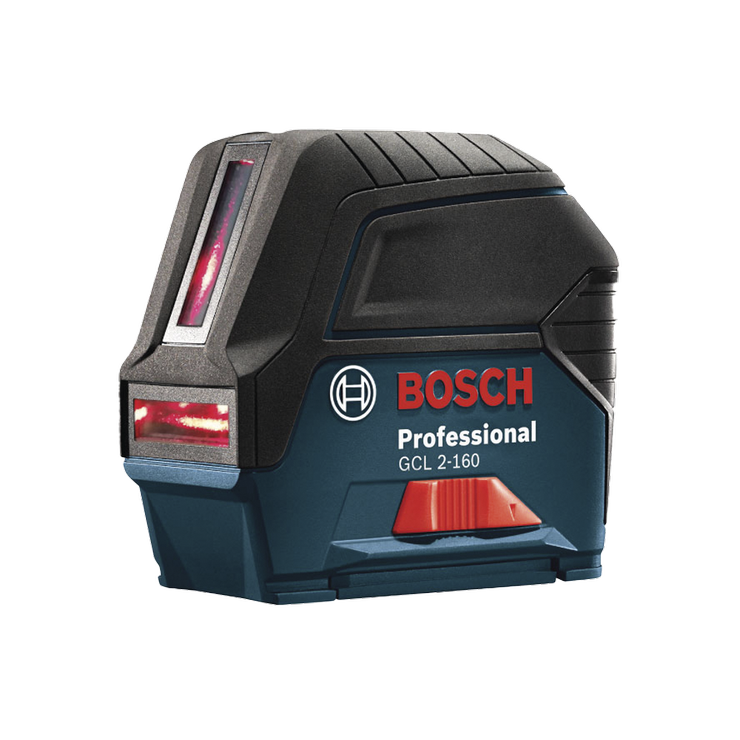

The Bosch GCL 2-160 self-leveling cross-line laser with plumb points delivers all-in-one versatility, with highly visible lines and points that can be turned on independently or together for horizontal level, vertical level and plumb transfer applications. This laser has a visible range of 65 Ft. The receiver mode allows it to work with an optional Bosch line laser receiver (LR 6 or LR 7) for a working range of up to 165 Ft. It features VisiMax™ technology, which monitors power consumption to maximize line visibility and extend battery life. The smart pendulum system self-levels with an accuracy of up to ±4°, and it indicates out-of-level condition. The manual mode locks lines for use at any angle by just switching the tool on in locked mode. Robust over-molded construction – IP54 ensures splash water/dust protection for years of dependable operation. It comes with the RM 1 magnetic rotating mount that rotates 360° and includes a ceiling grid clip for use in ceiling-grid applications. The kit includes a hard carrying case for easy storage and transport.
