PROFACTOR 18V Rotary Hammers

GBH18V-36CN Professional

PROFACTOR 18V Rotary Hammers

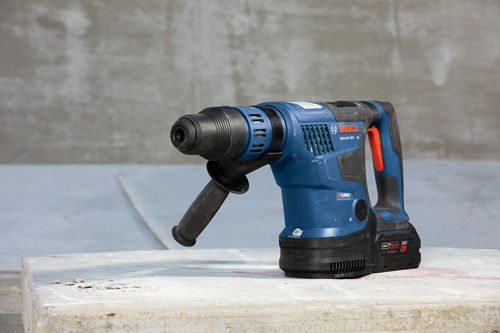

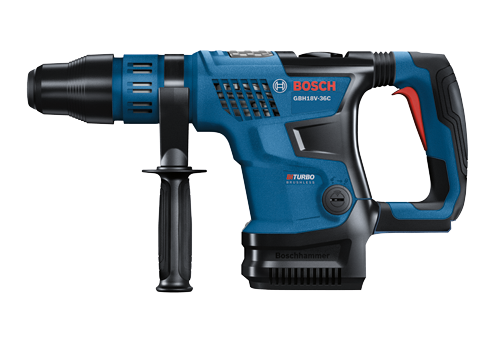

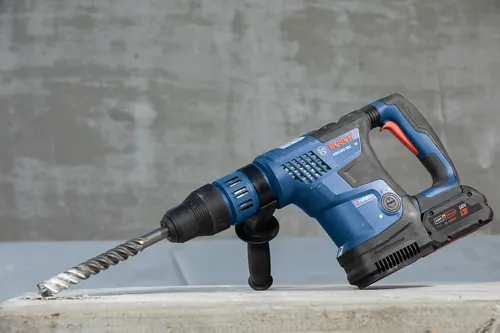

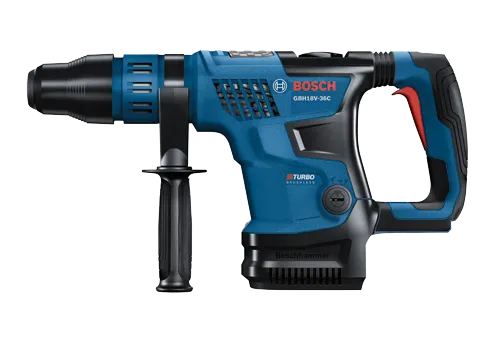

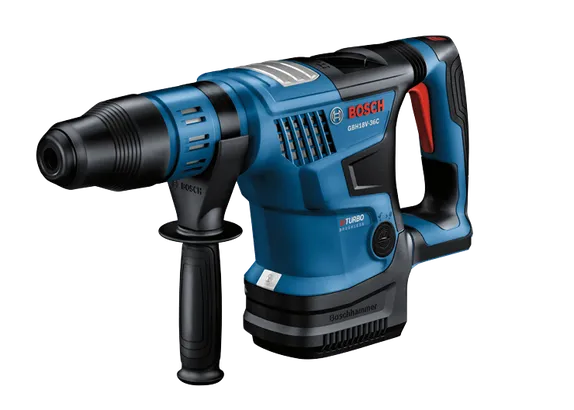

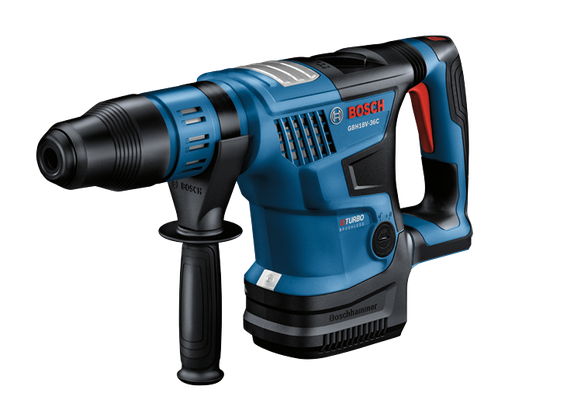

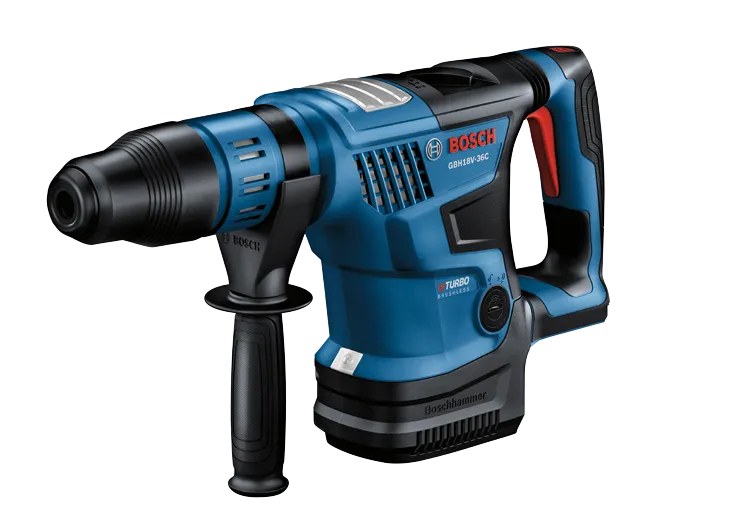

PROFACTOR™ 18V Connected-Ready SDS-max® 1-9/16 In. Rotary Hammer (Bare Tool)

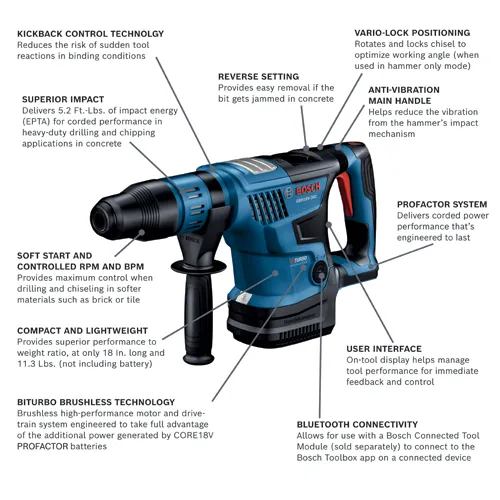

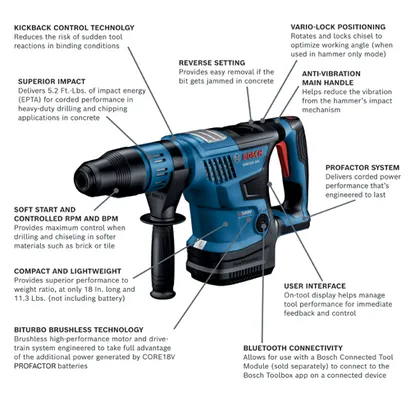

  • PROFACTOR™ performance – delivers corded hammer performance for an 18V SDS-max® 1-9/16 In. rotary hammer
  • Superior impact – delivers 5.2 Ft.-Lbs. of impact energy (EPTA) for full performance in concrete when drilling and chiseling
  • Compact, light design – weighs only 11.3 Lbs. (tool only, not including battery) and is 18 In. long for jobsite maneuverability
  • BITURBO Brushless™ Technology – featuring a brushless high-performance motor and drive-train system engineered to take full advantage of the additional power generated by CORE18V® High Power batteries (sold separately)
  • KickBack Control technology – reduces the risk of sudden tool reactions in binding conditions
  • User interface – on-tool display helps manage tool performance for immediate feedback and control
  • Anti-vibration main handle – helps reduce the vibration from the hammer’s impact mechanism
  • Robust power system – produces 0- 2,900 no-load bpm and 0-500 no-load rpm
  • Vario-Lock positioning – rotates and locks chisel to optimize working angle
  • Soft Start and controlled rpm – adjusts rpm and bpm for controlled drilling and chiseling applications in softer materials such as brick or tile
  • Reverse setting – provides easy removal if the bit gets jammed in concrete
  • Lock-on / lock-off button – keeps tool running when locked on (hammer-mode only)
  • LED worklight – illuminates dark work areas
  • Connectivity (module sold separately) – link to connected device via Bosch Toolbox App to customize settings and receive detailed feedback

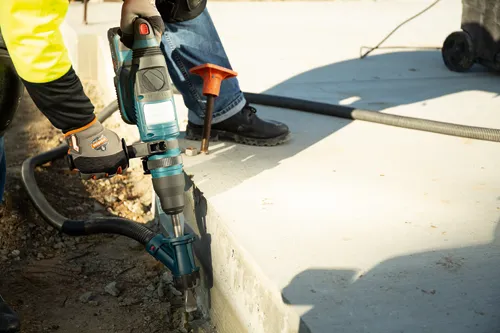

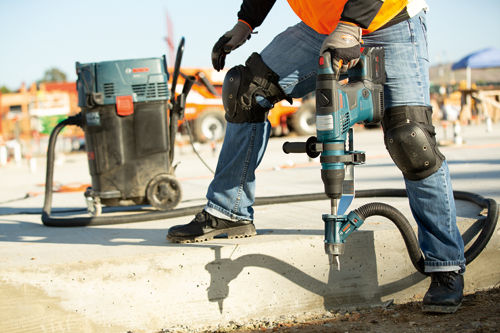

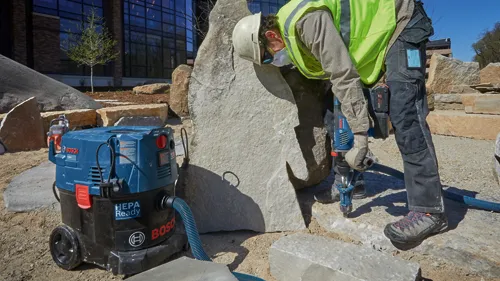

  • Works with Bosch PRO+GUARD™ dust solutions – an end-to-end dust-collection system that helps users move toward OSHA silica table 1 dust compliance
  • AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
  • AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
  • Bosch 18V cordless power tools are covered by a five year limited warranty – for details, visit or call 1-877-BOSCH99
  • All Bosch 18V PROFACTOR™ cordless power tools are backed by a 180-day no-questions-asked return guarantee
View more View less

GBH18V-36CN Professional

GBH18V-36CN Professional

Your Selection


Order number: 061191501D

Technical data

The most important data

Battery Chemistry Lithium Ion
Battery/Charger Not Included
Chuck Design Keyless
Chuck Size 1-9/16 in
Drive SDS-max
Drive System SDS-max
Height in 9.8 "
Impact Energy/EPTA (ft. lbs.) 5.2 Ft.-Lbs. EPTA
Length in 18.1 "
Max Bit Diameter 1-9/16"
Max. Hole Diameter in Concrete 1-9/16"
Maximum Diameter in Concrete,Carbide Tipped Core Bits 4"
No Load BPM 0-2,900
No Load RPM 0-500
Reverse Yes
Variable Speed Yes
Weight 11.3 lb
Weight (lbs.) 11.3
Width in 3.7 "

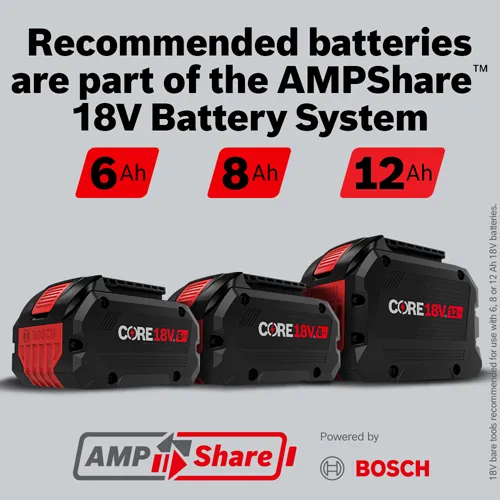

Works With Recommended Battery Packs to help achieve maximum tool performance, GBA18V60, GBA18V80 and GBA18V120 Batteries, Bosch Bluetooth® Connectivity Module, GCY42 (See tool manual for its connectivity/app features.), Dust Extraction/Collection Hoods, HDC200, HDC250, HDC300, SDS-max® Hammer Adapter for SDS-plus® Accessories, HA1030, SDS-max® Hammer Adapter for Spline Accessories, HA1031, SDS-max® Hammer Adapter for 1/2 In.-20 Thread Accessories, HA1032
Includes (1) GBH18V-36C PROFACTOR™ 18V Connected-Ready SDS-max® 1-9/16 In. Rotary Hammer
(1) Auxiliary Handle

GBH18V-36CN Professional: Further information

Product Highlights

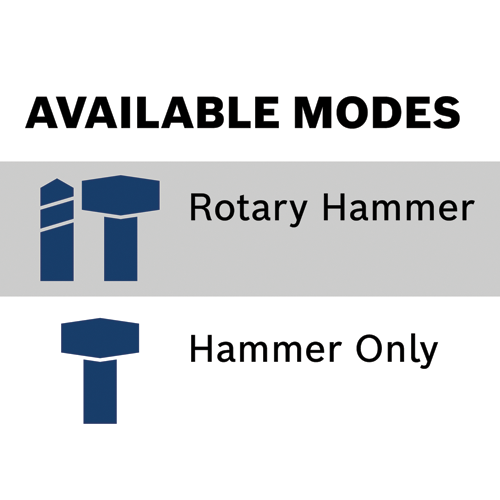

This 18V SDS-max® 1-9/16 In. rotary hammer is powerful enough to provide corded-type performance for tackling heavy-duty concrete drilling or chiseling jobs. The Bosch GBH18V-36C Rotary Hammer delivers 5.2 Ft.-Lbs. of impact energy (EPTA). That is unprecedented for a single 18V battery-driven SDS-max® 1-9/16 In. rotary hammer. It weighs 11.3 Lbs. (tool only, not including battery). This hammer is part of the PROFACTOR™ System, which pairs BITURBO Brushless™ Technology with a CORE18V® High Power Battery. BITURBO Brushless™ Technology is a high-performance motor and drive-train system designed to deliver power comparable to high-demand corded tools. The hammer has KickBack Control to reduce the risk of sudden tool reactions in binding conditions, and it includes an anti-vibration main handle. The GBH18V-36C has rotary hammer and hammer-only modes, a reverse setting and Vario-Lock to rotate and lock the chisel. It also has Soft Start and controlled rpm and bpm, making it easier to control drilling and chiseling applications. The hammer features an on-tool user interface for tool performance, feedback and control. This hammer features connectivity (module sold separately), providing a link to the free Bosch Toolbox app on a connected device to customize settings.
