RH540M Professional
SDS-max® Hammers
SDS-max® 1-9/16 In. Combination Hammer

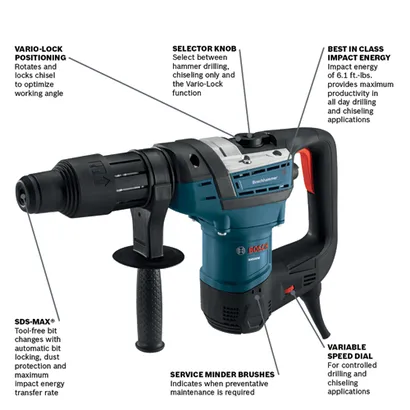

- 6.1 Ft.-Lbs. of impact energy, up to 20 percent more than other combo rotary hammers
- SDS-max® bit system for tool-free easy bit changes
- Vario-Lock mechanism allows 12 positions for best chisel angle

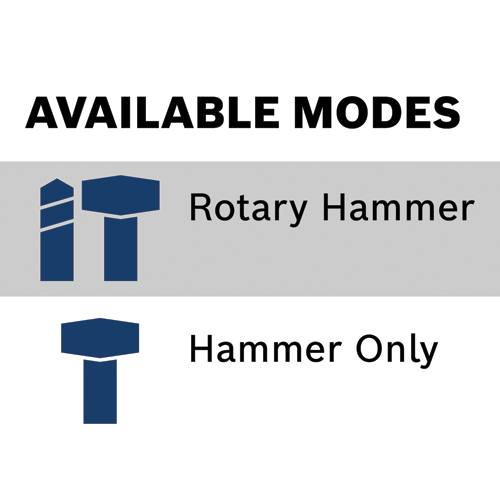

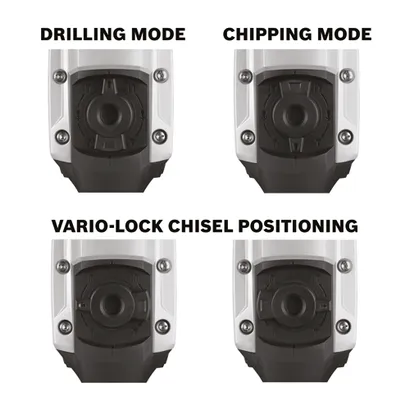

- Combination dual mode selector knob rotary hammer mode or hammer-only mode
- Service minder brushes
- Innovative service modules
RH540M Professional
Technical data
The most important data
Amperage
12
Chuck Design
Keyless
Chuck Size
1-9/16 in
Drive System
SDS-max
Height in
10.5 "
Impact Energy/EPTA (ft. lbs.)
6.1 Ft.-Lbs. EPTA
Length in
19 "
Material
Metal, Plastic
Max Bit Diameter
1-9/16"
Max. Hole Diameter in Concrete
1-9/16"
Max. Hole Diameter in Concrete-Core Bit
4"
Max. Hole Diameter in Concrete-Thru Hole Bit
2-1/2"
No Load BPM
1,500-2,900
No Load RPM
170-340
Optimal Concrete Capacity Range
1/2" - 1-3/8"
Reverse
No
Variable Speed
Yes
Voltage
120V
Weight
15.2 lb
Weight (lbs.)
15.2
Width in
4 "
Works With
Dust Extraction/Collection Hoods, HDC200, HDC250, HDC300, SDS-max® Hammer Adapter for SDS-plus® Accessories, HA1030, SDS-max® Hammer Adapter for Spline Accessories, HA1031, SDS-max® Hammer Adapter for 1/2"-20 Thread Accessories, HA1032
Includes
(1) RH540M SDS-max® 1-9/16 In. Combination Hammer
(1) Auxiliary Handle
(1) Grease Tube

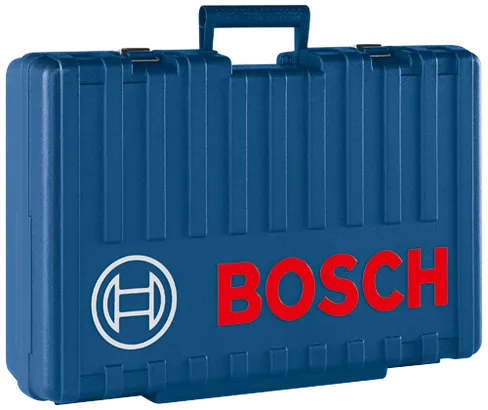

(1) Carrying Case
(1) Auxiliary Handle
(1) Grease Tube
(1) Carrying Case
RH540M Professional: Further information
Product Highlights

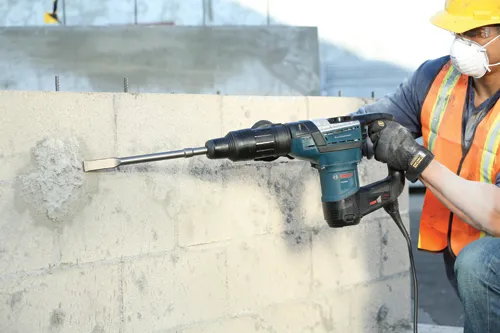

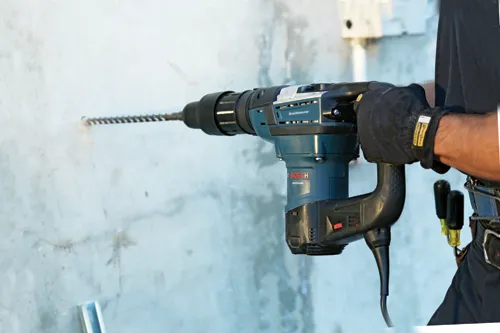

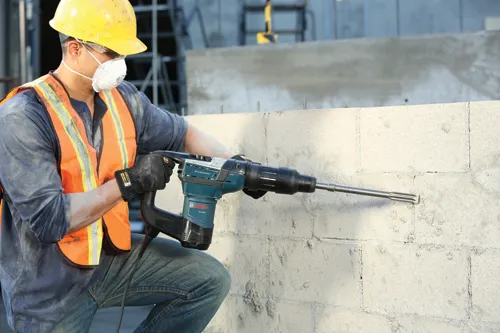

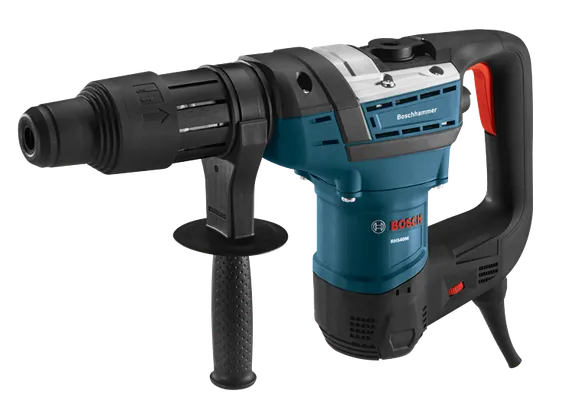

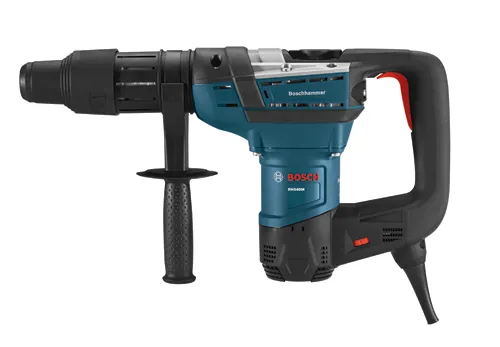

The Bosch RH540M SDS-max® 1-9/16 In. Combination Hammer is a rotary hammer and hammer-only tool designed for concrete contractors and professional remodelers who need a powerful and versatile tool. It delivers 6.1 Ft.-Lbs. of impact energy while weighing in at only 15.2 Lbs. The motor is rated at 170 to 340 RPM in rotary mode and 1,200 to 2,750 BPM in hammer mode, which will easily reduce concrete to dust. Its SDS-max® bit system allows tool-free and one-handed bit changes. The Vario-Lock mechanism lets users angle the chisel into 12 different positions to optimize the working angle. The hammer has a Dual Mode Selector Knob and service minder brushes, which clearly indicate when preventive maintenance is required.
