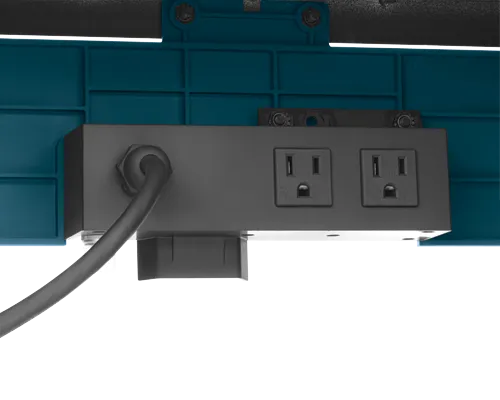

Grey electrical outlet with two receptacles, 125V 15A.
Bosch electric table with safety warnings, 125V-60Hz 15A HY75-7, and a red and yellow safety switch with "REMOVE TO LOCK".
Dust collection port and knob controls on a teal and black machine base.
Hand holding a black and red vacuum hose connected to a black rectangular device with knobs, on top of a metal surface.
Person operating a woodworking machine with a clear guard, hands guiding a piece of wood near a spinning blade.
Hand using an Allen wrench to adjust the height of a router bit on a metal table. The word "ROTATION" is visible.
Bosch RA1181 table saw with a person using it to shape wood. The saw has "BOSCH" in red, with "RA1181" on the side.
Router table with wooden fence and metal surface.
Bosch RA1181 benchtop router table with Easy-to-use adjustable featherboards, a dedicated standard dust-collection port, extra tall aluminum fence, accessory slot and rigid aluminum mounting plate.
RA1181

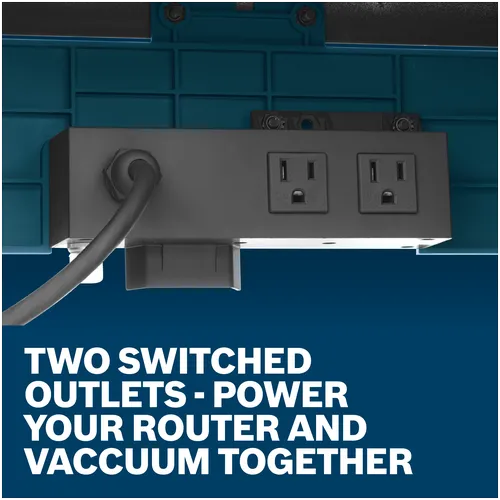

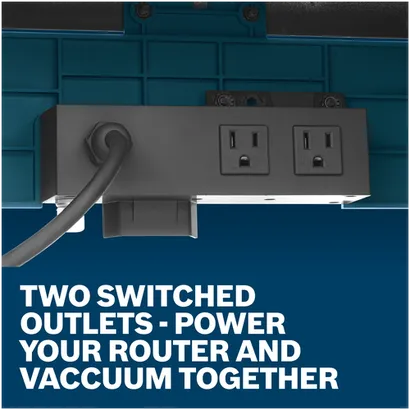

Grey electrical outlet with two receptacles, 125V 15A.
Bosch electric table with safety warnings, 125V-60Hz 15A HY75-7, and a red and yellow safety switch with "REMOVE TO LOCK".
Dust collection port and knob controls on a teal and black machine base.
Hand holding a black and red vacuum hose connected to a black rectangular device with knobs, on top of a metal surface.
Person operating a woodworking machine with a clear guard, hands guiding a piece of wood near a spinning blade.
Hand using an Allen wrench to adjust the height of a router bit on a metal table. The word "ROTATION" is visible.
Bosch RA1181 table saw with a person using it to shape wood. The saw has "BOSCH" in red, with "RA1181" on the side.

RA1181 Professional

Router Tables

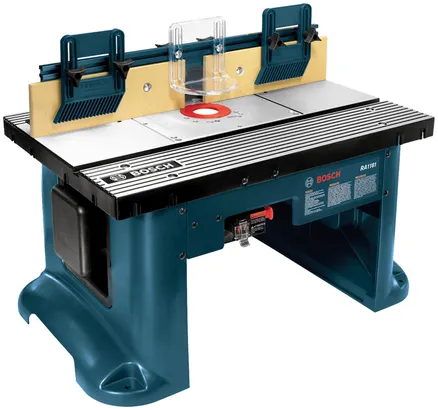

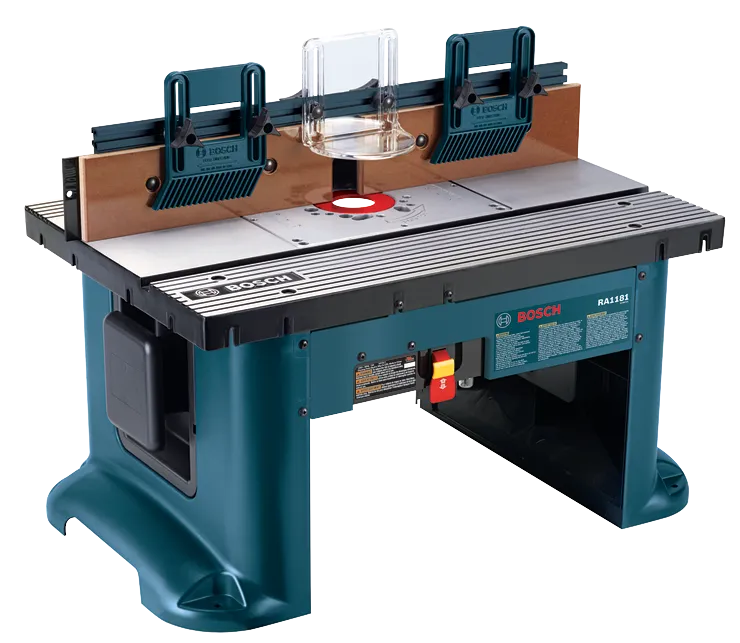

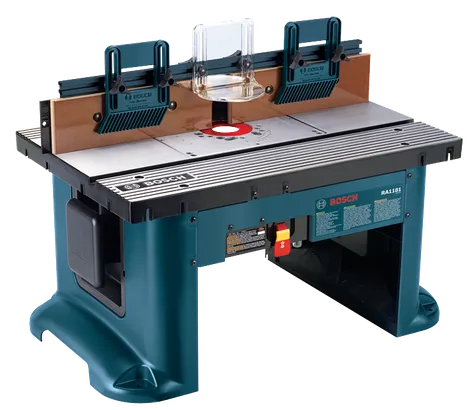

Benchtop Router Table

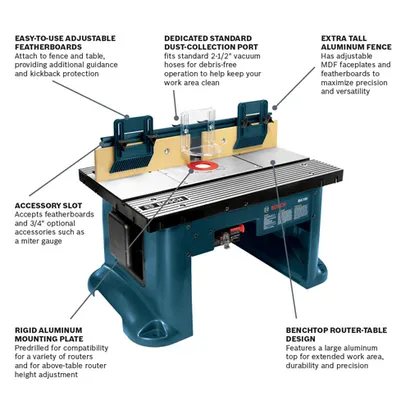

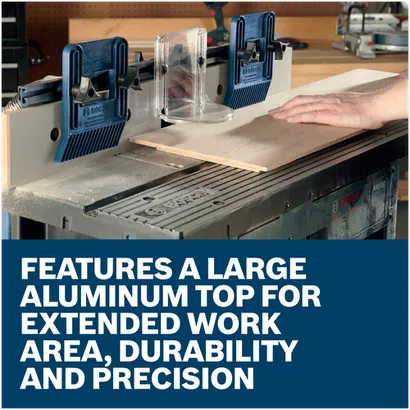

  • Benchtop router table design – features a large aluminum top for extended work area, durability and precision

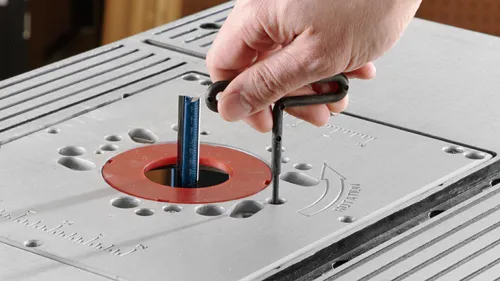

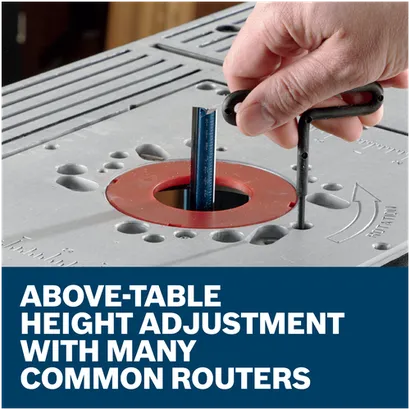

  • Rigid aluminum mounting plate – pre-drilled for compatibility with a variety of routers and for above-table height adjustment

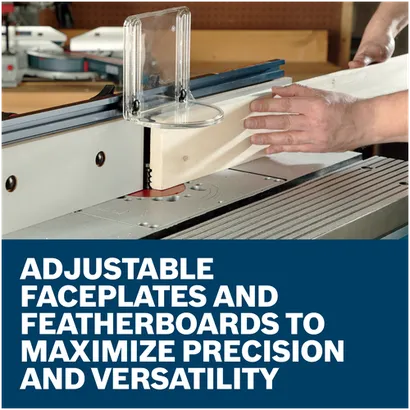

  • Extra tall aluminum fence – has adjustable faceplates and featherboards to maximize precision and versatility

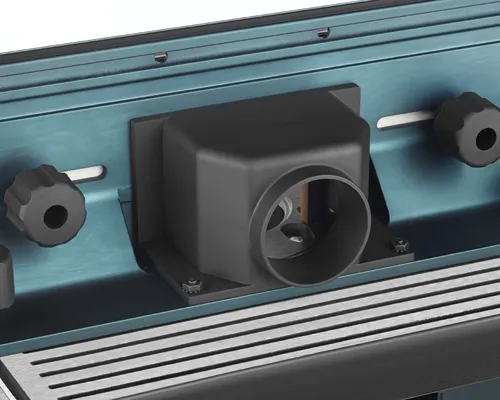

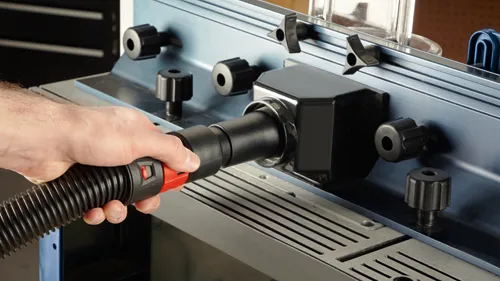

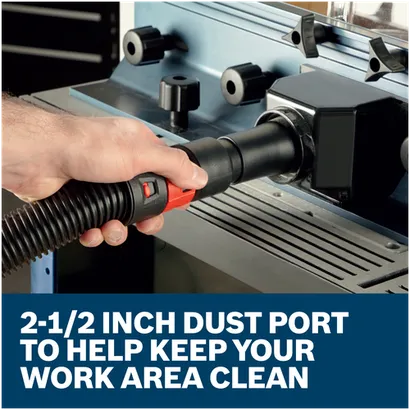

  • Dedicated standard dust-collection port – fits standard 2-1/2 In. vacuum hoses for debris-free operation to help keep your work area clean
  • Easy-to-use adjustable featherboards – attach to fence and table, providing additional guidance and kickback protection
  • Accessory slot – accepts featherboards and 3/4 In. optional accessories such as a miter gauge
  • Storage pocket – allows storage of router accessories
  • Cord-wrap storage – stores 6 Ft. power cord

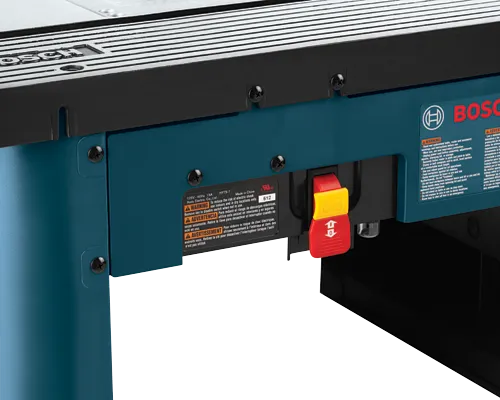

  • Power-cord lock – helps prevent unauthorized use
View more View less
RA1181 Professional

Technical data

The most important data

Amperage
15
Depth
18"
Dust Collection
Yes
Height in
14.5 "
Length in
22.75 "
Max. Fence Opening
3-5/8"
Max. Throat Opening
3-5/8"
Variable Speed
No
Weight
30 lb
Width in
27 "
Working Length in
27"
Works With
Bosch, 1613-Series and 1619EVS Plunge Routers; 1617-Series and MRF-Series Routers (in fixed base only), Craftsman®, Most Craftsman 1/2"-Collet Routers, DeWalt®, DW616 and DW618 Routers (in fixed base only), Hitachi®, M12VC Routers, Makita®, RF1100 and RF1101 Routers, Milwaukee®, 5615 and 5616 Routers, Porter-Cable®, 690-Series and 892-895-Series Routers (in fixed bases only) and 7529 Plunge Router, Ryobi®, R161, R162, R163, RE170 and RE180 PL Routers , Skil®, 1810, 1815, 1820 and 1825 Routers, Template Guides , The RA1181 does not accept any template guides., Vacuum Hoses, Common 2-1/2" Vacuum Hoses attach directly to the RA1181., Vacuum Hose Adapter for 35 mm Hoses, such as Bosch 35 Hoses, VAC004
Includes
(1) RA1181 Benchtop Router Table
(2) Adjustable Featherboards
(3) Mounting Plate Insert Rings

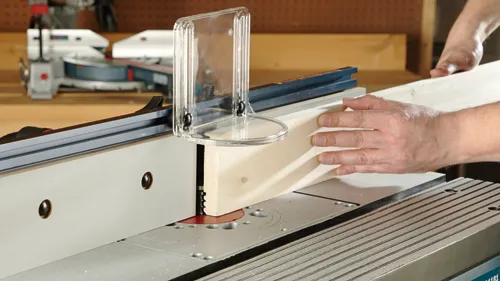

(1) Adjustable Clear Guard
(1) Starter Pin
(1) Starter Pin Guard
(2) Outfeed Fence Shims
(1) Hardware for Mounting Routers

RA1181 Professional: Further information

Product Highlights

The Bosch RA1181 benchtop router table provides a large work surface for precision and versatility. The large aluminum top makes the table both durable and portable. Designed to fit a variety of routers, this router table is a versatile piece of equipment that will serve as an indispensable part of any woodworking shop. Its rigid aluminum router mounting plate is pre-drilled for compatibility with a variety of routers and for above table height adjustment with many common routers. Its 2-1/2 In. dust-collection port offers better dust collection for a cleaner work environment. This benchtop router table includes mounting hardware, features a tall aluminum fence with adjustable MDF faceplates, two outfeed shims, and an aluminum router mounting plate. The starter pin and guard for routing curved workpieces is also included, in addition to the built-in cord wrap for convenient storage and portability.

Downloads

User Manual

User Manual | o206250v2_1619X04974_RA1181_0210.pdf (PDF 4.9 MB)
