Combo Pack Routers

PR20EVSNK Professional

Combo Pack Routers

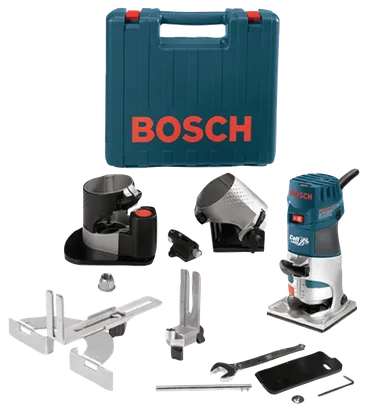

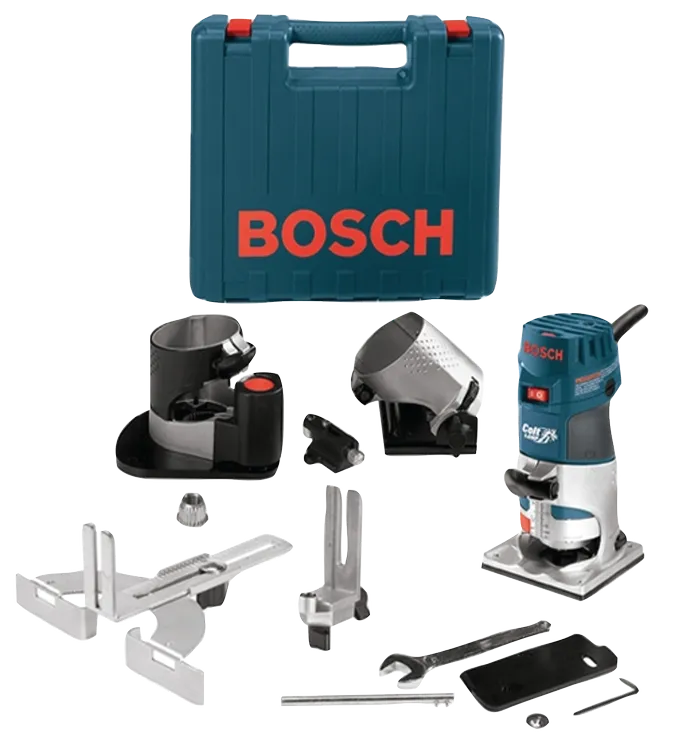

1 HP Colt™ Variable Speed Electronic Palm Router Installer's Kit

  • 1.0 HP (Max. tool output) — 5.6 Amp motor -16,000 35,000 RPM
  • Rugged aluminum fixed base — durable, solid and precise
  • Fast and precise depth adjustment system — the best depth adjustment system in its class
  • Unique finger support pockets — for additional stability, especially when trimming edges
  • Enhanced bit capacity — fixed base accepts bits up to 1-5/16 In. in diameter
  • Soft Start — reduces start-up torque
  • Constant Response circuitry — monitors and maintains speed under load for consistent performance and provides overload protection
  • Versatile bit-changing system – fast, easy bit changes using two wrenches or spindle lock and one wrench
  • Quick-clamp system — allows motor to be easily adjusted or moved from base to base
  • Offset base with spindle lock — allows routing near vertical surfaces, such as when trimming laminate applied to top of countertop backsplash
  • Angled cord exit — helps keep cord out of the way
  • Tilt base with detents at key angles — allows routing at special angles and in hard-to-reach areas
  • Underscribe attachment — mounts to fixed base for creating precise seams between sheets of laminates
  • Straight edge guide — guides router along edges of workpiece or up to 3-5/8 In. from edge
  • Roller guide — guides router when non-bearing bit or unpiloted bit is used
View more View less

PR20EVSNK Professional

Technical data

The most important data

Amperage 5.6
Base Opening 1-9/16"
Case Type Hard plastic
Collet Capacity 1/4" Self-releasing
Dust Collection No
Fixed-Base Depth Range 1-3/16"
Height in 7.5 "
Length in 3.5 "
Max. Tool HP 1
No Load RPM 16,000-35,000
Subbase Length 3-1/2"
Subbase Width 3-3/4"
Variable Speed Yes
Voltage 120V
Weight 3.3 lb
Width in 3.75 "
Works With Plunge Base, PR011, Offset Subbase and Dust Collection Attachment, PR007, Plastic Cover for Fixed Base, PR008, Subbase for Common Threaded Template Guides, PR110, Subbase for RA-Series Template Guides, PR009, Roller Guide, PR003
Includes (1) -- PR20EVS Motor
(1) - 1/4" Self-Releasing Collet Chuck - 2610008122
(1) - 17 mm Collet Wrench - 2609110438
(1) - 10 mm Shaft Wrench - 2609110786
(1) - Fixed Base -- PR001
(1) -- Straight Edge Guide -- PR002
(1) -- Roller Guide -- PR003
(1) -- Offset Base with Roller Guide -- PR004
(1) -- Tilt Base -- PR005
(1) -- Underscribe Plate with Wrenches -- PR006
(1) - Carrying Case

PR20EVSNK Professional: Further information

Product Highlights

The Bosch PR20EVS Colt variable-speed palm-grip router puts routing power and precision in the palm of your hand. The PR20EVS has an ergonomic palm-grip design with softgrip to make it very comfortable to hold, yet it also has ample power, making it typically easier to use than larger routers. It's more than a just a laminate trimmer, as it is the ideal tool for putting roundovers on deck railings, mortising for hinges, slot cutting, and much more. The motor features soft-start, a variable-speed control, and Constant Response circuitry to maintain speed under load. The PR001 fixed base features macro- and micro-fine depth adjustment. This kit includes the motor, fixed base, 1/4 In. self-releasing collet, comfortable foreged bit wrenches, edge guide and case. This laminate installer kit also includes a roller guide, offset base with roller guide, tilt base, and an underscribe plate with adjustment wrenches.
