Oscillating Multi-Tool Attachments

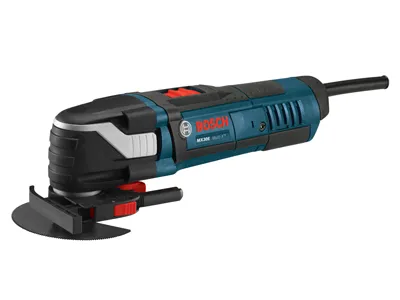

![Depth Stop Kit for MX30E and MXH180 Multi-X Oscillating Tool_OSC004_withMX30E]( "Depth Stop Kit for MX30E and MXH180 Multi-X Oscillating Tool_OSC004_withMX30E")
![Depth Stop Kit for MX30E and MXH180 Multi-X Oscillating Tool_OSC004_withMX30E]( "Depth Stop Kit for MX30E and MXH180 Multi-X Oscillating Tool_OSC004_withMX30E")
OSC004 Professional
Oscillating Multi-Tool Attachments

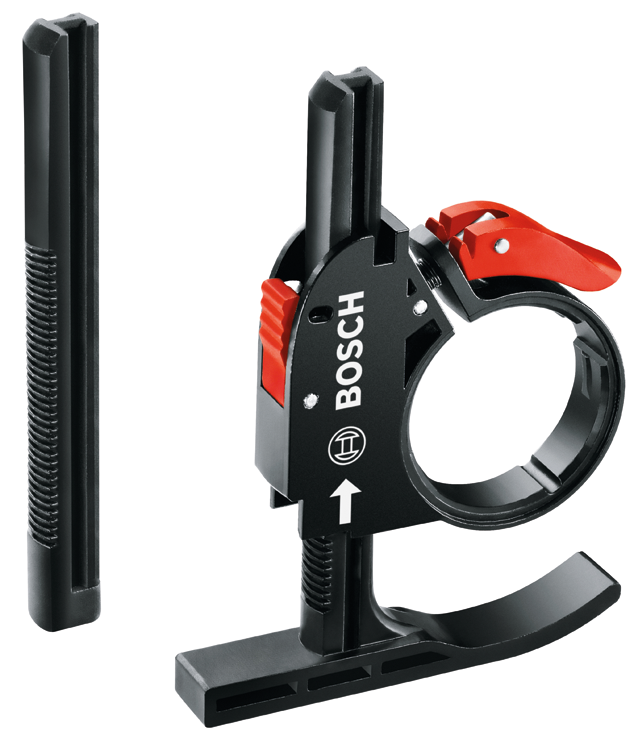

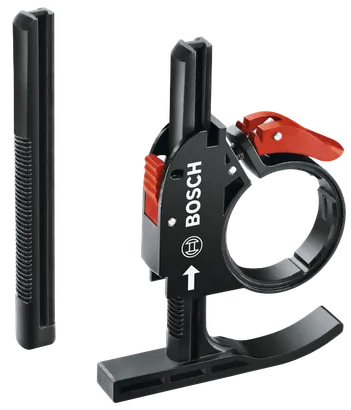

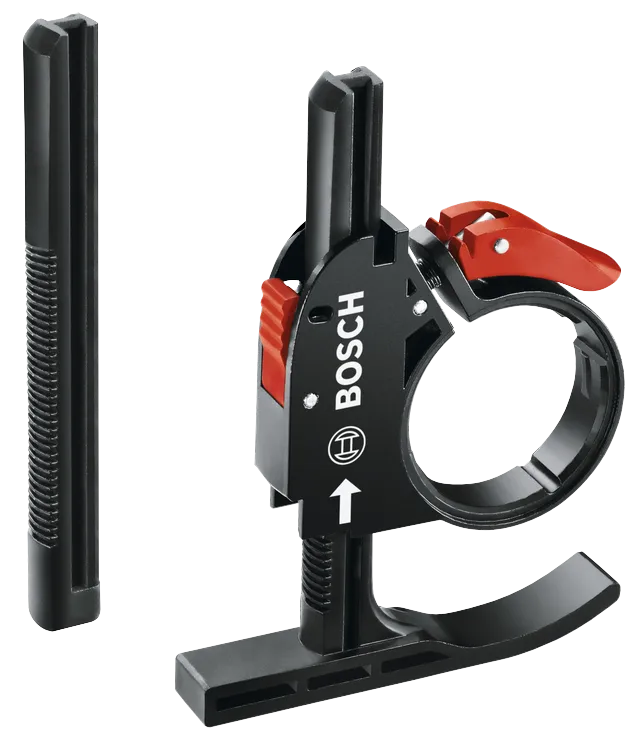

Oscillating Tool Depth Stop Kit
- Plunge cut control – allows cutting depth to be set from 1 mm to 41 mm when using typical plunge-cut blade
- Segment blade control – allows cutting depth to be set from 1 mm to 16 mm when using 3.5 In. segment blade
- Toolless system – provides mounting and adjustment of kit bracket and stops without tools
- Widely compatible – can be used with Bosch GOP-series Starlock® Oscillating Multi-Tools and MX30E and MXH180 Oscillating Multi-Tools
OSC004 Professional
Technical data
The most important data
Material
Glass-Filled Nylon
Size in
Allows cutting depth to be set from 1 mm to 41 mm when using typical plunge-cut blade Allows cutting depth to be set from 1 mm to 16 mm when using 3.5” segment blade
Used on Model No.
For use only with Bosch GOP40-30, GOP55-36, MX30E, and MXH180 Oscillating Tools
Works With
Corded Oscillating Multi-Tools, GOP40-30, GOP55-36, MX30E, Cordless Oscillating Multi-Tools, GOP12V-28, GOP18V-28, MXH180
Includes
Mounting Bracket
Narrow Depth Stop for Plunge-Cut Blades
Wide Depth Stop for "Segment" Blades and for guided cuts
Narrow Depth Stop for Plunge-Cut Blades
Wide Depth Stop for "Segment" Blades and for guided cuts
OSC004 Professional: Further information
Product Highlights
The OSC004 depth stop kit makes it possible to control the depth-of-cut when using the Bosch GOP-series Starlock® Oscillating Multi-Tools. It works with the Bosch GOP12V-28, GOP18V-28, GOP40-30 and GOP55-36. It also works with the Bosch MX30E and MXH180 Oscillating Multi-Tools. It allows the cutting depth to be set from 1 mm to 41 mm when using typical plunge-cut blade. It also allows cutting depth to be set from 1 mm to 16 mm when using 3.5 In. segment blade. The kit's clamp bracket and stops can be mounted, adjusted and removed without tools. The OSC004 is compatible only with the GOP-series Starlock® Oscillating Multi-Tools and MX30E and MXH180 Oscillating Multi-Tools.
