Combo Pack Routers

MRC23EVSK Professional

Combo Pack Routers

2.3 HP Electronic Modular Router System

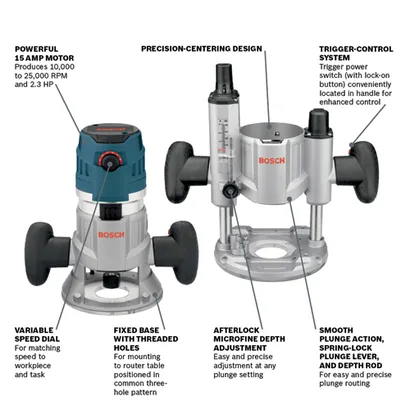

  • Trigger-control system – trigger power switch located in handle for enhanced control
  • Powerful 15 Amp motor – produces 10,000 to 25,000 RPM and 2.3 hp
  • Precision-centering design – makes it easy to keep bit on cut line

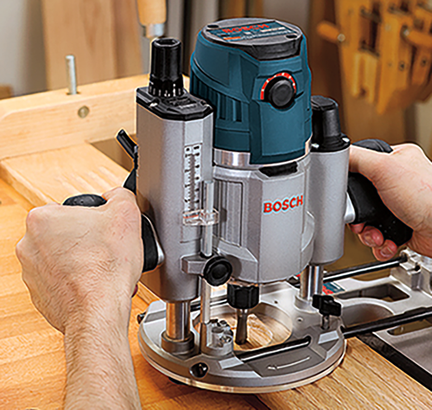

  • Afterlock plunge-base depth adjustment – easy, precise adjustments at any plunge setting
  • Versatile fixed-base depth adjustment – features 1-5/8 In. continuous microfine adjustment range
  • Above-table depth adjustment when fixed base is installed in router table
  • Constant Response circuitry – maintains constant speed under load
  • Soft-start function – reduces start-up torque
  • Always-on LED lighting – for enhanced visibility in bit area
  • Two-stage quick clamp system – for fast tool-free conversion

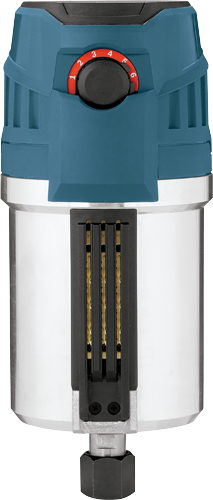

  • Variable speed dial – for matching speed to workpiece and task
  • Contoured soft grip handles – for enhanced control and comfort
  • Fixed base has threaded holes for mounting to router table positioned in common three-hole pattern
  • Cord swivel – for added mobility
  • Rugged carrying case has compartments for all included items
  • Compatible with optional RA1129 Template Guide Adapter Set – for easy change of Bosch quick-release template guides and common threaded template guides
View more View less

MRC23EVSK Professional

MRC23EVSK Professional

Your Selection

Bosch Router Combo Kit MRC23EVSK

Order number: 0601624012

Technical data

The most important data

Amperage 15
Base Diameter 6" Fixed/ 7" Plunge
Case Type Hard plastic
Collet Capacity 1/4", 3/8", 1/2", 8 mm
Dust Collection No
Fixed-Base Depth Range 1-5/8"
Height in 9.5 "
Horsepower Rating 2.3
Length in 6.75 "
No Load RPM 10,000-25,000
Plunge Depth 3" (75mm)
Rating 120V AC
Subbase Opening 2"
Variable Speed Yes
Voltage 120V
Weight 12.6 lb
Width in 12.6 "
Works With Router Tables, RA1171 Cabinet-Style Router Table, RA1181 Router Table, RA1152 Offset Bit-Change Wrench Set, Router Guide, RA1054, Template Guide System, RA1128 Template Guide Set, RA1129 Template Guide Adapter Set, Centering Device for Subbases and Attached Template Guides, RA1051, Dust Collection Attachments, RA1175 Edge-forming Dust Hood, RA1177AT Three-Hood Dust Hood Set

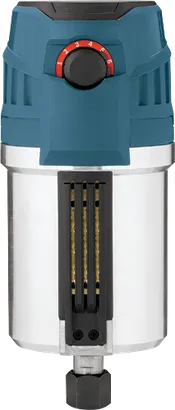

Includes Motor

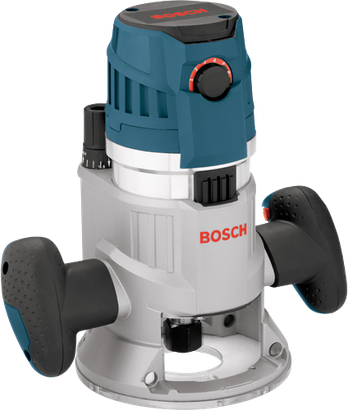

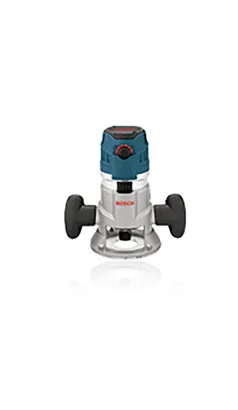

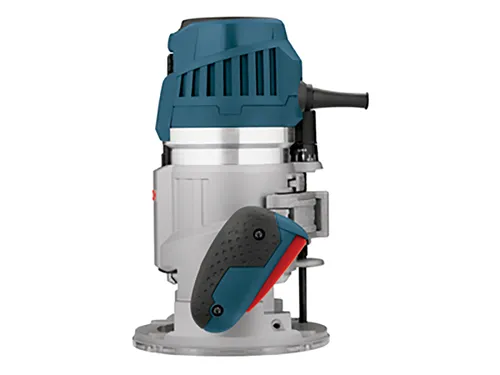

Fixed Base (MRF01)

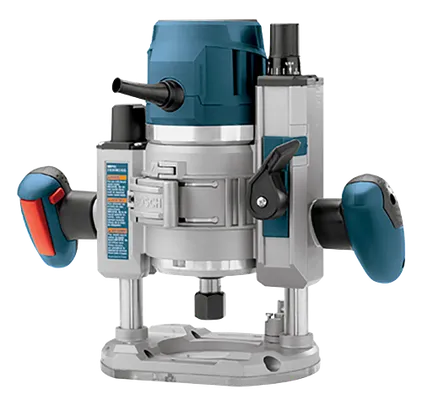

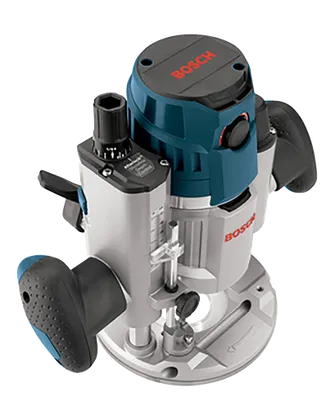

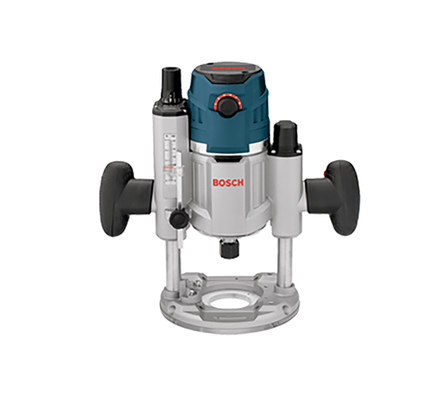

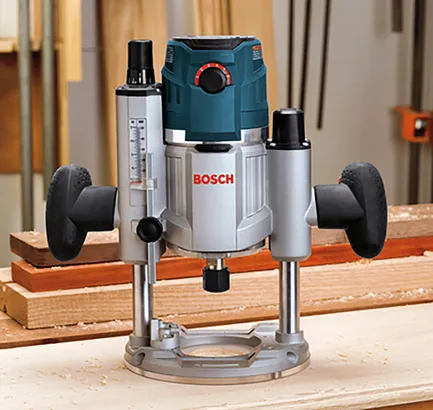

Plunge base (MRP01)
1/4" Self-Releasing Collet Chuck - 2 610 906 283
1/2" Self-Releasing Collet Chuck - 2 610 906 284
16mm Shaft Wrench - 2 610 991 388
24mm Collet Nut Wrench - 2 610 992 417
T-Handle Hex Height Adjustment Wrench - 2610923193
Carrying Case - 2 610 004 484
Pack of 3 M4 Screws for table mounting - 2610005966

MRC23EVSK Professional: Further information

Product Highlights

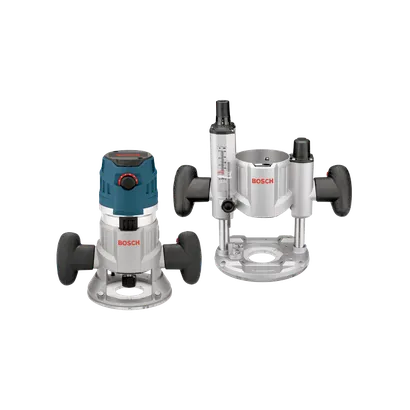

The Bosch MRC23EVSK 2.3 HP Electronic Modular Router System is an advanced set-up that provides a fixed base and a plunge base for the MR23EVS router. This system allows for outstanding operator control, with the trigger-control system that has a power switch in both the plunge-base's and the fixed-base's handle. The plunge base's Afterlock microfine bit-depth adjustment at any plunge setting allows for precision, with an adjustable turret stop makes it easy to set any cumulative depth. With a smooth plunge action and a spring-lock plunge lever, this router gets accurate results. The fixed base has microfine bit-depth adjustment, with a continuous depth range of 1-5/8 in., allowing for accurate and fast changes, while its precision-centering design allows the bit to be centered with the sub-base or optional template guides. The router has a 15 Amp motor and adjustable speed settings. The variable-speed dial allows the operator to match the speed to the material. Constant Response circuitry delivers a constant speed throughout the cut. Users can glide along the intended cutline using dovetail fixtures, templates, jigs and other guidance devices.
