LR10 Professional
Laser Receivers

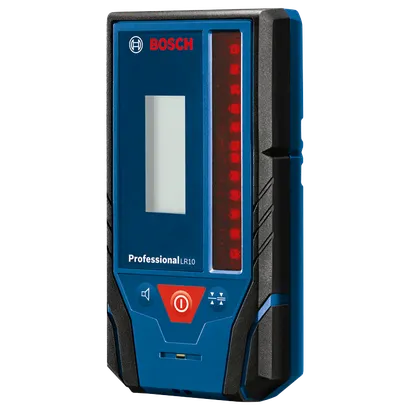

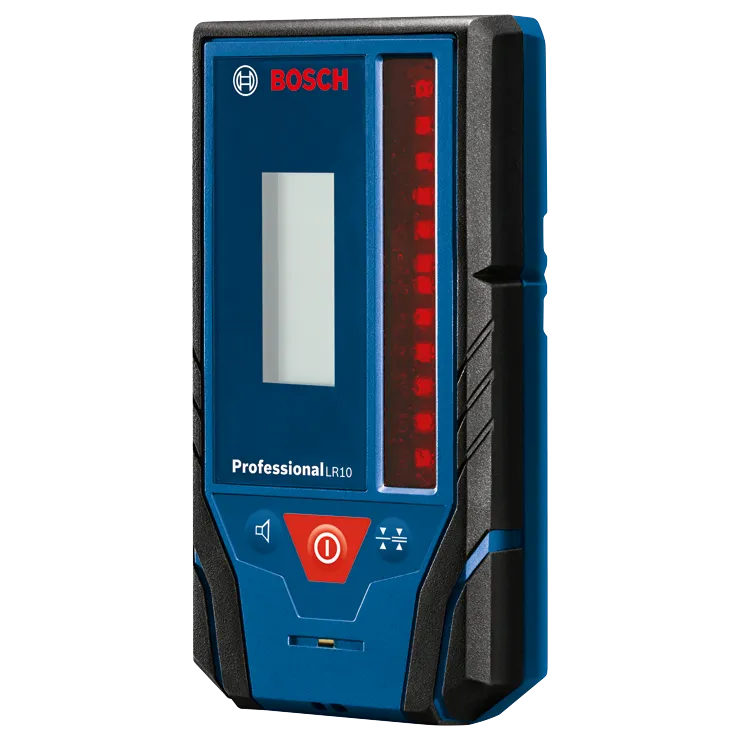

500 Ft. Red-Beam Rotary Laser Receiver

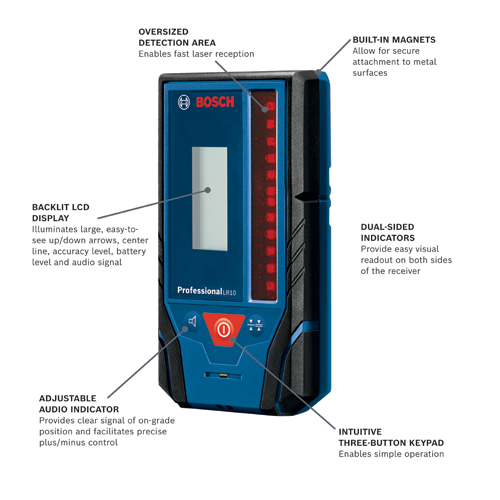

- Receiver to extend working range – increases rotary detection up to 500 Ft., with easy-to-see indicators and adjustable audio
- Backlit LCD display – illuminates large, easy-to-see up/down arrows, center line, accuracy level, battery level and audio signal
- Dual-sided indicators – provide easy visual readout on both sides of the receiver
- Oversized detection area – enables fast laser reception
- Built-in magnets – allow for secure attachment to metal surfaces
- Adjustable audio indicator – provides clear signal of on-grade position and facilitates precise plus/minus control
- Intuitive three-button keypad – enables simple operation
- Ergonomic soft grip – provides secure handling and comfort
- Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Functions & key features
LR10 Professional
Technical data
The most important data
Automatic Shut-Off
Yes
Dimensions
5.2" x 2.3" x 1.2"
IP Rating
IP 54
Length in
2.5 "
Material
Plastic
Power
2AA
Range
Up to 500-ft.
Receiving Laser Color
Red
Weight
1.31 lb
Width in
1.06 "
Includes
(1) LR10 500 Ft. Red-Beam Rotary Laser Receiver
(1) Mounting Bracket
(1) 9V Battery
(1) Mounting Bracket
(1) 9V Battery
LR10 Professional: Further information
Product Highlights
The Bosch LR10 Rotary Laser Receiver is designed to increase red beam rotary laser detection up to 500 Ft., with a backlit LCD display for use in darker areas or outdoors. The display illuminated large, easy-to-see indicators, including up/down arrows, center line, accuracy level, battery level and audio signal. It also has dual-sided indicators, to provide easy visual readout on both sides of the receiver. The oversized laser detection area helps find the laser beam faster, making it easier to start setting level. The receiver provides convenience features such as built-in magnets for secure attachment to metal surfaces, an adjustable audio indicator, intuitive three-button keypad and ergonomic soft grip.
