Wall and Floor Covering Line Lasers

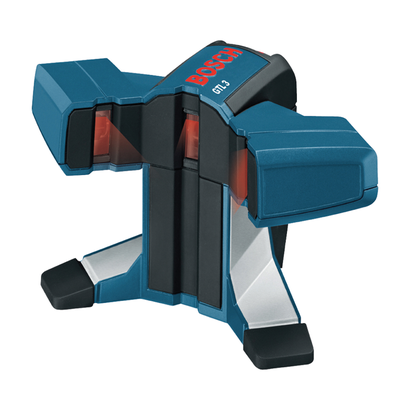

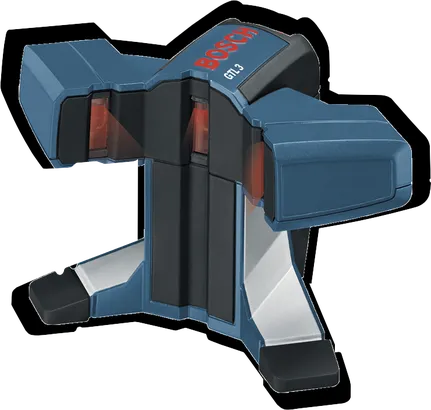

GTL3 Professional

Wall and Floor Covering Line Lasers

Wall/Floor Covering Laser

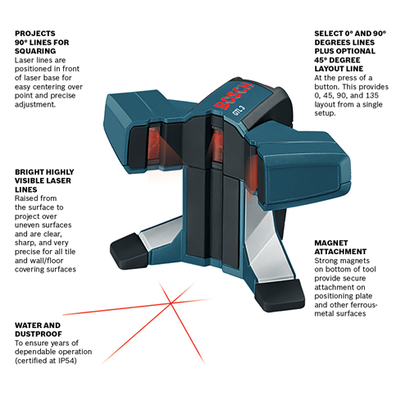

  • Ideal for wall/floor covering layout – designed to tile installation and other installation easier and faster
  • 0° and 90° layout lines – helps to layout tile and to make squaring a room easier

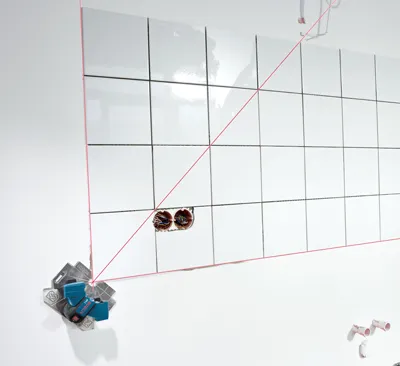

  • 45° beam – provides an additional guide and is made to plan orientation for diagonal layouts
  • Offset pivot point – sets a clear starting point in front of laser base for easy centering over point and precise adjustment
  • Elevated beams – allows laser line to travel past uneven surfaces or obstructions

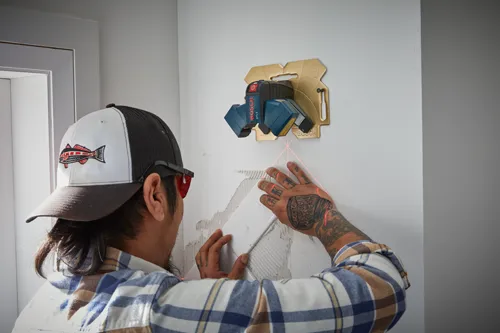

  • Powerful magnets on the base – provide secure attachment on the included positioning plate, as well as on other ferrous-metal surfaces
  • Single-button operation – select 0° and 90° degrees lines plus optional 45° degree layout line at the press of a button
  • Versatile layout options – provides 0°, 45°, 90° and 135° layout lines from a single setup point
  • Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
View more View less

GTL3 Professional

GTL3 Professional

Your Selection

Tile and Square Layout Laser

Order number: 0601015210

Technical data

The most important data

Connected No
Dimensions 6.125" x 4" x 3.875"
Height in 3.85 "
IP Rating IP 54
Laser Beam Color Red
Laser Diode Class II 635 nm, = 1 mW
Length in 6.15 "
Leveling Type Manual
Material Durable plastic with overmold in key impact areas
Number of Beams 3
Operating Temperature 14° F / -10° C ~1 22° F / 50° C
Range Up to 65-ft.
Weight 1 lb
Width in 4 "
Includes (1) GTL3 Wall/Floor Covering Laser
(1) Versatile Steel Positioning Plate
(1) Laser Target
(4) AA Batteries
(1) Pouch

GTL3 Professional: Further information

Product Highlights

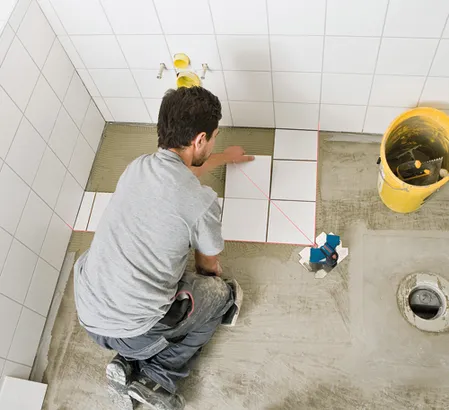

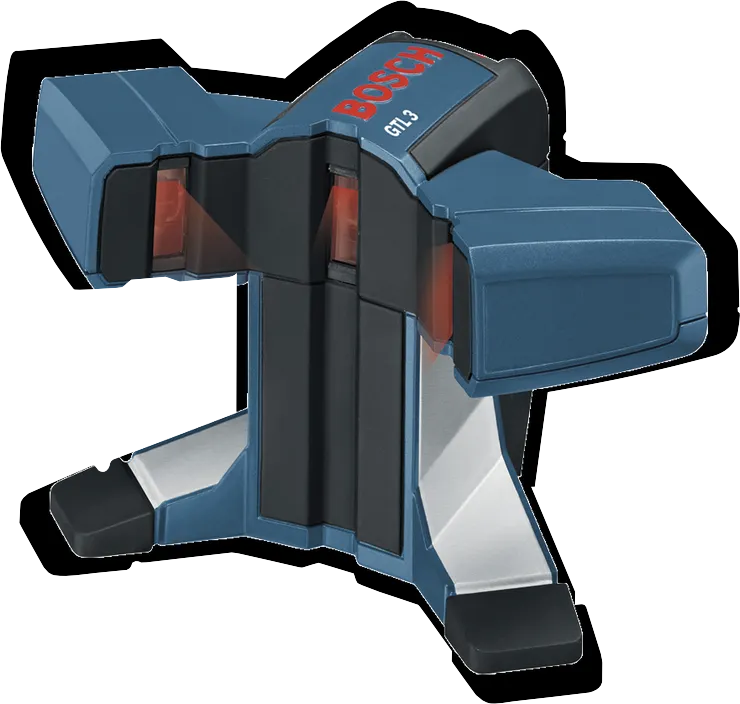

The Bosch GTL3 Wall/Floor Covering Laser is designed to make tile installation and other installation easier and faster. Bosch asked flooring contractors how a laser layout tool could make their work easier, and the GTL3 is the solution. It generates layout lines at 0° and 90° from a single setup. The highly visible laser beams are elevated to go past several objects, and the laser has a strong magnet and a steel positioning plate for maximum versatility. Select 0° and 90° degrees lines plus optional 45° degree layout line at the press of a button. This layout laser provides 0°, 45°, 90° and 135° layout lines from a single setup point.
