12V Max Inspection/Detection Devices

GTC400C Professional

12V Max Inspection/Detection Devices

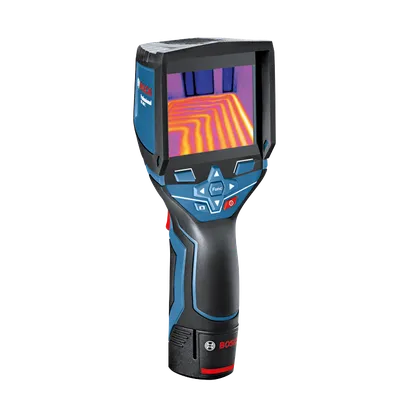

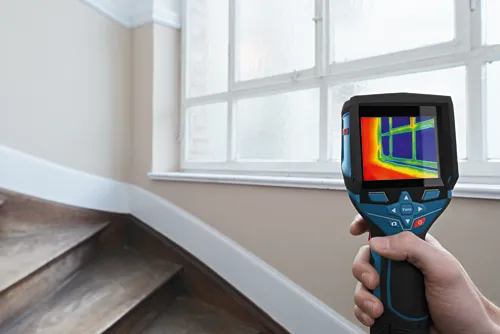

12V Max Connected Thermal Camera

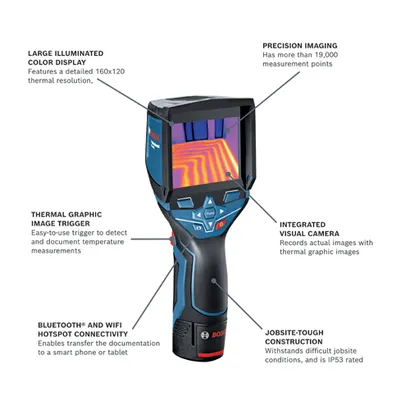

  • Fast thermal camera operation – detects temperature anomalies in seconds by just squeezing the trigger and freezing the image
  • Large illuminated color display – features a 160x120 thermal resolution, setting the standard for detailed thermal resolution
  • Integrated camera – records actual images with thermal graphic images, for side-by-side comparison, picture-in-picture and more
  • Precision imaging – has more than 19,000 measurement points, showing hot and cold spots, center temperature and adjustable temperature scale
  • Image memory – stores up to 500 images, both thermal graphic images and visual pictures
  • 12V Max Lithium-ion power – features long runtime for complex jobs
  • Bluetooth® and WiFi hotspot connectivity – enables transfer of documentation to a smart phone or tablet
  • Jobsite-tough construction – withstands difficult jobsite conditions, and is IP53 rated
  • Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
  • Bosch 12V Max batteries and chargers are covered by a one year limited warranty - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
View more View less

Functions & key features

Infrared sensor: 160 x 120 pixels
Infrared temperature measurement range of +14 to +752°F (-10 to +400 °C).
App for convenient on-site documentation of thermal images, real images, and measured values.
IP 53 - Protected against dust and spraying water.​

GTC400C Professional

Technical data

The most important data

Battery 12V Lithium-ion Battery
Height in 9.17 "
IP Rating IP 53
Length in 3.74 "
Weight 2.2 lb
Width in 2.48 "
Works With Batteries, BAT414, GBA12V30, GBA12V60, Chargers, GAL12V-20, GAL12V-40, GAX1218V30
Includes (1) GTC400C 12V Max Connected Thermal Camera
(1) 12V Max Lithium-Ion Battery
(1) 12V Max Charger
(1) USB Cable
(1) Soft Pouch

GTC400C Professional: Further information

Product Highlights

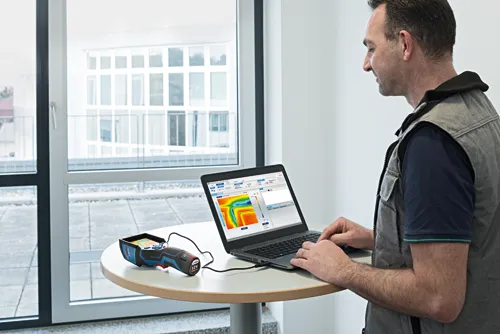

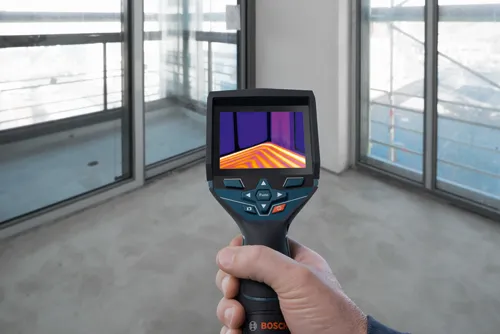

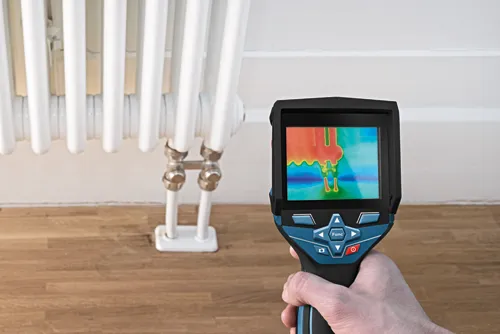

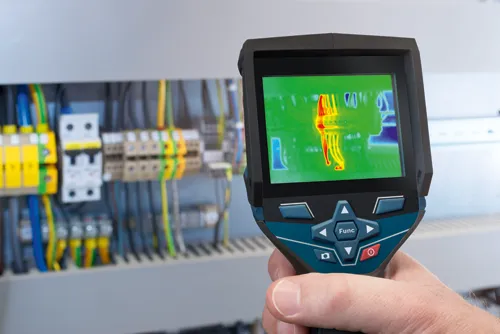

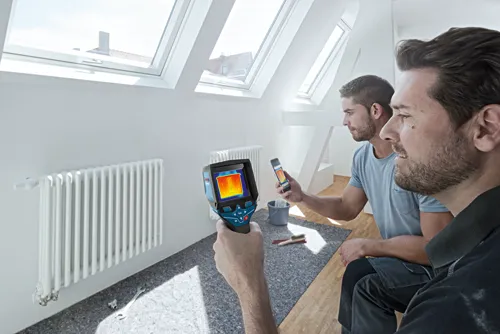

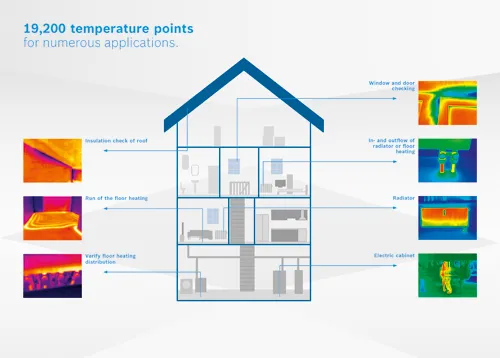

The Bosch GTC400C 12V Max Connected Thermal Camera is easy to use, determining temperatures in seconds and documenting the results with convenience. Featuring a large illuminated color display, it delivers a 160x120 thermal graphic image accurate to ±3° C, setting the standard for detailed thermal resolution. It features simple operation; just squeeze the trigger to shoot image, and use the click wheel for the functions. The thermal graphic image features more than 19,000 measurement points for precision, showing hot and cold spots, the temperature at the center and an adjustable temperature scale. The integrated visual camera records actual images, so the user can document the work area visually as well as thermally. This allows side-by-side comparison, picture-in-picture and overlay of picture and thermal graphic. It can store up to 500 images. It’s powered by the Bosch 12V Max battery platform for professional runtime. The user can then transfer the thermal documentation to a device with Bluetooth® or WiFi hotspot with GTC software. The camera discloses problems in real time, without stopping production, and it is ideal for insulation, heater and radiator, windows and more.
