18V Jig Saws

GST18V-47N Professional

18V Jig Saws

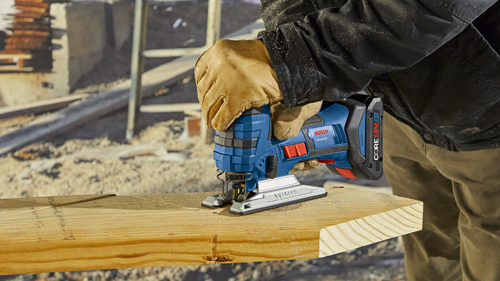

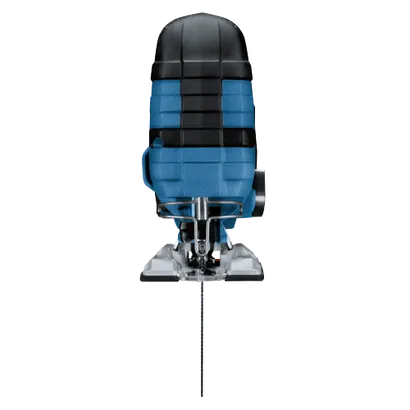

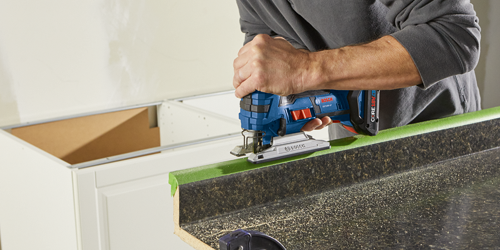

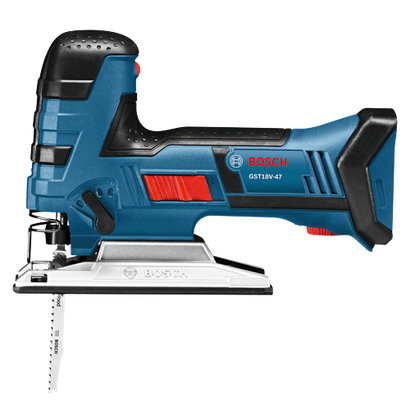

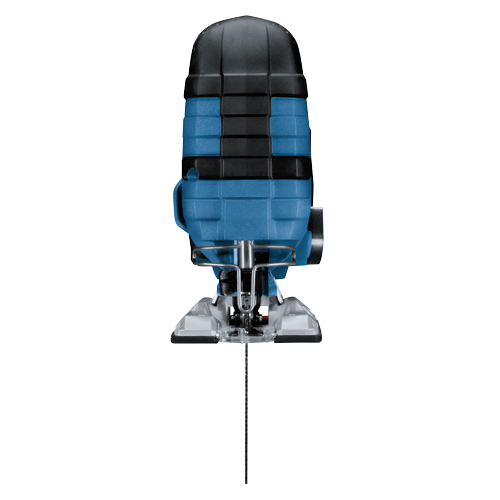

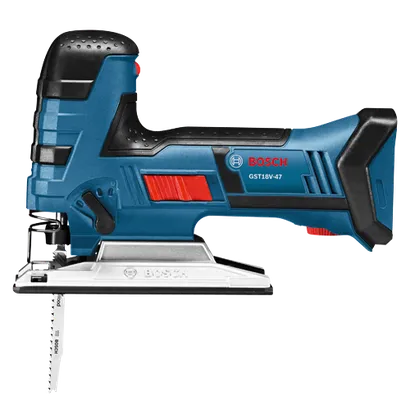

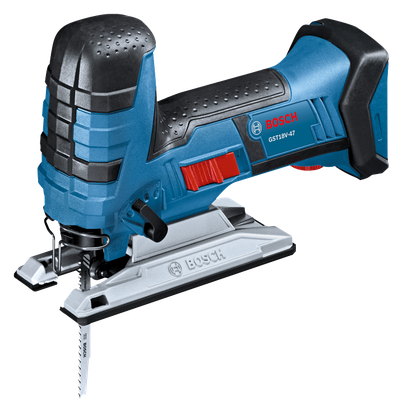

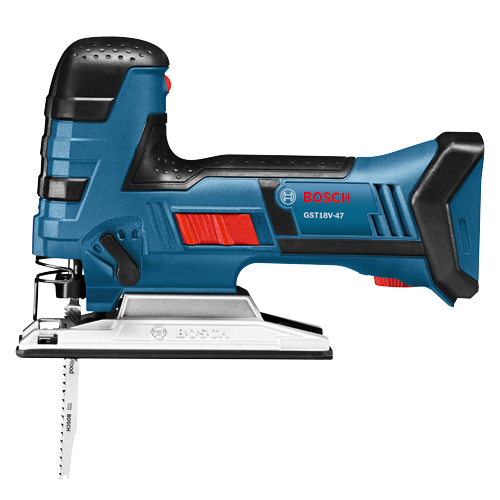

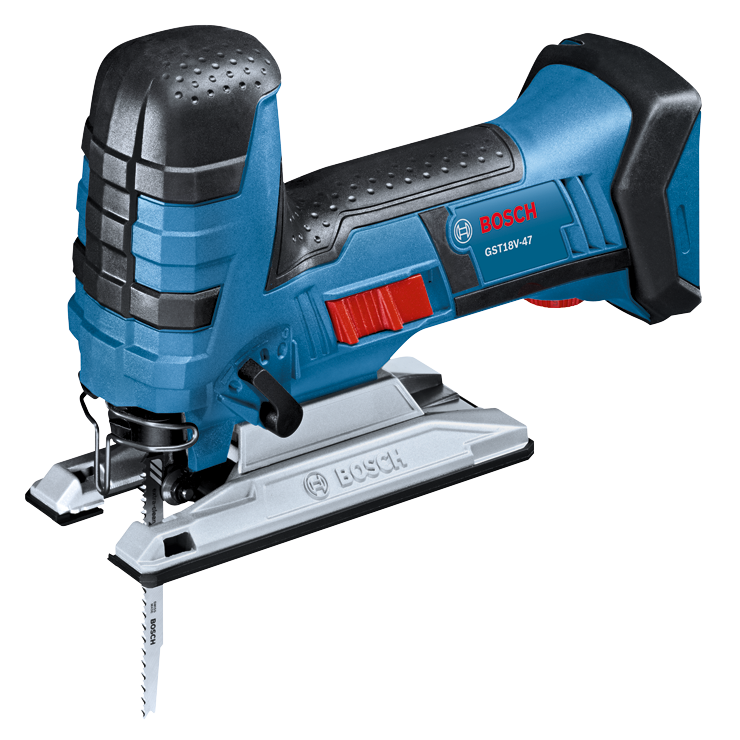

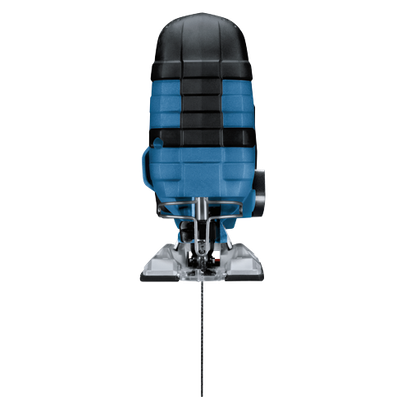

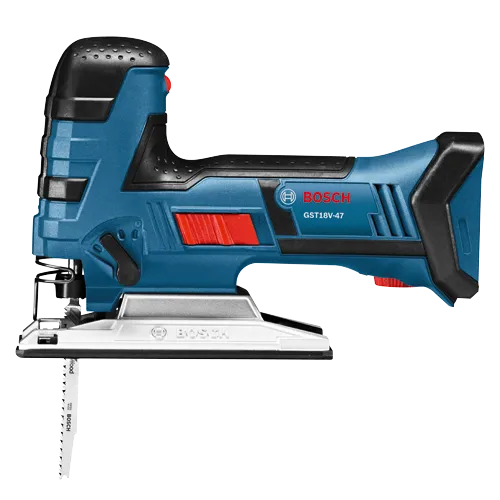

18V Barrel-Grip Jig Saw (Bare Tool)

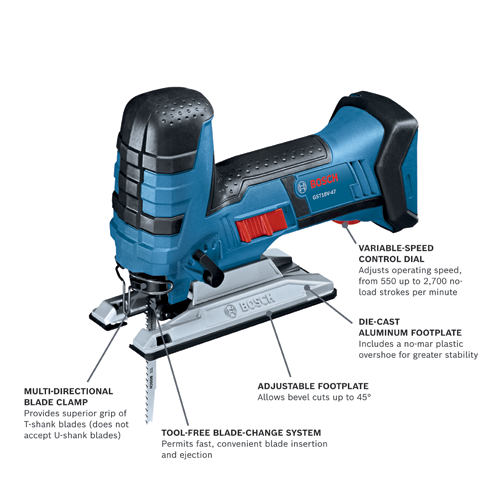

  • Powerful 18V jig saw design – delivers an easy-handling barrel grip with up to 2,700 no-load strokes per minute
  • Extended upfront soft-grip areas – provides user comfort and control, with a small barrel-grip circumference
  • Large die-cast aluminum footplate – includes a no-mar plastic overshoe for greater stability
  • Variable-speed control – provides a dial to control operating speed, from 550 up to 2,700 no-load strokes per minute
  • Auto-stop – stops the stroke mechanism immediately after moving the switch to off for increased protection
  • Long stroke length – has about a 1 In. stroke length for a cutting capability up to 4-1/2 In. in wood and up to 7/8 In. in aluminum
  • Four orbital-action settings – delivers varied blade strokes
  • Multi-directional blade clamp – provides superior grip of T-shank blades (does not accept U-shank blades)
  • Aluminum gearbox with insulated cover – provides durability
  • Tool-free blade-change system – permits fast, convenient blade insertion and ejection
  • Dust blower – keeps the cut line visible and free of dust
  • LED light – illuminates the cut line in dark work areas
  • AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
  • AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
  • Bosch 18V cordless power tools are covered by a five year limited warranty – for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
View more View less

GST18V-47N Professional

Technical data

The most important data

Battery Chemistry Lithium Ion
Battery/Charger Not Included
Case Type No Case Included
Charger Not Included
Dust Blower Yes
Height in 6.6 "
Jig Saw Blade Type Jig Saw T-Shank
Length in 10.2 "
Max. Capacity in Steel 5/16"
Max. Capacity in Wood 4-23/32”
No Load SPM 550-2,700
Separate On/Off Speed Control Yes
Stroke Length (in) 1
Variable Speed Yes
Weight 4 lb
Width in 3 "
Works With Jig Saw Guide, JA1010, Steel Overshoe for Footplate, JA1011, Anti-Splinter Insert, JA1013
Includes (1) GST18V-47 18V Barrel-Grip Jig Saw
(1) T-Shank Jig Saw Blade
(1) Anti-Splinter Insert
(1) Non-Marring Overshoe

GST18V-47N Professional: Further information

Product Highlights

This 18V jig saw delivers powerful and manageable cordless cutting, with its ergonomic, well-balanced barrel-grip design. The GST18V-47 18V Barrel-Grip Jig Saw has extended upfront soft-grip areas and a small barrel-grip circumference for greater tool control. It provides a variable-speed dial – from 550 up to 2,700 no-load strokes per minute – to match the speed to material. The jig saw has a stroke length of about 1 In., delivering a cutting capability up to 4.7 In. in wood and up to 0.8 In. in aluminum. It has four orbital-action settings for cut control and auto-stop to stop the stroke mechanism. The saw also has a large die-cast aluminum footplate with no-mar plastic overshoe to help prevent damage to the workpiece. The cut lines stay visible due to the dust blower and LED light. It features a tool-free T-shank blade-change system.
