Rotary Lasers

GRL800-20HVK Professional

Rotary Lasers

Self-Leveling Rotary Laser Kit

  • Rotary laser kit – features a horizontal/vertical rotary laser with working range of up to 800 Ft. and includes a laser receiver, tripod, grade rod, wall mount, laser glasses, target card and a hard carrying case
  • Vertical-beam functionality – provides a vertical beam and 90° point for layout, squaring and plumb applications
  • Electronic self-leveling – allows for easy setup and use on the job
  • Disturbance monitor – indicates if tool position changes, ensuring consistent leveling accuracy
  • Reliable accuracy – delivers ±3/16 In. accuracy at 100 Ft. for confidence in the job setup
  • Long-range capability – provides up to 800 Ft. working range
  • Variable-speed and scan-angle selection – allows for maximum visibility at different lighting conditions
  • Robust design – features two large easy-to-grip carrying handles for convenience and additional drop protection
  • Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
View more View less

GRL800-20HVK Professional

GRL800-20HVK Professional

Your Selection

Self-Leveling Rotary Laser Kit_GRL800-20HVK_Kit

Order number: 0601061M10

Technical data

The most important data

Laser Diode Class 3R <5mW @ 630 ~ 670nm
Leveling Type Self-Leveling, Up to 5°
Material Plastic
Mount Threading 5/8-11
Operating Temperature 14° F / -10° C ~1 22° F / 50° C
Range Up to 1,000-ft.
Weight 3.9 lb
Works With Laser Receivers, LR30, Tripods, BT160, BT170HD, BT300HD, Grade Rods, GR500, GR16, Mounts and Positioning Devices, WM4

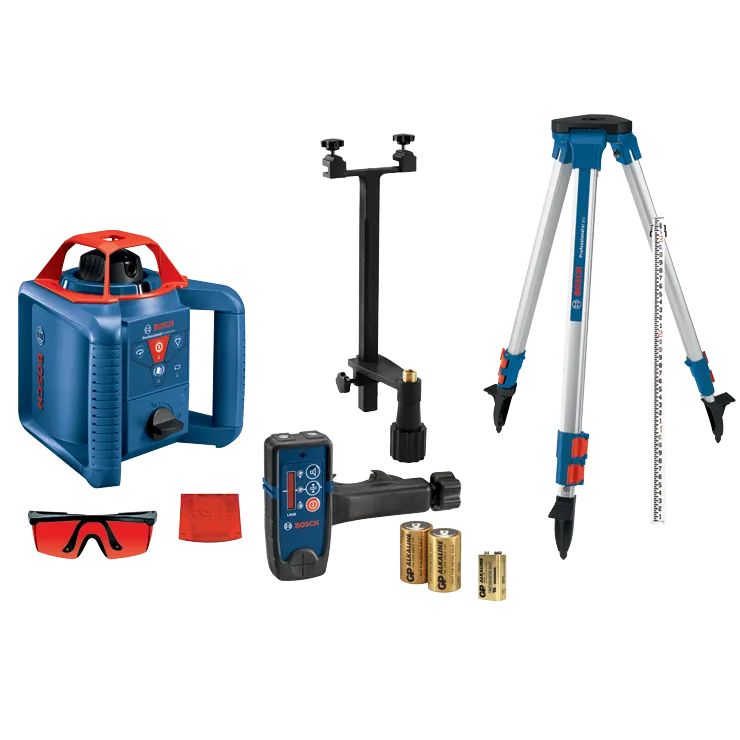

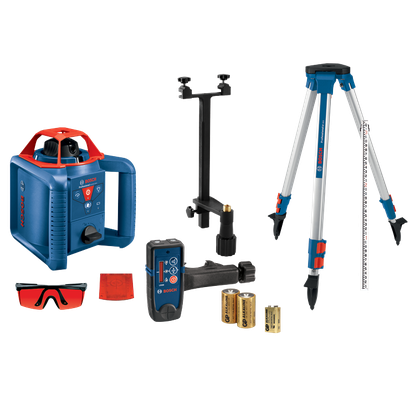

Includes (1) GRL800-20HV Self-Leveling Rotary Laser
(1) LR 30 Laser Receiver with Bracket
(1) BT152 Aluminum Tripod
(1) GR 8 C 8 Ft. Grade Rod
(1) WM 24 Wall Mount
(1) Red Laser Glasses
(1) Red Target Card
(2) D Batteries
(1) 9V Battery
(1) Carrying Case

GRL800-20HVK Professional: Further information

Product Highlights

The Bosch GRL800-20HVK Self-Leveling Rotary Laser Kit delivers all-in-one package for precise outdoor and indoor leveling. It features a horizontal/vertical self-leveling laser, suitable for leveling, aligning and squaring applications. The rotary laser provides users with variable speed selection and manual scan angles for maximum visibility at different lighting conditions. It delivers accuracy of up to ±3/16 In. at 100 Ft, and a range of up to 800 Ft. with laser receiver. The electronic self-leveling system has a disturbance monitor, which indicates to the user if tool position changes, ensuring consistent leveling accuracy on the jobsite. Easy to use, the laser has a metal cage and an IP54 rating. This leveling solution includes a laser receiver, tripod, sturdy grade rod, wall mount, laser glasses, target card and hard carrying case.
