GOL 32 Professional
Optical Levels

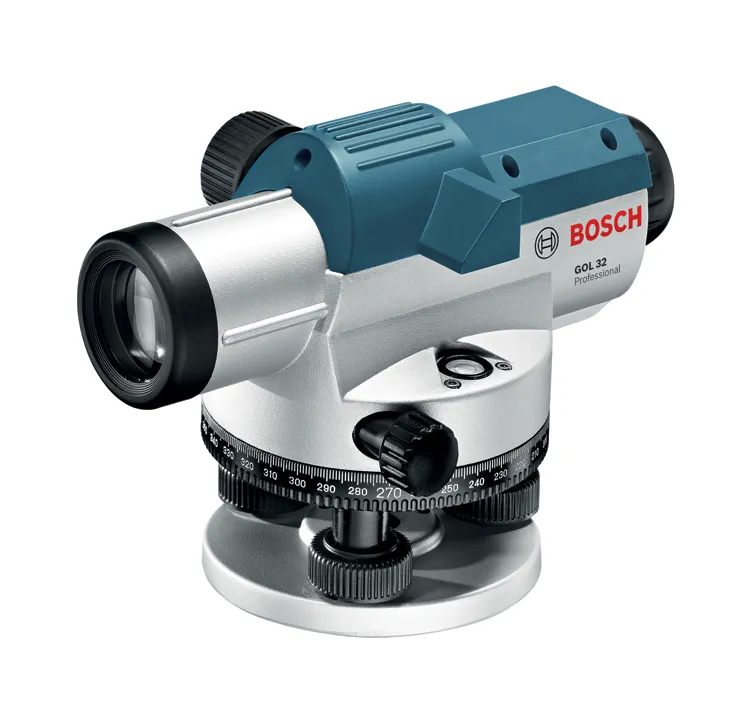

Automatic Optical Level

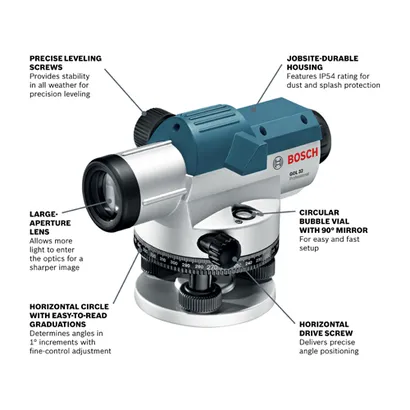

- Self leveling compensator with transport lock — protects pendulum against damage and loss of calibration
- Large aperture 32x-power lens — allows more light for a sharper image and excellent magnification
- Weather resistant design - IP54
- Solid metal base and three precision leveling screws - provides stability in all weather for precision leveling
- Both horizontal/vertical Crosshairs and Stadia lines - measures level and alignment and estimates distance
- Top mount quick sight — for quick sighting of leveling rod
- Circular bubble vial with 90-degree prism — for easy, fast set-up
Functions & key features
GOL 32 Professional
Technical data
The most important data
Height in
8.3 "
IP Rating
IP 54
Length in
5.6 "
Material
Durable plastic with overmold in key impact areas; aluminum
Mount Threading
5/8-11
Range
Up to 400-ft.
Weight
3.7 lb
Width in
5.3 "
Works With
Tripods, BT160, BT170HD, BT300HD, Telescoping Leveling Rods, GR 16, GR500
Includes
(1) GOL 32 Automatic Optical Level
(1) Plumb Bob
(1) Tool Kit
(1) Carry Case
(1) Plumb Bob
(1) Tool Kit
(1) Carry Case
GOL 32 Professional: Further information
Product Highlights

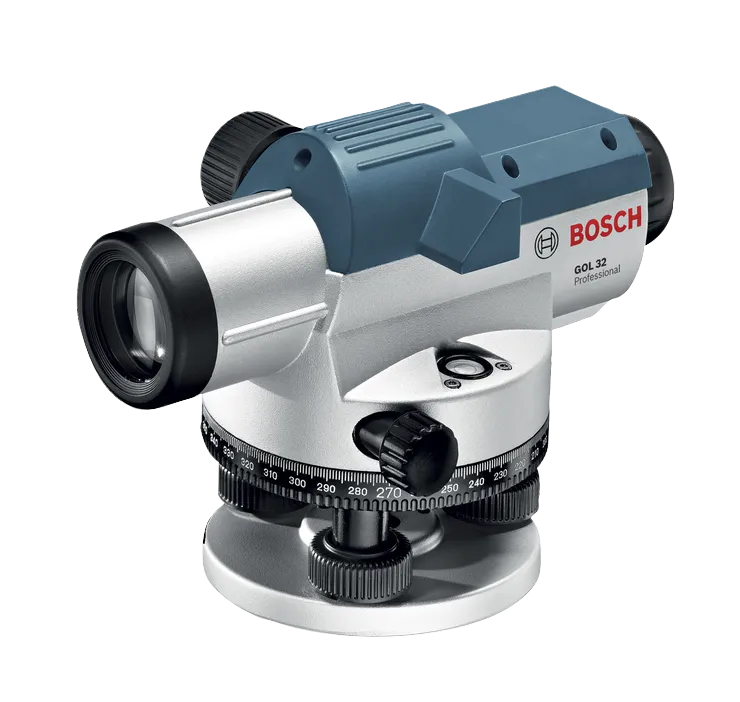

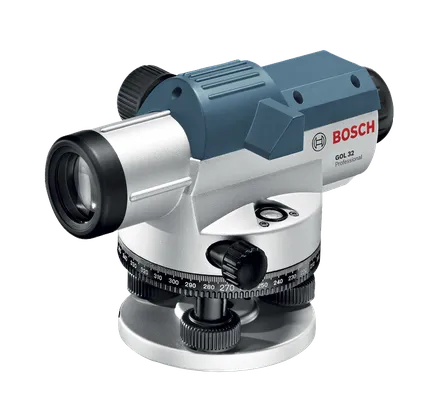

The Bosch GOL 32 automatic optical level features a self-leveling compensator, both horizontal/vertical cross hairs and Stadia lines, 32x magnification lens and large aperture for clear image. Range: 400 Ft., accuracy: up to 1/16 in. at 100 Ft., includes: hard case, lens cap, plumb bob, adjustment tools.
