Optical Levels

GOL 26CK Professional

Optical Levels

Automatic Optical Level Kit

  • Accurate up to ± 1/16 In. at 100 Ft. distance
  • Large aperture 26x-power lens – allows more light for a sharper image and excellent magnification
  • Self-leveling compensator with transport lock – protects pendulum in carrying case against damage and loss of calibration
  • Both horizontal/vertical Crosshairs and Stadia lines – measures level, alignment and estimates distance
  • Screws — provides stability in all weather for precision leveling
  • Both horizontal/vertical Crosshairs and Stadia lines — measures level and alignment and estimates distance
  • Top mount quick sight — for quick sighting of leveling rod
  • Circular bubble vial with 90-degree prism — for easy, fast set-up
  • Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
View more View less

Functions & key features

26x magnification lens
Accurate to ±1/16 In. at 100 Ft (30 m).
Working range of up to 330 Ft (100 m).
IP 54 - Protected against dust and splashing water from any direction.​
Works with mounts and tripods using a 5/8"-11 thread mount.

GOL 26CK Professional

Technical data

The most important data

IP Rating IP 54
Length in 5.6 "
Leveling Type Magnetically Dampened Compensator
Material Durable plastic with overmold in key impact areas; aluminum
Mount Threading 5/8-11
Range Up to 330-ft.
Width in 5.3 "
Works With Tripods, BT160, BT170HD, BT300HD, Telescoping Leveling Rods, GR 16, GR500

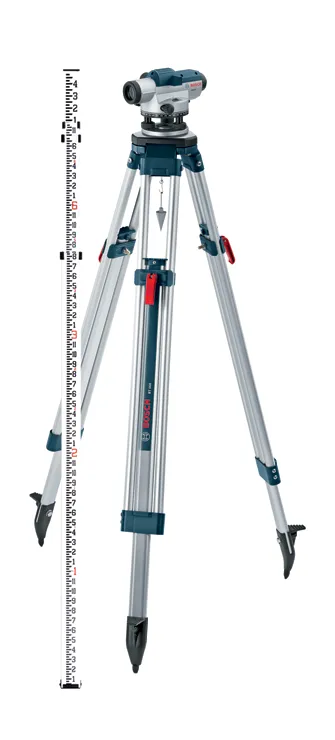

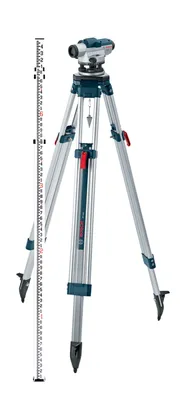

Includes (1) GOL 26 Automatic Optical Level
(1) Plumb Bob
(1) Tool Kit
(1) BT160 Aluminum Contractor Tripod
(1) Gr 8 8 Ft. Grade Rod
(1) Carry Case

GOL 26CK Professional: Further information

Product Highlights

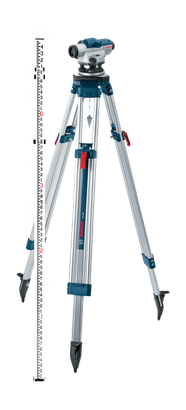

The Bosch GOL 26CK automatic optical level kit features a self-leveling compensator, both horizontal/vertical cross hairs and Stadia lines, 26x magnification lens and large aperture for clear image. Range: 330 Ft., accuracy: up to 1/16 In. at 100 Ft., includes: hard case, lens cap, plumb bob, adjustment tools, aluminum tripod, aluminum leveling rod.
