18V Impact Drivers

GDX18V-1860CB15 Professional

18V Impact Drivers

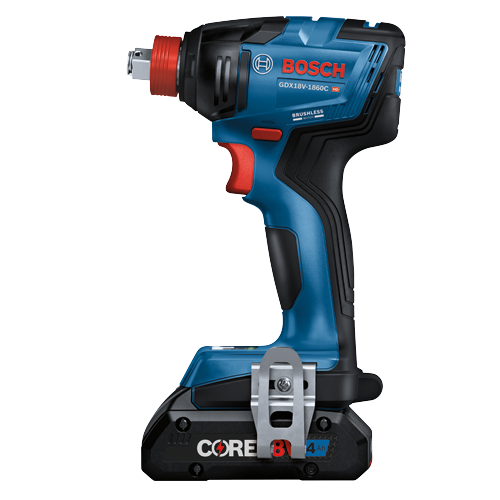

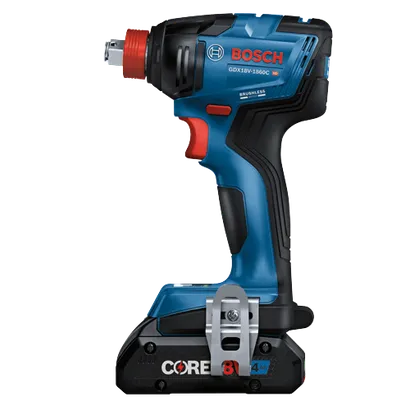

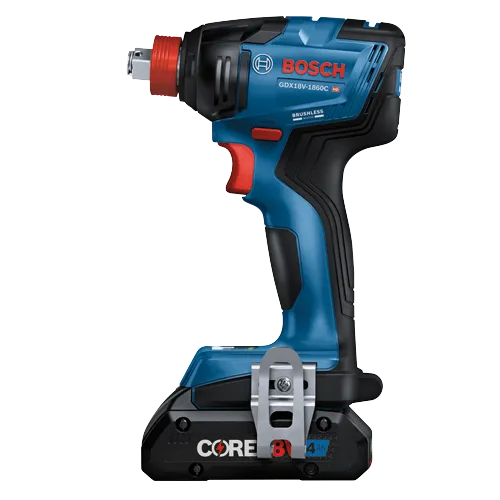

18V Connected-Ready Two-In-One 1/4 In. and 1/2 In. Bit/Socket Impact Driver/Wrench Kit with (1) CORE18V 4 Ah Advanced Power Battery

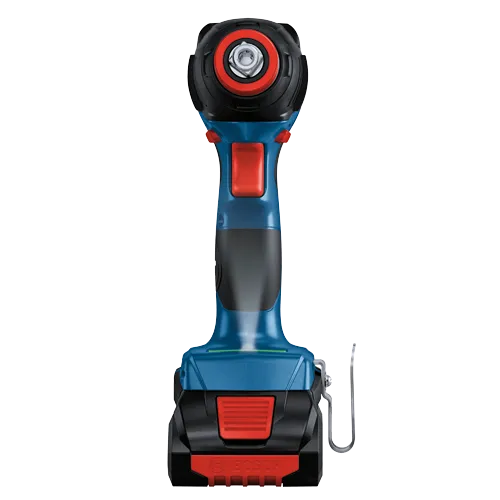

  • Two-in-one impact driver/wrench – features a 1/4 In. hex shank and a 1/2 In. square drive, for using either bits or sockets
  • Speed control – three speed and torque settings to dial back the tool for better control in different applications
  • Advanced modes – offer preset and custom modes that help to prevent workpiece and fastener damage
  • Auto Bolt Release – stops rotation when there is no load on the tool to help prevent accidentally dropping bolts and nuts during removal
  • CORE18V® 4 Ah battery – delivers 2x the runtime compared to previous generation BAT612 2 Ah battery
  • CORE18V® advantage – high-power li-ion cells, cutting-edge battery design and heat management with Bosch-exclusive CoolPack 2.0 technology
  • Connectivity (module sold separately) – link to connected device via Bosch Toolbox App to customize settings, create custom modes, and receive feedback

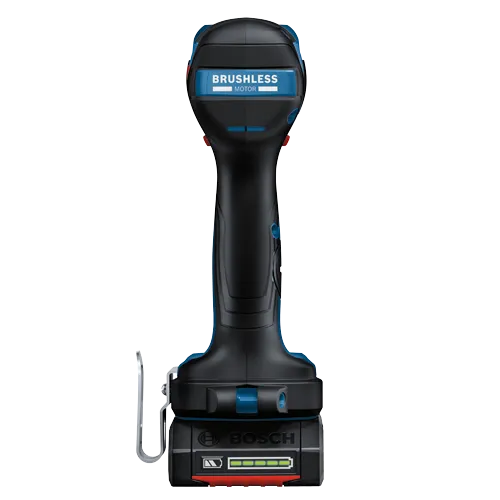

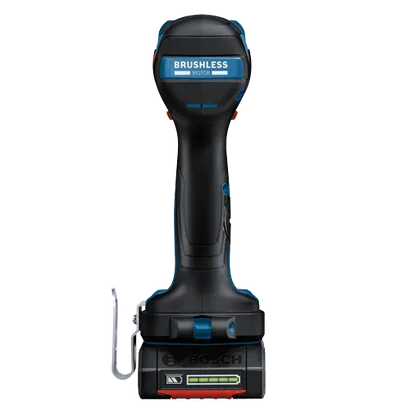

  • Powerful brushless motor – delivers a max of 1,860 In.-Lbs. of torque and up to 4,100 ipm for professional power
  • Variable-speed trigger – controls operating speed for precise tool performance

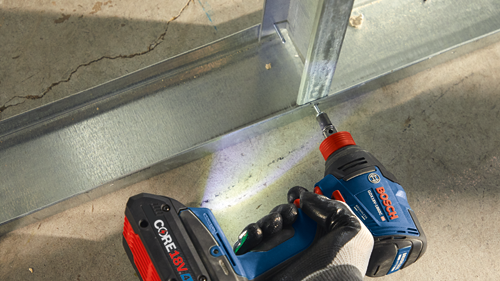

  • Single-focused LED light – located at the base of the tool to reduce shadows
  • Electronic Cell and Motor Protection – helps protect the tool and battery from overloading conditions

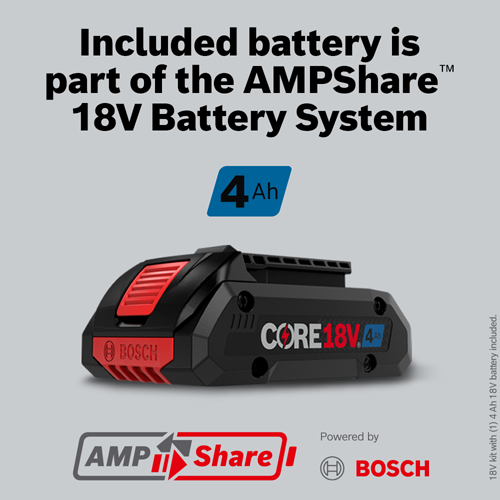

  • AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
  • AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
  • Bosch 18V cordless power tools and 18V chargers are covered by a five year limited warranty; Bosch 18V batteries are covered by a three year limited warranty – for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
View more View less

GDX18V-1860CB15 Professional

GDX18V-1860CB15 Professional

Your Selection

cordless-impact-driver-4ah-18V-AMPshare-CORE18V-GDX18V-1860CB15-bosch-kit

Order number: 06019J0215

Technical data

The most important data

Battery Chemistry Lithium Ion
Battery Watt Hours 72 Wh
Case Type Bag
Charger GAL18V-40
Drive 1/4" Hex + 1/2" Square Drive
Height in 8.2 "
Length in 5.8 "
No Load RPM 0-1,100 / 0-2,300 / 0-3,400
Reverse Yes
Torque (in. lbs.) 1,860
Variable Speed Yes
Weight 2.6 lb
Weight (lbs.) 2.6
Width in 3 "
Works With Bosch Bluetooth® Connectivity Module, GCY42 (See tool manual for its connectivity/app features.), Recommended Battery Packs to help achieve maximum tool performance, GBA18V40 and GBA18V80 Batteries

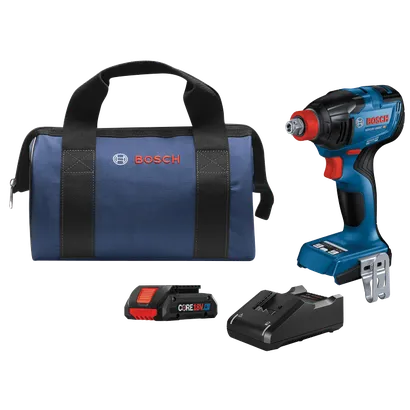

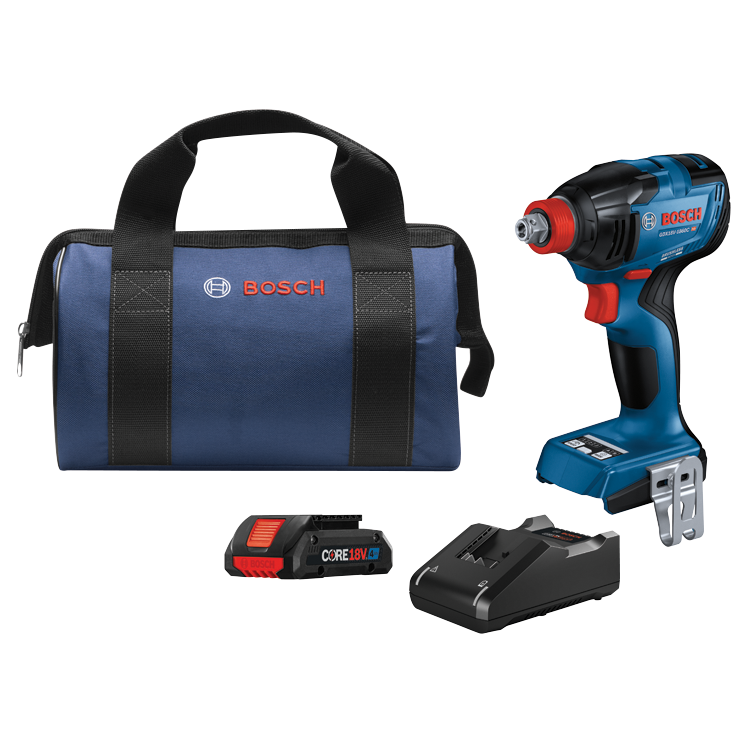

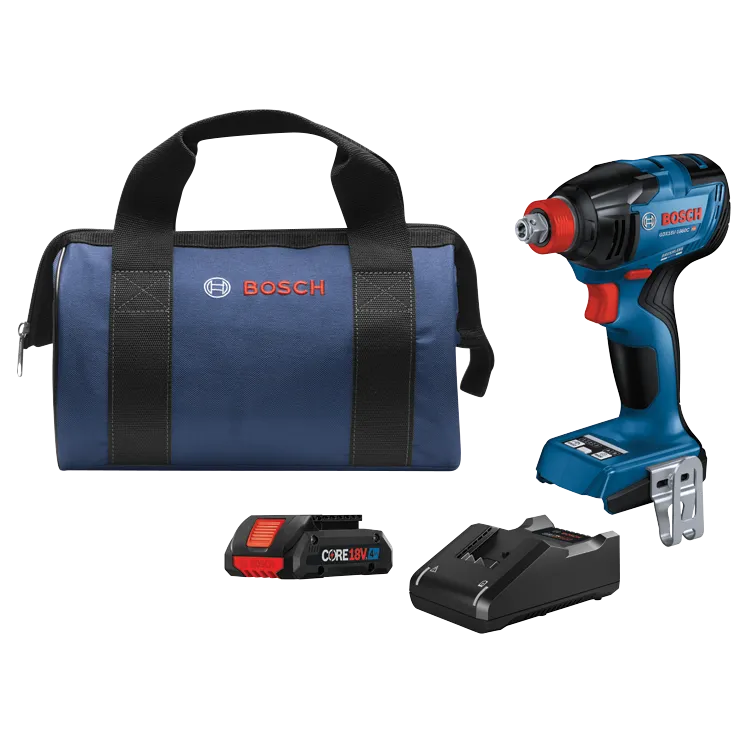

Includes (1) GDX18V-1860C 18V Connected-Ready Two-In-One 1/4 In. and 1/2 In. Bit/Socket Impact Driver/Wrench
(1) GBA18V40 18V CORE18V® Lithium-Ion 4 Ah Advanced Power Battery
(1) 18V Charger
(1) 4x Bit Holder
(1) Belt Clip
(1) Carrying Bag

GDX18V-1860CB15 Professional: Further information

Product Highlights

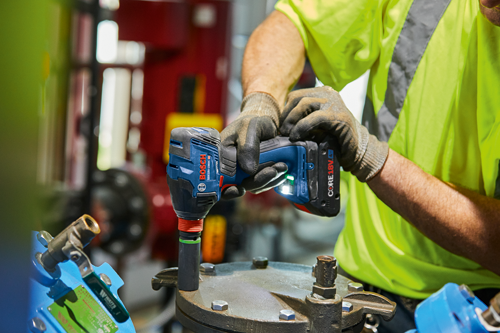

The Bosch GDX18V-1860C Two-in-One 1/4 In. and 1/2 In. Bit/Socket Impact Driver/Wrench is for use with bits and sockets. This two-in-one goes from impact wrench to impact driver fast, letting you do two jobs with one tool. Bits can stay conveniently inserted when using deep sockets, and more torque is transferred directly thru the 1/2 In. square drive anvil. There is no more torque loss through socket adapters or broken socket adapters. The impact driver/wrench's efficient, powerful brushless motor produces up to 1,860 In.-Lbs. of torque and 0-4,100 impacts per minute. In addition to three speed/torque settings this impact driver/wrench also features special modes to help prevent work piece and fastener damage. The presets include modes for self-drilling metal screws and wood screws. Additional modes and customizations for specific screws and materials can be set and saved to the tool via the Bosch Toolbox App (connectivity module sold separately). In reverse, with bolt mode activated, the Auto Bolt Release stops rotation when there is no load on the tool to help prevent accidentally dropping bolts and nuts during removal. In addition to customizing settings and modes, connectivity (module sold separately), provides tool specific information and feedback. The variable-speed trigger provides accurate driving speed. It also has an LED light system to illuminate the work area. The kit features a CORE18V® 4 Ah Advanced Power Battery, allowing you to keep the power and lose the weight.
