Combination/Point Alignment Lasers

GCL 2-160 S Professional

Combination/Point Alignment Lasers

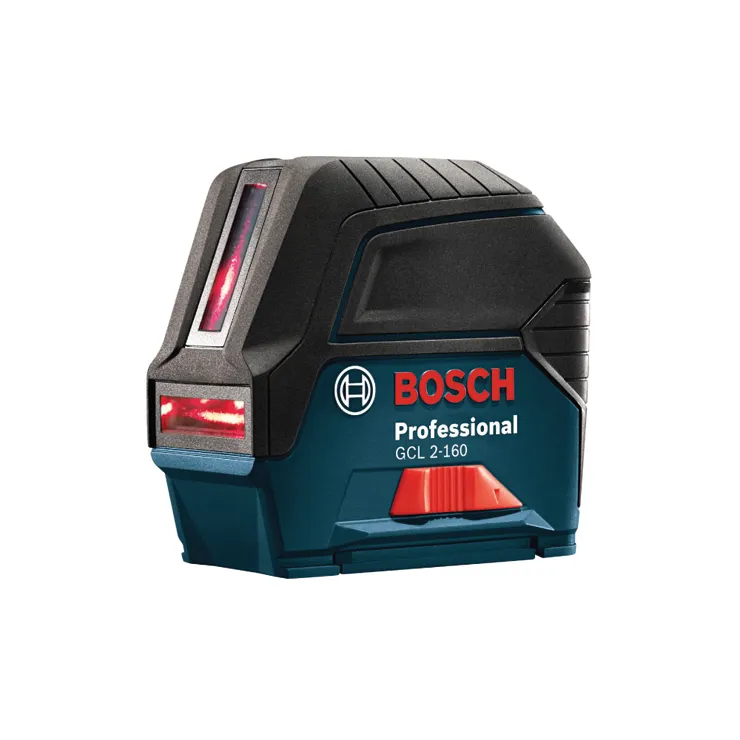

Self-Leveling Cross-Line Laser with Plumb Points

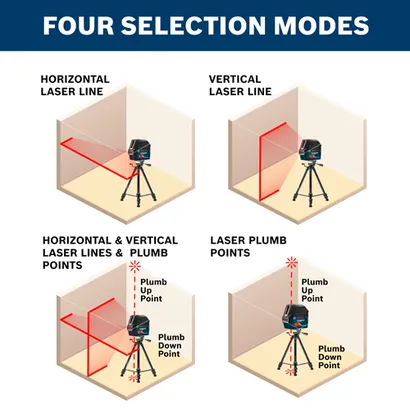

  • All-in-one functionality – highly visible lines and points for horizontal leveling, vertical alignment and plumb point transfer applications

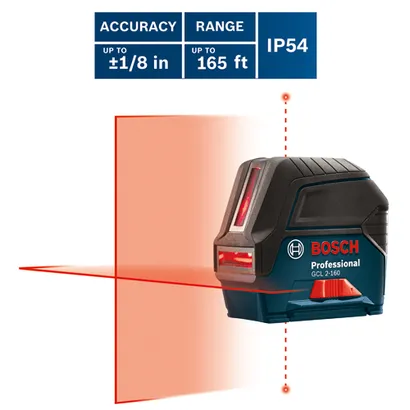

  • Bright laser lines – has a visible range of 65 Ft. with an accuracy of 1/8 In. at a 33 Ft. distance

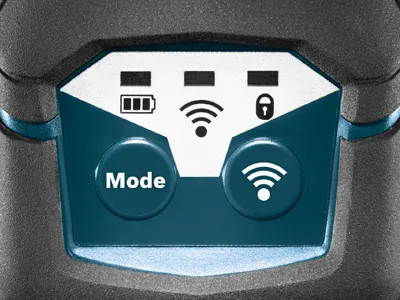

  • Receiver mode – for use with optional laser receiver (LR 6 or LR 7) for a working range of up to 165 Ft. and/or in bright lighting
  • Smart Pendulum System – self levels and indicates out-of-level condition up to ±4°
  • RM 2 Magnetic Rotating Mount w/Fine Adjust – included accessory rotates 360° by the precision of a fine adjustment knob, while staying centered on the plumb point
  • Includes a ceiling grid clip – magnetizes to the RM 2 for use in ceiling-grid applications
  • Manual mode – locks lines for use at any angle
  • Robust over-molded construction – IP54 ensures splash water/dust protection for years of dependable operation
  • Built-in VisiMax™ Technology – monitors power consumption to maximize line visibility and extend battery life
  • Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
View more View less

GCL 2-160 S Professional

GCL 2-160 S Professional

Your Selection

Self-Leveling Cross-Line Laser with Plumb Points_GCL 2-160_Hero Laser

Order number: 0601066F11

Technical data

The most important data

Connected No
Height in 4.2 "
IP Rating IP 54
Laser Beam Color Red
Laser Diode Class II 635 - 650 nm
Length in 4.4 "
Leveling Type Self-Leveling, Up to 4°
Material Plastic Composite
Mount Threading 1/4-20, 5/8-11
Number of Beams 4
Operating Temperature 14° F / -10° C ~1 22° F / 50° C
Range Up to 165-ft.
Weight 0.3 lb
Width in 2.2 "
Works With Laser Receivers, LR 6, LR8, Tripods, BT160, BT170HD, BT300HD, BT 150, Telescoping Pole System, BP350, Telescoping Leveling Rod, GR 16, GR500, Mounts and Positioning Devices, WM 4, BM 1, BM3, RM 1, RM 2, LB10
Includes (1) GCL 2-160 Self-Leveling Cross-Line Laser with Plumb Points
(1) RM 2 Magnetic Rotating Mount with Fine Adjust
(1) Ceiling Grid Clip
(1) Laser Target Plate
(3) AA Batteries
(1) Heavy-Duty Pouch

GCL 2-160 S Professional: Further information

Product Highlights

The Bosch GCL 2-160 Self-Leveling Cross-Line Laser with Plumb Points package delivers a laser with all-in-one versatility, providing highly visible lines and points that can be turned on independently or together for horizontal level, vertical level and plumb transfer applications. This laser has a visible range of 65 Ft. The receiver mode allows it to work with an optional Bosch laser receiver (LR 6 or LR 7) for a working range of up to 165 Ft. It features VisiMax™ Technology, which monitors power consumption to maximize line visibility and extend battery life. The Smart Pendulum System self-levels with an accuracy of up to ±4°, and it indicates out-of-level condition. The manual mode locks lines for use at any angle. Robust over-molded construction – IP54 ensures splash water/dust protection for years of dependable operation. It comes with the RM 2 Magnetic Rotating Mount with Fine Adjust that rotates 360° by the precision of a fine adjustment knob. This kit includes a ceiling clamp for use in ceiling-grid applications.
