GBH18V-22N Professional

SDS-plus® Hammers

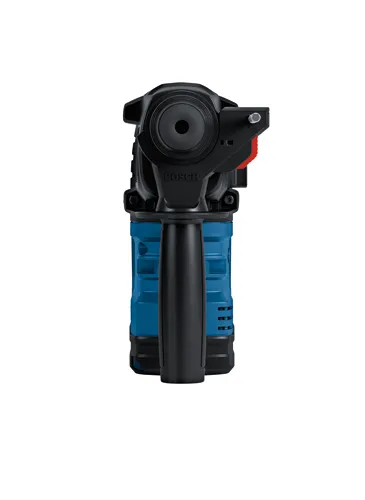

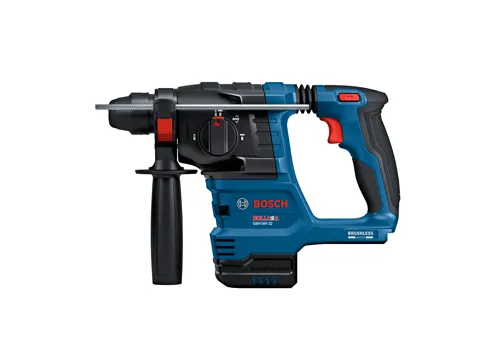

18V Brushless SDS-plus® Bulldog™ 3/4 In. Rotary Hammer (Bare Tool)

  • Superior impact – delivers 1.4 Ft.-Lbs. of impact energy (EPTA) for maximum performance in heavy-duty applications in concrete
  • Efficient brushless motor – maximizes battery runtime in extended applications
  • KickBack Control technology – reduces the risk of sudden tool reactions in binding conditions
  • Lightweight, at only 5.1 Lbs. (tool only, not including battery) – provides maneuverability for concrete drilling anywhere on the jobsite
  • Variable-speed trigger – allows for accurate bit starting
  • SDS-plus® chuck – industry-standard system compatible with many bits
  • Anti-vibration system – affords great user comfort for extended periods of work
  • Robust power system – produces 0-4,675 no-load bpm and 0-1,050 no-load rpm

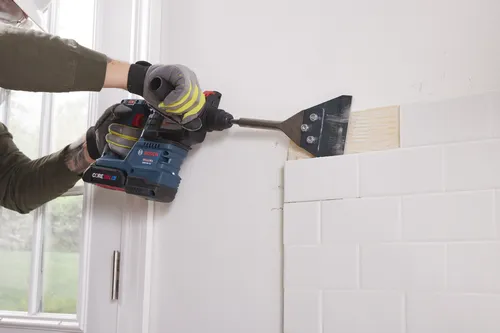

  • Vario-Lock positioning – rotates and locks chisel to optimize working angle when the tool is used in hammer-only mode

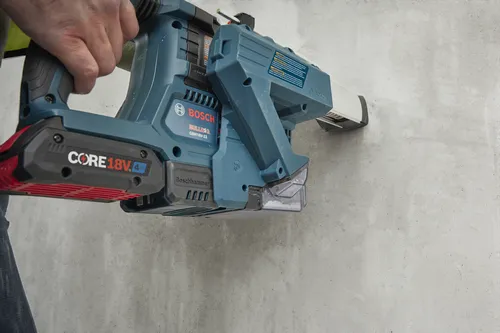

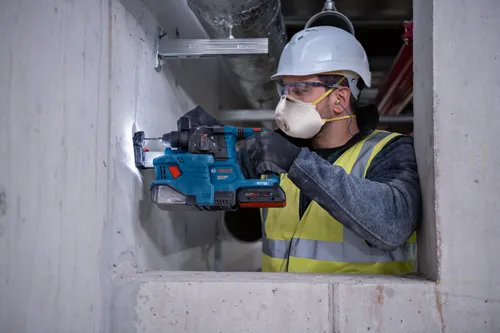

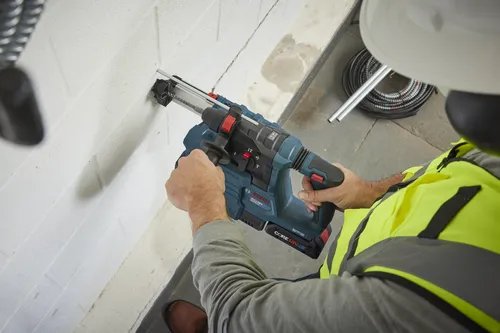

  • Works with Bosch PRO+GUARD™ dust solutions – an end-to-end dust-collection system that helps users move toward OSHA Silica dust compliance, and it is compatible with the GDE18V-12 on-tool mobile dust-extraction unit (sold separately)
  • Easy-to-handle L-shaped design – provides better control when drilling overhead or in tight spaces
  • 360° side handle – provides a variety of grip positions for maximum ease of use

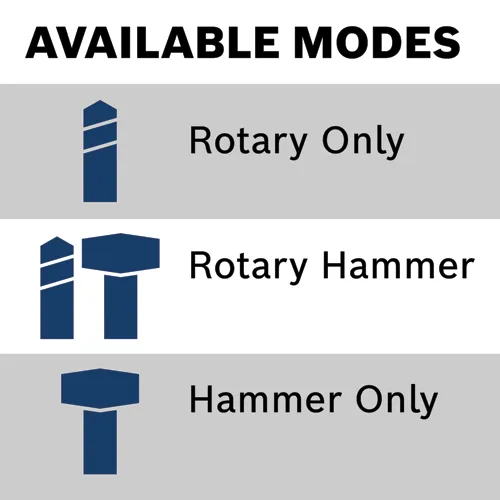

  • Function selector – three modes of operation: rotary hammer, rotation only and hammer only
  • LED worklight – illuminates dark work areas
  • AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
  • AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
  • Bosch 18V cordless power tools are covered by a five year limited warranty – for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
View more View less

GBH18V-22N Professional

Technical data

The most important data

Battery Chemistry Lithium Ion
Battery/Charger Not Included
Chuck Design Keyless
Chuck Size SDS-plus
Drive SDS-plus
Drive System SDS-plus
Height in 8.1 "
Impact Energy/EPTA (ft. lbs.) 1.4 Ft.-Lbs. EPTA
Length in 11.5 "
Max Bit Diameter 3/4"
Max. Capacity in Concrete 3/4"
Max. Capacity in Steel 1/2"
Max. Capacity in Wood 1-1/4"
Max. Hole Diameter in Concrete 3/4"
Max. Hole Diameter in Concrete-Thin Wall Core Bit 2-1/2"
No Load BPM 0-4,675
No Load RPM 0-1,050
Reverse Yes
Variable Speed Yes
Weight 5.1 lb
Weight (lbs.) 5.1
Width in 3.25 "
Works With 18V On-Tool Dust Collector, GDE18V-12, Dust Extraction / Collection Attachments, HDC50, HDC100, HDC200, Keyless three-jaw Chuck with SDS-plus® Shank, HA3JAW
Includes (1) GBH18V-22 18V Brushless SDS-plus® Bulldog™ 3/4 In. Rotary Hammer
(1) Auxiliary Handle
(1) Depth Gauge

GBH18V-22N Professional: Further information

Product Highlights

This Bosch Bulldog™ hammer is a manageable, powerful rotary hammer designed to get the job done. It provides superior performance and an outstanding impact-to-weight ratio. The GBH18V- 22N 18V Brushless 3/4 In. SDS-plus® Bulldog™ Rotary Hammer has KickBack Control, which reduces the risk of sudden tool reactions in binding conditions, and an anti-vibration system for great user comfort for extended periods of work. The hammer's easy-to-handle L-shaped design provides better control when drilling overhead or in tight spaces. It delivers 1.4 Ft.-Lbs. of impact energy (EPTA). It weighs only 5.1 Lbs. (tool only, not including battery). The hammer’s brushless motor maximizes battery runtime for extended performance. The 360-degree side handle provides a variety of grip positions for maximum ease of use. The hammer has Vario-Lock positioning to optimize the working angle when the tool is used in hammer-only mode. It has three modes of operation: rotary hammer, rotation only and hammer only.
