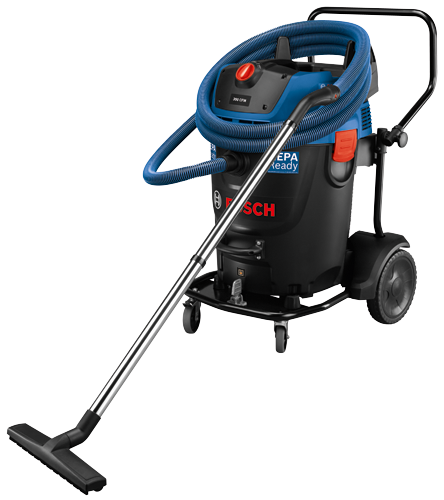

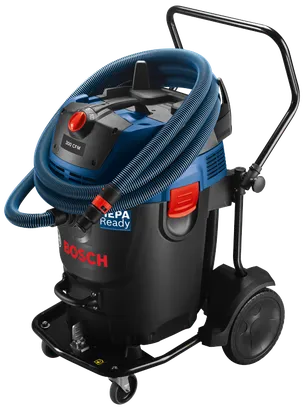

17-Gallon 300-CFM Dust Extractor with Auto Filter Clean and HEPA Filter GAS20-17AH Hero

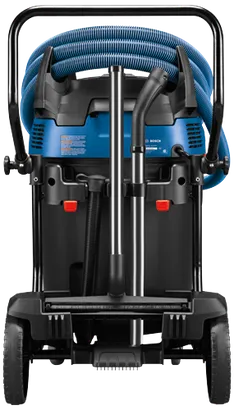

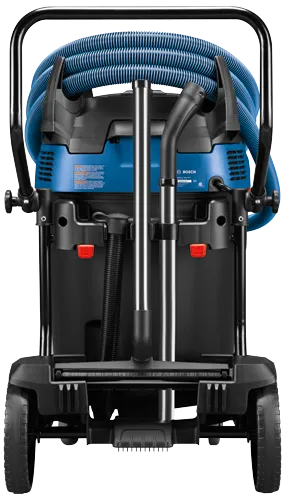

17-Gallon 300-CFM Dust Extractor with Auto Filter Clean and HEPA Filter_GAS20_BACK
GAS20-17AH

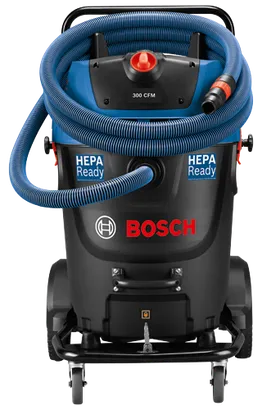

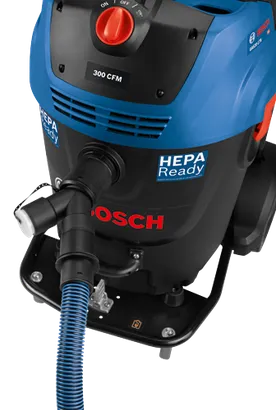

17-Gallon 300-CFM Dust Extractor with Auto Filter Clean and HEPA Filter_GAS20_FRONT
17-Gallon 300-CFM Dust Extractor with Auto Filter Clean and HEPA Filter_GAS20-17_OPT 1
17-Gallon 300-CFM Dust Extractor with Auto Filter Clean and HEPA Filter_GAS20-17_OPT 2

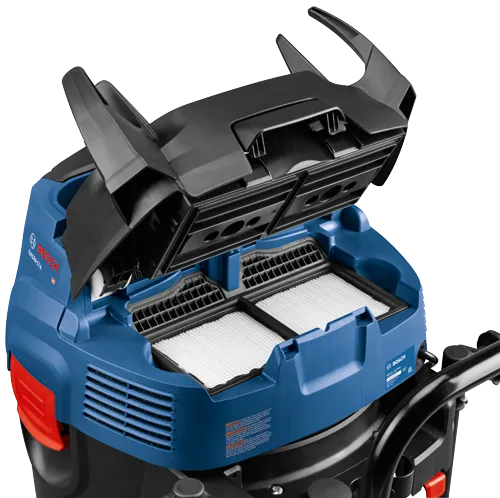

17-Gallon 300-CFM Dust Extractor with Auto Filter Clean and HEPA Filter_GAS20_FILTER

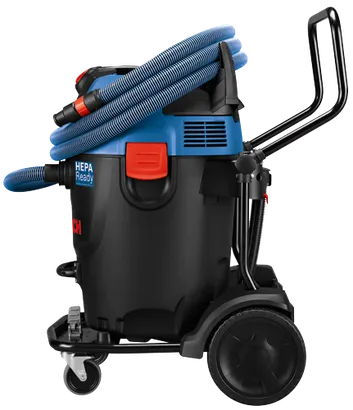

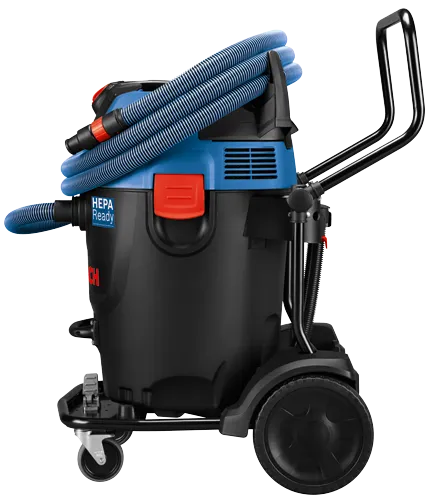

17-Gallon 300-CFM Dust Extractor with Auto Filter Clean and HEPA Filter_GAS20_SIDE

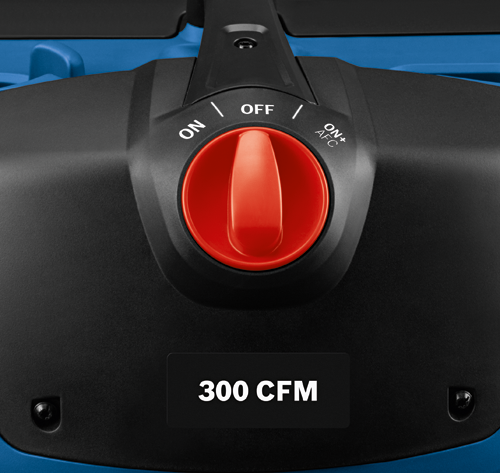

17-Gallon 300-CFM Dust Extractor with Auto Filter Clean and HEPA Filter_GAS20_SWITCH
17-Gallon 300-CFM Dust Extractor with Auto Filter Clean and HEPA Filter_GAS20_WANDKIT

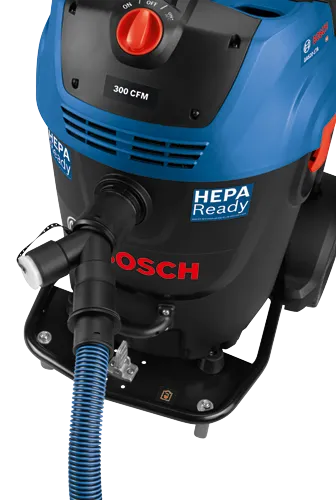

17-Gallon 300-CFM Dust Extractor with Auto Filter Clean and HEPA Filter_GAS20_YCONN

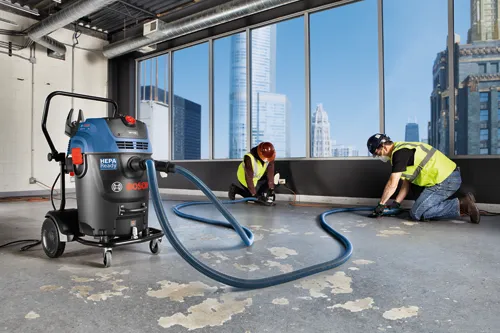

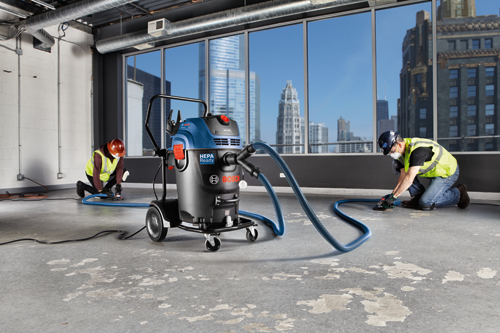

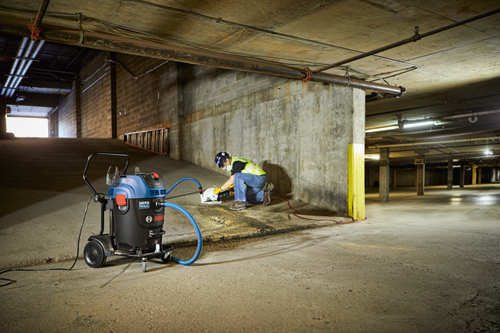

17-Gallon 300-CFM Dust Extractor with Auto Filter Clean and HEPA Filter_GAS20-17AH_CUTTING 1
17-Gallon 300-CFM Dust Extractor with Auto Filter Clean and HEPA Filter_GAS20-17AH_CUTTING 4
17-Gallon 300-CFM Dust Extractor with Auto Filter Clean and HEPA Filter_GAS20-17AH_CUTTING 5
17-Gallon 300-CFM Dust Extractor with Auto Filter Clean and HEPA Filter_GAS20-17AH_CUTTING 6
17-Gallon 300-CFM Dust Extractor with Auto Filter Clean and HEPA Filter_GAS20-17AH_CUTTING 7

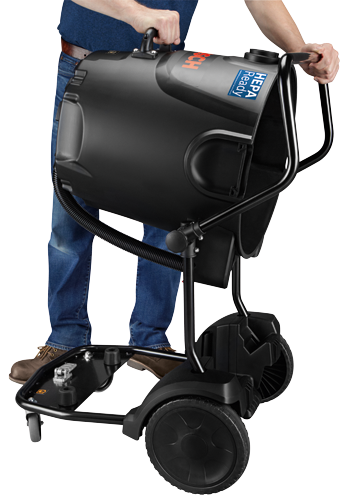

17-Gallon 300-CFM Dust Extractor with Auto Filter Clean and HEPA Filter_GAS20-17_DUMP

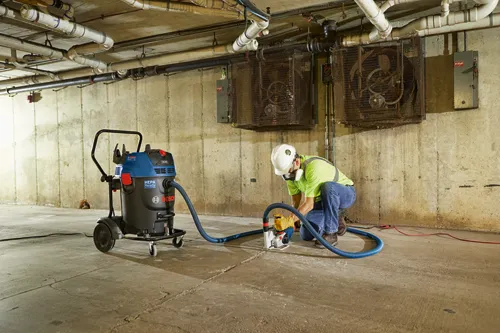

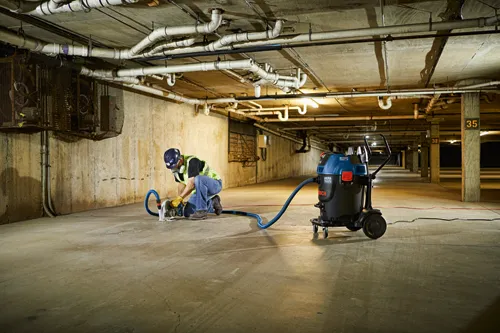

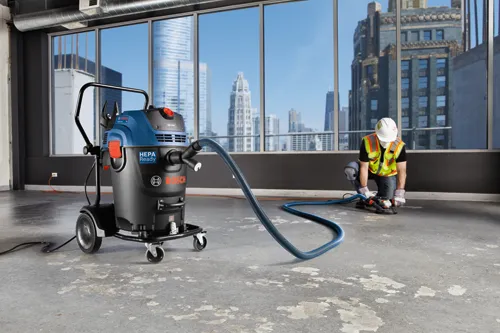

17-Gallon 300-CFM Dust Extractor with Auto Filter Clean and HEPA Filter_GAS20-17AH_GRIND 1
17-Gallon 300-CFM Dust Extractor with Auto Filter Clean and HEPA Filter_GAS20-17AH_GRIND 2
17-Gallon 300-CFM Dust Extractor with Auto Filter Clean and HEPA Filter_GAS20-17AH_GRIND 3
17-Gallon 300-CFM Dust Extractor with Auto Filter Clean and HEPA Filter_GAS20-17AH_GRIND 4

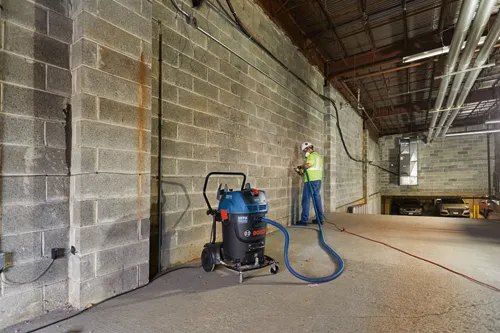

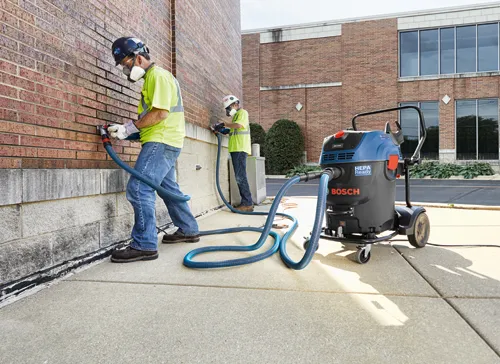

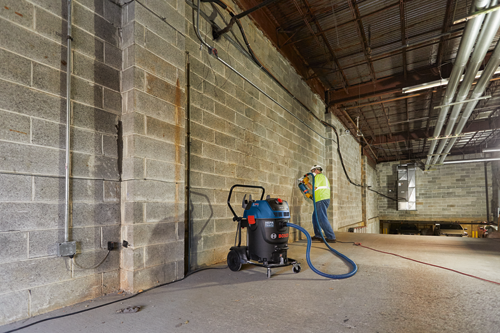

17-Gallon 300-CFM Dust Extractor with Auto Filter Clean and HEPA Filter_GAS20-17AH_TUCKPOINT
Bosch-corded-tool-warranty-ecommerce-badge-2000x2000

GAS20-17AH Professional

Dust Extractors

17-Gallon 300-CFM Dust Extractor with Auto Filter Clean and HEPA Filter

  • Part of Bosch PRO+GUARD™ – helps users move toward OSHA Silica dust compliance
  • Impressive 300-CFM air-flow capability – features high-performance CFM for maximum dust extraction in heavy-duty concrete construction applications
  • Powerful 17.5 Amp motor – delivers strong extraction performance for extreme commercial applications
  • Automatic filter cleaning – cleans filter every 15 seconds for consistent suction power
  • Three-layer heavy-duty filter bag – helps protect the filter from abrasive materials and provides the optimal containment of dry dust and debris
  • Wet/dry operation with water-level sensor and drain hose – Sensors automatically prevent overfilling and hose provides easy drainage

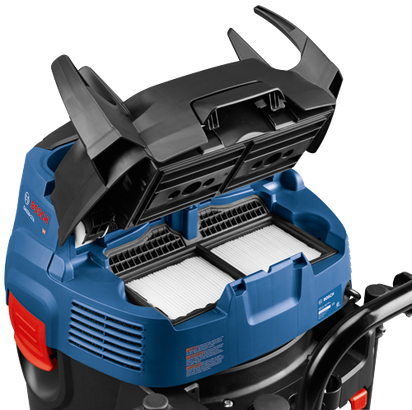

  • HEPA filter – captures 99.97% of particles at 0.3 microns or larger

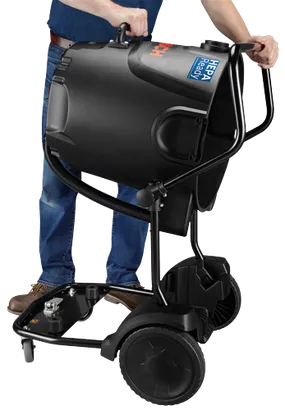

  • Wheeled metal frame with dumping mechanism – offers easy transporting, stability and emptying convenience
  • Metal castors – built to withstand the demands of the jobsite
  • Fold down push handle – provides jobsite mobility and convenient storage
  • 16 Ft., 35mm anti-static hose – extends effective work area and helps mitigate static electricity
  • 27 Ft. power cord with standard 20 Amp plug – provides wide jobsite coverage and convenience

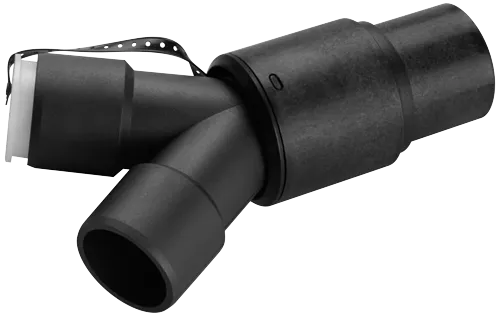

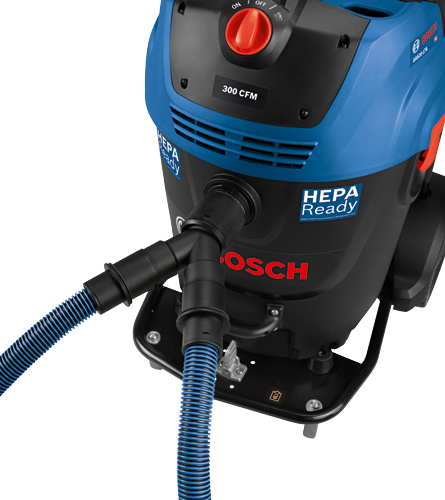

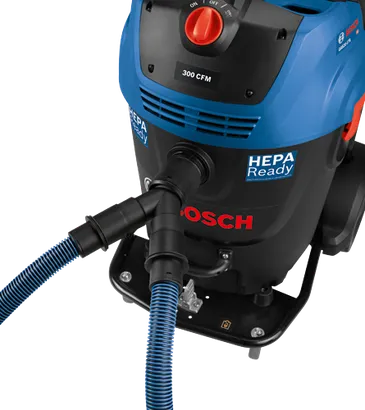

  • Optional Y-Connect (sold separately) – allows used of two tools at the same time, such as small angle grinders when used in grinding or cutting concrete
View more View less

GAS20-17AH Professional

Technical data

The most important data

Air Flow
300 CFM
Air Volume (CFM)
300
Amperage
17.5
Automatic Shut-Off
Yes
Built-In Drain
Yes
Capacity (gal)
17
Height in
36 "
Hose Diameter (in)
1.37
Length in
25 "
Separate On/Off Speed Control
No
Static Water Lift
97.3 "
Vacuum Suction Pressure
242 millibars or 97.3 inches of water lift (max.)
Voltage
120V
Weight
63 lb
Wet / Dry
Yes
Width in
22 "
Works With
Three-Layer Heavy-Duty Filter Bag, VB170, Filters, VF430H HEPA, VF410 Polyester, Vacuum Hoses, VAC005, VH1635A, VH1635, VH1622A, VH1035, VH1022, Suction Tube & Floor Nozzle Set, VX460, Y-Connector for Hoses, VX450, Wet Filter Bag and Plastic Bag, VB170S and VB170P, Bend / Elbow, VX100
Includes
(1) GAS20-17A 17-Gallon 300-CFM Dust Extractor
(1) VF430H HEPA Filter
(1) VB170 Heavy-Duty Three-Layer Filter Bag
(1) VH1635A 16 Ft. Anti-Static Vacuum Hose
(1) VX100 Elbow

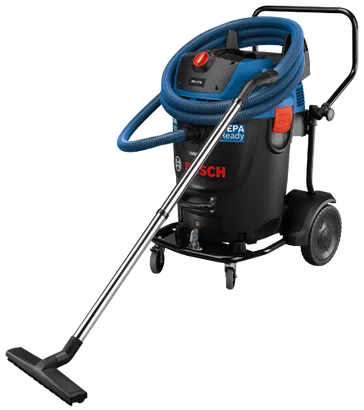

(1) VX460 Suction Tubes / Floor Set

GAS20-17AH Professional: Further information

Product Highlights

The Bosch 300-CFM Dust Extractor delivers the high-performance cubic-feet-of-air-per-minute (CFM) rate for maximum dust extraction for heavy-duty concrete construction applications such as concrete cutting and surface grinding. The dust extractor’s powerful 17.5 Amp motor delivers a maximum 300 CFM, and it is designed to help users move toward compliance with the OSHA Silica Table 1 dust compliance regulation. The automatic on-board filter-cleaning system activates every 15 seconds to help maintain maximum suction power. The included HEPA filter captures 99.97% of particles at 0.3 microns and larger. The included three-layer heavy-duty filter bag helps to protect the filter and provides the optimal containment of dry dust. It also provides wet/dry operation, with a water-level sensor and drain hose. The extractor features a wheeled metal frame with dumping mechanism, metal castors and a height-adjustable push handle. This unit includes a 16 Ft. 35mm anti-static hose and 27 Ft. power cord with standard 20 Amp plug. When used with the optional Y-Connect (sold separately), the dust extractor can be hooked up to two tools (such as small angle grinders when used in grinding or cutting concrete).
