CS5 Professional
Circular Saws

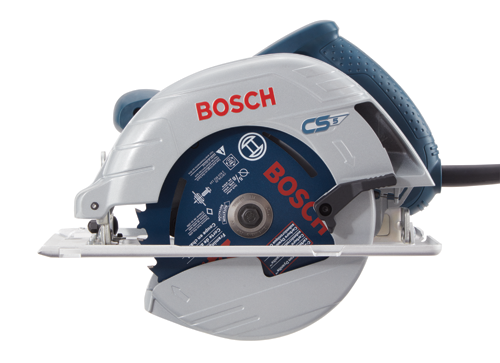

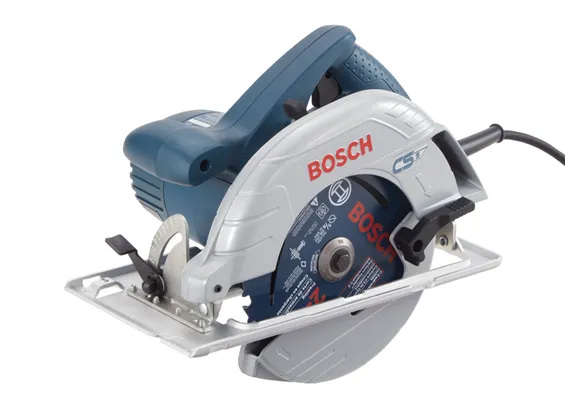

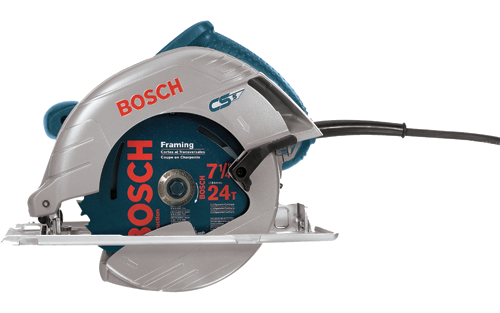

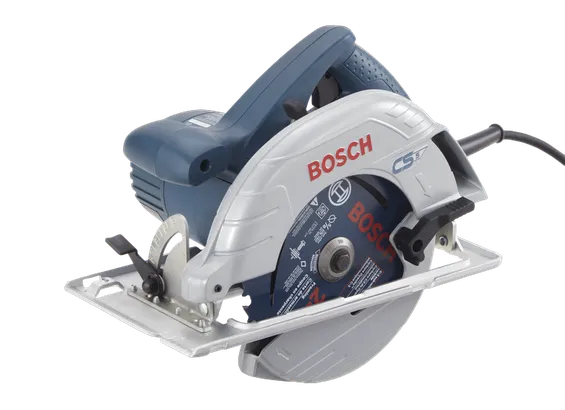

7-1/4 In. Blade-Left Circular Saw

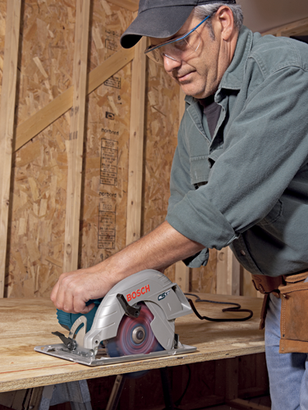

- 15 A power provides power to cut through 3/4 In. plywood and other dense materials

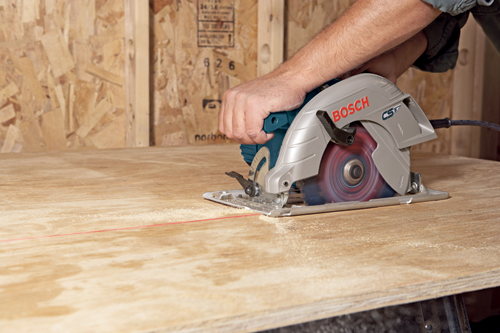

- Blade-left design gives users the clearest line of sight for easy, accurate cutting

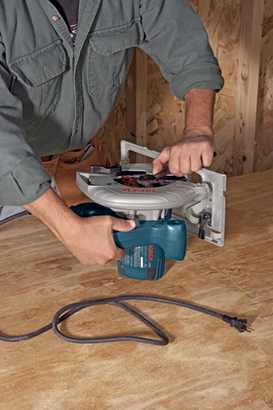

- Improved spindle lock allow for quick and easy blade change
- Aluminum upper and lower guard
- On-tool wrench storage
- 56° Bevel capacity
- Clear viewing area of cut line

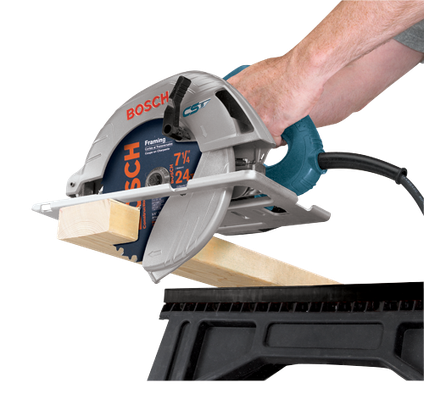

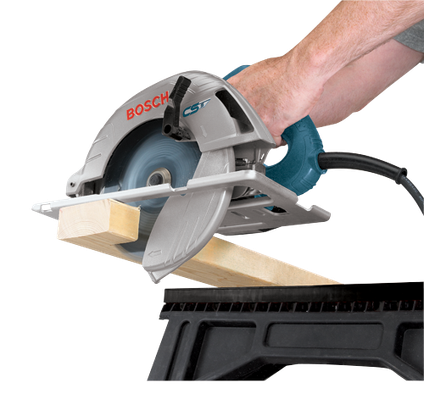

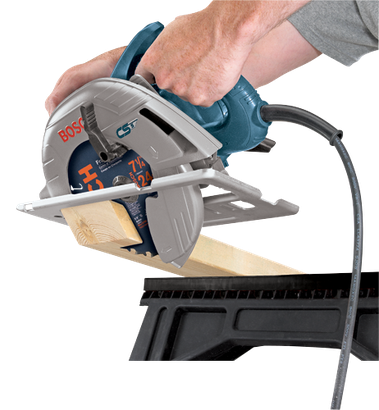

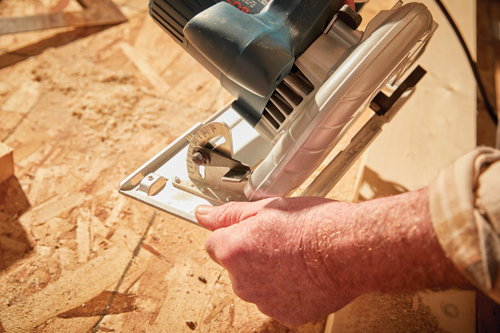

- Anti-snag lower guard will not hang up when making bevel cuts
- Easy serviceable brushes
- Soft grip handle
CS5 Professional
Technical data
The most important data
Amperage
15
Arbor Size in
5/8"
Bevel
56°
Dust Blower
No
Dust Collection
No
Electric Motor Brake
No
Height in
9 "
Length in
15 "
Max. Bevel Capacity (°)
56
Max. Depth of Cut at 45 Deg.
1-7/8"
Max. Depth of Cut at 50 Deg.
1-5/8"
Max. Depth of Cut at 90 Deg.
2-7/16"
No Load RPM
6,200
Rating
120V
Voltage
120V
Weight
10 lb
Works With
Rip Fence, WD7RIP
Includes
(1) CS5 7-1/4 In. Blade Left Circular Saw
(1) 7-1/4 In. Circular Saw Blade
(1) Blade Wrench
(1) 7-1/4 In. Circular Saw Blade
(1) Blade Wrench
CS5 Professional: Further information
Product Highlights
The Bosch CS5 blade-left design saw is the fastest cutting saw in it's class. Featuring a powerful 15 Amp, high output motor, Bosch's CS5 7-1/4 In. circular saw offers fast, smooth cutting at a variety of different angles. Weighing in at just 10 Lbs., the Bosch CS5 is easy to handle and comfortable to use. An unobstructed view of the cut line means better visibility for more exact cuts.
