Combo Pack Routers

1617EVSPK Professional

Combo Pack Routers

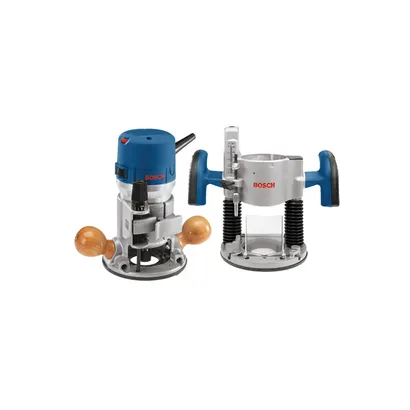

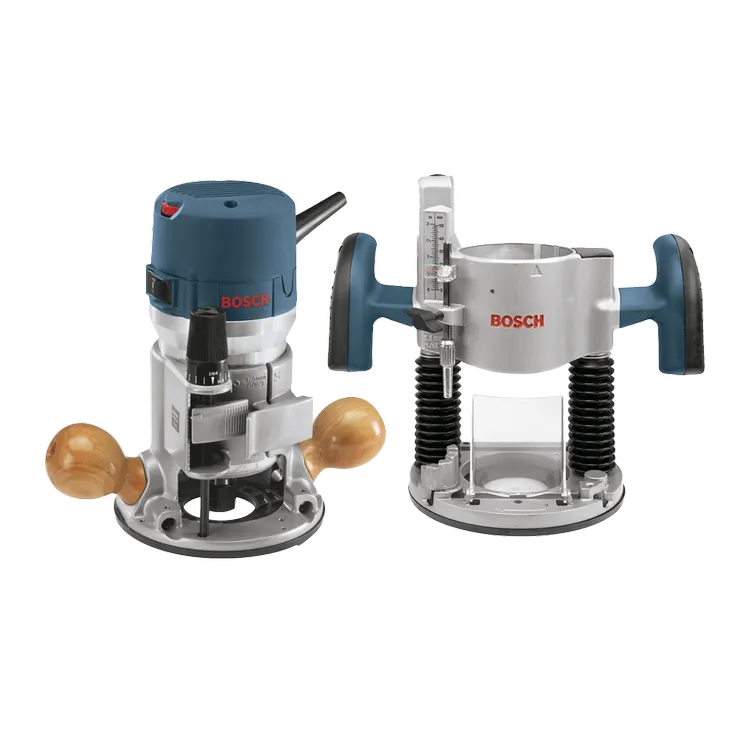

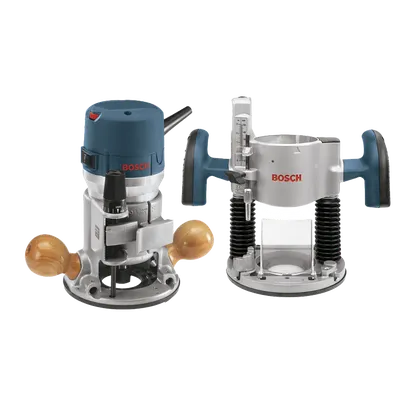

2.25 HP Combination Plunge- and Fixed-Base Router

  • Router's 12-Amp motor is powerful, and it includes adjustable speed settings
  • Constant Response circuitry stabilizes start-up torque
  • Adjustable speed dial (8,000-25,000 RPM) allows user to set the optimal speed
  • Microfine bit-depth adjustment
  • Plunge base
  • Rounded hardwood handles maximize user control
  • Threaded three-hole base pattern
  • Dust-sealed power switch
  • One-piece armature shaft
  • 2 In. sub-base opening
  • Double insulated
  • Now includes RA1161 fixed-base with system for adjusting bit height from above a router table
  • Fixed base has threaded holes for mounting to router table positioned in common 3-hole pattern
  • Rugged carrying case has compartments for all included items
  • Power switch – now includes dust-sealed power switch
  • Compatible with optional RA1129 Template Guide Adapter Set – for easy change of Bosch quick-release template guides and common threaded template guides; includes RA1126 Template Guide Adapter and RA1100 Interface for Threaded Template Guides
View more View less

1617EVSPK Professional

Technical data

The most important data

Amperage 12
Base Diameter 6" Fixed/ 6-11/16" Plunge
Case Type Hard plastic
Collet Capacity 1/4", 3/8", 1/2", 8 mm
Dust Collection No
Fixed-Base Depth Range 1-5/8"
Height in 11.625 "
Length in 6 "
No Load RPM 8,000-25,000
Plunge Depth 2-1/4"
Rating 120V AC
Subbase Opening 2"
Used on Model No. RA1171, RA1180, RA1181, RA1182, RA1200 Router Tables (Router in fixed base only).
Variable Speed Yes
Voltage 120V
Weight 10 lb
Weight (lbs.) 10
Width in 11.5 "
Works With Router Tables, RA1141 Portable Benchtop Router Table, RA1171 Cabinet-Style Router Table, RA1181 Router Table, RA1165 Router Table Base, RA1152 Offset Bit-Change Wrench Set, Router Guide, RA1054, Template Guide System, RA1128 Template Guide Set, RA1129 Template Guide Adapter Set, Centering Device for Subbases and Attached Template Guides, RA1151, Dust Collection Attachments, RA1175 Edge-forming Dust Hood, RA1173AT Three-Hood Dust Hood Set
Includes 1/4" Self-Releasing Collet Chuck - 2 610 906 283
1/2" Self-Releasing Collet Chuck - 2 610 906 284
16mm Shaft Wrench - 2 610 991 388
24mm Collet Nut Wrench - 2 610 992 417
Carrying Case - 2 610 913 367
Fixed Base (RA1161)
Plunge Base (RA1166)
Fixed Base Chip Shield - 2 610 991 389
Plunge Base Chip Shield - 2 610 912 599
T-Handle Hex Height Adjustment Wrench - 2610923193
Pack of 3 10-24 Screws for Table Mounting - 2610925813

1617EVSPK Professional: Further information

Product Highlights

The Bosch 1617EVSPK 2.25 HP Combination Plunge- and Fixed-Base Router has the power to get results, with a 12 Amp motor and adjustable speed settings. The variable-speed dial allows the operator to set the optimal speed. Constant Response Circuitry, the router will maintain a constant speed throughout the cut, resulting in clean, accurate product. The plunge base features smooth plunge action. Users can glide along the intended cutline using dovetail fixtures, templates, jigs and other guidance devices. The Bosch Precision Centering Design allows the bit to be centered with the sub-base or optional template guides.
