Fixed-Base Routers

1617EVS Professional

Fixed-Base Routers

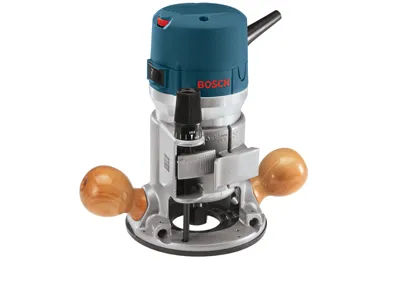

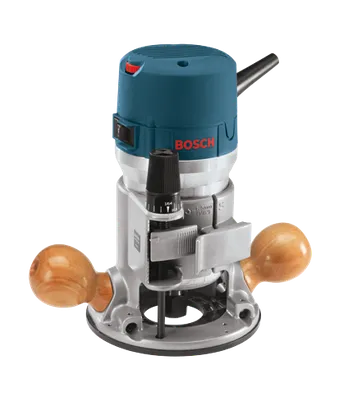

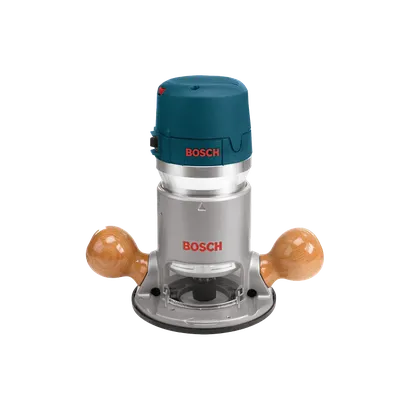

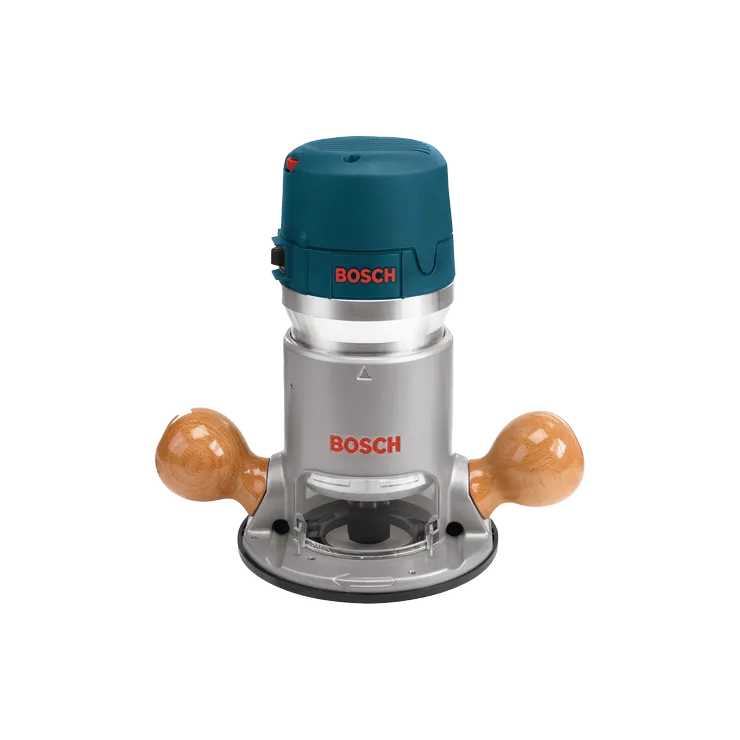

2.25 HP Electronic Fixed-Base Router

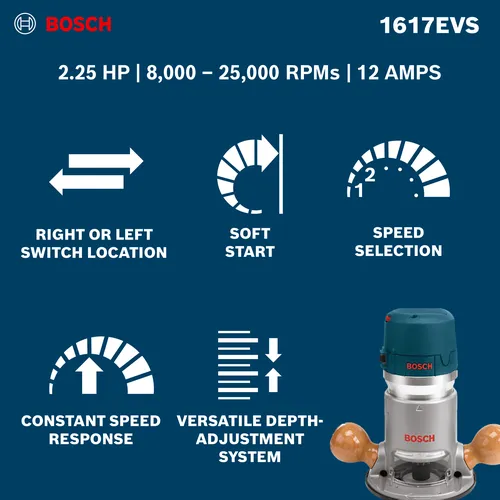

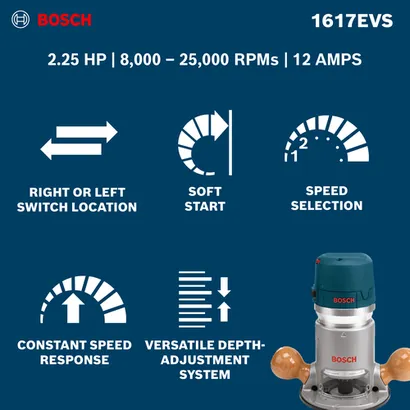

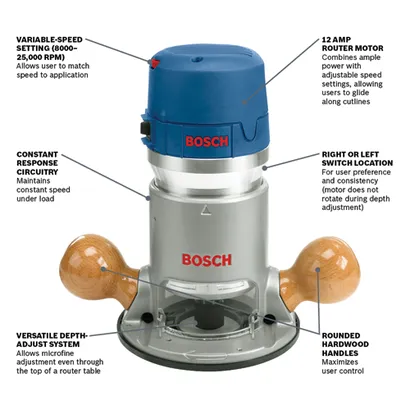

  • 12 Amp router motor – combines ample power with adjustable speed settings, allowing users to glide along cutlines
  • Constant Response circuitry stabilizes start-up torque

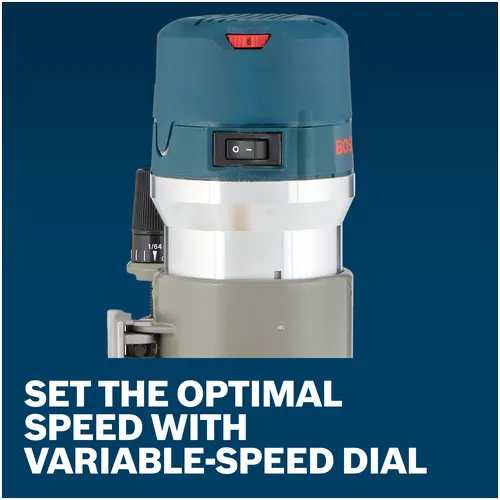

  • Adjustable speed dial (8000-25,000 RPM)
  • Microfine bit-depth adjustment

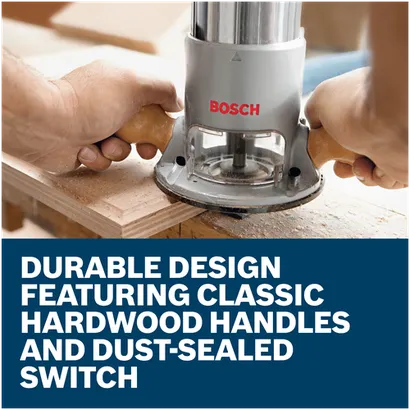

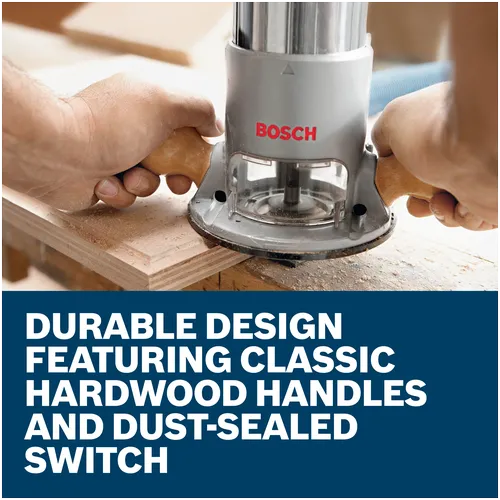

  • Rounded hardwood handles maximize user control
  • Right or left switch location – for user preference and consistency (motor does not rotate during depth adjustment)
  • Threaded three-hole base pattern
  • Dust-sealed power switch
  • One-piece armature shaft
  • 2 In. sub-base opening
  • Fixed base has threaded holes for mounting to router table positioned in common 3-hole pattern
  • Double insulated
  • Power switch – now includes dust-sealed power switch

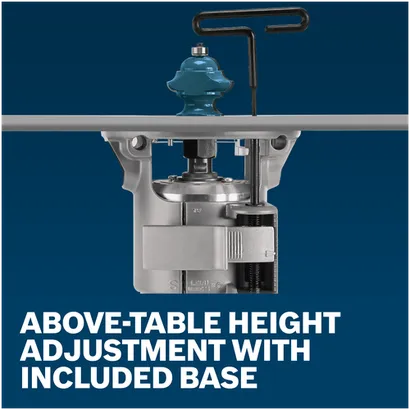

  • Now includes RA1161 fixed-base with system for adjusting bit height from above a router table
  • Compatible with optional RA1129 Template Guide Adapter Set – for easy change of Bosch quick-release template guides and common threaded template guides; includes RA1126 Template Guide Adapter and RA1100 Interface for Threaded Template Guides
View more View less

1617EVS Professional

Technical data

The most important data

Amperage 12
Base Diameter 6"
Base Opening 3-3/4"
Case Type No Case Included
Collet Capacity 1/4", 3/8", 1/2", 8 mm
Dust Collection No
Fixed-Base Depth Range 1-5/8"
Length in 6 "
No Load RPM 8,000-25,000
Rating 120V AC
Subbase Opening 2"
Used on Model No. RA1171, RA1180, RA1181, RA1182, RA1200 Router Tables
Variable Speed Yes
Voltage 120V
Weight 8.3 lb
Width in 10 "
Works With Plunge Base, RA1166, Router Tables, RA1141 Portable Benchtop Router Table, RA1171 Cabinet-Style Router Table, RA1181 Router Table,, Undertable Router Base, RA1165, Offset Bit-Change Wrench Set for Easier Bit Change in Router Table, RA1052, Router Guide, RA1054, Template Guide System, RA1128 Template Guide Set, RA1129 Template Guide Adapter Set, Centering Device for Subbases and Attached Template Guides , RA1051, Dust Collection Attachments, RA1175 Edge-forming Dust Hood, RA1172AT Two-Hood Dust Hood Set, RA1173AT Three-Hood Dust Hood Set

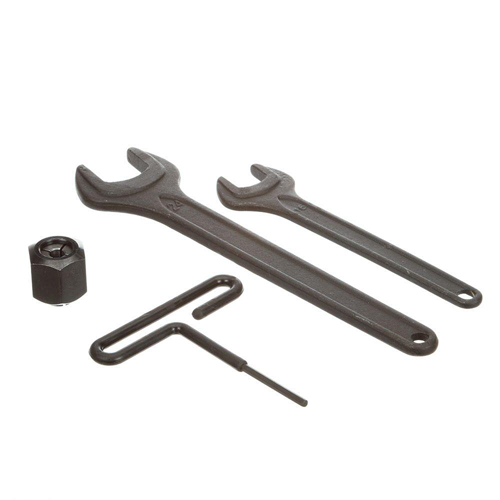

Includes 1/4" S. R. Collet Chuck -- 2 610 906 283
1/2" S. R. Collet Chuck -- 2 610 906 284
16mm Shaft Wrench -- 2 610 991 388
Collet Nut Wrench -- 2 610 992 417
Chip Shield -- 2 610 991 389
Fixed Base (RA1161)
T-Handle Hex Height Adjustment Wrench - 2610923193
Pack of 3 10-24 Screws for Table Mounting - 2610925813

1617EVS Professional: Further information

Product Highlights

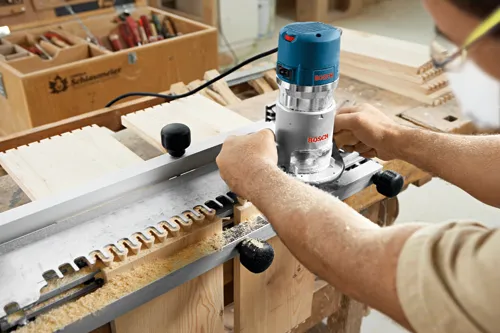

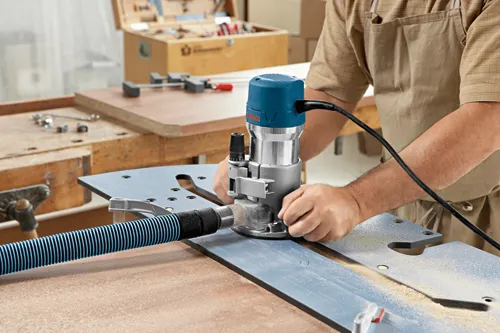

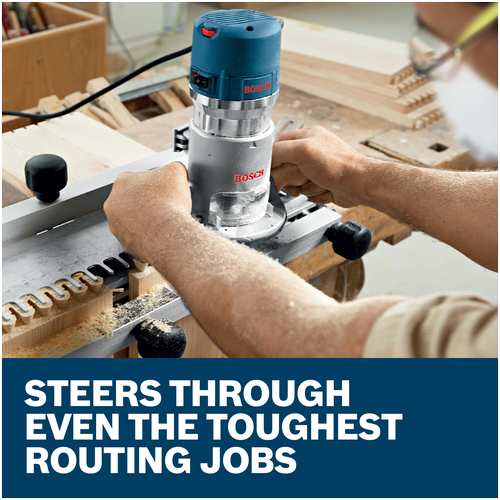

The Bosch 1617EVS 2.25 HP Electronic Fixed-Base Router has the power to get results, with a 12 Amp motor and adjustable speed settings. The variable-speed dial allows the operator to set the optimal speed. Constant Response Circuitry, the router will maintain a constant speed throughout the cut, resulting in clean, accurate product. Users can glide along the intended cutline using dovetail fixtures, templates, jigs and other guidance devices. The Bosch Precision Centering Design allows the bit to be centered with the sub-base or optional template guides.
