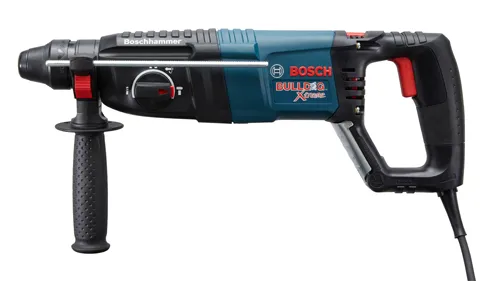

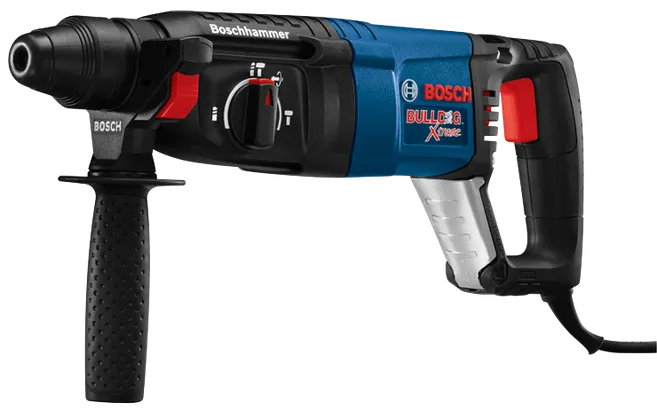

Bosch BULLDOG Xtreme rotary hammer.

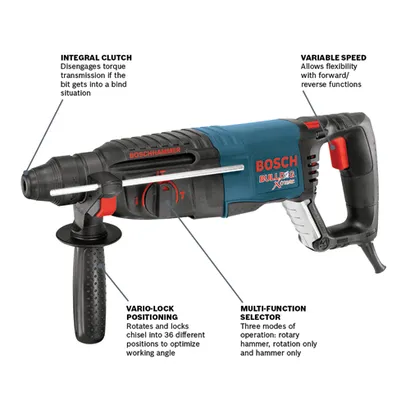

Bosch BULLDOG Xtreme hammer drill with features labeled: INTEGRAL CLUTCH, VARIABLE SPEED, VARIO-LOCK POSITIONING, and MULTI-FUNCTION SELECTOR.
11255VSR
11255VSR
Woman in white helmet and safety glasses drills into a ceiling using a Bosch Bulldog Xtreme hammer, with a vacuum hose attached.

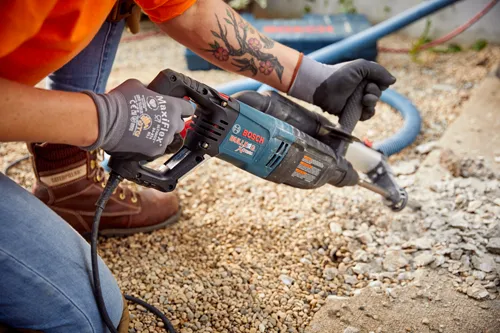

Person using a Bosch BULLDOG Xtreme hammer drill, wearing gray gloves, orange shirt, and Caterpillar boots.

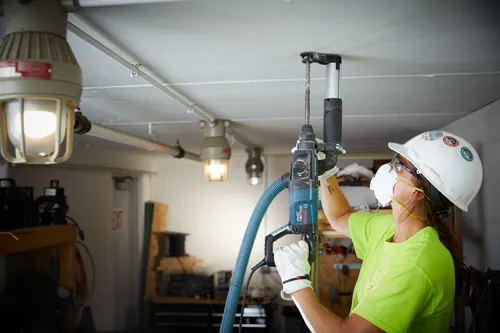

Person wearing a white hard hat, safety glasses, and a respirator using a Bosch Bulldog Xtreme rotary hammer drill.

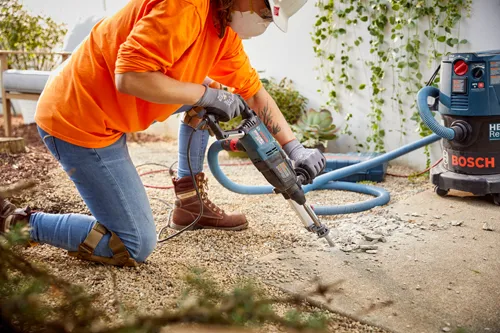

Person kneeling, wearing orange long-sleeved shirt, jeans, brown work boots, and gloves, using a Bosch Bulldog Xtreme hammer drill connected to a Bosch HEPA dust extractor.

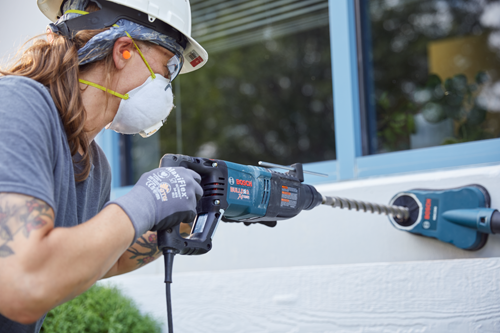

Person using a Bosch BULLDOG Xtreme rotary hammer drill, wearing safety glasses, earplugs, and a dust mask.

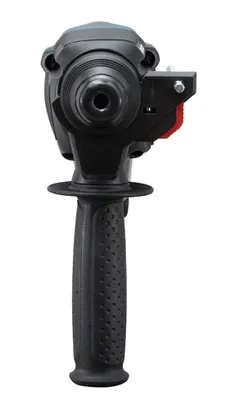

BOSCH power tool, with a black handle.

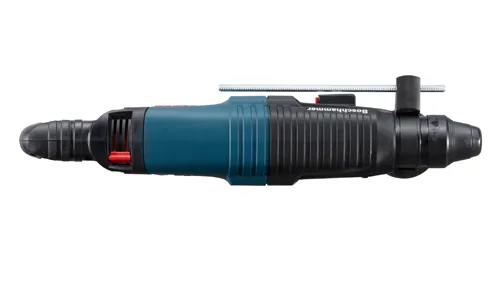

Bosch BULLDOG Xtreme rotary hammer, with "Boschhammer" and "BOSCH" text visible.
Boschhammer
Bosch BULLDOG Xtreme hammer drill, with variable settings.
Bosch Bulldog Xtreme power tool, with visible text.

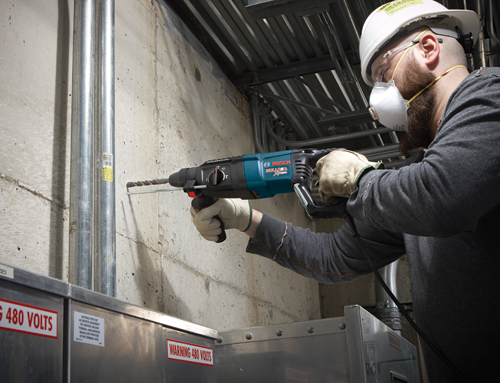

Bosch BULLDOG Xtreme drill being used by a person, wearing gloves, a mask, safety glasses and a hardhat, to drill into a concrete wall next to a metallic pipe. Warning 480 VOLTS text is visible on the wall.

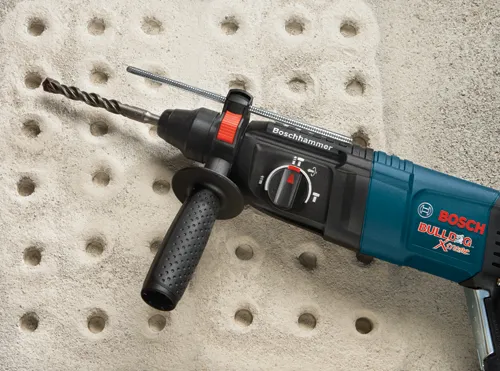

Bosch BULLDOG Xtreme rotary hammer, drilling into concrete.

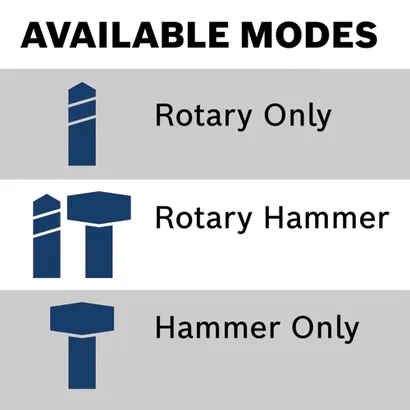

AVAILABLE MODES. Rotary Only with drill icon. Rotary Hammer with drill and hammer icons. Hammer Only with hammer icon.
Bosch "Corded Tool" with LIMITED WARRANTY, 1 YEAR Tool. Effective 6/1/23, all 18V products are covered by this updated warranty. For updated terms, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99.

11255VSR Professional

SDS-plus® Hammers

SDS-plus® Bulldog™ Xtreme 1 In. Rotary Hammer

  • Robust 8.0 Amp rotary hammer – delivers 2.0 Ft.-Lbs. of impact energy with three modes of operation and rotating chisel lock
  • Vario-Lock positioning – rotates and locks chisel to optimize working angle
  • Variable-speed trigger with reversing – offers accurate bit starting
  • Integral clutch – disengages torque transmission if the bit gets into a bind-up scenario
  • Works with Bosch PRO+GUARD™ dust solutions – an end-to-end dust-collection system that helps users move toward OSHA silica table 1 dust compliance
  • Multi-function selector – three modes of operation: rotary hammer, rotation only and hammer only
  • Bosch-exclusive rotating brush plate — provides equal power in forward and reverse

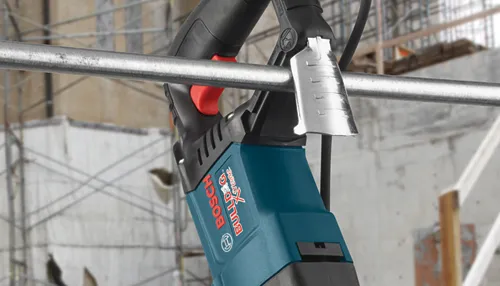

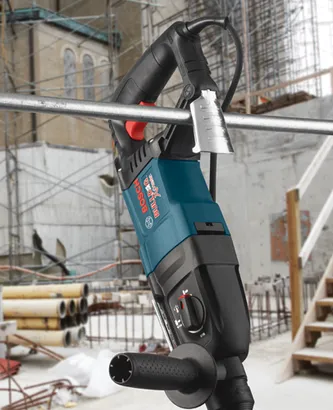

  • HammerHook – allows quick tool storage during the job
  • D-handle design – ideal for overhead and downward drilling applications
  • SDS-plus® bit system – tool-free bit changes with automatic bit locking
View more View less

11255VSR Professional

Technical data

The most important data

Amperage
8
Chuck Design
Keyless
Chuck Size
1 in
Drive System
SDS-plus
Height in
6 "
Impact Energy/EPTA (ft. lbs.)
2.0 Ft.-Lbs. EPTA
Length in
17.25 "
Material
Plastic/Metal
Max Bit Diameter
1"
Max. Hole Dia. - Core Bit
2-5/8"
Max. Hole Diameter in Concrete
1"
Max. Hole Diameter in Concrete-Thin Wall Core Bit
2-5/8"
Max. Hole Diameter in Steel
1/2"
Max. Hole Diameter in Wood
1-1/4"
No Load BPM
0 - 5,800
No Load RPM
0-1,300
Optimal Concrete Capacity Range
3/16" - 5/8"
Rating
120V
Reverse
Yes
Variable Speed
Yes
Voltage
120V
Weight
6.7 lb
Weight (lbs.)
6.7
Width in
3.5 "
Works With
18V On-Tool Dust Extractor, GDE18V-26D, Other Dust Extraction/Collection Hoods, HDC100, HDC200,, Right Angle Attachment, RHA-50, Keyless 3-Jaw Chuck with SDS-plus® Shank, HA3JAW
Includes
(1) 11255VSR SDS-plus® Bulldog™ Xtreme 1 In. Rotary Hammer
(1) Auxiliary Handle
(1) Depth Gauge
(1) Carrying Case

11255VSR Professional: Further information

Product Highlights

The Bosch 11255VSR SDS-plus® Bulldog™ Xtreme 1 In. Rotary Hammer is a versatile, handy tool that features a robust 8.0 Amp motor. From anchoring to large material breaking, it gets the job done right the first time. Engineered in the tradition of legendary Bulldogs, this powerful hammer delivers 2.0 Ft.-Lbs. of impact energy and 0-5,800 no-load BPM, but it weighs just 6.7 Lbs. The multifunction mode selector allows users to easily select among three modes of operation: rotary hammer, rotation only and hammer only. To optimize the chiseling angle, it has Vario-Lock positioning that rotates and locks the chisel in one of 36 different positions. It is Bosch’s PRO+GUARD™ dust system, helping users move toward OSHA Silica Table 1 dust compliance. The hammer is designed with an ergonomic D-handle for comfort. It features a variable-speed reversing trigger for accurate bit starting, and a Bosch-exclusive rotating brush plate, for equal power in forward and reverse. Busy pros will appreciate the tool's HammerHook, which allows the user to hang the tool on the job, and the SDS-plus® system provides for tool-free bit changes.
