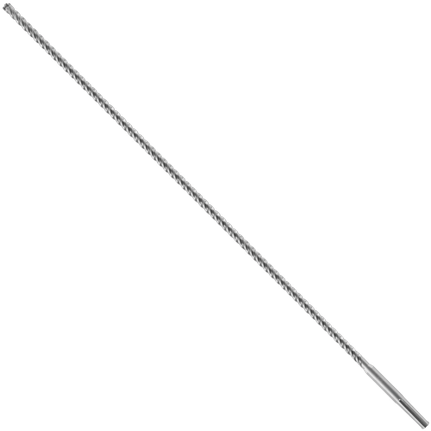

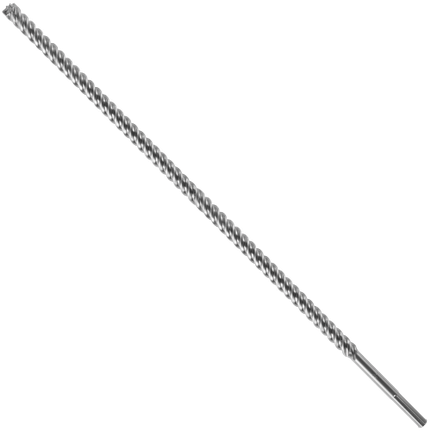

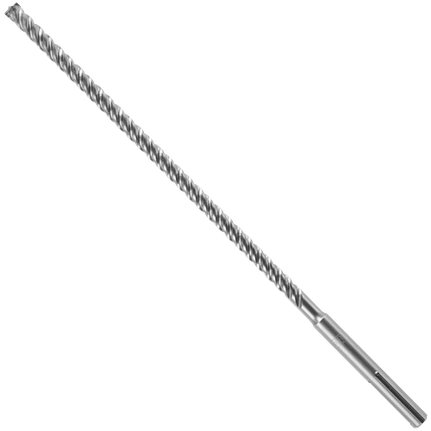

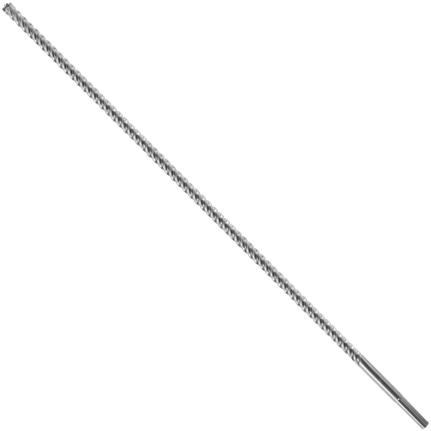

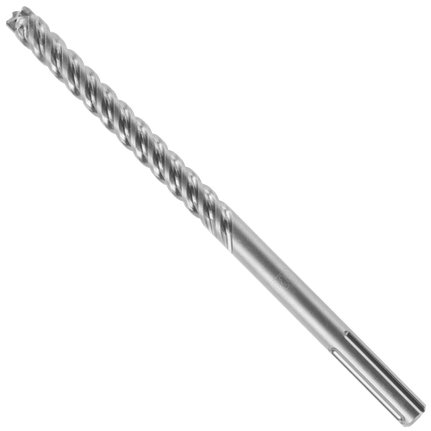

SDS-max® SpeedXtreme™ Rotary Hammer Drill Bits
For rotary hammer drills
50% More Durability
- SDS-max® SpeedXtreme™ Rotary Hammer Drill Bit enables 50% more durability in toughest applications
- Long-lasting SDS-max® bit design – manufactured with 100% carbide head and four-cutter design, making it the long-lasting bit for drilling in reinforced concrete and hard aggregate
- Latest diffusion-bonding technology – provides 5X life vs. competition, for the strongest bond available
- Four-cutter head design – provides 180° cutting diameter and 100% power transfer during drilling
- Four symmetrical 90° side angles – create a wide and sharp tip to aggressively cut through tough material like concrete with rebar
Materials
Select options
Diameter (D) Inch
Select one option from the listed items below
Working length (L1) Inch
Select one option from the listed items below
Total length (L2) Inch
Select one option from the listed items below
Choose a pack size
Select one option from the listed items below
Select options
Diameter (D) Inch 7 options
Working length (L1) Inch 4 options
Total length (L2) Inch 4 options
Choose a pack size 1
SDS-max® SpeedXtreme™ Rotary Hammer Drill Bits
For rotary hammer drills

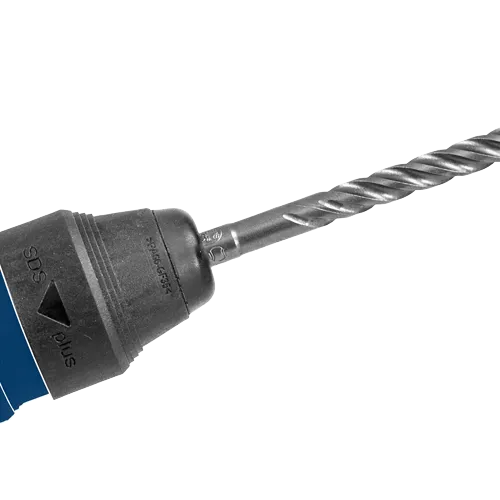

Fits tools of most brands
Fits all SDS max rotary hammer drills.
50% More Durability in Toughest Applications
SDS-max® SpeedXtreme™ Rotary Hammer Drill Bit enables 50% more durability in toughest applications
- Extremely high stress and heat resistant due to strong and lasting welded bond between steel body and full carbide head
- Ultimately sharp 90° centering tip provides an accurate start when drilling
- Active-centering tip – results in rounder holes for precision-anchoring applications, with a wear mark to help deliver precision hole-diameter tolerance
View more
Product Options
Available product options: 23
|
Model number
|
Diameter (D) Inch
|
Working length (L1) Inch
|
Total length (L2) Inch
|
Pack quantity
|
|
|---|---|---|---|---|---|---|
| HCFC5005 | 3/8 | 8 | 13 | 1 | ||
| HCFC5010 | 1/2 | 8 | 13 | 1 | ||
| HCFC5011 | 1/2 | 16 | 21 | 1 | ||
| HCFC5013 | 1/2 | 24 | 29 | 1 | ||
| HCFC5015 | 9/16 | 8 | 13 | 1 | ||
| HCFC5016 | 9/16 | 16 | 21 | 1 | ||
| HCFC5017 | 9/16 | 24 | 29 | 1 | ||
| HCFC5020 | 5/8 | 8 | 13 | 1 | ||
| HCFC5021 | 5/8 | 16 | 21 | 1 | ||
| HCFC5023 | 5/8 | 31 | 36 | 1 | ||
| HCFC5024 | 5/8 | 24 | 29 | 1 | ||
| HCFC5030 | 3/4 | 8 | 13 | 1 | ||
| HCFC5031 | 3/4 | 16 | 21 | 1 | ||
| HCFC5033 | 3/4 | 31 | 36 | 1 | ||
| HCFC5034 | 3/4 | 24 | 29 | 1 | ||
| HCFC5040 | 7/8 | 8 | 13 | 1 | ||
| HCFC5041 | 7/8 | 16 | 21 | 1 | ||
| HCFC5043 | 7/8 | 31 | 36 | 1 | ||
| HCFC5044 | 7/8 | 24 | 29 | 1 | ||
| HCFC5050 | 1 | 8 | 13 | 1 | ||
| HCFC5051 | 1 | 16 | 21 | 1 | ||
| HCFC5053 | 1 | 31 | 36 | 1 | ||
| HCFC5054 | 1 | 24 | 29 | 1 |
out of products

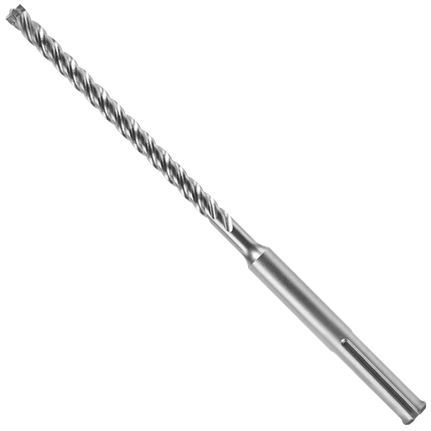

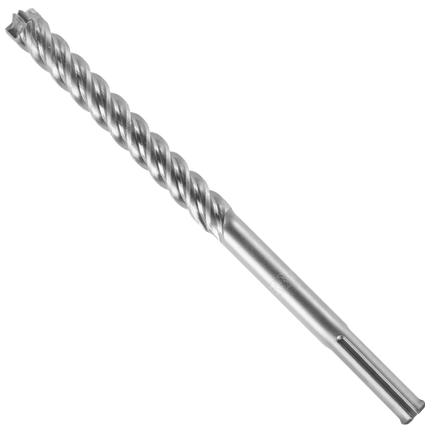

3/8 In. x 8 In. x 13 In. SDS-max® Speed Xtreme™ Rotary Hammer Bit
Model number HCFC5005
Pack quantity
1
Details
Diameter (D) Inch
3/8
Working length (L1) Inch
8
Total length (L2) Inch
13
1/2 In. x 8 In. x 13 In. SDS-max® SpeedXtreme™ Rotary Hammer Drill Bit
Model number HCFC5010
Pack quantity
1
Details
Diameter (D) Inch
1/2
Working length (L1) Inch
8
Total length (L2) Inch
13

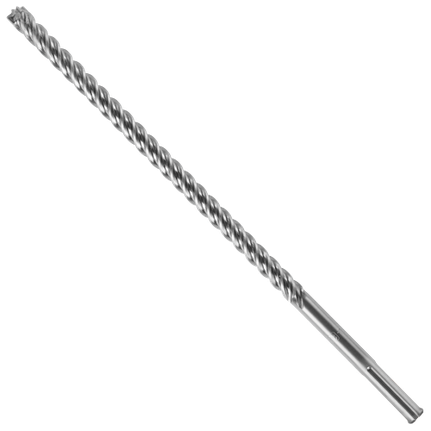

1/2 In. x 16 In. x 21 In. SDS-max® SpeedXtreme™ Rotary Hammer Drill Bit
Model number HCFC5011
Pack quantity
1
Details
Diameter (D) Inch
1/2
Working length (L1) Inch
16
Total length (L2) Inch
21

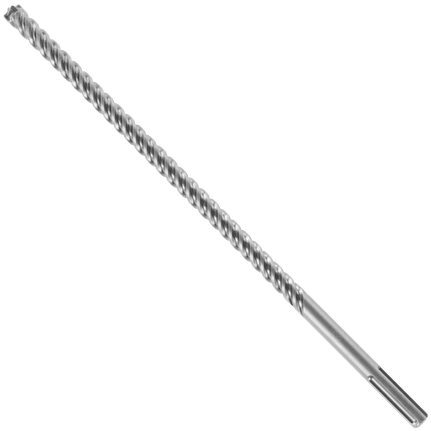

1/2 In. x 24 In. x 29 In. SDS-max® SpeedXtreme™ Rotary Hammer Drill Bit
Model number HCFC5013
Pack quantity
1
Details
Diameter (D) Inch
1/2
Working length (L1) Inch
24
Total length (L2) Inch
29
9/16 In. x 8 In. x 13 In. SDS-max® Speed Xtreme™ Rotary Hammer Bit
Model number HCFC5015
Pack quantity
1
Details
Diameter (D) Inch
9/16
Working length (L1) Inch
8
Total length (L2) Inch
13
9/16 In. x 16 In. x 21 In. SDS-max® Speed Xtreme™ Rotary Hammer Bit
Model number HCFC5016
Pack quantity
1
Details
Diameter (D) Inch
9/16
Working length (L1) Inch
16
Total length (L2) Inch
21
9/16 In. x 24 In. x 29 In. SDS-max® Speed Xtreme™ Rotary Hammer Bit
Model number HCFC5017
Pack quantity
1
Details
Diameter (D) Inch
9/16
Working length (L1) Inch
24
Total length (L2) Inch
29
5/8 In. x 8 In. x 13 In. SDS-max® SpeedXtreme™ Rotary Hammer Drill Bit
Model number HCFC5020
Pack quantity
1
Details
Diameter (D) Inch
5/8
Working length (L1) Inch
8
Total length (L2) Inch
13
5/8 In. x 16 In. x 21 In. SDS-max® SpeedXtreme™ Rotary Hammer Drill Bit
Model number HCFC5021
Pack quantity
1
Details
Diameter (D) Inch
5/8
Working length (L1) Inch
16
Total length (L2) Inch
21

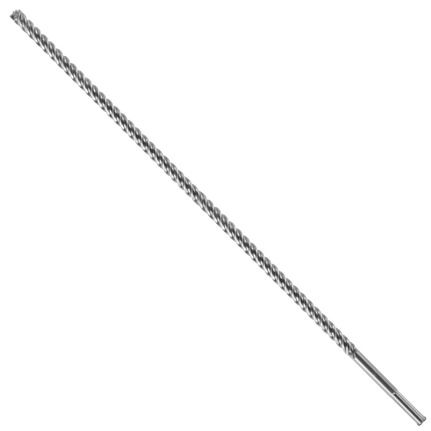

5/8 In. x 31 In. x 36 In. SDS-max® SpeedXtreme™ Rotary Hammer Drill Bit
Model number HCFC5023
Pack quantity
1
Details
Diameter (D) Inch
5/8
Working length (L1) Inch
31
Total length (L2) Inch
36
5/8 In. x 24 In. x 29 In. SDS-max® SpeedXtreme™ Rotary Hammer Drill Bit
Model number HCFC5024
Pack quantity
1
Details
Diameter (D) Inch
5/8
Working length (L1) Inch
24
Total length (L2) Inch
29
3/4 In. x 8 In. x 13 In. SDS-max® SpeedXtreme™ Rotary Hammer Drill Bit
Model number HCFC5030
Pack quantity
1
Details
Diameter (D) Inch
3/4
Working length (L1) Inch
8
Total length (L2) Inch
13
3/4 In. x 16 In. x 21 In. SDS-max® SpeedXtreme™ Rotary Hammer Drill Bit
Model number HCFC5031
Pack quantity
1
Details
Diameter (D) Inch
3/4
Working length (L1) Inch
16
Total length (L2) Inch
21

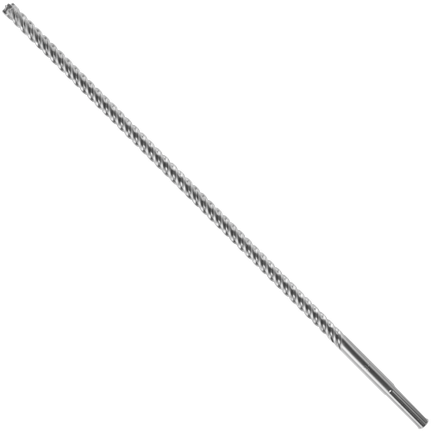

3/4 In. x 31 In. x 36 In. SDS-max® SpeedXtreme™ Rotary Hammer Drill Bit
Model number HCFC5033
Pack quantity
1
Details
Diameter (D) Inch
3/4
Working length (L1) Inch
31
Total length (L2) Inch
36
3/4 In. x 24 In. x 29 In. SDS-max® SpeedXtreme™ Rotary Hammer Drill Bit
Model number HCFC5034
Pack quantity
1
Details
Diameter (D) Inch
3/4
Working length (L1) Inch
24
Total length (L2) Inch
29
7/8 In. x 8 In. x 13 In. SDS-max® Speed Xtreme™ Rotary Hammer Bit
Model number HCFC5040
Pack quantity
1
Details
Diameter (D) Inch
7/8
Working length (L1) Inch
8
Total length (L2) Inch
13
7/8 In. x 16 In. x 21 In. SDS-max® Speed Xtreme™ Rotary Hammer Bit
Model number HCFC5041
Pack quantity
1
Details
Diameter (D) Inch
7/8
Working length (L1) Inch
16
Total length (L2) Inch
21

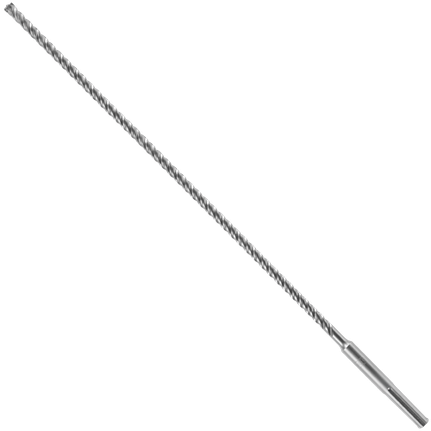

7/8 In. x 31 In. x 36 In. SDS-max® Speed Xtreme™ Rotary Hammer Bit
Model number HCFC5043
Pack quantity
1
Details
Diameter (D) Inch
7/8
Working length (L1) Inch
31
Total length (L2) Inch
36
7/8 In. x 24 In. x 29 In. SDS-max® Speed Xtreme™ Rotary Hammer Bit
Model number HCFC5044
Pack quantity
1
Details
Diameter (D) Inch
7/8
Working length (L1) Inch
24
Total length (L2) Inch
29
1 In. x 8 In. x 13 In. SDS-max® SpeedXtreme™ Rotary Hammer Drill Bit
Model number HCFC5050
Pack quantity
1
Details
Diameter (D) Inch
1
Working length (L1) Inch
8
Total length (L2) Inch
13
1 In. x 16 In. x 21 In. SDS-max® SpeedXtreme™ Rotary Hammer Drill Bit
Model number HCFC5051
Pack quantity
1
Details
Diameter (D) Inch
1
Working length (L1) Inch
16
Total length (L2) Inch
21

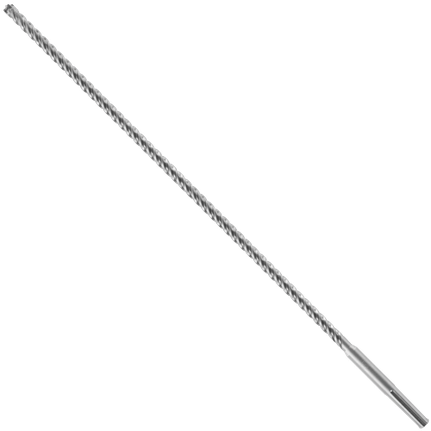

1 In. x 31 In. x 36 In. SDS-max® SpeedXtreme™ Rotary Hammer Drill Bit
Model number HCFC5053
Pack quantity
1
Details
Diameter (D) Inch
1
Working length (L1) Inch
31
Total length (L2) Inch
36
1 In. x 24 In. x 29 In. SDS-max® SpeedXtreme™ Rotary Hammer Drill Bit
Model number HCFC5054
Pack quantity
1
Details
Diameter (D) Inch
1
Working length (L1) Inch
24
Total length (L2) Inch
29
