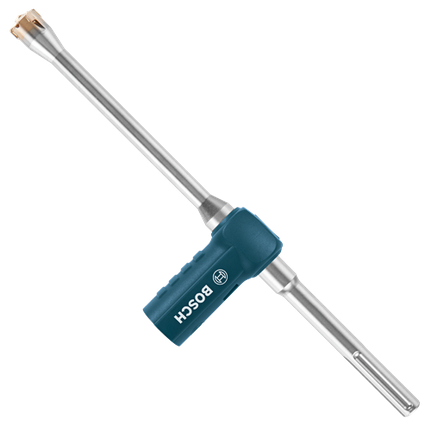

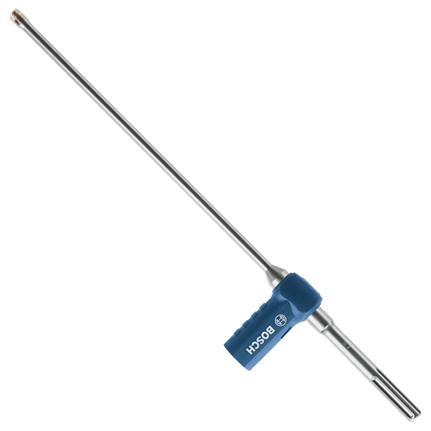

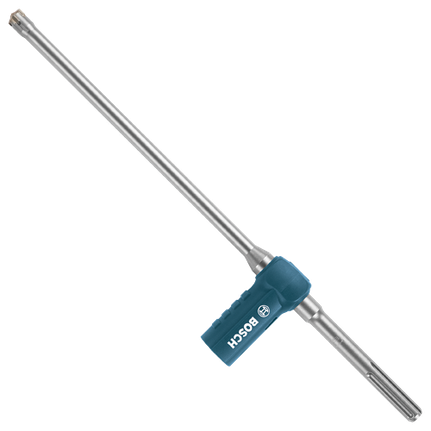

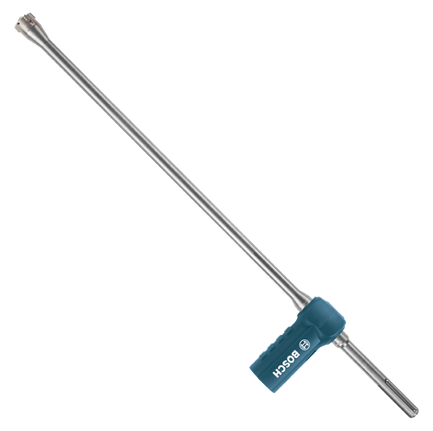

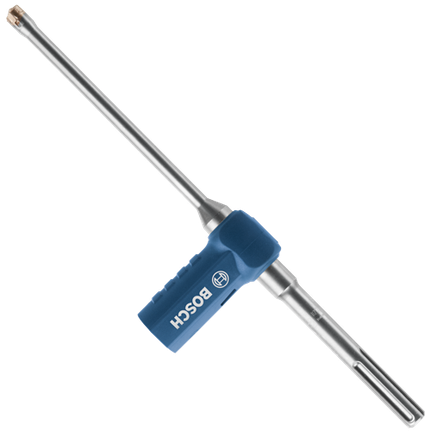

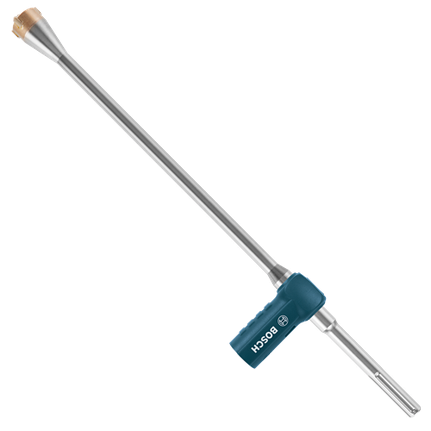

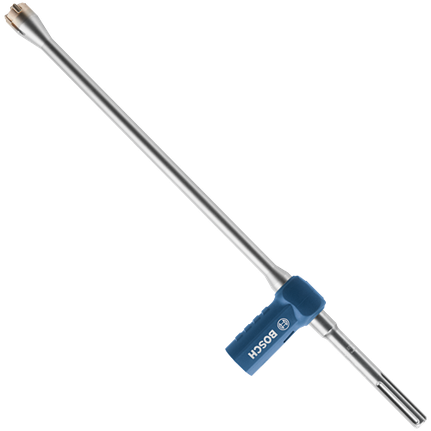

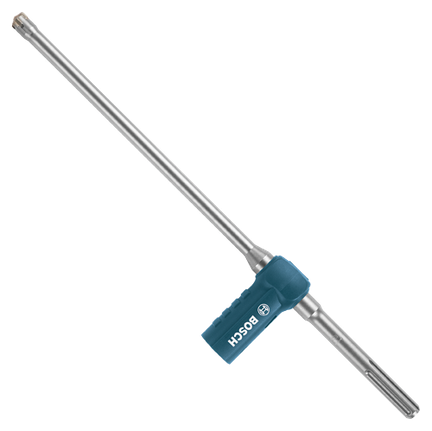

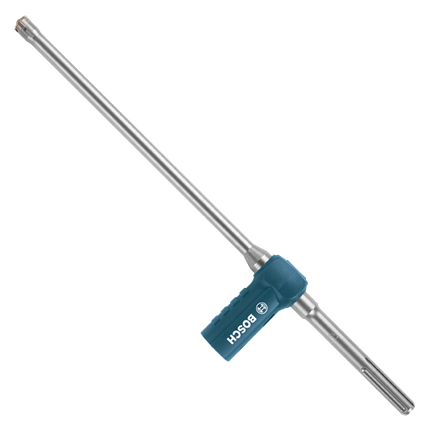

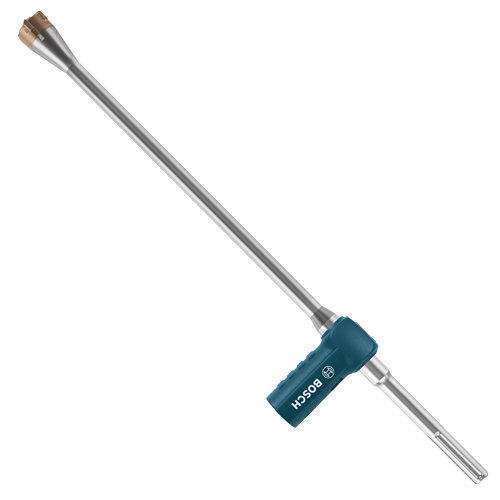

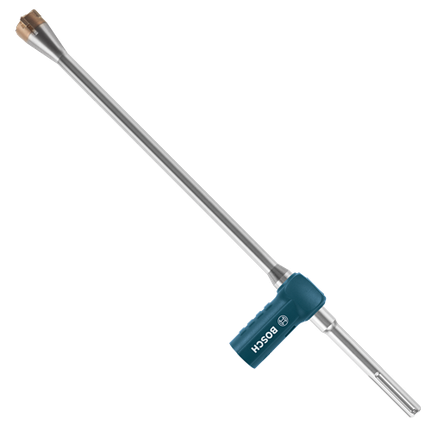

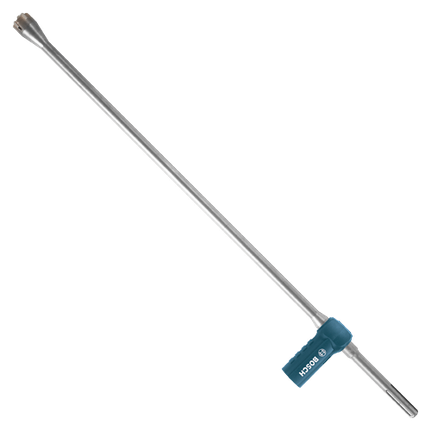

SDS-max® Speed Clean™ Dust Extraction Drill Bits
For rotary hammer drills
Dustless Drilling
- SDS max-9 Speed Clean Drill Bit allows for dustless drilling
- Hollow drill bit – connects to a vacuum system to deliver up to 50% time savings versus the conventional drill-blow-brush-blow anchor-installation method
- Meets OSHA standards for adhesive anchoring – work in conjunction the PRO+GUARD dust system to help users move toward compliance with the OSHA Silica Dust Table 1 regulation
- Faster drilling – provides up to 25% greater drilling speed thanks to less dust and reduced friction
- Great durability – one-piece design offers comparable life to Bosch SpeedX® bits
Materials




Select options
Diameter (D) Inch 10 options
Working length (L1) Inch 7 options
Total length (L2) Inch 8 options
Choose a pack size 1

Fits tools of most brands




Fits all SDS max rotary hammer drills.
DUSTLESS DRILLING IN MASONRY, CONCRETE AND REINFORCED CONCRETE

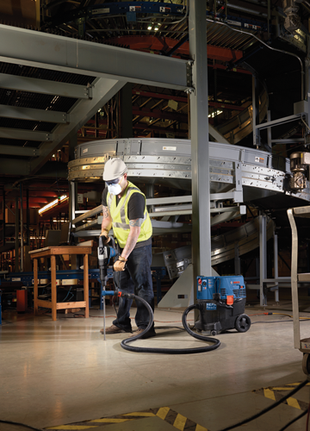

The SDS-max Speed Clean Dust Extraction Drill Bit allows for dustless drilling. While working, the built-in vacuum attachment pulls dust through extraction holes in the drill bit, allowing optimum material removal without additional steps. This technology results in a clean, dust-free working environment. The bit is intended for use on masonry, concrete and reinforced concrete.
The SDS-max Speed Clean Dust Extraction Drill Bit is available as a 4-cutter for bigger diameters and as a 2-cutter for smaller diameters and features an Active Centering tip. To achieve accurate results, the visibility of the wear mark indicates if the diameter of the hole is still in tolerance for metal anchor setting. It is made in Germany.
Product Options
Available product options: 17
![]() |
Model number
![]() |
Diameter (D) Inch
![]() |
Working length (L1) Inch
![]() |
Total length (L2) Inch
![]() |
Pack quantity
![]() |
![]() |
---|---|---|---|---|---|---|
DXS5010 | 1/2 | 8 | 17 | 1 | ||
DXS5020 | 5/8 | 8 | 17 | 1 | ||
DXS5021 | 5/8 | 16 | 25 | 1 | ||
DXS5030 | 3/4 | 8 | 8 | 1 | ||
DXS5031 | 3/4 | 16 | 24 | 1 | ||
DXS5034 | 3/4 | 12 1/2 | 21 | 1 | ||
DXS5040 | 7/8 | 8 | 17 | 1 | ||
DXS5044 | 7/8 | 15 | 25 | 1 | ||
DXS5048 | 13/16 | 15 | 25 | 1 | ||
DXS5050 | 1 | 8 | 17 | 1 | ||
DXS5054 | 1 | 17 1/2 | 27 | 1 | ||
DXS5060 | 1 1/8 | 8 | 17 | 1 | ||
DXS5062 | 1 1/8 | 20 | 29 | 1 | ||
DXS5081 | 1 3/8 | 16 | 24 | 1 | ||
DXS5082 | 1 3/8 | 25 | 35 | 1 | ||
HCD5071 | 1 1/4 | 16 | 21 | 1 | ||
HCD5091 | 1 1/2 | 16 | 24 | 1 |
out of products
1/2 In. x 17 In. SDS-max® Speed Clean™ Dust Extraction Bit






5/8 In. x 17 In. SDS-max® Speed Clean™ Dust Extraction Bit






5/8 In. x 25 In. SDS-max® Speed Clean™ Dust Extraction Bit






3/4 In. x 17 In. SDS-max® Speed Clean™ Dust Extraction Bit






3/4 In. x 24 In. SDS-max® Speed Clean™ Dust Extraction Bit






3/4 In. x 21 In. SDS-max® Speed Clean™ Dust Extraction Bit






7/8 In. x 17 In. SDS-max® Speed Clean™ Dust Extraction Bit






7/8 In. x 25 In. SDS-max® Speed Clean™ Dust Extraction Bit






13/16 In. x 25 In. SDS-max® Speed Clean™ Dust Extraction Bit






1 In. x 17 In. SDS-max® Speed Clean™ Dust Extraction Bit






1 In. x 27 In. SDS-max® Speed Clean™ Dust Extraction Bit






1-1/8 In. x 17 In. SDS-max® Speed Clean™ Dust Extraction Bit






1-1/8 In. x 29 In. SDS-max® Speed Clean™ Dust Extraction Bit






1-3/8 In. x 24 In. SDS-max® Speed Clean™ Dust Extraction Bit






1-3/8 In. x 35 In. SDS-max® Speed Clean™ Dust Extraction Bit






1-1/4 In. x 25 In. SDS-max® Speed Clean™ Dust Extraction Bit






1-1/2 In. x 24 In. SDS-max® Speed Clean™ Dust Extraction Bit
