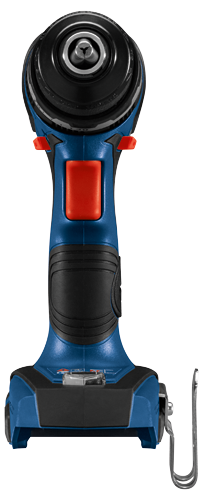

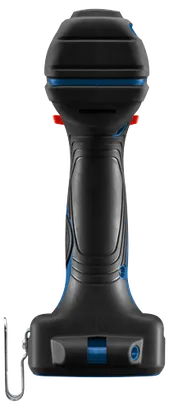

GSB18V-535CN Professional
18V Hammer Drill/Drivers

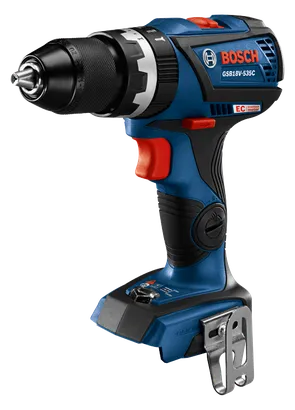

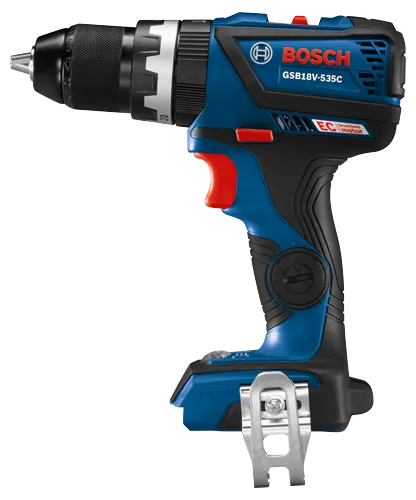

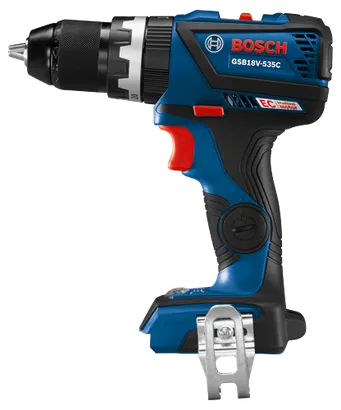

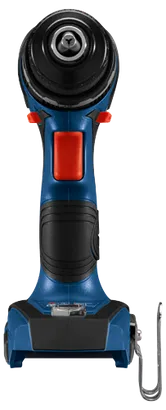

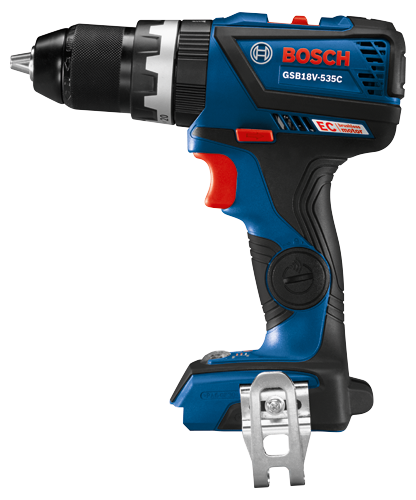

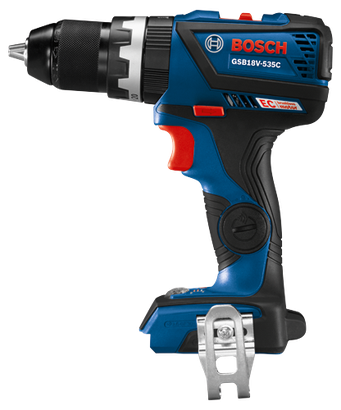

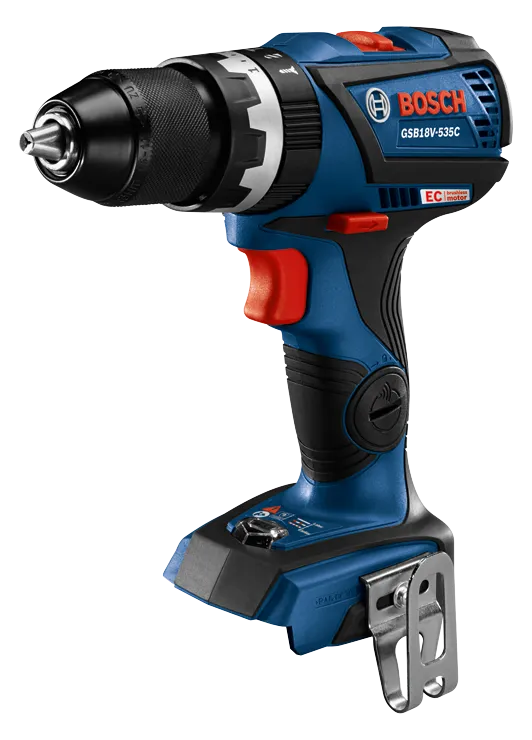

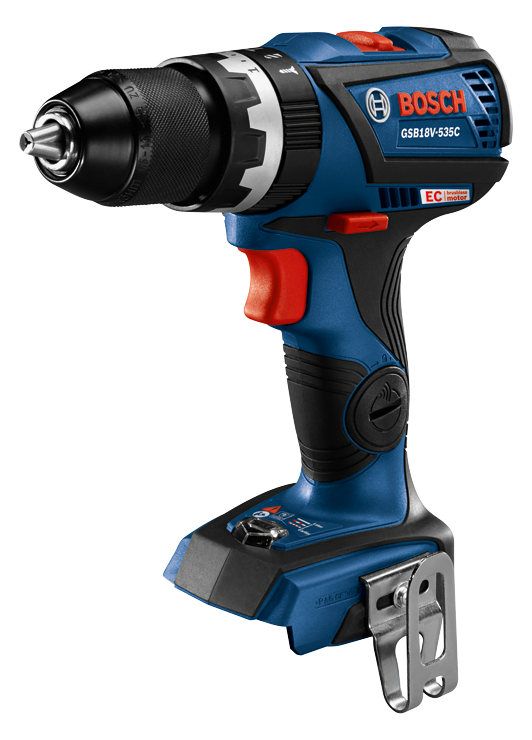

18V EC Brushless Connected-Ready 1/2 In. Hammer Drill/Driver (Bare Tool)

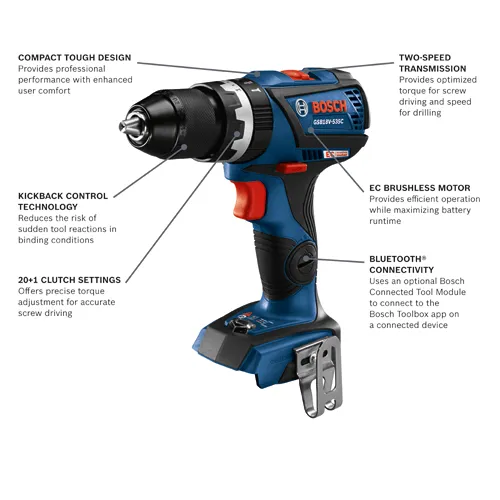

- Next-gen hammer drill power and control – engineered with Bluetooth® connectivity (when the optional Connectivity Tool Module is installed), KickBack Control, 20+1 precision clutch and EC Brushless motor
- Bluetooth® connectivity – connects to an optional Connectivity Tool Module to link the hammer drill to the free Bosch Toolbox app on a mobile phone to customize settings and provide detailed feedback for optimized tool control
- KickBack Control – reduces the risk from sudden rotational torque reaction in a bind-up scenario
- EC Brushless motor – efficient motor that delivers 535 In.-Lbs. of torque with a long lifetime
- Precision clutch with 20+1 settings – provides driving accuracy for reduced fastener damage
- Upgraded all-metal chuck – for more durability, along with first-rate bit retention
- Compact design – helps complete the toughest jobs
- Great beat-to-weight ratio – at just 2.7 Lbs. (tool only, battery not included), this tool delivers 0-28,500 beats per minute (bpm)
- Outstanding control – variable drilling speeds for high-speed (0-1,900 RPM) and high power (0-600 RPM)
- Ergonomic grip zone – soft grip and improved design enables better handling and greater comfort
- Electronic Motor and Cell Protection – electronics protecting both the motor and the battery from overloading and overheating conditions

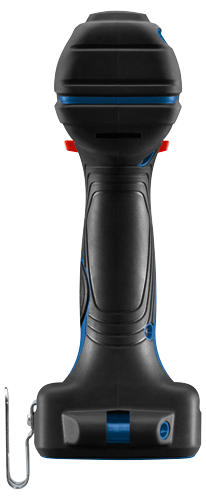

- Longer belt clip – for a more secure hold
- Drill-area LED with feedback – illuminates dark zones; provides tool-status change feedback
- Works with Bosch PRO+GUARD™ dust solutions – an end-to-end dust-collection system that helps users move toward OSHA Silica dust compliance
- AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
- AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
- Bosch 18V cordless power tools are covered by a five year limited warranty – for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Technical data
The most important data |
|
|---|---|
| Battery Chemistry | Lithium Ion |
| Battery/Charger | Not Included |
| Chuck Capacity | 1/2" Keyless Chuck |
| Chuck Design | Keyless |
| Chuck Size | 1/2 in |
| Height in | 7.9 " |
| Length in | 7.25 " |
| No Load BPM | 28,500 |
| No Load RPM | 0-600 / 0-1,900 |
| Reverse | Yes |
| Torque (in. lbs.) | 535 |
| Variable Speed | Yes |
| Weight | 2.7 lb |
| Width in | 3 " |
| Works With | Bosch Bluetooth® Connectivity Module, GCY42 (See tool manual for its connectivity/app features.), Dust Extraction/Collection Hood, HDC200 |
| Includes |
(1) GSB18V-535C 18V EC Brushless Connected-Ready 1/2 In. Hammer Drill/Driver (1) Belt Clip |
GSB18V-535CN Professional: Further information
Product Highlights
This Bosch Hammer Drill/Driver combines next-gen user control with a compact, powerful cordless tool. The GSB18V-535CN 18 V EC Brushless Connected-Ready 1/2 In. hammer drill features Bluetooth® connectivity, Bluetooth® connectivity (which connects with an optional Connectivity Tool Module), linking the free Bosch Toolbox app on a mobile phone for enhanced tool control and detailed feedback. It has a powerful EC Brushless motor, that provides ample power for 535 In.-Lbs. of torque and 0-28,500 beats per minute (BPM). It features a compact design for professional results in a compact package. It has variable speed settings; one for high-speed (0-1,900 RPM) and one for high power (0-600 RPM). The cordless drill has KickBack Control, which reduces the risk from sudden rotational torque reaction in a bind-up scenario for reduced the risk of user injury. The 20+1 precision clutch reduces fastener damage and prolongs tool life. It has an all-metal chuck that provides durability, and it has a longer belt clip for a more secure hold. This is a bare-tool kit; the battery and charger are sold separately.
