GSB18V-535CB15 Professional
18V Hammer Drill/Drivers

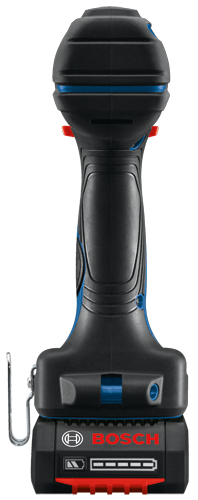

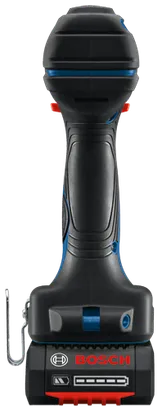

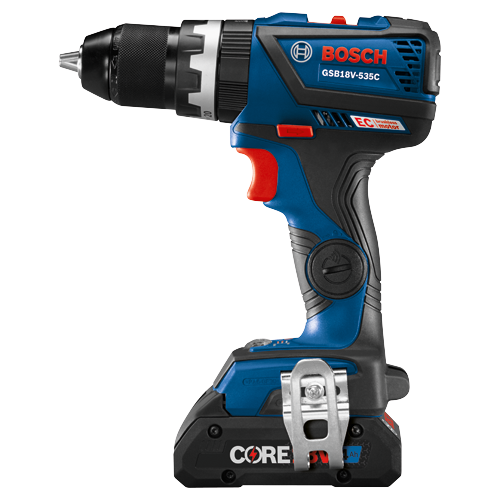

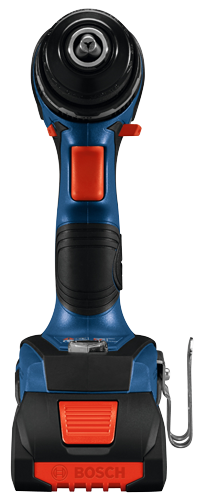

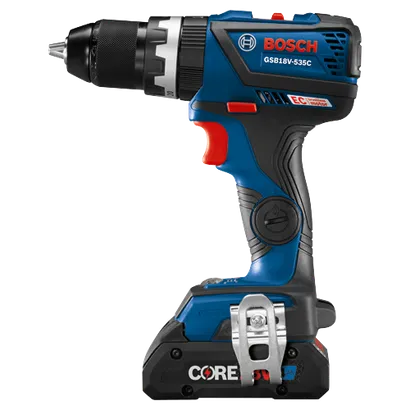

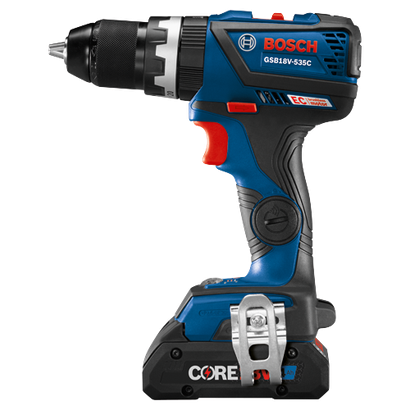

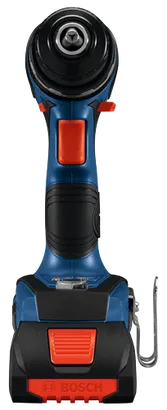

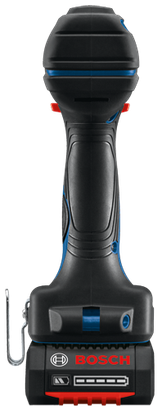

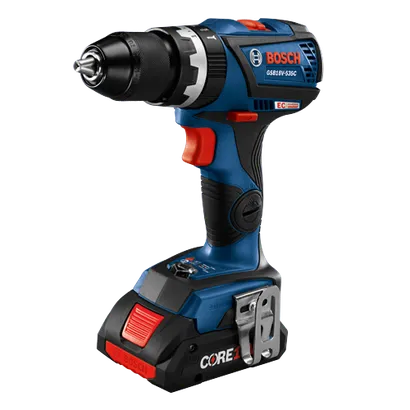

18V EC Brushless Connected-Ready 1/2 In. Hammer Drill/Driver with (1) CORE18V® 4 Ah Advanced Power Battery

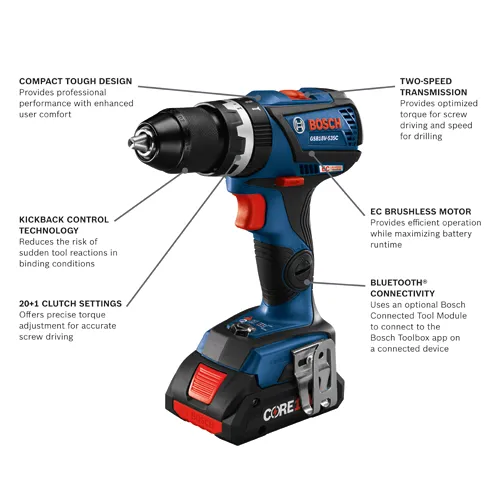

- Next-gen hammer drill performance – provides pro torque for driving, along with optional connectivity, KickBack Control and more
- Bluetooth® connectivity – connects to optional Connectivity Tool Module to customize tool settings on a connected device
- Compact CORE18V® Li-ion battery – engineered to provide next-gen power and runtime, while losing the weight, for optimized capacity
- KickBack Control – reduces the risk from sudden rotational torque reaction in a bind-up scenario
- EC Brushless motor – efficient motor that delivers 535 In.-Lbs. of torque with a long lifetime
- Precision clutch with 20+1 settings – provides driving accuracy for reduced fastener damage

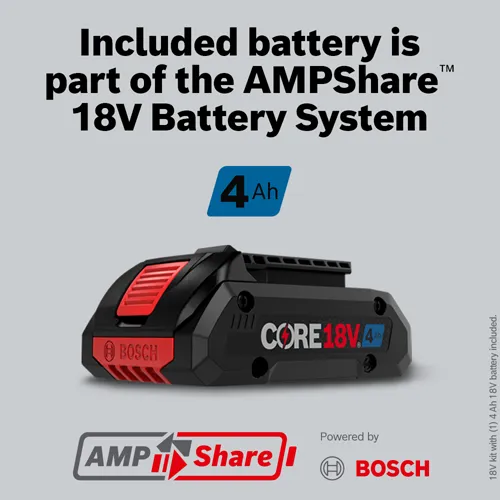

- High-power cells – uses enhanced 21700 cell technology, combined with advanced battery design for greater efficiency, to produce longer runtime
- Cutting-edge cell design – engineered to improve performance in tools used on the jobsite all day
- Bosch-exclusive CoolPack 2.0 technology – cooling the battery 20% faster than previous 4 Ah double-layer versions
- Upgraded all-metal chuck – for more durability, along with first-rate bit retention
- Drill-area LED with feedback – illuminates dark zones; provides tool-status change feedback
- Works with Bosch PRO+GUARD™ dust solutions – an end-to-end dust-collection system that helps users move toward OSHA Silica dust compliance
- AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
- AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
- Bosch 18V cordless power tools and 18V chargers are covered by a five year limited warranty; Bosch 18V batteries are covered by a three year limited warranty – for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Technical data
The most important data |
|
|---|---|
| Battery Chemistry | Lithium Ion |
| Battery/Charger | Included |
| Case Type | Bag |
| Chuck Capacity | 1/2" Keyless Chuck |
| Chuck Design | Keyless |
| Chuck Size | 1/2 in |
| Height in | 7.9 " |
| Length in | 7.25 " |
| No Load BPM | 28,500 |
| No Load RPM | 0-600 / 0-1,900 |
| Reverse | Yes |
| Torque (in. lbs.) | 535 |
| Variable Speed | Yes |
| Weight | 2.7 lb |
| Width in | 3 " |
| Works With | Bosch Bluetooth® Connectivity Module, GCY42 (See tool manual for its connectivity/app features.), Dust Extraction/Collection Hood, HDC200 |
| Includes |

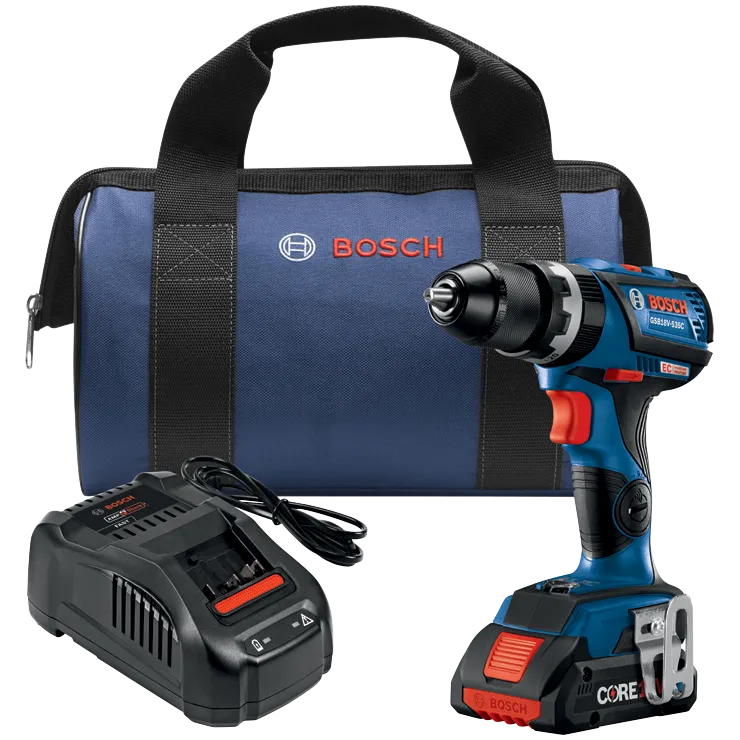

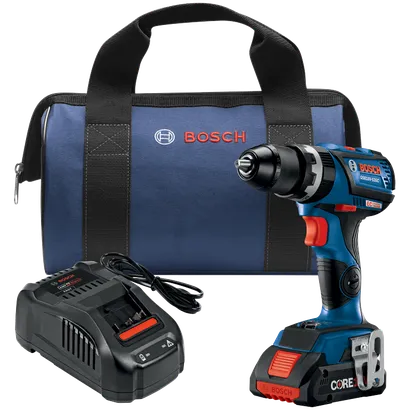

(1) GSB18V-535C 18V EC Brushless Connected-Ready 1/2 In. Hammer Drill/Driver (1) 18V CORE18V® Lithium-Ion 4 Ah Advanced Power Battery (1) 18V Charger (1) Belt Clip (1) Carrying Bag |
GSB18V-535CB15 Professional: Further information
Product Highlights

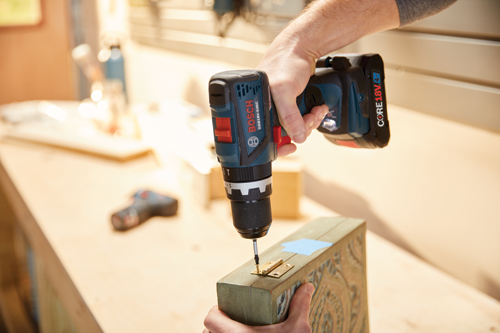

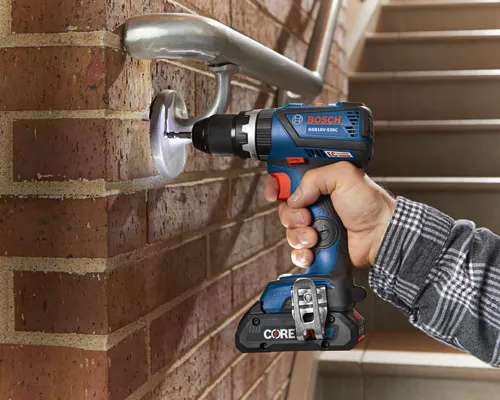

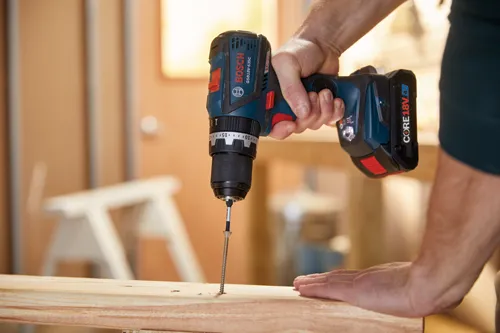

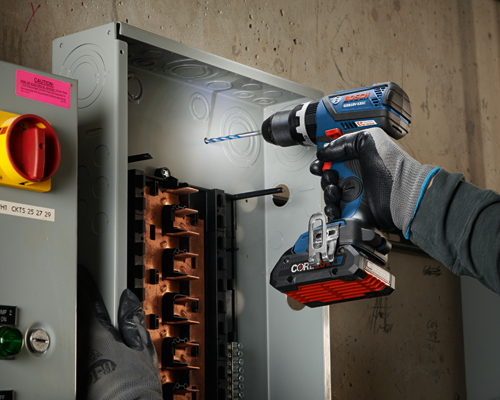

This Bosch hammer drill is engineered for tough jobs, with next-gen convenience and CORE18V® power. The GSB18V-535CB15 18V EC Brushless Connected-Ready 1/2 In. Hammer Drill/Driver features Bluetooth® connectivity (which connects with an optional Connectivity Tool Module), linking the free Bosch Toolbox app on any connected device for enhanced tool control and feedback. The kit includes a next-gen CORE18V® 4 Ah Advanced Power Battery. It keeps the power and runtime, while losing the weight, with 21700 cell technology. The CORE18V® matches the power of the original two-layer 4 Ah battery with half the number of cells. It features the CoolPack 2.0 heat-management system and 100% compatibility with Bosch 18V tools and 18V Lithium-ion battery chargers. This hammer drill’s powerful EC Brushless motor delivers 535 In.-Lbs. of torque and 0-28,500 BPM. It has variable speed settings; one for high-speed (0-1,900 RPM) and one for high power (0-600 RPM). The cordless drill has KickBack Control to reduce the risk from sudden rotational torque reaction, a 20+1 precision clutch; an all-metal chuck that provides durability and a longer belt clip.
