Point Lasers

GPL100-50G Professional

Point Lasers

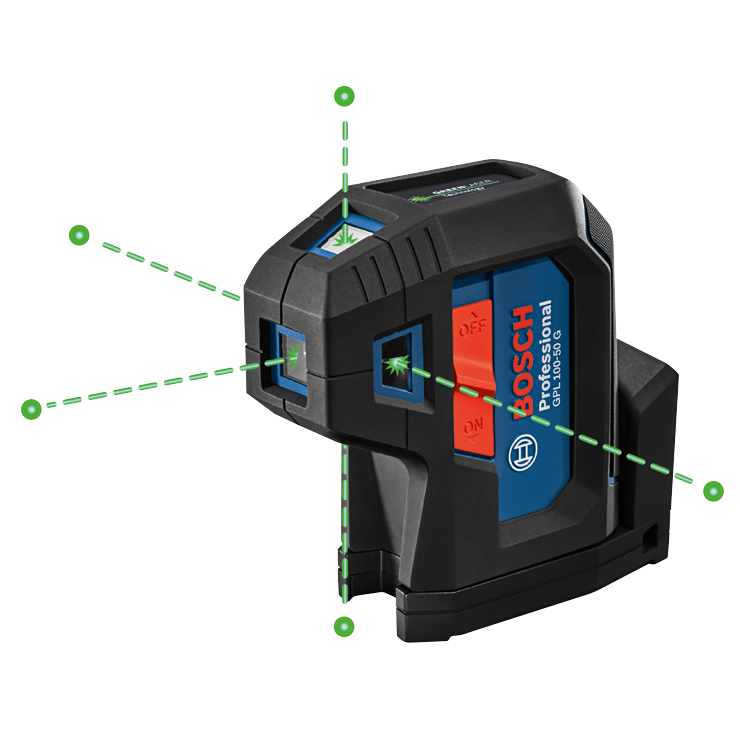

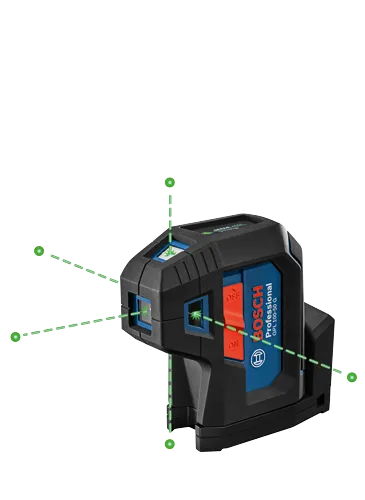

Green-Beam Five-Point Self-Leveling Alignment Laser

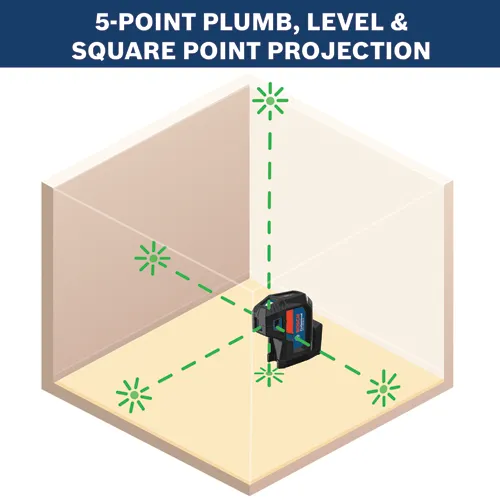

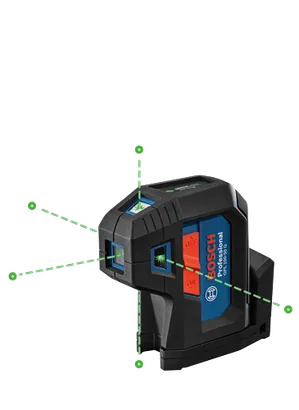

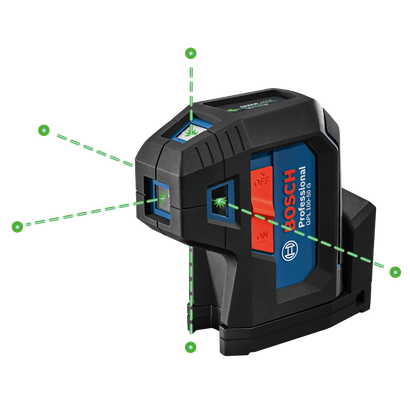

  • Five-point plumb and level point projection – accurately transfers and aligns level, plumb, 90° and grade points
  • Built-in VisiMax™ technology – monitors power consumption to maximize point visibility and extend battery life

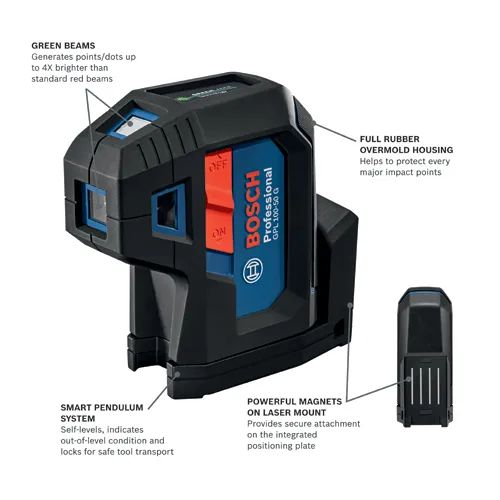

  • Bright green-beam laser – up to 4X brighter than standard red beams
  • Full rubber overmold housing – helps protect every major impact point, with a design similar to a roll cage
  • Smart Pendulum System – allows tool to self-level, and it indicates out-of-level condition
  • Secure laser transport – after switching off, pendulum is locked, plus 360 degree rotation for extra protection
  • Integrated multipurpose laser mount – positions and mounts with magnets or threaded mounts (1/4 In.-20)
  • Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
View more View less

GPL100-50G Professional

Technical data

The most important data

Case Type Hard plastic
Height in 4.5 "
IP Rating IP 65
Laser Beam Color Green
Laser Diode Class 2, 500-540 nm
Length in 4.5 "
Leveling Type Self-Leveling, Up to 4°
Material Plastic
Mount Threading 1/4-20
Number of Beams 5
Range Up to 125-ft.
Weight 0.77 lb
Width in 2 "
Works With Tripod, BP 150, Telescoping Pole System, BP350, Mounts and Positioning Devices, BM 1, BM3, LB10, MM 2
Includes (1) GPL100-50G Green-Beam Five-Point Self-Leveling Alignment Laser
(1) Built-In Multi-Purpose Mount
(2) AA Batteries
(1) Hard Carrying Case

GPL100-50G Professional: Further information

Product Highlights

The Bosch GPL100-50G features a five-point, self-leveling laser with ±1/8 In. accuracy at 30 Ft. for up/down plumb, align and level applications (the bottom point’s accuracy is ±1/4 In. at 30 Ft.). This unit features green-beam technology, which is up to 4X brighter than standard red beams. It also has the Bosch-exclusive VisiMax™ technology, which delivers maximum beam brightness in most jobsite conditions. The unit includes point projection to the front, so it can be used in a variety of positions for flexibility on the job. It is faster than a standard manual plumb bob. The unit includes several durability features, such as the Smart Pendulum System to lock the laser when switched off, 360 degree rotation, a hard carrying case and full rubber overmold housing. The integrated multipurpose laser mount features strong magnets and allows the user to mount the laser virtually anywhere.
