Spline Hammers

11265EVS Professional

Spline Hammers

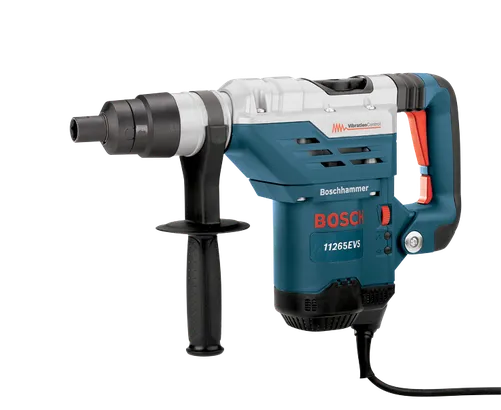

Spline 1-5/8 In. Combination Hammer

  • Power-to-weight ratio - 13.0 Amp motor that drives 6.5 Ft.-Lbs. of impact energy in a 15.1 lb. hammer, for professional results
  • Vibration Control – vibration reduction in the hammer mechanism and the grip area provides maximum user comfort for extended periods of work
  • Constant Response circuitry — provides soft-start and maintains constant speed under load
  • Electro-pneumatic impact system maximizes impact force and minimizes vibration

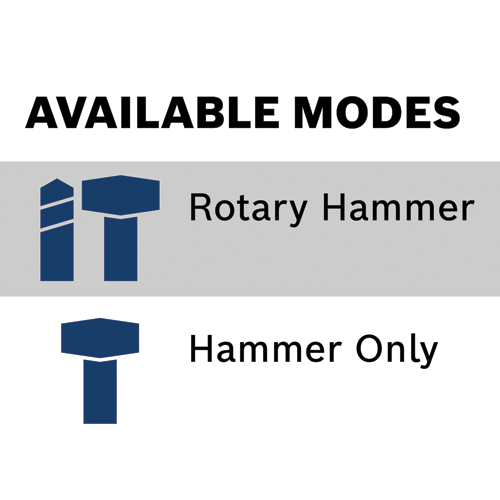

  • Dual-mode selector — offers two modes of operation: rotary hammer and hammer-only mode
  • Turbo Power — delivers 20 percent more power in hammer-only mode
  • Auto-Max variable-speed dial — ensures maximum speed and power every time the tool is plugged in
  • Vario-Lock positioning — rotates and locks chisel into 12 different positions to optimize working angle
  • Integral clutch — disengages torque transmission if the bit gets into a bind situation
  • Service Minder light — indicates when preventative maintenance is required
  • Cord turret – reduces cord wear

11265EVS Professional

11265EVS Professional

Your Selection

1-5/8 In. Spline Rotary Hammer

Order number: 0611264110

Technical data

The most important data

Amperage 13
Chuck Design Keyless
Chuck Size Spline
Height in 10.5 "
Impact Energy/EPTA (ft. lbs.) 6.5 Ft.-Lbs. EPTA
Length in 19.25 "
Material Metal, Plastic
Max. Hole Diameter in Concrete 1-5/8"
Max. Hole Diameter in Concrete-Core Bit 4-1/8"
No Load BPM 1,700-2,900
No Load RPM 170-340
Rating 120V
Reverse No
Variable Speed Yes
Voltage 120V
Weight 15.1 lb
Weight (lbs.) 15.1
Width in 4 "
Works With Dust Extraction/Collection Hoods, HDC200, HDC250, HDC300, Spline Drive to SDS-plus® Adapter, HA1020
Includes (1) 11265EVS Spline 1-5/8 In. Combination Hammer
(1) Auxiliary Handle
(1) Grease Tube
(1) Carrying Case

11265EVS Professional: Further information

Product Highlights

The Bosch 11265EVS Spline 1-5/8 In. Combination Hammer features a powerful 13.0 Amp motor and has a dual-mode selector for combination versatility – rotary hammer or hammer-only mode. Concrete contractors will appreciate the production in drilling and chiseling applications. Providing 6.5 Ft.-Lbs. of impact energy, the tool weighs only 15.1 Lbs., for a top performance-to-weight ratio. Constant Response circuitry allows for smooth starts and constant load under pressure, and an integral clutch helps to minimize adverse torque reaction. The hammer's 12-position Vario-Lock helps to optimize chiseling angles. Bosch's Vibration Control in the hammer mechanism and grip area provide improved user comfort. The Auto-Max variable-speed dial allows users to adjust tool settings based on the application and material they're tackling. The hammer has a Service Minder light indicating when preventative maintenance is needed.
