Flush Trim Bits

Single Flute Pilot Panel Bits with Drill-Through Point

For hand-held routers, For Palm Routers

  • Single Flute Pilot Panel Bits with Drill-Through Point provides a faster cut in abrasive materials
  • For hand-held routers, For Palm Routers
  • Single flute allows for faster feed rates
  • For window and door cutouts in abrasive insulation materials, plywood, and paneling
  • Drill-through pilot for guiding on templet or framing after panel has been mounted
  • Concave grind offers a faster cut

Materials

Hardwood
Particleboard
MDF Medium Density Fiberboard
Plywood
Softwood
Select options

Shank Inch 3 options

Working length (L) Inch 6 options

Choose a pack size 4 options


Single Flute Pilot Panel Bits with Drill-Through Point
from

High Cutting Performance for Flush Trimming

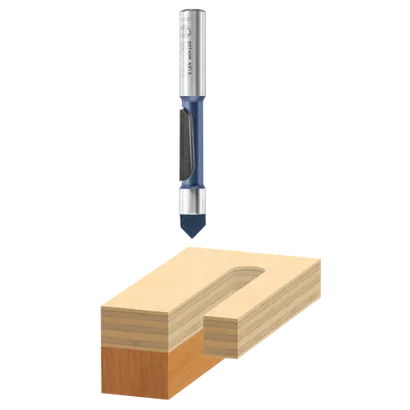

Premium-quality micrograin carbide tips are ground on specialized CNC equipment for an extra-fine finish with maximum sharpness and edge retention. Pilot panel bit has a drill-through point that plunges through the material, and is used for window and door cutouts in abrasive insulation materials, plywood, and paneling.

View more

Product Options

Available product options: 19

Part number Diameter (D) Inch Shank Inch Working length (L) Inch Pack quantity
85146 1/4 1/4 3/4 1
85147 3/8 3/8 7/8 1
85147B50 3/8 1/4 7/8 50
85188 1/2 1/2 1 1/8 1
85244 - 1/4 3/4 35
85244B50 1/4 1/4 3/4 50
85245 - 3/8 1 1
85245B50 3/8 3/8 1 50
85245M 3/8 3/8 1 1
85246 1/2 1/2 1 3/16 1
85246B50 1/2 1/2 1 3/16 50
85246M 1/2 1/2 1 3/16 1
85407M - 1/2 2 27
85245MB50 3/8 3/8 1 50
85246MB50 1/2 1/2 1 3/16 50
85245SB50 3/8 3/8 1 50
85245SMC 3/8 3/8 1 1
85245MC 3/8 3/8 1 1
85146B50 1/4 1/4 3/4 50

out of products
