Router Tables

RA1141 Professional

Router Tables

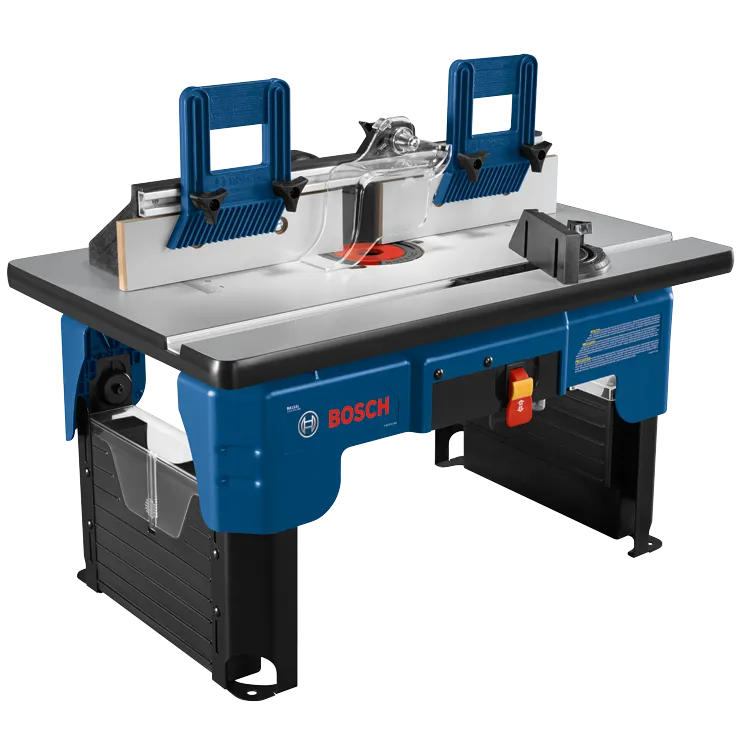

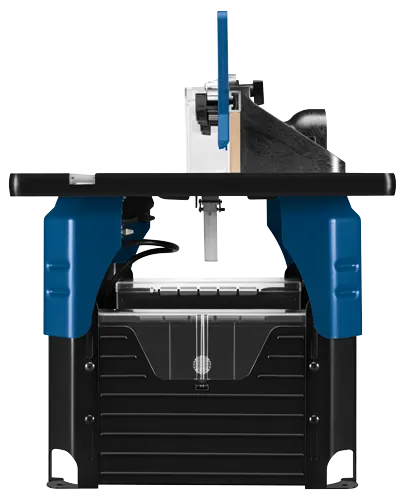

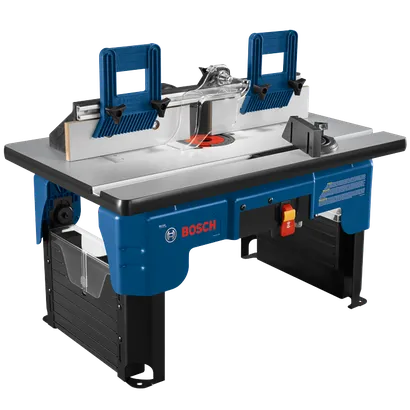

Portable Benchtop Router Table

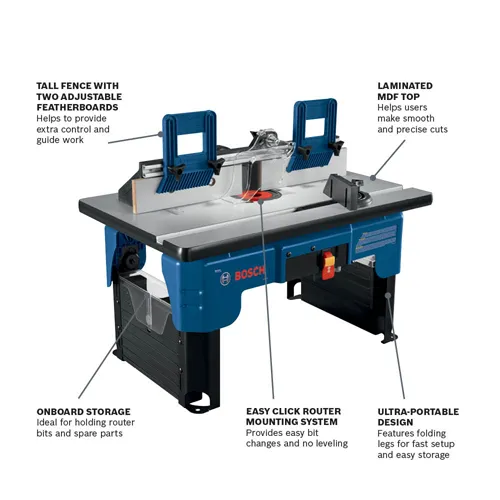

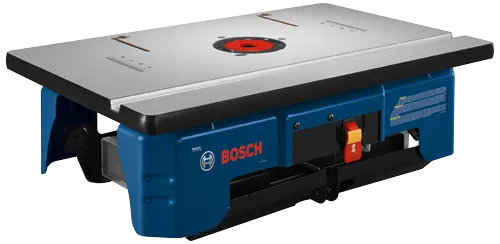

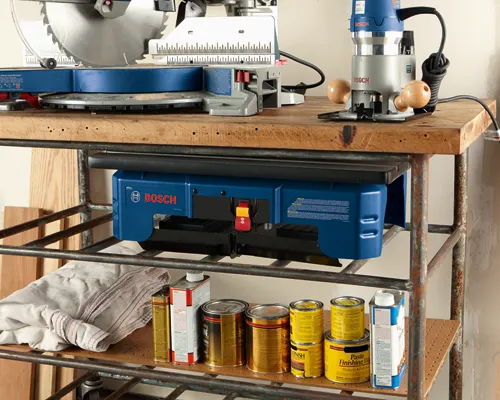

  • Ultra-portable design – features folding legs for fast setup and easy storage

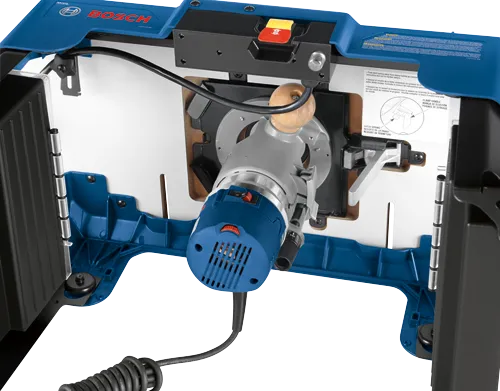

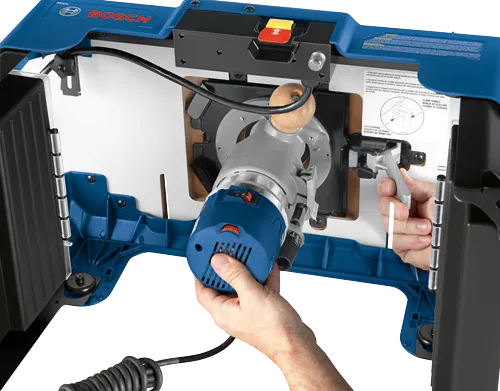

  • Easy Click router mounting system – provides easy bit changes and no leveling
  • Laminated MDF top – helps users make smooth and precise cuts

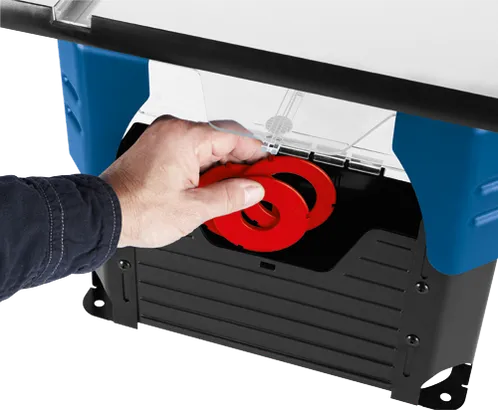

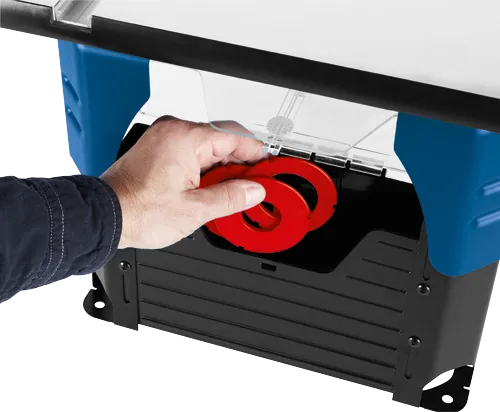

  • Onboard storage – ideal for holding router bits and spare parts
  • No assembly required – comes preassembled

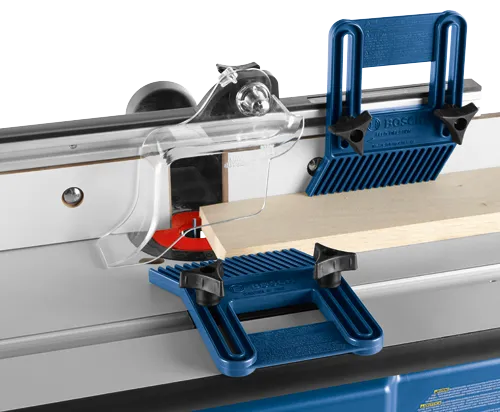

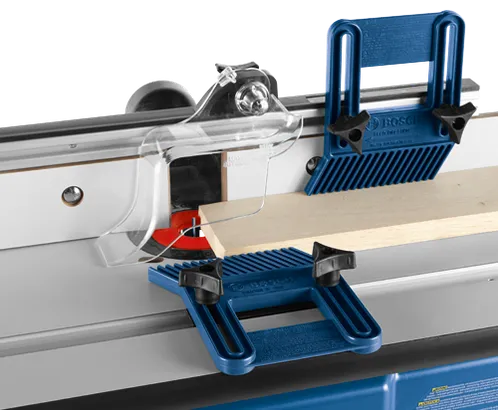

  • Tall fence with two adjustable featherboards – helps to provide extra control and guide work

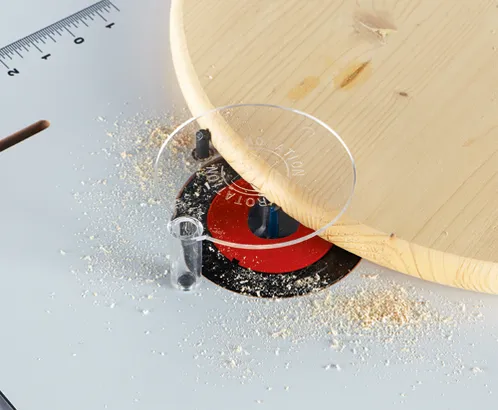

  • Starter pin and guard – allows easier control for routing curved workpieces

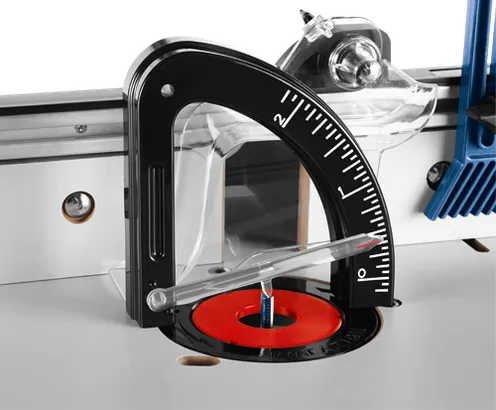

  • Bit-height gauge – provides easier bit setup and enhanced cut precision
View more View less

RA1141 Professional

Technical data

The most important data

Amperage 15
Depth 16-1/2"
Dust Collection Yes
Height in 14.5 "
Length in 16.5 "
Max. Fence Opening 3-5/8"
Max. Throat Opening 3-1/4"
Notes Fixed Base Models Only
Weight 33 lb
Width in 26 "
Working Length in 26"
Works With Bosch, 1617-Series Routers (in fixed base only), Craftsman®, 17508, 17511, 17528, 17533, 17541, 17542, 26620, 26834, 28190, and 73277 Routers, DeWalt®, DW616 and DW618 Routers (in fixed base only), Hitachi®, M12VC Routers, Makita®, RF1100 and RF1101 Routers, Milwaukee®, 5615 and 5616 Routers, Porter-Cable®, 690-Series and 892-895-Series Routers (in fixed bases only) and 7529 Plunge Router, Ryobi®, R163K Router, Skil®, 1810, 1815, 1820 and 1825 Routers, Template Guides, The RA1141 does not accept any template guides, Vacuum Hoses, Common 2-1/2 in. vacuum hoses attach directly to the RA1141, Vacuum Hose Adapter for 35 mm Hoses, such as Bosch 35 Hoses, VAC004
Includes (1) RA1141 Portable Benchtop Router Table
(2) Adjustable Featherboards
(3) Mounting Plate Insert Rings
(1) Adjustable Clear Guard
(1) Starter Pin
(1) Starter Pin Guard
(1) Miter Gauge
(2) Outfeed Fence Shims
Hardware for Mounting Routers

RA1141 Professional: Further information

Product Highlights

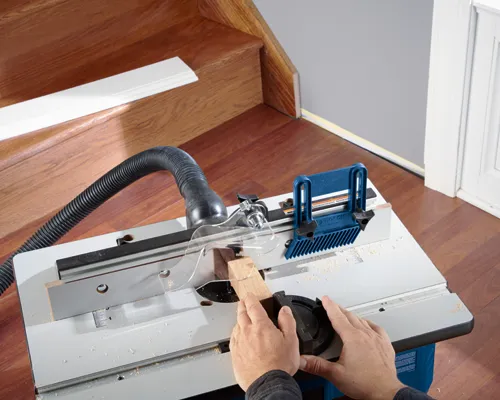

The Bosch RA1141 Benchtop Router Table delivers ease of use plus stability, featuring an Easy Click router mount that attaches and detaches in seconds, with no leveling required. It has a smooth laminated MDF top, plus it has adjustable laminated MDF face plates for better support. The tall fence handles taller stock, and dual feather boards provide additional control while feeding stock across the table. There’s a bit-height gauge for easier bit setup and enhanced cut precision. With an easy-to-store folding design, this preassembled table has folding legs with storage compartments for convenience and portability. When routing curved workpieces, the starter pin and guard help support the workpiece to allow easier control.
