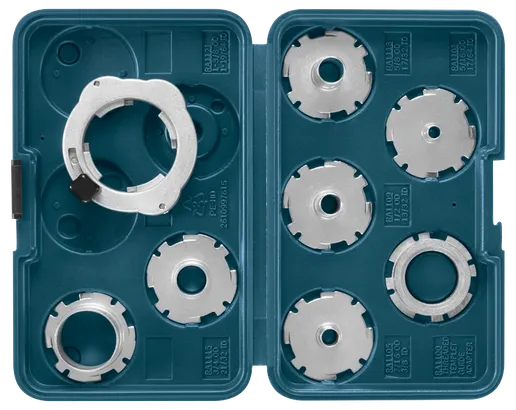

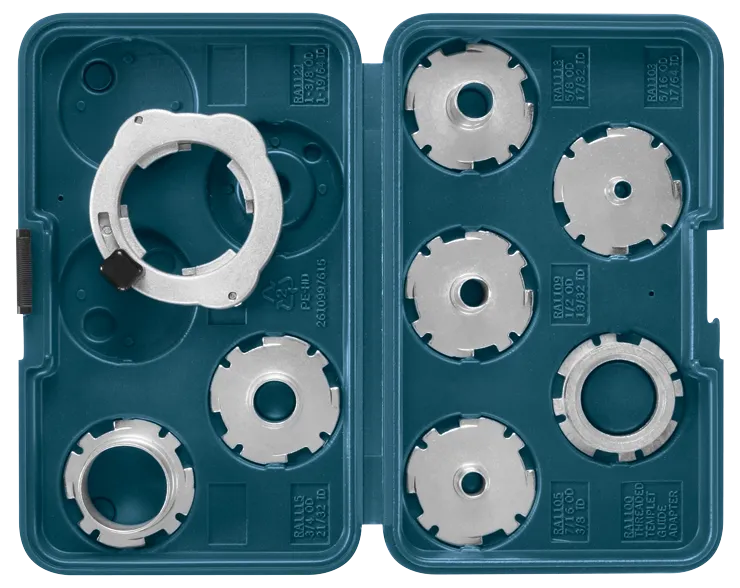

Bosch blue case with assorted metal tools.

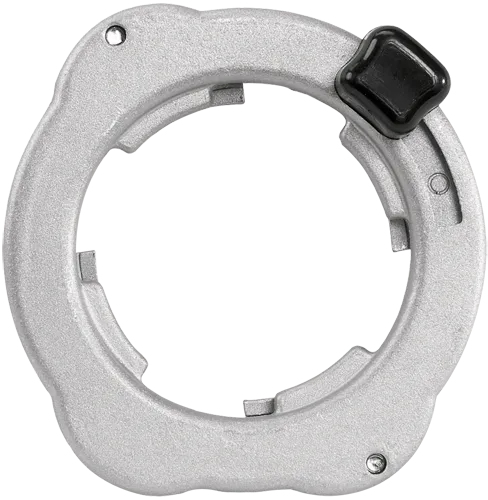

Bosch router attachment.
Bosch router accessory RA1103.

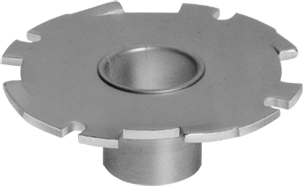

Bosch trouter templet guide.

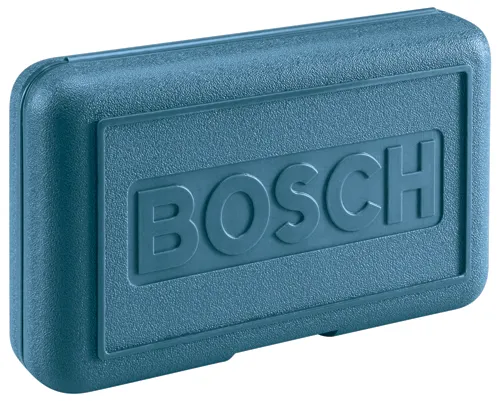

Bosch blue case with the brand name BOSCH embossed.
Bosch blue case with assorted metal tools.
Bosch router attachment.
Bosch router accessory RA1103.
Bosch trouter templet guide.
Bosch blue case with the brand name BOSCH embossed.

RA1128 Professional

Router Attachments, Palm Routers

8 pc. Template Guide Set

  • Versatile array of template guides – features six popular router template guides, including large and small dovetail router guides and two radius hinge guides
  • Quick-change template guide adapter – allows fast toolless change of Bosch router template guides (sold separately in a wide array of sizes)
  • Compatibility – works with the Bosch 1613AEVS, 1617-, 1618-, 1619- and MR23-Series routers, as well as with the plunge bases for Bosch palm routers
  • Enhanced versatility from RA1100 interface piece – This interface piece allows the template guide adapter to also accept Porter-Cable® and similar common threaded template guides (and reducer inserts) that fit into a 1-3/8 In. counter-bore
RA1128 Professional

Technical data

The most important data

Material
Metal
Size in
9/64 In. x 5/16 In. x 17/64 In., 9/64 In. x 7/16 In. x 3/8 In., 7/16 In. x 1/2 In. x 13/32 In., 1/2 In. x 5/8 In. x 17/32 In., 3/16 In. x 3/4 In. x 21/32 In.
Used on Model No.
Bosch Models: 1613-, 1614-, 1617-, 1618-, 1619-, PR10/20E- and MR23EVS-Series Routers, RA1160, RA1161, RA1162, RA1166, MRF01, MRP01, PR011
Works With
Mid-Size and Large Routers, MRC23EVSK, MRF23EVS, MRP23EVS, 1613AEVS, 1617-, 1618- and 1619-Series Routers, Bases for Mid-Size and Large Routers, MRF01, MRP01, RA1161, RA1162, RA1166, Palm Router Plunge Bases, PR011, PR111, Quick-Release Template Guides, RA-Series Template Guides, Adapter for Threaded Template Guides, RA1100
Includes

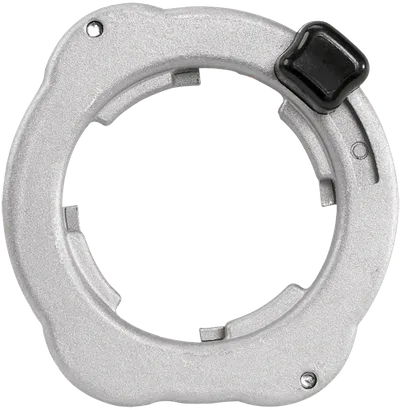

RA1126 -- Quick-release template guide adapter

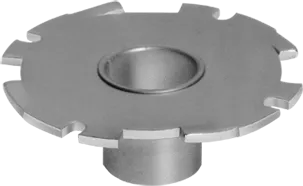

RA1103 -- Template guide for small dovetail joints (9/64 In. x 5/16 In. x 17/64 In.) [protrusion below subbase x outer width of bushing x inner width of bushing]
RA1105 -- Template guide for large dovetail joints (9/64 In. x 7/16 In. x 3/8 In.) [protrusion below subbase x outer width of bushing x inner width of bushing]
RA1113 -- Template guide for 1/4-In. radius hinges (1/2 In. x 5/8 In. x 17/32 In.) [protrusion below subbase x outer width of bushing x inner width of bushing]
RA1121 -- Template guide for 5/8-In. radius hinges (7/16 In. x 1-3/8 In. x 1-19/64 In.) [protrusion below subbase x outer width of bushing x inner width of bushing]
RA1109 -- Template guide (7/16 In. x 1/2 In. x 13/32 In.) [protrusion below subbase x outer width of bushing x inner width of bushing]
RA1115 -- Template guide (3/16 In. x 3/4 In. x 21/32 In.) [protrusion below subbase x outer width of bushing x inner width of bushing]
RA1100 -- Interface for threaded template guides (and reducer inserts) that fit into a common 1-3/8 In. counter-bore, such as those sold by Porter-Cable® and others
Case

RA1128 Professional: Further information

Product Highlights

The Bosch RA1128 8 pc. Template Guide Set features six popular router template guides, including large and small dovetail router guides and two radius hinge guides. It also includes the Bosch RA1126 Quick-Change Template Guide Adapter plus the RA1100 Interface for Threaded Template Guides. The quick-change adapter accepts Bosch RA-series template guides. It also accepts the RA1100 interface piece, which allows the template guide adapter to accept Porter-Cable® and similar common threaded template guides (and reducer inserts) that that are sized for a 1-3/8” counter-bore. This template guide set works with many Bosch routers, including the 1613AEVS, 1617-, 1618-, 1619- and MR23-Series routers, as well as the plunge bases for Bosch palm routers.
