Router Bases

MRP01 Professional

Router Bases

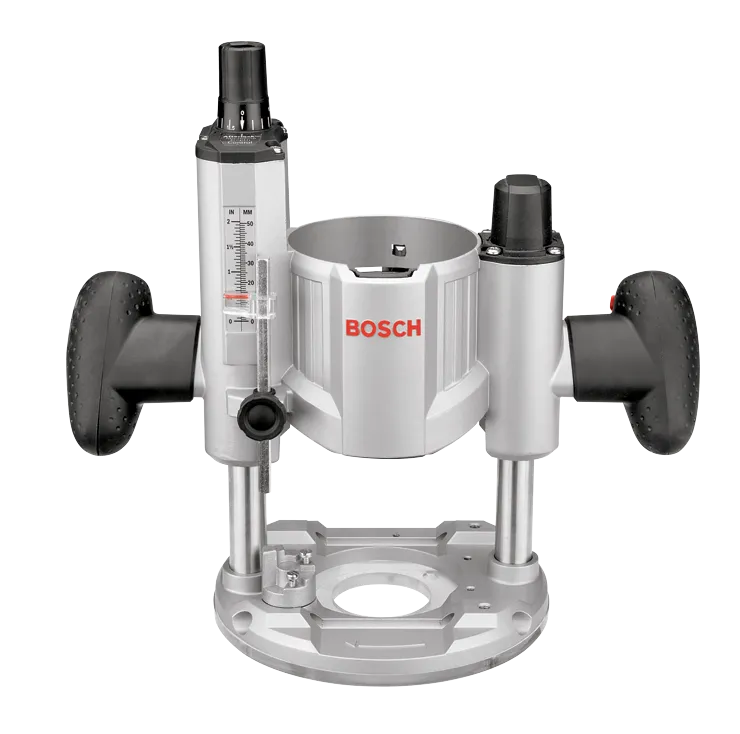

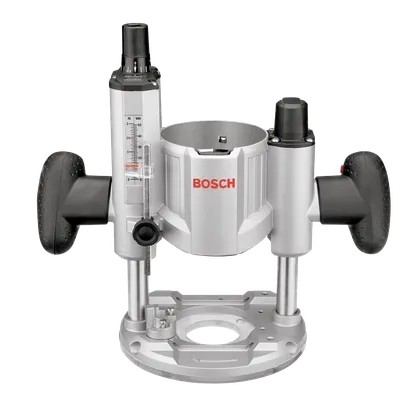

Plunge Router Base

  • Plunge base with fine adjustment knob and on/off switch located in the handle
  • Trigger control system conveniently located in handle for enhanced control
  • Afterlock microfine depth adjustment for easy and precise bit depth adjustment at any plunge setting
  • Smooth plunge action, spring-lock plunge lever and depth rod for easy and precise plunge routing
  • Wide 3-5/16 In. base opening and 2 In. sub-base opening accepts larger bits
  • Adjustable turret stop - makes it easy to set an cumulative depth for multiple-pass operations
  • Contoured soft-grip handles - provides enhanced control and comfort
  • Plunge-release lever - conveniently located to allow maximum control
  • Precision centering design - makes it easy to keep bit on intended cutline when using jigs, templates, dovetail fixtures and similar guidance devices
  • Compatible with optional RA1129 Template Guide Adapter Set – for easy change of Bosch quick-release template guides and common threaded template guides

MRP01 Professional

MRP01 Professional

Your Selection

Plunge Router Base

Order number: 2610003611

Technical data

The most important data

Base Opening 3-5/16"
Material Metal
Plunge Depth 3" (75mm)
Subbase Opening 2"
Used on Model No. Bosch MR23EVS Router Motor
Weight 5.95 lb
Works With Routers and Router Motor, MRF23EVS, MRP23EVS, MRC23EVSK, MR23EVS, Router Guide, RA1054, Template Guide System, RA1128 Template Guide Adapter Set, RA1129 Template Guide Set, Centering Device for Subbases and Attached Template Guides, RA1051, Dust Collection Attachments, RA1175 Edge-forming Dust Hood, RA1176AT Two-Hood Dust Hood Set, RA1177AT Three-Hood Dust Hood Set
Includes Plunge base (MRP01)

MRP01 Professional: Further information

Product Highlights

The Bosch MRP01plunge base is designed for use with the Bosch MR23-series routers (MRF23EVS, MRP23EVS and MRC23EVSK) and greatly expands the router's versatility. Most importantly, it features the Bosch Trigger Control system that is the first trigger control system on a modular router system. The unit also delivers very smooth plunge action and features and spring-lock plunge control lever conveniently located for easy usage.The depth adjustment system includes a multi-step adjustable depth stop turret plus the Bosch Afterlock microfine depth adjustment fast, accurate bit depth setting. This base allows a plunging depth of up to 2-5/16 In. The Precision Centering Design allows the subbase to be centered around the bit, which makes it easy to keep the bit on intended cut line when using jigs, templets, dovetail fixtures and similar guidance devices. The MRP01 plunge base accepts several different Bosch routing attachments, including the RA1126 Tool-free Templet Guide Adapter, RA1054 Deluxe Router Guide and RA1177AT Dust Hood Kit.
