Router Bases

MRF01 Professional

Router Bases

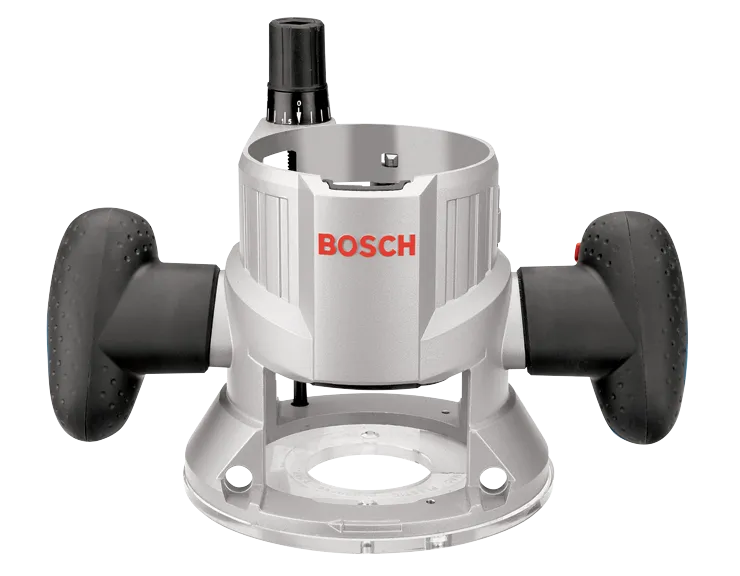

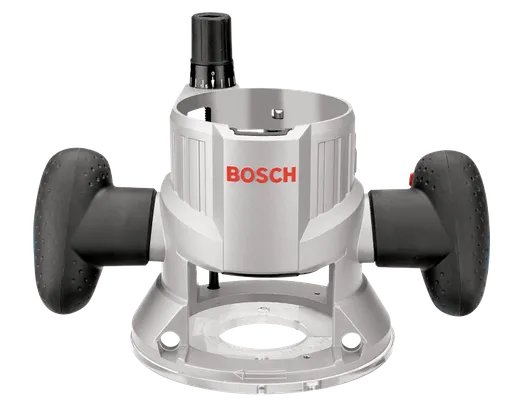

Fixed Router Base

  • Fixed base with fine adjustment knob with on/off switch located in the handle
  • Trigger control system conveniently located in handle for enhanced control
  • Versatile fixed base adjustment system for easy and precise bit depth adjustment
  • Macro and microfine adjustment system with resettable depth indicator
  • Large 3-3/4 In. base opening and 2 In. sub-base opening accepts larger bits
  • Precision centering design - makes it easy to keep bit on intended cutline when using jigs, templates, dovetail fixtures and similar guidance devices
  • Compatible with optional RA1129 Template Guide Adapter Set – for easy change of Bosch quick-release template guides and common threaded template guides
View more View less

MRF01 Professional

Technical data

The most important data

Base Opening 3-3/4"
Material Aluminum
Plunge Depth 1-5/8"
Subbase Opening 2"
Used on Model No. Bosch Models MR23EVS
Weight 2.6 lb
Works With Routers and Router Motor, MRF23EVS, MRP23EVS, MRC23EVSK, MR23EVS, Router Tables, RA1171 Cabinet-Style Router Table, RA1181 Router Table, Offset Wrenches for Easier Bit Change in Router Tables, RA1152, Router Guide, RA1054, Template Guide System, RA1128 Template Guide Set, RA1129 Template Guide Adapter Set, Centering Device for Subbases and Attached Template Guides, RA1051, Dust Collection Attachments, RA1175 Edge-forming Dust Hood, RA1176AT Two-Hood Dust Hood Set, RA1177AT Three-Hood Dust Hood Set
Includes Fixed Base (MRF01)

MRF01 Professional: Further information

Product Highlights

The Bosch MRF01 fixed base is designed exclusively for use with Bosch MR23EVS router motor. It features a trigger-controlled power switch in the right handle, so you don't have to reach up to a switch on the motor to turn the tool on and off. The motor is held by the base using the Bosch-invented router quick-clamp system, allowing tool-free movement of motor from base to base. The MRF01 fixed base features a versatile depth adjustment that allows for easy macro- and micro-fine adjustment with a 1-5/8” continuous micro-fine adjustment range. It also features the Bosch Precision Centering Design that allows the subbase to be centered around the bit, which makes it easy to keep the bit on intended cut line when using jigjigs, templets, dovetail fixtures and similar guidance devices. This base also has threaded holes positioned in common 3-hole pattern for mounting to a router table. Moreover, it features the ability to adjust the depth from above an optional router table using the included T-wrench, so there is no need to buy an expensive after-market router lift. Hardware for mounting to an optional router table is also included. The MRF01 fixed base accepts several different Bosch routing attachments, including the RA1126 Tool-free Templet Guide Adapter, RA1054 Deluxe Router Guide and RA1176AT Dust Hood Kit.
