LR40G Professional

Laser Receivers

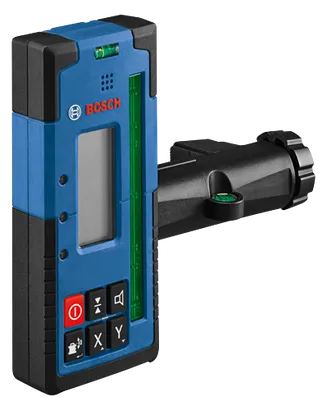

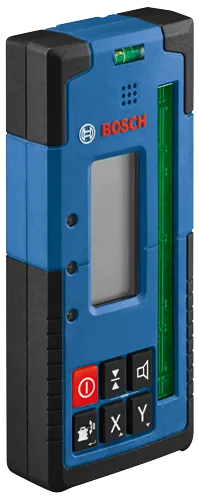

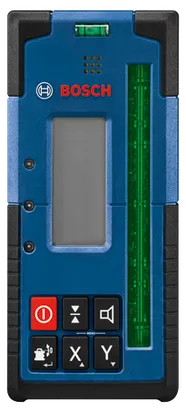

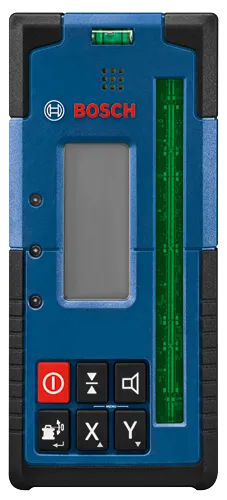

2,000 Ft. Green-Beam Rotary Laser Receiver

  • Receiver to extend working range – increases rotary detection up to 2,000 Ft., with easy-to-see LED indicators, adjustable audio

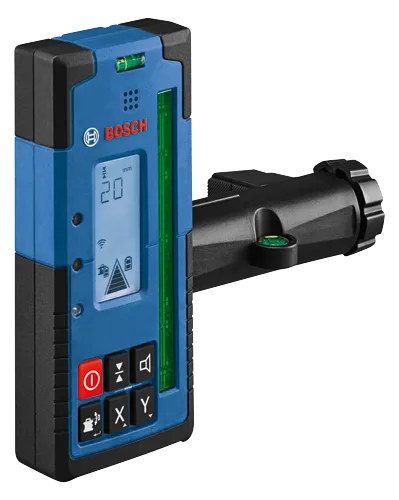

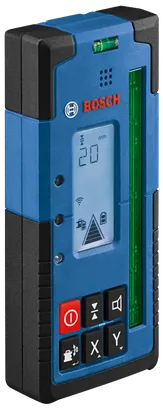

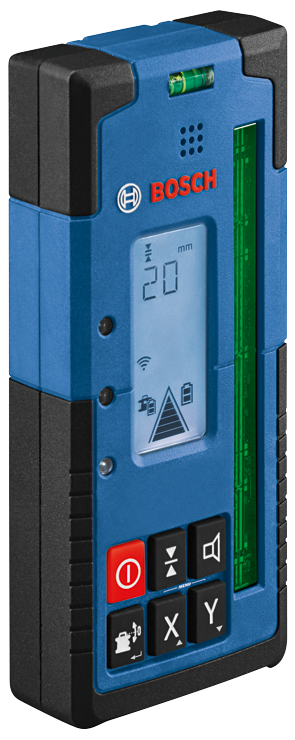

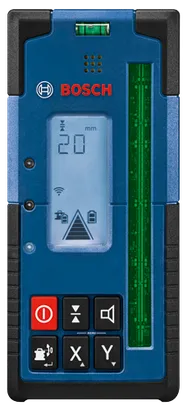

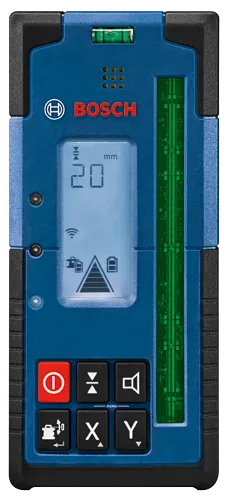

  • Dual-sided backlit LCD display – illuminates easy-to-see up/down arrows, center line, accuracy level, battery levels and more

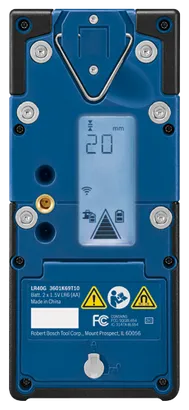

  • Dual-sided indicators – provide easy visual readout on both sides of the receiver
  • Oversized detection area – enables fast laser reception

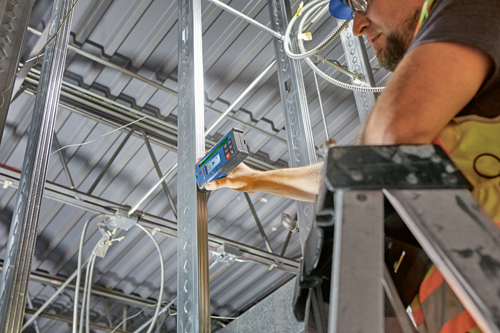

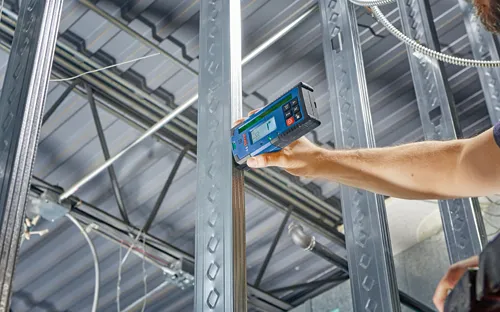

  • Built-in magnets – allow for secure attachment to metal surfaces
  • Adjustable audio indicator – provides clear signal of on-grade position and facilitates precise plus/minus control
  • Intuitive six-button keypad – enables simple operation and center line function in both X and Y axes
  • Receiver vial – helps ensure accurate leveling results
  • Ergonomic soft grip – provides secure handling and comfort
  • Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99

LR40G Professional

LR40G Professional

Your Selection

green-rotary-laser-receiver-LR40G-bosch-beauty-on

Order number: 0601069T10

Technical data

The most important data

Automatic Shut-Off Yes
IP Rating IP 67

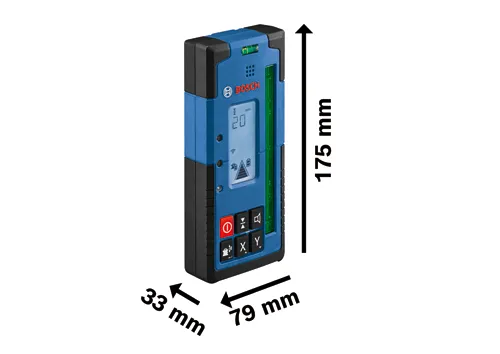

Length in 6.9 "
Range Up to 2,000-ft.
Receiving Laser Color Green
Weight 0.84 lb
Width in 3 "
Works With Rotary Lasers, GRL4000-90CHVG, GRL 300 HVG

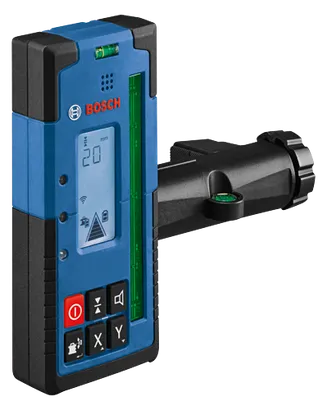

Includes (1) LR40 2,000 Ft. Green-Beam Rotary Laser Receiver
(1) Mounting Bracket
(2) AA Batteries

LR40G Professional: Further information

Product Highlights

The Bosch LR40G Green-Beam Rotary Laser Receiver is designed to enable the GRL4000-90CHVG rotary laser detection up to 2,000 Ft., with a dual-sided backlit LCD display for use in darker areas or outdoors on both sides of the receiver. It has built-in X and Y-axes buttons that allows for elevation and cut-and-fill calculations in both axes up to ±8.5%. The display illuminated large, easy-to-see indicators, including up/down arrows, center line, accuracy level, battery levels and audio signal. It also has LED indicators, to provide easy visual readout and simple operation. The oversized laser detection area helps find the laser beam faster, making it easier to start setting level. The receiver provides convenience features such as built-in magnets for secure attachment to metal surfaces, an adjustable audio indicator, intuitive six-button keypad, receiver vial, attachment hook and ergonomic soft grip.
