HDC100 Professional
Rotary Hammer & Hammer Drill Attachments

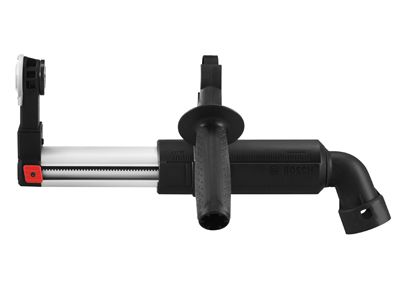

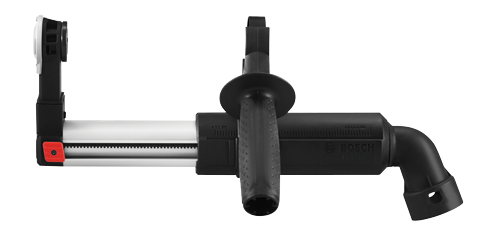

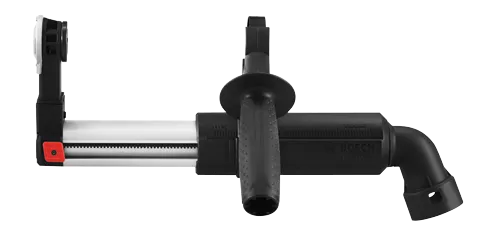

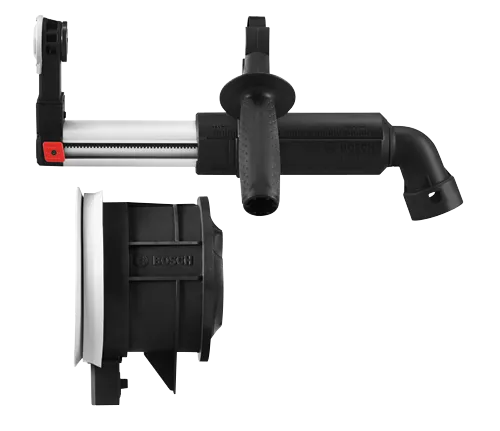

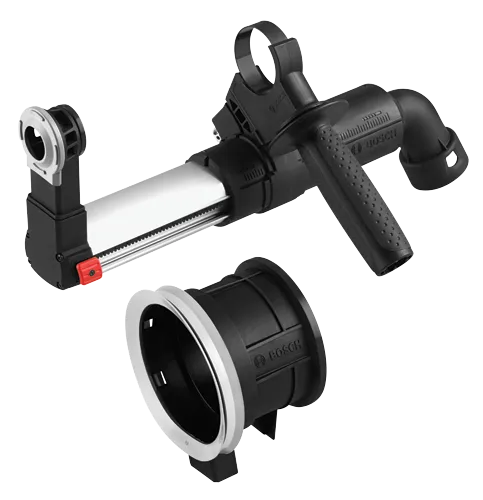

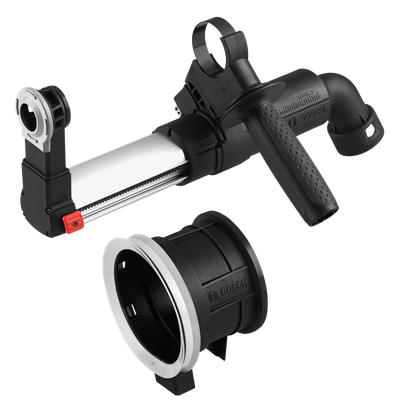

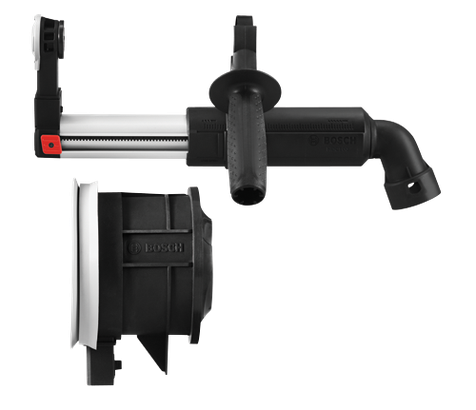

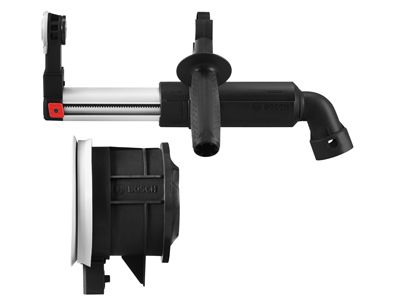

SDS-plus® 3/4 In. Dust Collection Attachment

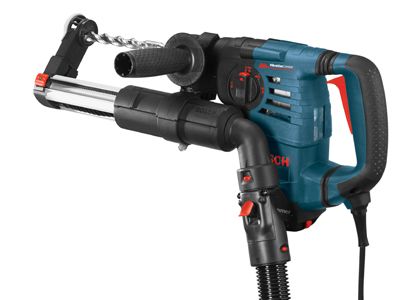

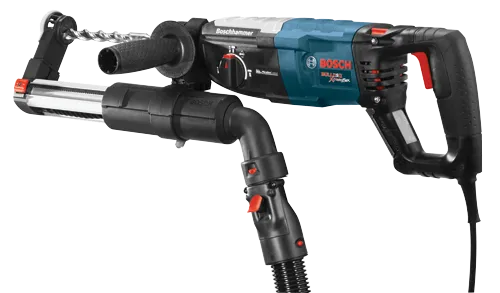

- Flexible system – fits most Bosch SDS-plus® rotary hammers
- Durable design metal guide rails – allow for precise drilling and jobsite durability
- Adjustable depth adjustment – accommodates desired drilling depth; maximum 4-3/4 In. depth

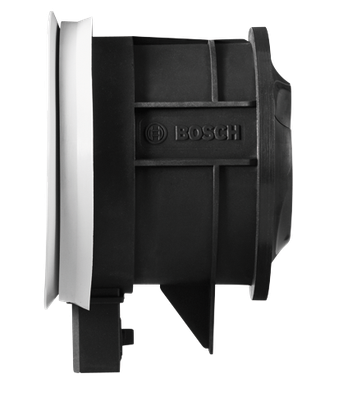

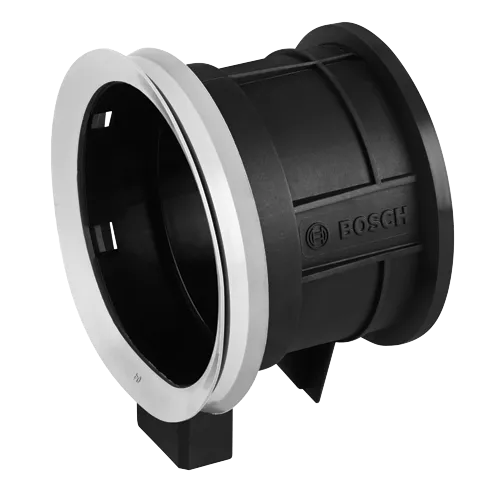

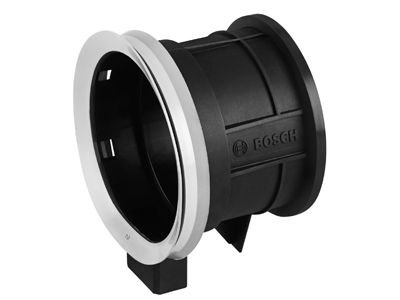

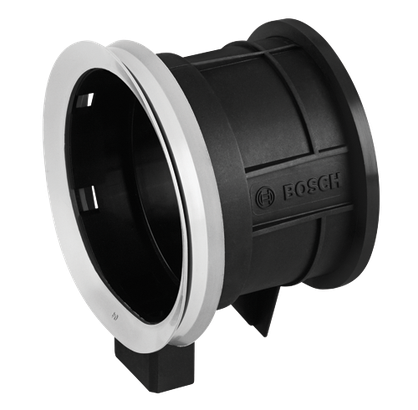

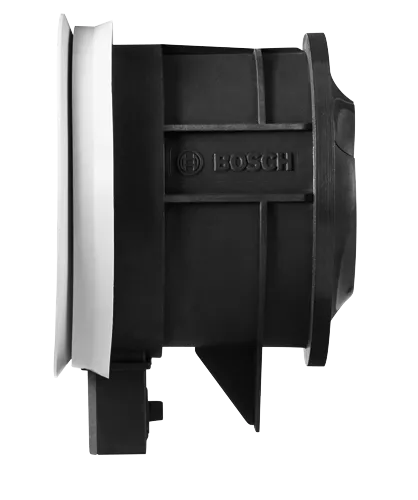

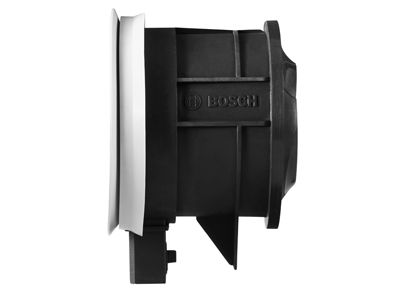

- Two dust caps – one for standard drill bits and one for thin-wall core bits
- Port can be hooked up to a 1-3/8 In. vacuum hose nozzle or can accommodate 1-1/4 In. or 2 In. nozzles when combined with appropriate adapter
- This attachment is designed for durability, providing metal guide rails for precise drilling and jobsite toughness
- Bit diameter is 3/4 In. maximum
HDC100 Professional
Technical data
The most important data
Height in
5 "
Length in
14 "
Material
Metal, plastic
Max Bit Diameter
3/4"
Max. Hole Dia. - Core Bit
3-1/8"
Overall Length in
14
Used on Model No.

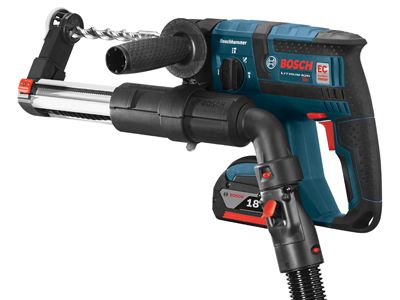

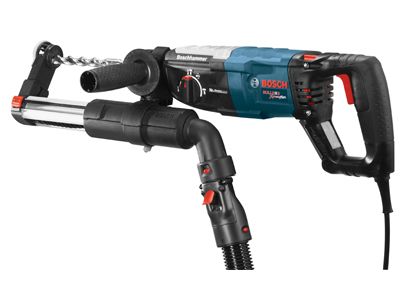

All Bosch newer Sds-plus hammers: 11253VSR, 11255VSR, RH228VC, GBH2-28L, RH328VC, RH328VCQ, RHH181-01, 11536-C, 11536VSR, GBH18V-26, GBH18V-26D
Weight
1.5 lb
Works With
Most Bosch SDS-plus® Rotary Hammers, 11250VSR, 11253VSR, 11255VSR, 11536C, 11536VSR, GBH18V-20, GBH18V-26, GBH18V-26D, GBH2-26, GBH2-28L, RH228VC, RH328VC, RH328VCQ and RHH181
(NOT COMPATIBLE with RH432VCQ and RHS181!), Anti-Static Vacuum Hoses, VH1635A (by means of anti-static adapter included with that hose), VAC008, and most other 35 mm anti-static hoses, Other Vacuum Hoses, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 35 mm hoses, Adapter for 1-1/4" and 1-1/2" Hoses, VAC002 or VAC024, Adapter for 2-1/2" Hoses, VAC020
Includes

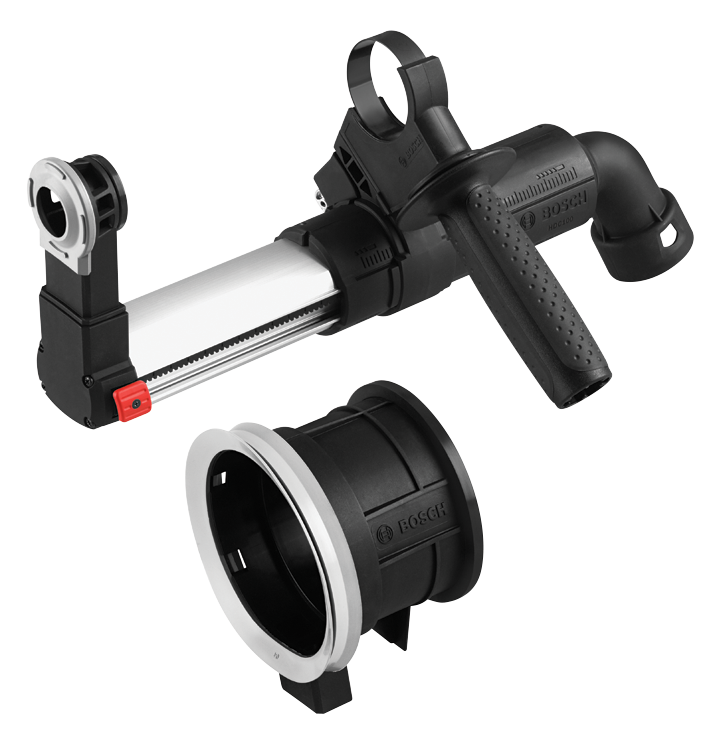

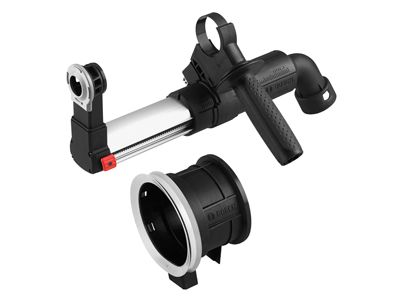

(1) HDC100 3/4 In. Dust Collection Attachment
(2) Dust Caps
(2) Dust Caps
HDC100 Professional: Further information
Product Highlights

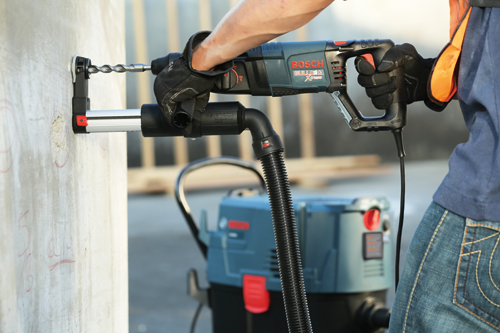

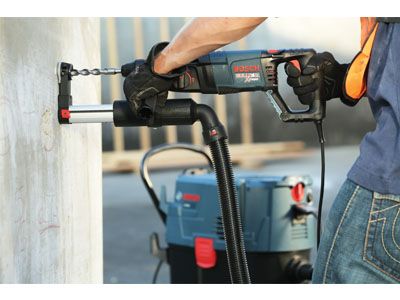

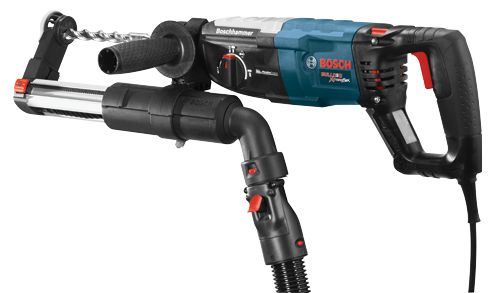

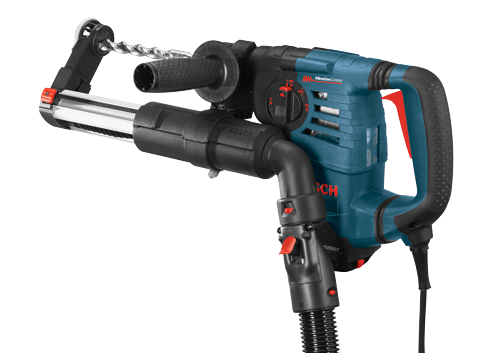

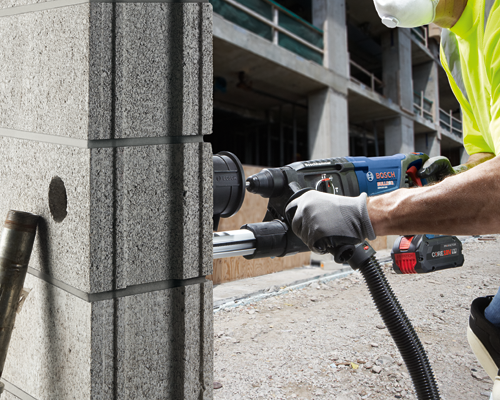

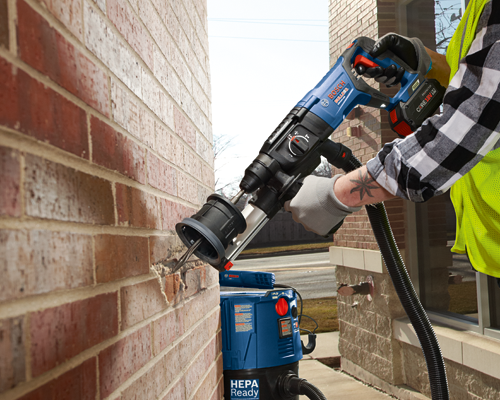

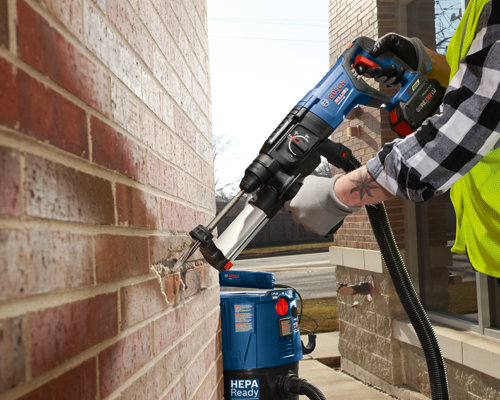

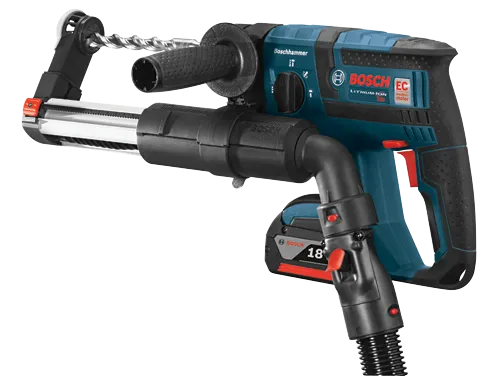

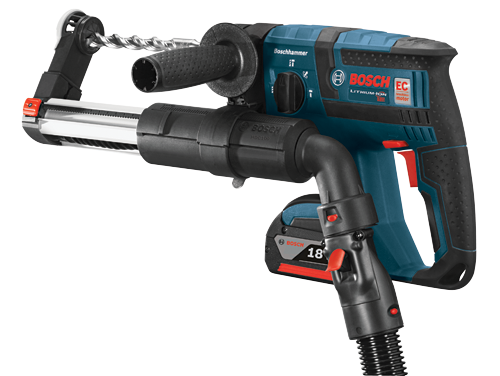

The Bosch HDC100 SDS-plus® 3/4 In. Dust Collection Attachment provides excellent dust collection when drilling with Bosch rotary hammers. This attachment fits most Bosch SDS-plus® hammers, coupling via a unique side-handle interface. The attachment has a metal telescoping arm for precise retraction and can accommodate up to a 4-3/4 In. drilling depth, and it can be adjusted forward or back with a clamping band to accommodate a variety of bit lengths. The dust port can be hooked up to a 1-3/8 In. vacuum hose nozzle, or it can accommodate 1-1/4 In. or 2 In. nozzles when combined with an appropriate optional adapter.
