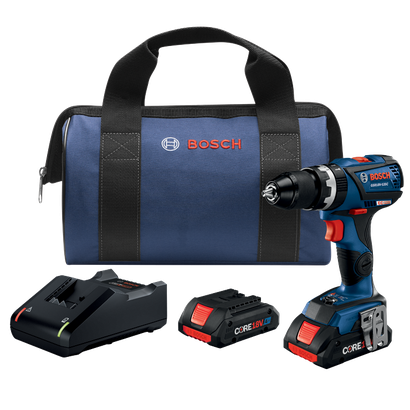

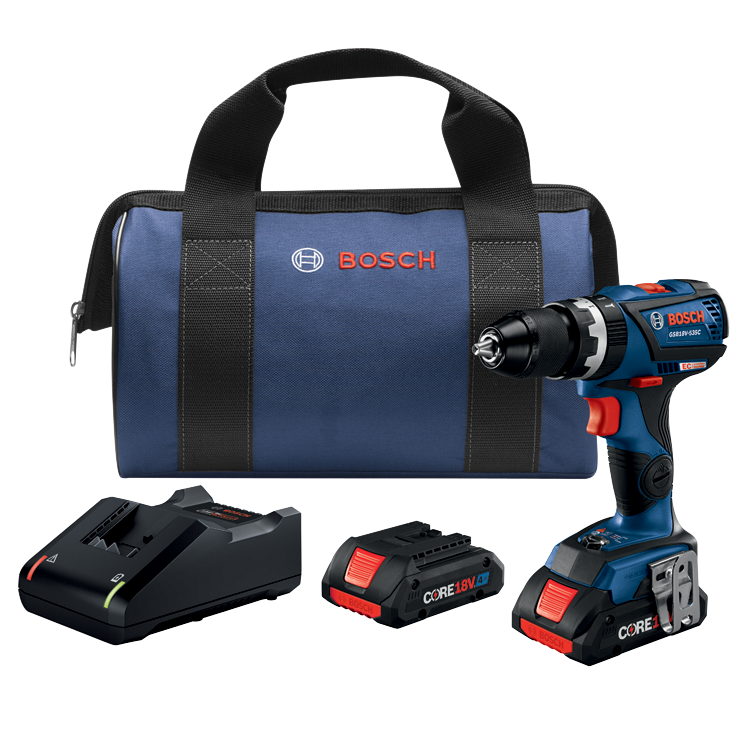

Bosch GSB18V-535C drill, CORE18V 4Ah battery, charger, and a blue bag with the Bosch logo.

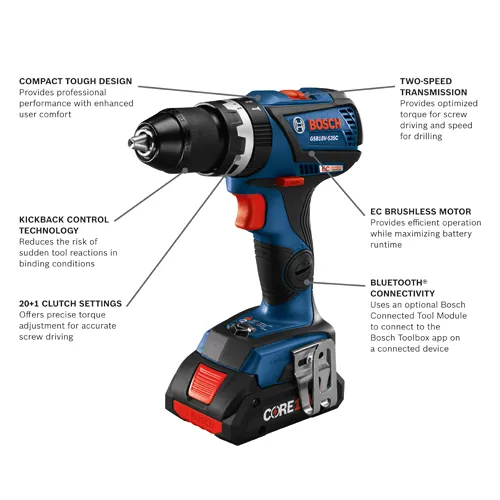

Bosch GSB18V-535C cordless hammer drill feature walkaround.
GSB18V-535CB25
GSB18V-535CB25

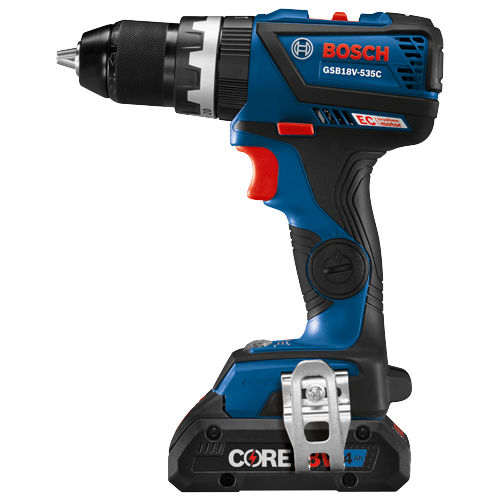

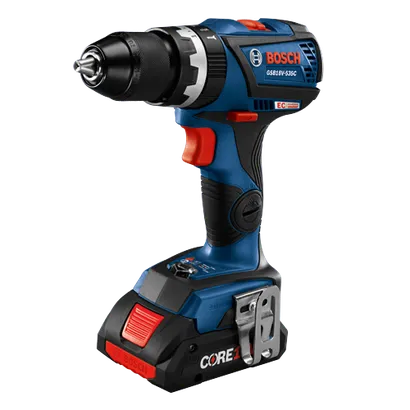

Bosch GSB18V-535C cordless drill with 4Ah battery, EC brushless motor.

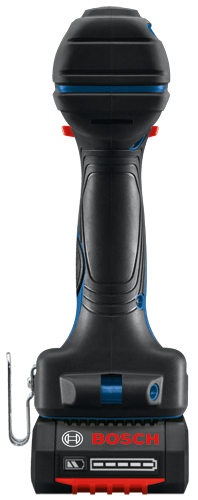

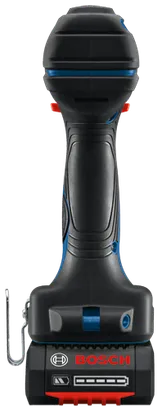

Bosch cordless drill with visible "BOSCH" logo and battery indicator.

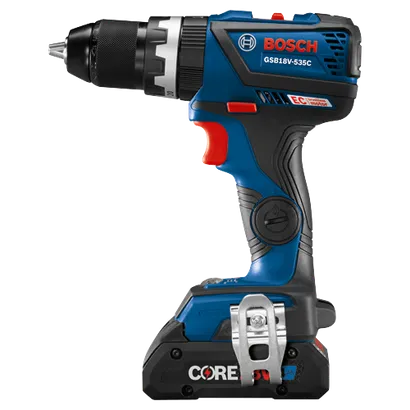

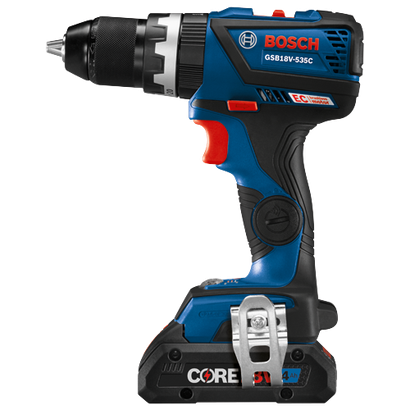

Bosch GSB18V-535C cordless drill with a CORE 4Ah battery.

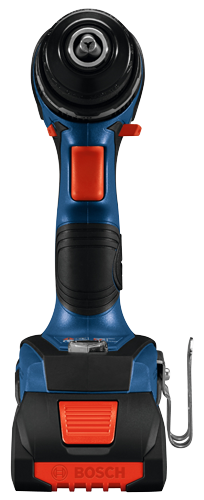

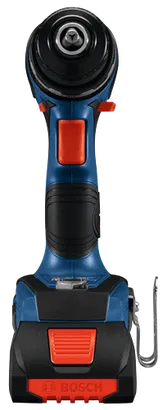

Bosch electric drill with blue and black casing, orange accents, and the brand name 'BOSCH' visible.

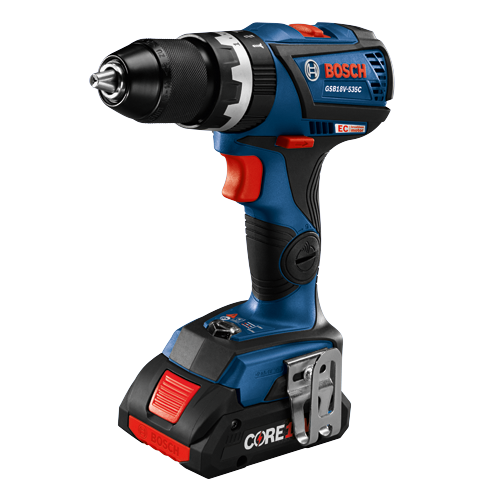

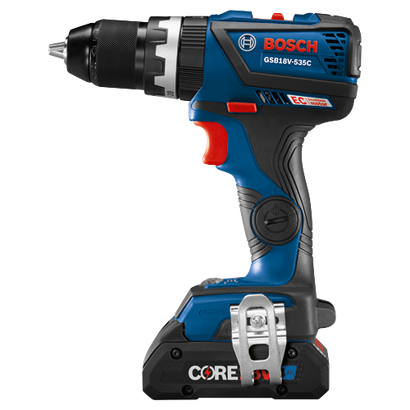

Bosch GSB18V-535C cordless drill with brushless EC motor.

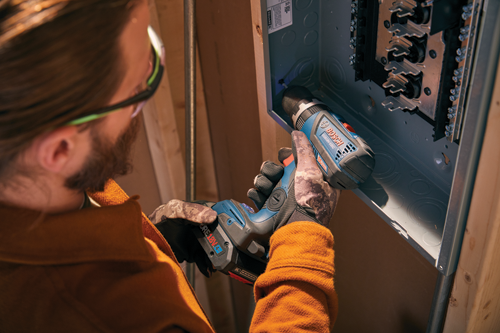

A person wearing safety glasses and work gloves, holding a Bosch GSB18V-535C cordless drill over an electrical panel.

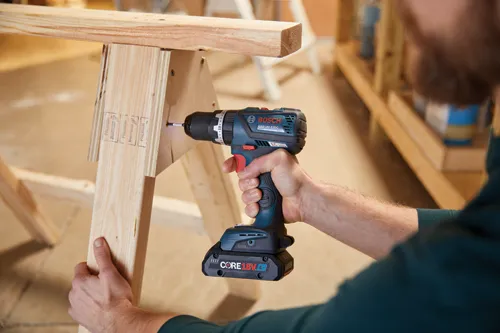

Bosch GSB18V-535C cordless drill held by a person drilling a screw into wood.

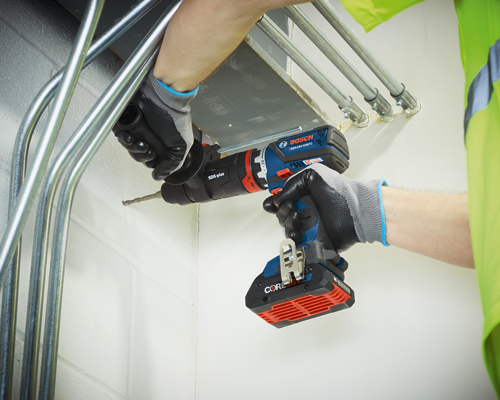

Bosch GSR18V-535FC drill with "SDS-plus" drill bit, drilling into a white wall. The drill is held by gloved hands, in front of several metal pipes.

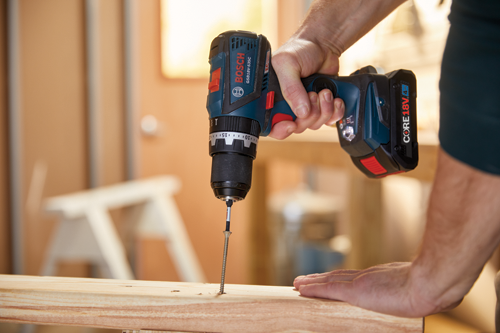

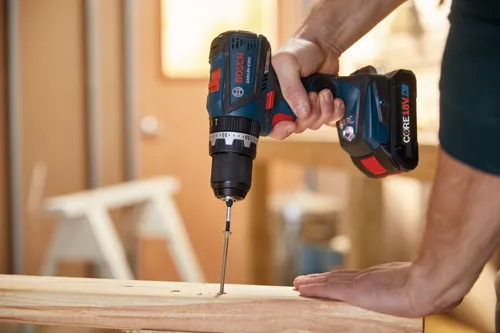

Bosch GSB18V-535C cordless drill driving a screw into a piece of wood, held by a person. CORE 18V battery is visible.

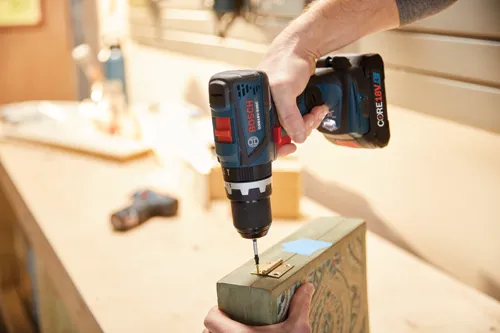

Bosch GSB18V-535C cordless drill driving a screw into a wooden box.

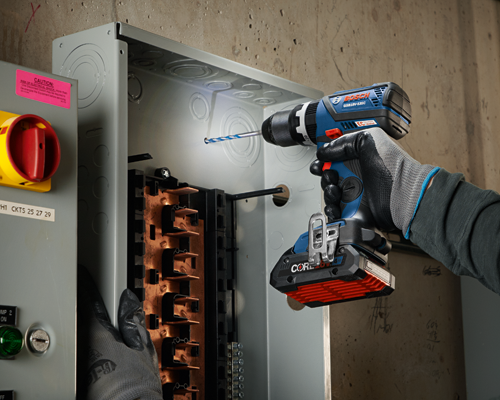

Bosch GSB18V-535C cordless drill drilling into a metal electrical box, hand in glove holding CORE 18V 4Ah battery.

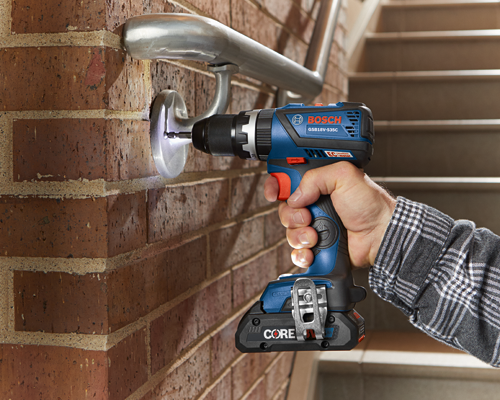

Bosch GSB18V-535C cordless drill being used to drill into a brick wall near a handrail, hand holding the drill. The drill is blue and black, with a red switch.
Included batteries are part of the AMPShare 18V Battery System, with two Bosch CORE18V 4Ah batteries included. Powered by Bosch.
AMP Share Multi-brand Compatible 18V Battery System, powered by BOSCH.
Bosch 18V Tool-Charger/Battery Kit, 5 Year Tool/Charger, 3 Year Battery Limited Warranty. Effective 6/1/23, all 18V products covered by updated warranty; see rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99.

GSB18V-535CB25 Professional

18V Hammer Drill/Drivers

18V EC Brushless Connected-Ready 1/2 In. Hammer Drill/Driver Kit with (2) CORE18V® 4 Ah Advanced Power Batteries

  • Next-gen hammer drill power and control – engineered with Bluetooth® connectivity (when the optional Connectivity Tool Module is installed), KickBack Control, 20+1 precision clutch and EC Brushless motor
  • Bluetooth® connectivity – connects to optional Connectivity Tool Module to customize tool settings on a connected device
  • CORE18V® 4 Ah Li-ion battery – engineered to provide next-gen power and runtime, while losing the weight, for optimized performance-to-weight ratio
  • KickBack Control – reduces the risk from sudden rotational torque reaction in a bind-up scenario
  • EC Brushless motor – efficient motor that delivers 535 In.-Lbs. of torque with a long lifetime
  • Precision clutch with 20+1 settings – provides driving accuracy for reduced fastener damage
  • High-power cells – uses enhanced 21700 cell technology, combined with advanced battery design for greater efficiency, to produce longer runtime
  • Cutting-edge cell design – engineered to improve performance
  • Bosch-exclusive CoolPack 2.0 technology – cooling the battery 20% faster than previous 4 Ah double-layer versions
  • Upgraded all-metal chuck – for more durability, along with first-rate bit retention
  • Drill-area LED with feedback – illuminates dark zones; provides tool-status change feedback
  • Works with Bosch PRO+GUARD™ dust solutions – an end-to-end dust-collection system that helps users move toward OSHA Silica dust compliance
  • AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
  • AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
View more View less

GSB18V-535CB25 Professional

Technical data

The most important data

Battery Chemistry
Lithium Ion
Battery/Charger
Included
Chuck Capacity
1/2" Keyless Chuck
Chuck Design
Keyless
Chuck Size
1/2 in
Height in
7.9 "
Length in
7.25 "
No Load BPM
28,500
No Load RPM
0-600 / 0-1,900
Reverse
Yes
Torque (in. lbs.)
535
Variable Speed
Yes
Weight
2.7 lb
Width in
3 "
Works With
Bosch Bluetooth® Connectivity Module, GCY42 (See tool manual for its connectivity/app features.), Dust Extraction/Collection Hood, HDC200
Includes
(1) GSB18V-535C 18V EC Brushless Connected-Ready 1/2 In. Hammer Drill/Driver
(2) 18V CORE18V® Lithium-Ion 4 Ah Advanced Power Batteries
(1) 18V Charger
(1) Belt Clip
(1) Carrying Bag

GSB18V-535CB25 Professional: Further information

Product Highlights

This Bosch hammer drill is engineered for tough jobs, with next-gen convenience and CORE18V® power. The GSB18V-535CB25 18V EC Brushless Connected-Ready 1/2 In. Hammer Drill/Driver kit features a tool with Bluetooth® connectivity (which connects with an optional Connectivity Tool Module), linking the free Bosch Toolbox app on any connected device for enhanced tool control and feedback. The kit includes two next-gen CORE18V® 4 Ah Advanced Power Batteries. Each keeps the power and runtime, while losing the weight, with 21700 cell technology. The CORE18V® matches the power of the original two-layer 4 Ah battery with half the number of cells. It features the CoolPack 2.0 heat-management system. This hammer drill’s powerful EC Brushless motor delivers 535 In.-Lbs. of torque and 0-28,500 bpm. It has variable speed settings; one for high-speed (0-1,900 rpm) and one for high power (0-600 rpm). The cordless drill has KickBack Control to reduce the risk from sudden rotational torque reaction, a 20+1 precision clutch; an all-metal chuck that provides durability and a longer belt clip.
