Cordless Hammer Drill/Drivers

GSB18V-1330CB14 Professional

Cordless Hammer Drill/Drivers

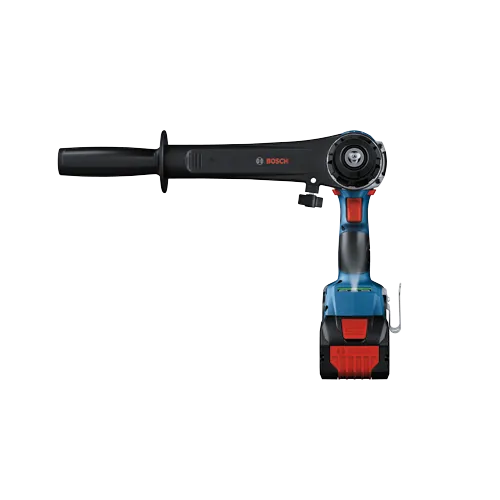

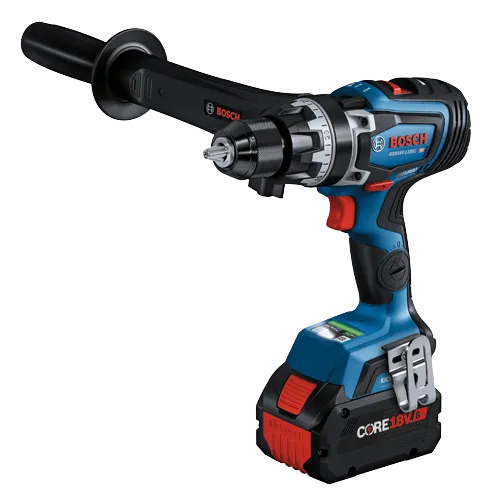

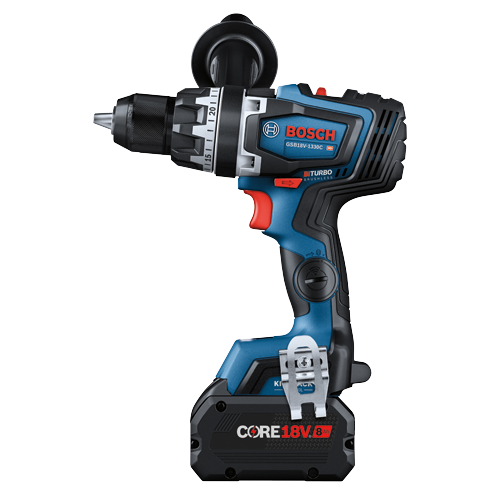

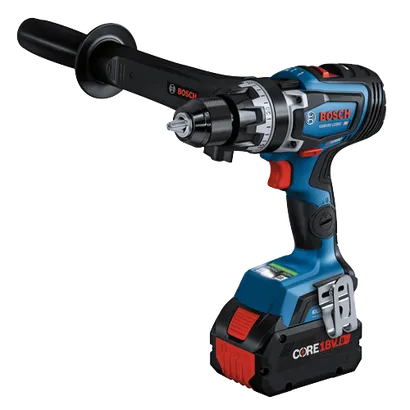

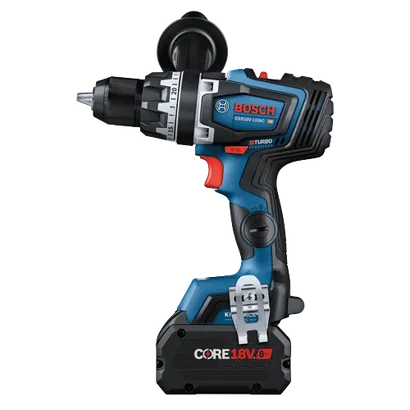

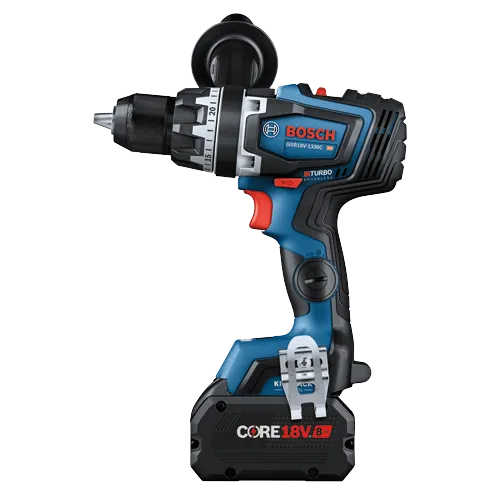

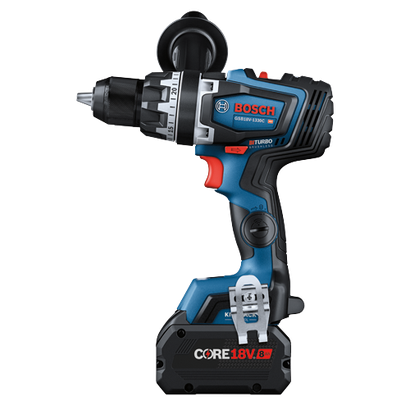

PROFACTOR™ 18V Connected-Ready 1/2 In. Hammer Drill/Driver Kit with (1) CORE18V® 8 Ah High Power Battery

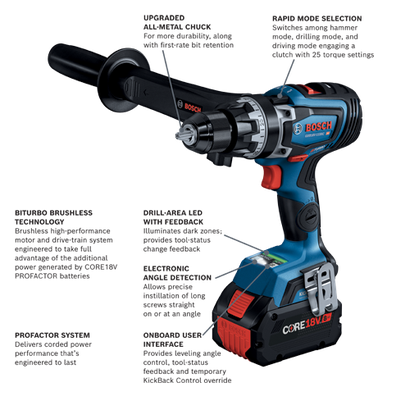

  • PROFACTOR™ performance – engineered for tough drilling jobs, such as drilling large holes straight

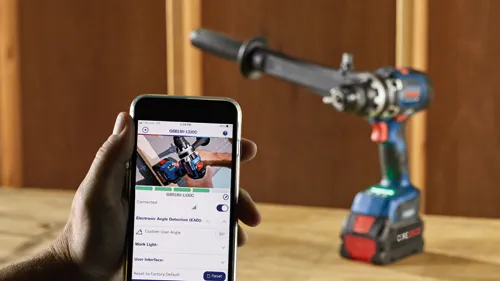

  • Connectivity (module sold separately) – link to connected device via Bosch Toolbox App to customize settings, set custom angles, and receive feedback
  • Onboard user interface – provides leveling angle control, tool-status feedback and temporary KickBack Control override
  • BITURBO Brushless™ Technology – featuring a brushless high-performance motor and drive-train system engineered to take full advantage of the additional power generated by CORE18V® High Power batteries

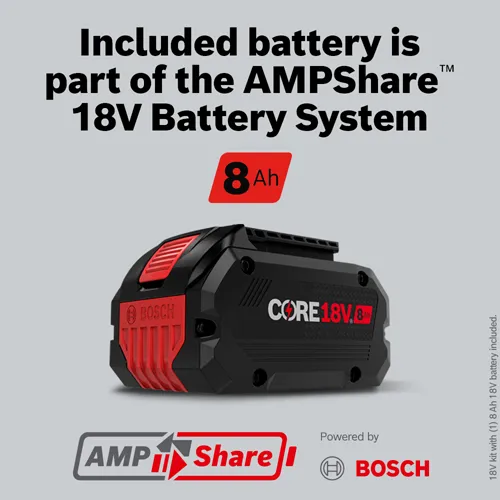

  • CORE18V® 8 Ah High Power battery – compatible with Bosch 18V tools; optimized for PROFACTOR™ tools; delivers 2x more runtime than GBA18V40

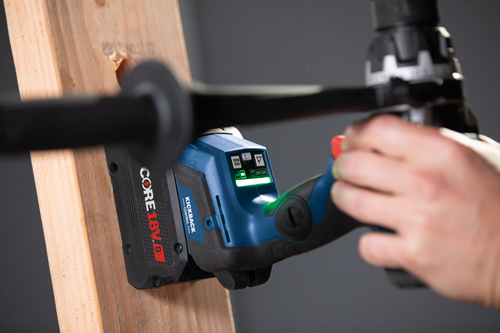

  • KickBack Control – helps to reduce the risk of injury from sudden rotational torque reaction in a bind-up scenario
  • Clutch with 25 settings – provides driving accuracy for reduced fastener damage
  • Electronic Angle Detection – allows precise installation of long screws straight on or at an angle
  • All-metal chuck – for more durability, along with first-rate bit retention
  • Two-speed metal gearbox – choose between high-torque (0-550 rpm) driving or high-speed (0-2,200 rpm) drilling
  • Drill-area LED with feedback – illuminates dark zones; provides tool-status change feedback
  • Rapid Mode Selector – switches among hammer mode, drilling mode, and driving mode engaging a clutch with 25 torque settings
  • AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
  • AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
  • Bosch 18V cordless power tools and 18V chargers are covered by a five year limited warranty; Bosch 18V batteries are covered by a three year limited warranty – for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
  • All Bosch 18V PROFACTOR™ cordless power tools are backed by a 180-day no-questions-asked return guarantee
View more View less

GSB18V-1330CB14 Professional

Technical data

The most important data

Battery Chemistry Lithium Ion
Battery Watt Hours 144 Wh
Battery/Charger Included
Case Type Bag
Chuck Capacity 1/2" Keyless Chuck
Chuck Design Keyless
Chuck Size 1/2 in
Height in 8.6 "
Length in 8 "
No Load BPM 0-30,000
No Load RPM 0-550 / 0-2,200
Reverse Yes
Torque (in. lbs.) 1,330
Variable Speed Yes
Weight 4.6 lb
Weight (lbs.) 4.6
Width in 2.9 "

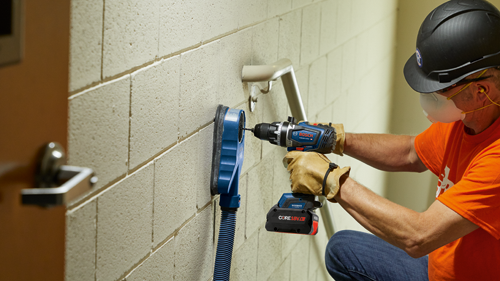

Works With Bosch Bluetooth® Connectivity Module, GCY42 (See tool manual for its connectivity/app features.), Dust Extraction/Collection Hood, HDC200, Recommended Battery Packs to help achieve maximum tool performance, GBA18V60, GBA18V80 and GBA18V120 Batteries

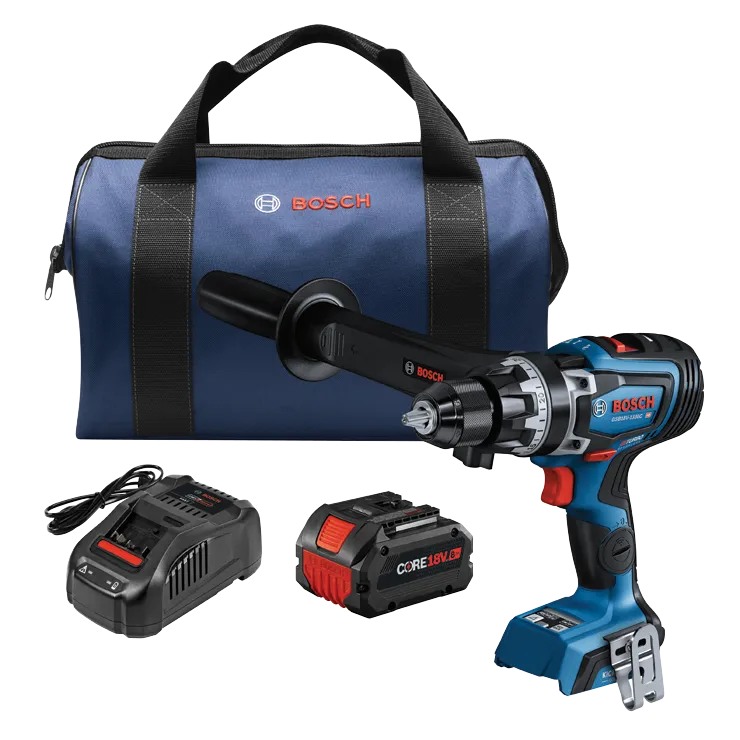

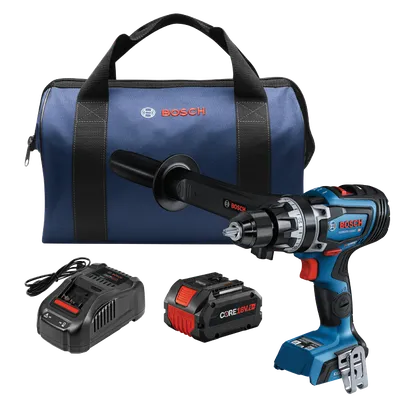

Includes (1) GSB18V-1330C PROFACTOR™ 18V Connected-Ready 1/2 In. Hammer Drill/Driver
(1) GBA18V80 18V CORE18V® 8 Ah Lithium-Ion High Power Battery
(1) 18V Fast Charger
(1) Belt Clip
(1) Carrying Bag

GSB18V-1330CB14 Professional: Further information

Product Highlights

This Bosch 18V PROFACTOR™ hammer drill/driver is built for tough drilling and driving jobs, especially drilling large holes straight. The 1/2 In. GSB18V-1330C Hammer Drill/Driver is part of the PROFACTOR™ System, which pairs BITURBO Brushless™ Technology with a CORE18V® High Power Battery. BITURBO Brushless™ Technology is a high-performance motor and drive-train system designed to deliver power comparable to high-demand corded tools. This GSB18V-1330C 18V Connected-Ready 1/2 In. Hammer Drill/Driver features connectivity (module sold separately), linking to connected device via Bosch Toolbox App to customize settings, set custom angles, receive feedback and set specific angles for the Electronic Angle Detection feature. It has a powerful brushless motor that provides efficient power for up to 1,330 In.-Lbs. of max torque. It has variable speed settings: high speed (0-2,200 rpm) and high power (0-550 rpm). The hammer drill/driver has KickBack Control, which helps reduce the risk of injury from sudden rotational torque reaction in a bind-up scenario and Electronic Angle Detection to ensure accurate drilling at angle. The 25 clutch settings help reduce fastener damage. It has an all-metal chuck that provides durability. The kit includes a CORE18V® 8 Ah High Power Battery, which delivers 50% more runtime and over 75% more power than the CORE18V® 4 Ah battery, powering high-demand applications.
