Cordless Rotary Lasers

GRL4000-80CHV Professional

Cordless Rotary Lasers

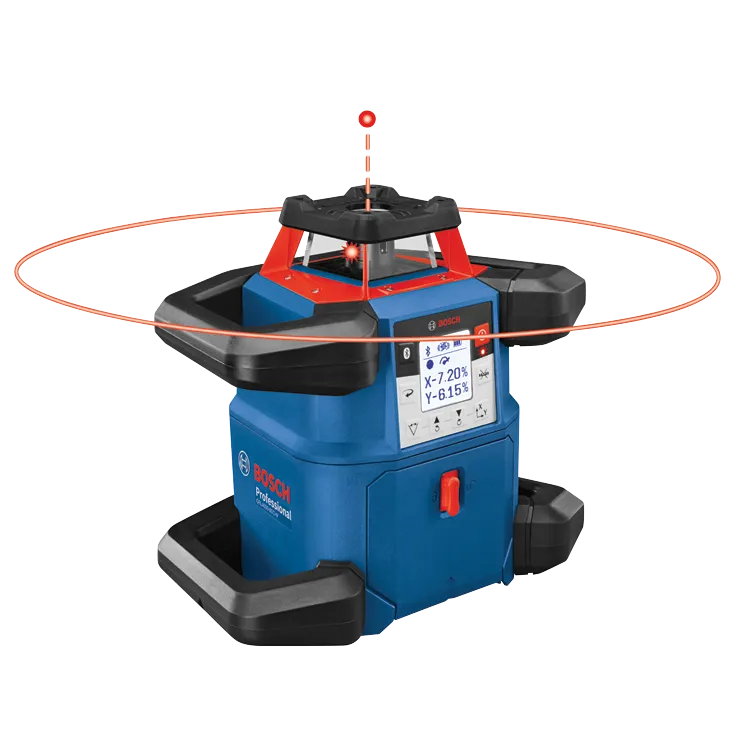

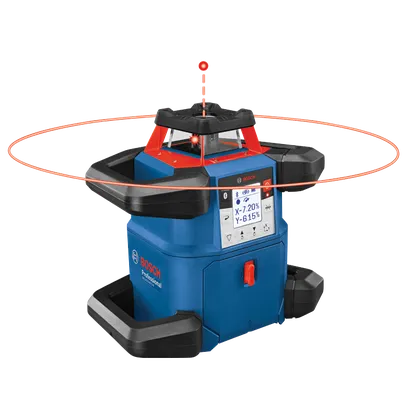

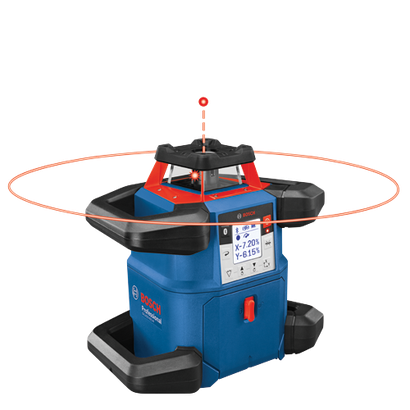

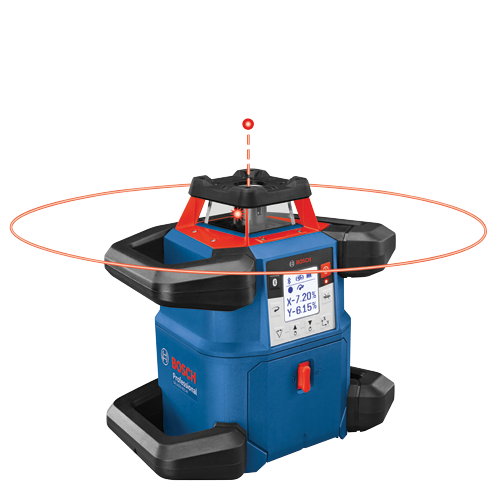

18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser with (1) CORE18V® 4 Ah Advanced Power Battery

  • Fully featured rotary laser – has Dual Dial-In Slope, CORE18V® power, Bluetooth® connectivity, uCAL user-calibration and more

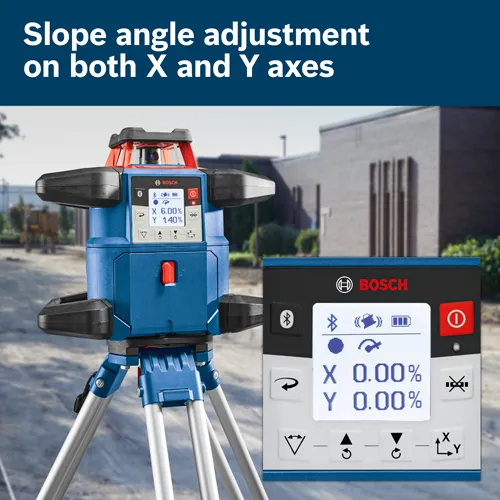

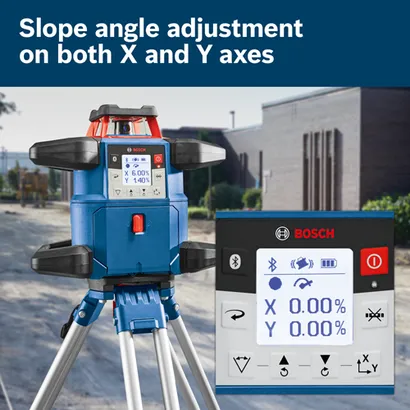

  • Dual Dial-In Slope – allows slope angle adjustment on both the X and Y axes

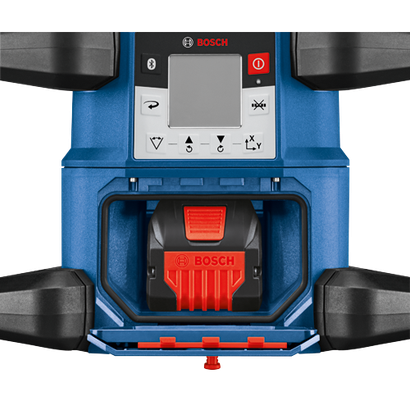

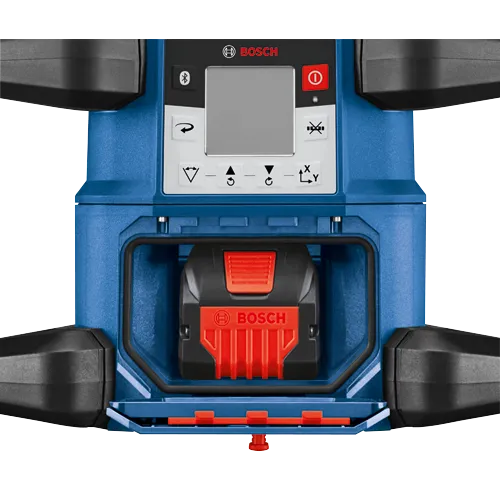

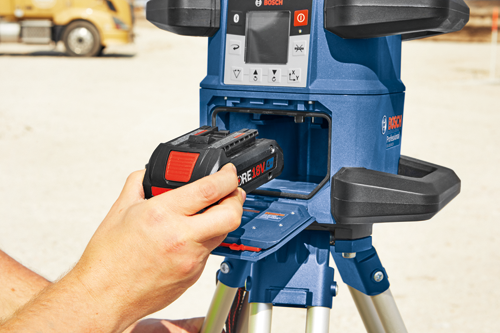

  • Dual power source – for extended runtime and option of a 4 Ah CORE18V® battery or a battery adapter with four (D) cell batteries

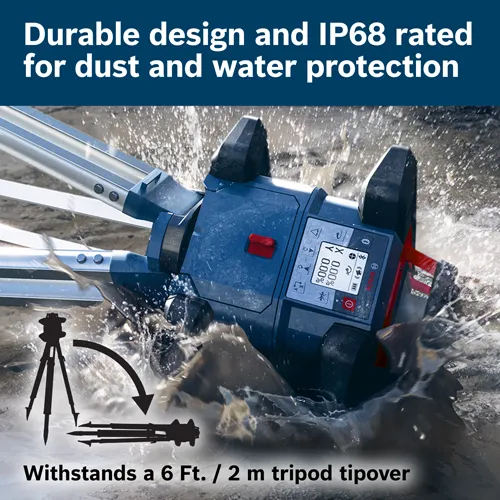

  • Durable design – engineered with a cage rubber overmold and an innovative handle design to stand up to the toughest jobsites; built to IP68 dust- and water-protection standards

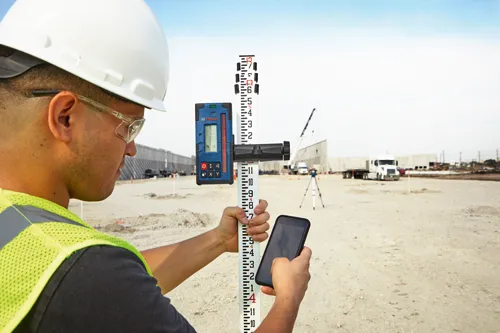

  • Bluetooth® connectivity – connects to a mobile device, linking to the free Bosch Leveling Remote App, to control sleep mode, Dual Dial-In Slope, and more

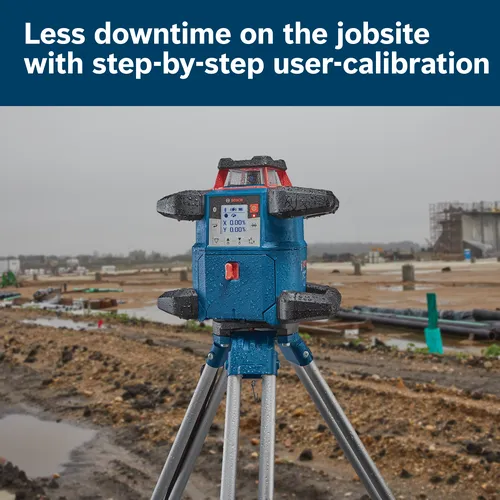

  • uCAL – user-calibration guiding the user step-by-step to confirm tool status or calibrate the rotary laser to ensure accuracy on the jobsite

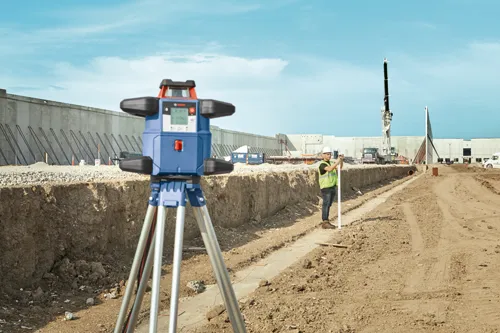

  • Long working range – range of up to 4,000 Ft. with laser receiver, the laser accuracy of up to ±1/16 In. at 100 Ft. in horizontal mode and ±1/8 In. at 100 Ft. in vertical mode

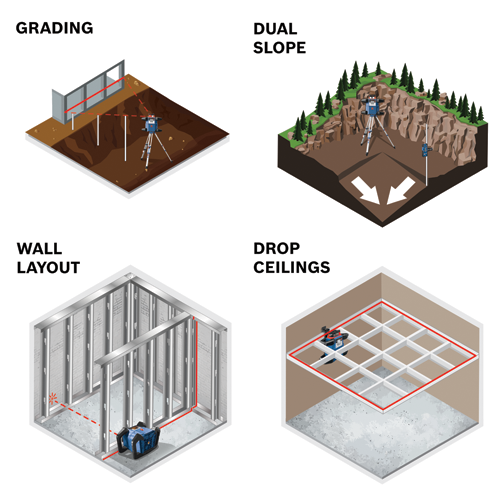

  • Vertical-beam functionality – provides a vertical beam at 90° point for layout, squaring and plumb applications

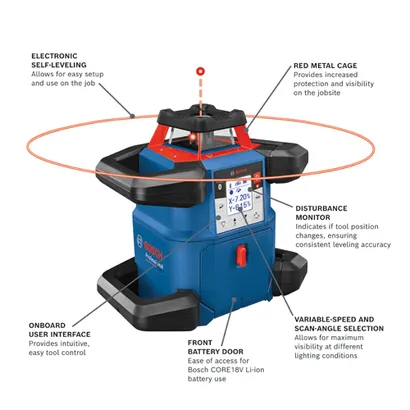

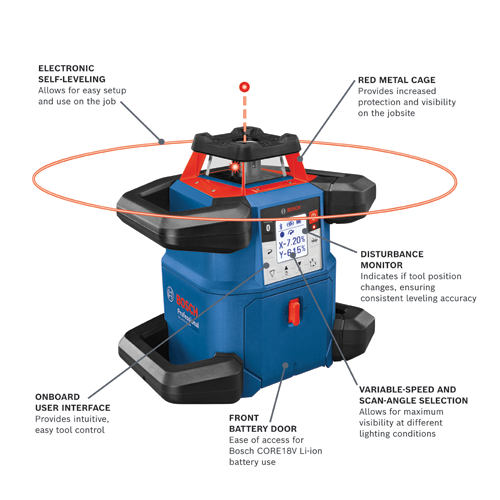

  • Electronic self-leveling – allows for easy setup and use on the job
  • Disturbance monitor – indicates if tool position changes, ensuring consistent leveling accuracy
  • Variable-speed and scan-angle selection – allows for maximum visibility at different lighting conditions

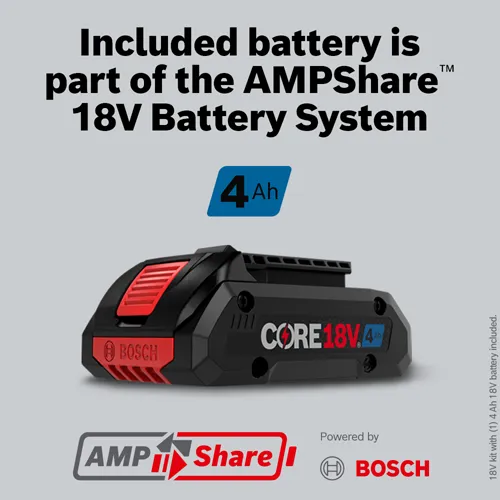

  • AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
  • AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
  • Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
  • Bosch 18V batteries are covered by a three year limited warranty - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
  • Bosch 18V chargers are covered by a five year limited warranty - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99

GRL4000-80CHV Professional

GRL4000-80CHV Professional

Your Selection

rotary-laser-revolve-bosch-GRL4000-80CHV-beauty-laser

Order number: 0601061F10

Technical data

The most important data

Battery Lithium-Ion Battery
Height in 11 "
IP Rating IP 68
Laser Beam Color Red
Laser Diode Class II 635 nm, < 1mW
Length in 12.8 "
Leveling Type Self-Leveling, Up to 5°
Material Plastic Composite
Mount Threading 5/8-11
Operating Temperature 14° F / -10° C ~1 22° F / 50° C
Range Up to 4,000-ft.
Weight 8.2 lb
Width in 7.4 "
Works With Laser Receivers, LR 1 G, LR 30, LR40, LR 50, Tripods, BT160, BT170HD, BT300HD, BT 150, Grade Rods, GR500, Mounts and Positioning Devices, WM 4

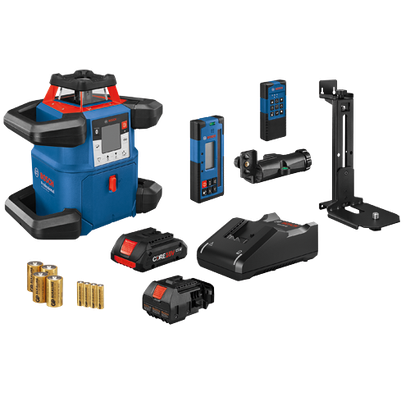

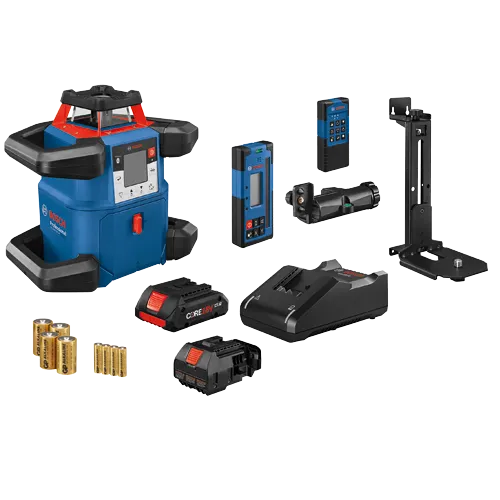

Includes (1) GRL4000-80CHV 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser

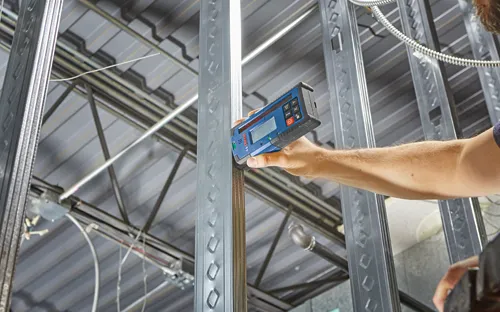

(1) LR40 Laser Receiver with Bracket
(1) GBA18V40 18V CORE18V® Lithium-Ion 4 Ah Advanced Power Battery
(1) 18V Charger
(1) BA1 Alkaline Battery Adapter
(4) D Batteries
(4) AA Batteries

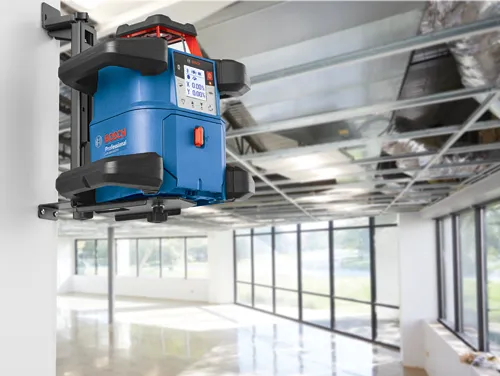

(1) WM6 Wall Mount
(1) RC5 Remote Control
(1) Carrying Case

GRL4000-80CHV Professional: Further information

Product Highlights

The Bosch 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser with uCAL User-calibration delivers a comprehensive solution for precise outdoor and indoor leveling. It has a Dual Dial-In Slope feature that allows slope angle adjustment on both the X and Y axes, for grading applications. The GRL4000-80CHV is powered by a Bosch CORE18V® 4 Ah battery, providing extended runtime. The rotary laser is compatible with 4 Ah and 8 Ah Bosch CORE18V® Li-ion batteries. It also features an alkaline adapter to use four (D) cells. The REVOLVE4000 is engineered with a cage overmold and an innovative handle design, and it is built to IP68 dust- and water-protection standards. It features Bluetooth® connectivity to a connected device, linking to the Bosch Leveling Remote App. This app controls on/off, Dual Dial-In Slope, and more. The rotary laser features uCAL, for user-calibration, taking the user step by step through the calibration process. This avoids tool down time and provides confidence that the laser is accurate. It delivers accuracy of up to ±1/16 In. at 100 Ft. in horizontal applications and ±1/8 In. at 100 Ft. in vertical mode, and a range of up to 4,000 Ft. with laser receiver. The laser features a vertical beam at 90° point for layout, squaring and plumb applications.
