Inspection/Detection Tools

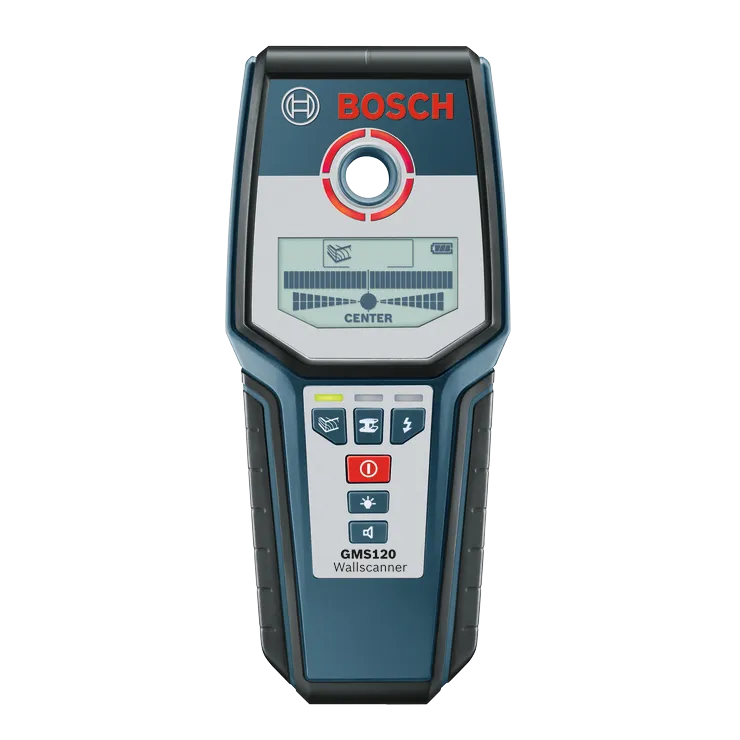

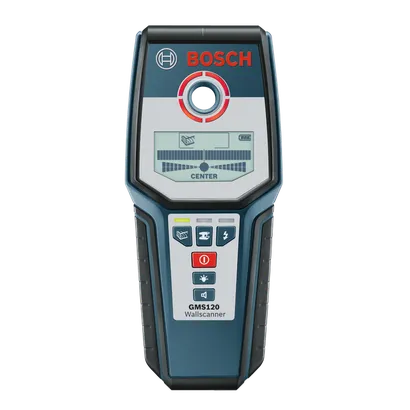

GMS 120 Professional

Inspection/Detection Tools

Wall Scanner

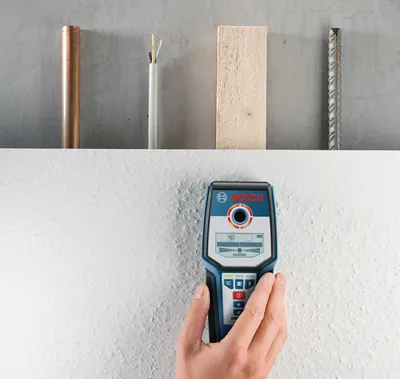

  • Multi-mode detection — for detection of wood studs, metal objects (rebar, studs and steel/copper pipes) or live wiring

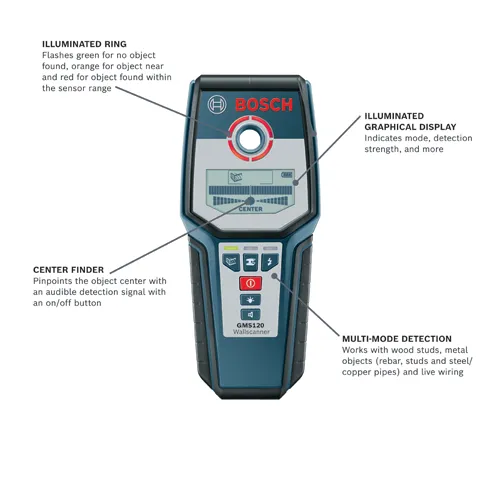

  • Illuminated ring indicates detection status — green (no object found)/orange (object near)/red (object found within the detectable sensor area)
  • Automatic center finder — for locating center of detected wood or metal object
  • Illuminated graphical display — indicates mode, detection strength and more
  • Three selection modes (wood, metal, AC wiring) – with automatic calibration for easy and precise detection
  • Audible detection signal – with on/off button
  • Ergonomic soft-grip – for secure grip and comfort
  • Illuminated ring indicates detection status
  • Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99

GMS 120 Professional

GMS 120 Professional

Your Selection

Digital Multi Scanner

Order number: 0601081010

Technical data

The most important data

Max Detection Depth Copper Wiring Up to 2-in
Max Detection Depth Ferrous Metals (Steel) Up to 4-3/4"
Max Detection Depth Non-Ferrous Metals (Copper) Up to 3-1/8" (80mm)
Operating Temperature 14° F / -10° C ~1 22° F / 50° C
Rating 9V
Size in 3.75" x 7.75" x 1.4"
Weight 1.7 lb
Includes (1) GMS 120 Wall Scanner
(1) Hand Strap
(1) 9V Battery
(1) Pouch

GMS 120 Professional: Further information

Product Highlights

Bosch wall scanners find magnetic and non-magnetic metals, power cables, wooden substructures or even plastic pipes with maximum reliability and precision.
