GLM165-27C Professional
Laser Measures
BLAZE™ Connected 165 Ft. Laser Measure

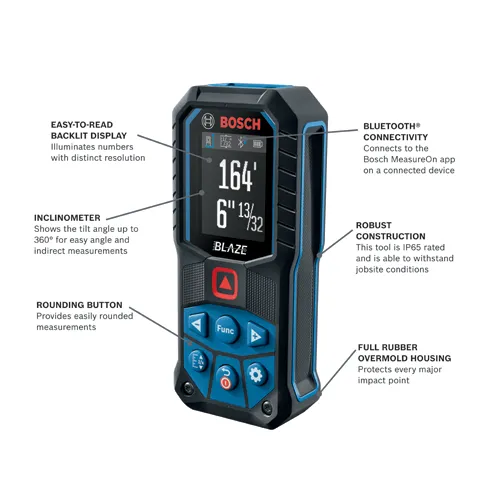

- 165 Ft. laser measure – features an easy-to-read color display, great accuracy and an inclinometer

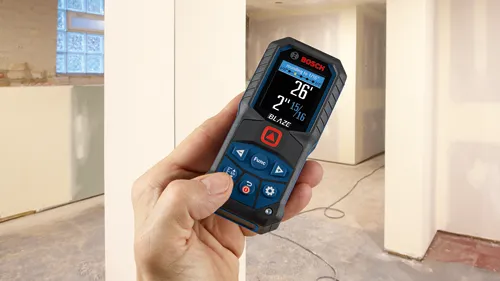

- Easy-to-read backlit color display – illuminates numbers with distinct resolution, for work in low-light or no-light conditions
- Accuracy and long-range measuring – provides accuracy up to +- 1/16 In.** and measures up to 165 Ft. ** Subject to accuracy deviation on stakeout functionality for products with certain date codes. See “Notes” in Technical Data below for details

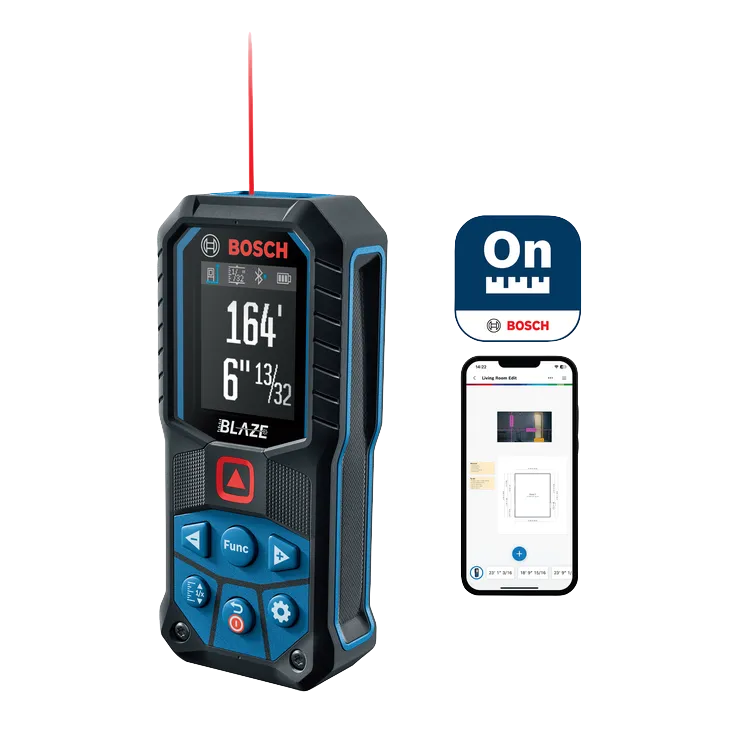

- Bluetooth® Smart 4.2 Technology – allows measurements to be digitally transferred to a smart phone or tablet using the free Bosch MeasureOn app
- Full rubber overmold housing – protects every major impact point, with a design similar to a roll cage
- Jobsite tough – laser is IP65 rated and is able to withstand jobsite conditions

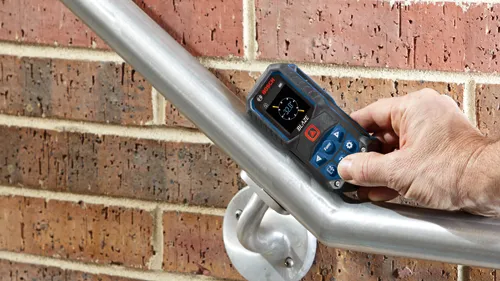

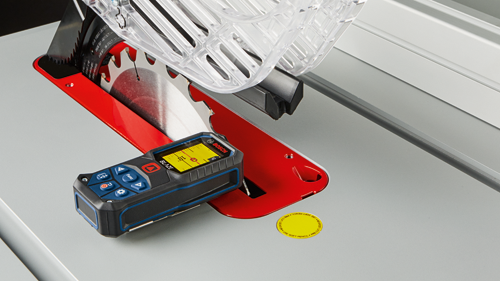

- Inclinometer – shows the tilt angle up to 360° for easy angle and indirect measurements
- Default real-time measurement mode – immediately provides accurate measurement that automatically adjusts closer to or farther from the target
- Add/subtract measurements – allows the user to add or subtract measurements
- Multiple measuring features – calculates distance, area, volume and indirect measurements
- Rounding button – rounds the measurement to the fraction that best suits the application
- Haptic feedback – vibrates tool for measuring confirmation on loud jobsites
- Handy wrist strap – for carry-along convenience
- Belt clip – allows convenient storage on jobsite
- Free-to-download and use MeasureOn app - provides clear digital project overview, including floor plans, measurements, photos and notes
- Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Functions & key features
GLM165-27C Professional
Technical data
The most important data
Battery
(2) AA Batteries
Connected
Yes
Height in
4.7 "
IP Rating
IP 65
Laser Beam Color
Red
Length in
2.1 "
Measuring Accuracy
Measuring Accuracy: +/- 1/16-in; Stakeout Accuracy*: +/- 1/2-in
Range
Up to 165-ft.
Weight
0.22 lb
Weight (lbs.)
0.22
Width in
1.2 "
Works With

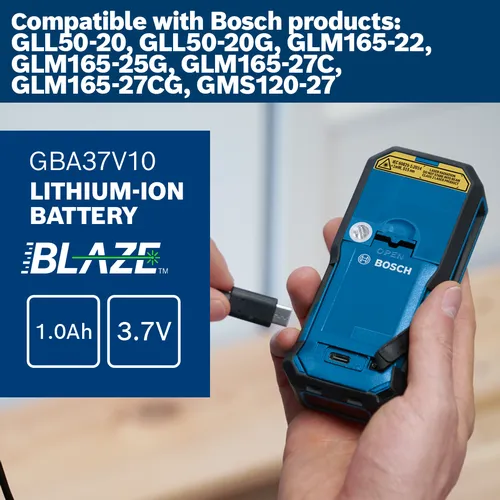

Battery, GBA37V10
Includes
(1) GLM165-27C BLAZE™ Connected 165 Ft. Laser Measure
(1) Belt Clip
(2) AA Batteries
(1) Pouch
(1) Belt Clip
(2) AA Batteries
(1) Pouch
GLM165-27C Professional: Further information
Product Highlights
This 165 Ft. laser measure is a fully featured tool with an easy-to-read color display, great accuracy, an inclinometer for tilt angle and reinforced housing for durability. The Bosch BLAZE™ GLM165-27C features an inclinometer, which shows the tilt angle up to 360° for easy angle and indirect measurements. The laser has accuracy up to ±1/16 In., plus it includes a rounding button that rounds the measurement to the fraction that best suits the application and haptic feedback for loud jobsites. The digital laser measure also offers Bluetooth® functionality, so users can digitally transfer measurements to a smartphone or tablet through the free MeasureOn app. It also has full rubber overmold housing, designed to be similar to a roll cage. It is IP65 rated and has an ergonomic design for better grip. It includes 11 different measuring functions, including real-time length, length, area, volume and indirect functions, and addition/subtraction capability.
