GLL50-40G Professional

Line Lasers

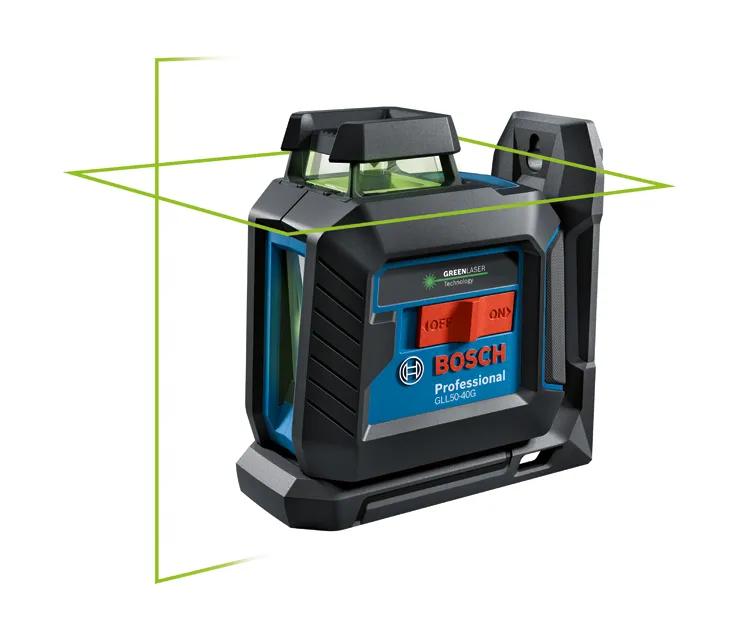

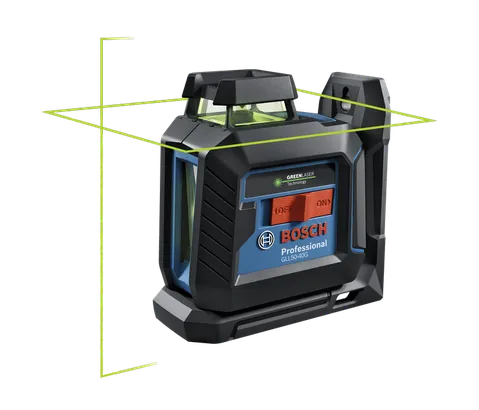

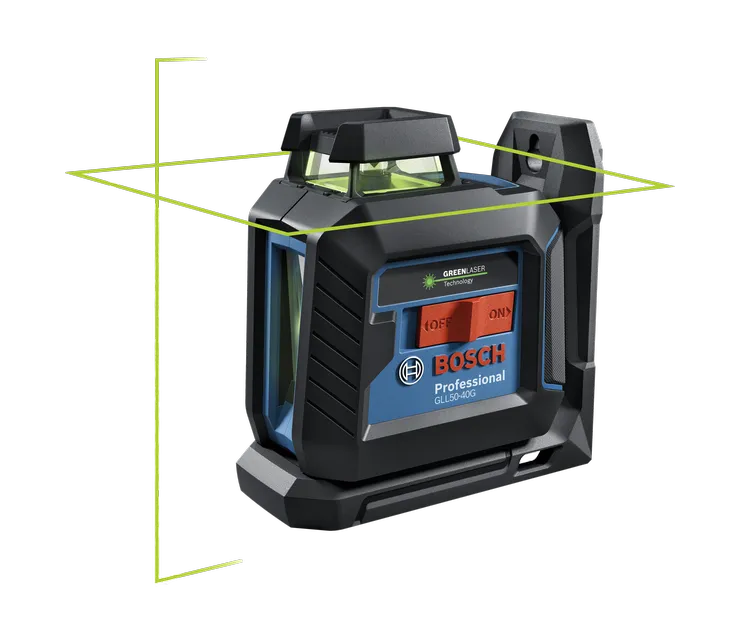

Green-Beam Self-Leveling 360° Cross-Line Laser

  • Versatile layout – vertical line and 360° horizontal plane can be projected separately or together for a variety of applications
  • 360° coverage – level with one setup point for an entire room at a working range of 100 Ft. in diameter
  • Bright green-beam laser — up to 4X brighter than standard red beams
  • Full rubber overmold housing – helps to protect major impact points, with a design similar to a roll cage
  • Smart Pendulum System – allows tool to self-level, and it indicates out-of-level condition
  • Secure laser transport – after switching off, pendulum is locked
  • One-button onboard user interface – easily select among the vertical line, 360° horizontal plane and cross line layout modes
  • Two-position recessed switch – provides additional protection of the switch mechanism

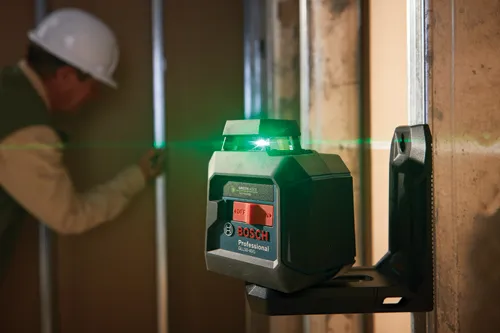

  • LB10 L-Bracket – provides fast setup and extra-strong magnets
  • DK10 Ceiling grid clip – provides easy setup in ceiling-grid applications
  • Jobsite-tough construction – withstands rainy or dusty jobsite conditions, and is IP64 rated
  • Battery gauge – features a three-LED indicator for battery management
  • Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
View more View less

GLL50-40G Professional

GLL50-40G Professional

Your Selection

Green Self-Leveling 360° Horizontal Cross-Line Laser-GLL50-40G-Hero-Lasers

Order number: 0601065010

Technical data

The most important data

Height in 4.69 "
IP Rating IP 64
Laser Beam Color Green
Laser Diode Class 2, 500-540 nm
Length in 4.37 "
Leveling Type Self-Leveling, Up to 4°
Material Plastic composite
Mount Threading 1/4-20
Operating Temperature 23° F / -5° C ~ 104° F / 40° C
Range Up to 100-ft.
Weight 1.37 lb
Width in 2.83 "

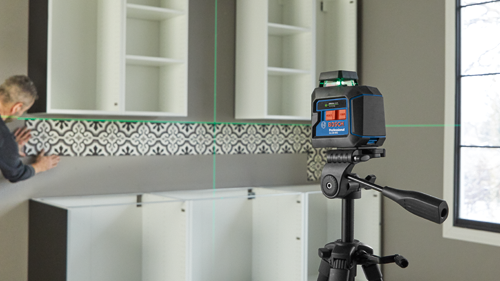

Works With Tripods, BT 150, Telescoping Pole System, GP350, Grade Rods, GR 16, GR500, Mounts and Positioning Devices, BM 1, BM3, LB10
Includes (1) GLL50-40G Green-Beam Self-Leveling 360° Cross-Line Laser
(1) LB10 L-Bracket
(1) DK10 Ceiling Clip
(4) AA Batteries
(1) Hard Carry Case

GLL50-40G Professional: Further information

Product Highlights

The Bosch GLL50-40G Green-Beam Self-Leveling 360° Cross-Line Laser uses green-beam technology, which emits green lines up to 4X brighter than standard red beams. This gives the laser a working range of up to 100 Ft. in diameter. The laser produces vertical line, 360° horizontal plane and cross-line modes, for a broad array of alignment and leveling applications. It provides 360° coverage to level with one setup point for an entire room. The tool has full rubber overmold housing, designed to be similar to a roll cage, so major impact points are reinforced with rubber. It has an IP64 rating and features deeply recessed windows help protect the laser glass. The one-button onboard user interface allows easy selection among the layout modes. The two-position recessed switch provides additional protection of the switch mechanism. The Bosch Smart Pendulum System self-levels and indicates out-of-level condition, and it locks the pendulum for secure transport. The included LB10 L-Bracket and DK10 ceiling clip offer quick setup and extra-strong magnets.
