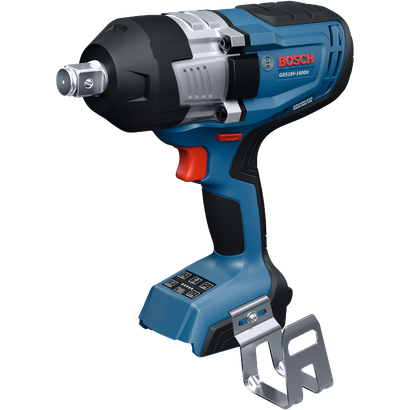

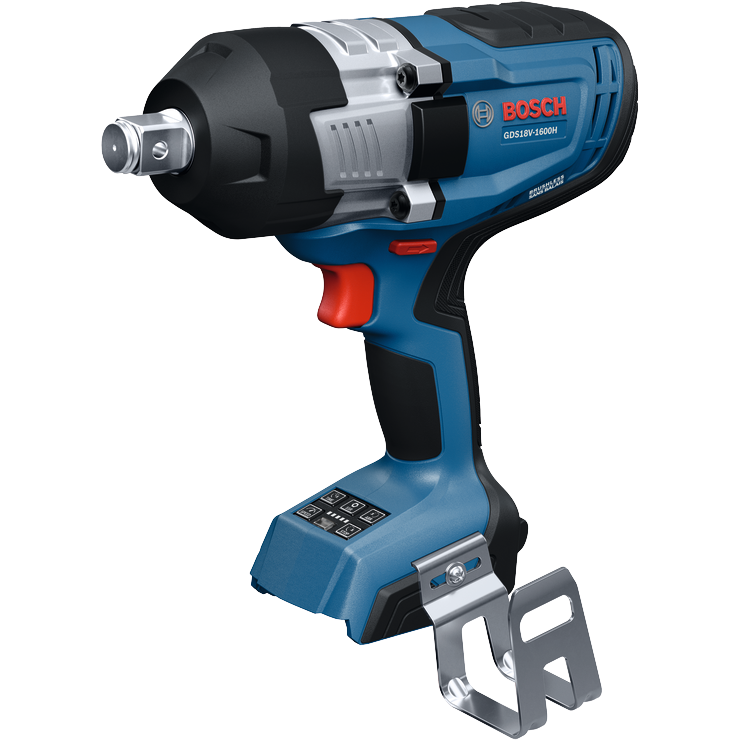

18V 3/4 In. High-Torque Impact Wrench
GDS18V-1600HN

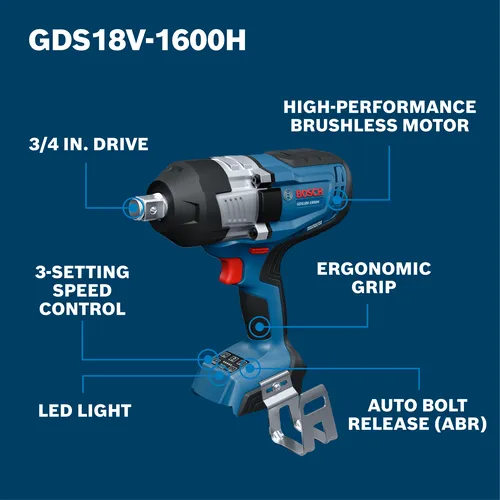

- High-torque motor – delivers up to 1,180 Ft.-Lbs. of fastening torque and 1,620 Ft.-Lbs. of max breakaway torque
- PROFACTOR performance – delivers high torque for breaking free stuck bolts and tightening large fasteners quickly
- BITURBO Brushless Technology – featuring a brushless high-performance motor and drive-train system engineered to take full advantage of the additional power generated by CORE18V® High Power batteries (sold separately)
- Three speed/torque settings – for greater control over power output (0-800 / 1,300 / 1,750 rpm)
- Friction ring and thru-hole – allows for fast socket changes and a more secure fit
- Auto slow down – slows down rpms when fastener head is close to the workpiece for controlled driving
- Auto stop – shuts the tool off when screw head is flush with the workpiece to help prevent overdriving makes repetitive driving easier and more consistent
- Auto Bolt Release – stops rotation when there is no load on the tool to help prevent accidentally dropping bolts and nuts during removal
- Onboard user interface – provides speed-setting control and tool-status feedback
- Removable rubber boot – helps to protect the head of the tool and work surface
- Joist hanger – allows for quick storage between uses on the jobsite
- LED light – illuminates dark work areas
- Ergonomically designed grip – features soft grip for comfort and a better handling
- Limited warranty – Bosch 18V cordless power tools are covered by a five-year limited warranty
GDS18V-1600HN Professional
Technical data
The most important data
Battery Chemistry
Lithium Ion
Drive
3/4" Square Drive
Height in
9.5 "
Length in
8.9 "
Material
High Density Plastic
No Load RPM
0-800 / 0-1,300 / 0-1,750
Torque (ft. -lbs)
1180
Variable Speed
Yes
Weight
7.1 lb
Weight (lbs.)
7.1
Width in
3.4 "
Works With
Bosch Bluetooth® Connectivity Module, GCY42 (See tool manual for its connectivity/app features), Recommended Battery Packs to help achieve maximum tool performance, GBA18V60, GBA18V80, and GBA18V120 Batteries
Includes
(1) GDS18V-1600H 18V 3/4 In. High-Torque Impact Wrench
GDS18V-1600HN: Further information
Product Highlights
The Bosch GDS18V-1600HN brings powerful cordless performance to demanding fastening applications. This 18V impact wrench features a high-performance brushless motor that delivers a formidable 1,210 ft-lbs. of fastening torque and a staggering 1,600 ft-lbs. of breakaway torque, making it an ideal solution for steel construction, heavy equipment maintenance, and commercial vehicle repair. The Auto Bolt Release mode enhances productivity by preventing fasteners from dropping during removal. Three speed settings allow for adjustable control and help provide a strong combination of power and advanced user control.
