18V 3/4 In. High-Torque Impact Wrench
GDS18V-1600HB28X

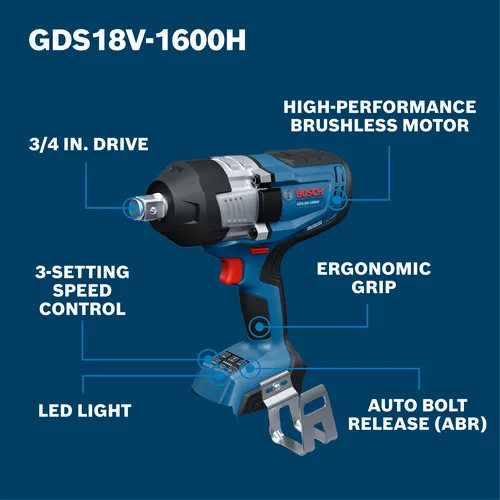

- High-performance brushless motor – delivers 1,210 ft-lbs of fastening torque and 1,600 ft-lbs of breakaway torque for demanding heavy-duty applications

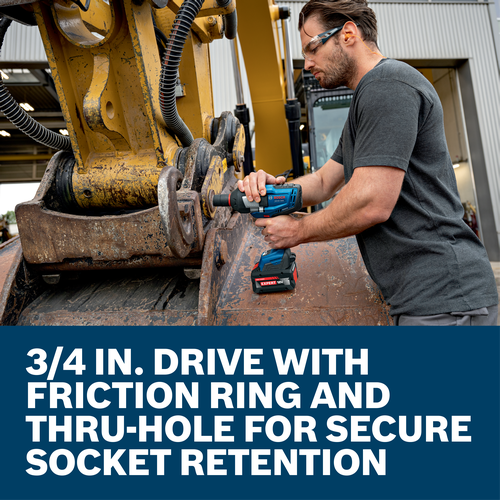

- 3/4 inch drive with friction ring and thru-hole – provides secure socket retention and versatile use

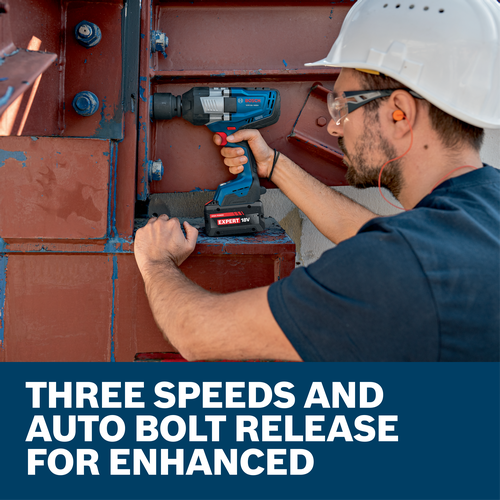

- Adjustable power control – three speed/torque settings allow for precise control to match the application
- Auto Bolt Release (ABR) – stops rotation when the bolt is loosened to prevent accidental dropping of fasteners
- LED light – illuminates the work area for improved visibility in dark or enclosed spaces
- AMPShare™ system – battery system designed to be multi-brand compatible across many cordless products to make managing your workday easier
- Auto stop – shuts the tool off when screw head is flush with the workpiece to help prevent overdriving and makes repetitive driving easier and more consistent
- Auto Bolt Release – stops rotation when there is no load on the tool to help prevent accidentally dropping bolts and nuts during removal
- AMPShare™ system compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
- Bosch 18V cordless power tools are covered by a five-year limited warranty – for details, visit the Bosch power tools website or call 1-877-BOSCH99
GDS18V-1600HB28X Professional
Technical data
The most important data
Case Type
Bag
Drive
3/4" Square Drive
Height in
9.5 "
Length in
8.9 "
Material
High Density Plastic
No Load RPM
0-800 / 0-1,300 / 0-1,750
Torque (ft. -lbs)
1180
Variable Speed
Yes
Weight
7.1 lb
Weight (lbs.)
7.1
Width in
3.4 "
Works With
Bosch Bluetooth® Connectivity Module, GCY42 (See tool manual for its connectivity/app features), Recommended Battery Packs to help achieve maximum tool performance, GBA18V60, GBA18V80, and GBA18V120 Batteries
Includes

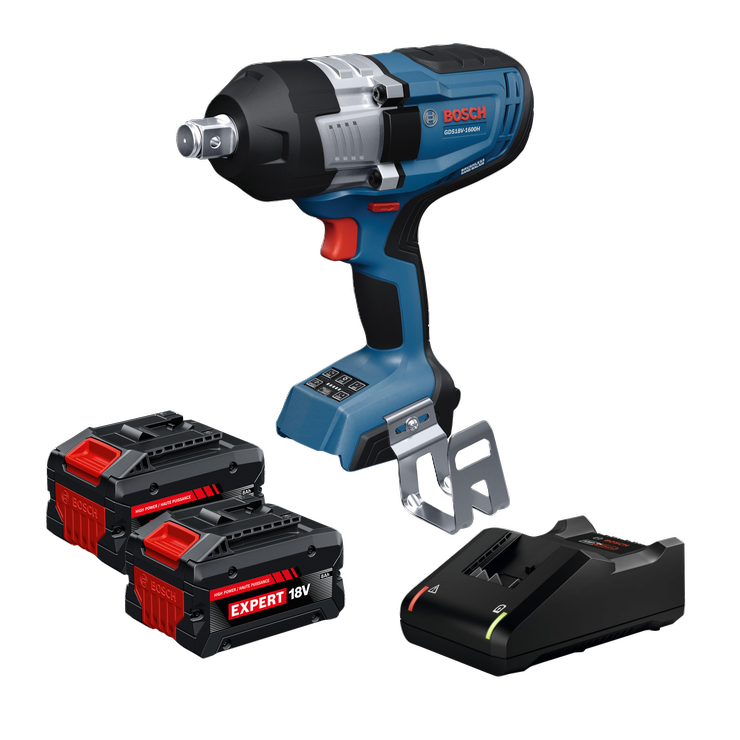

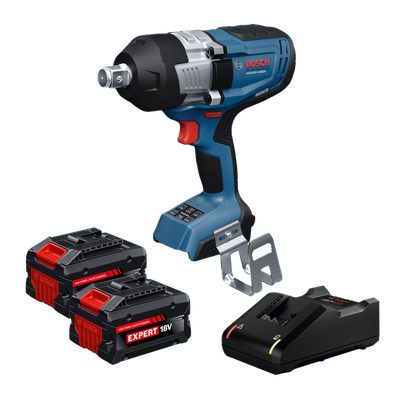

(1) GDS18V-1600H 18V 3/4 In. High-Torque Impact Wrench
(2) EXBA18V-80 EXPERT 18V 8 Ah High Power Batteries
(1) 18V Charger
(1) Belt Clip
(2) EXBA18V-80 EXPERT 18V 8 Ah High Power Batteries
(1) 18V Charger
(1) Belt Clip
GDS18V-1600HB28X: Further information
Product Highlights
The Bosch GDS18V-1600HN brings powerful cordless performance to demanding fastening applications. This 18V impact wrench features a high-performance brushless motor that delivers a formidable 1,180 ft-lbs. of fastening torque and a staggering 1,620 ft-lbs. of breakaway torque, making it an ideal solution for steel construction, heavy equipment maintenance, and commercial vehicle repair. The Auto Bolt Release mode enhances productivity by preventing fasteners from dropping during removal. Three speed settings allow for adjustable control and help provide a strong combination of power and advanced user control. This kit includes two EXPERT 18V 8 Ah batteries and an 18V charger to ensure you have the power you need for the jobsite.
