Miter Saws
The most important data |
|
---|---|
Battery Chemistry | Lithium Ion |
Bevel Angle Range | -2° to 47° |
Bevel Stops | 0°, 33.9°, 45°, 47° (Left) , 2° (Right) |
Blade Diameter (in) | 7.25 |
Blade Size | 7-1/4" |
Case Type | No Case Included |
Electric Motor Brake | Yes |
Height in | 22 " |
Length in | 27.75 " |
Max. Base Molding Against Fence | 3-1/2 in. |
Max. Crown Molding (38° Spring) Angled Against Fence | 2-3/4 in. |
Max. Crown Molding (45° Spring) Angled Against Fence | 3-3/4 in. |
Max. Cut Capacity - 0° Miter 0° Bevel | 2-1/4 in. x 8-1/4 in. |
Max. Cut Capacity - 0° Miter 45° Left Bevel | 1-1/2 in. x 8-1/4 in. |
Max. Cut Capacity - 0° Miter 45° Right Bevel | 0 |
Max. Cut Capacity - 45° Miter 0° Bevel | 2-1/8 in. x 5-3/4 in. |
Max. Cut Capacity - 45° Miter 45° Left Bevel | 1-1/2 in. x 5-3/4 in. |
Max. Cut Capacity - 45° Miter 45° Right Bevel | 0 |
Max. Depth at Max Bevel | 1.5 |
Miter Angle Range | 48° Left, 48° Right |

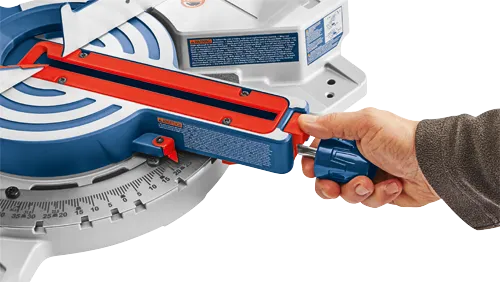

Miter Detents | 0°, 15°, 22.5°, 31.6°, 45° (Left/Right) |
Miter Positive Stops | 0°, 15°, 22.5,° 31.6°, 45° (Left/Right) |
Weight | 26 lb |
Weight (lbs.) | 26 |
Width in | 21.5 " |
Works With | Recommended Battery Packs to help achieve maximum tool performance, GBA18V60, GBA18V80 and GBA18V120 Batteries, Miter Saw Stands, T4B, GTA3800, Crown Molding Stops (Pair), MS1233, Anti-Static Vacuum Hoses, VH1622A and VH1635A (by means of anti-static adapter included with those hoses), VAC008, and most other 22 mm and 35 mm anti-static hoses., Other Vacuum Hoses, VH1022, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 22 mm and 35 mm hoses, Adapters for 1-1/4 in. and 1-1/2 in. Vacuum Hoses, VAC024 (VAC002 is not compatible) |
Includes |
(1) GCM18V-07S PROFACTOR™ 18V 7-1/4 In. Single-Bevel Slide Miter Saw (1) 7-1/4 In. 24-Tooth Carbide-Tipped Miter Saw Blade (1) Material Clamp (1) Dust Bag (1) Blade Wrench |

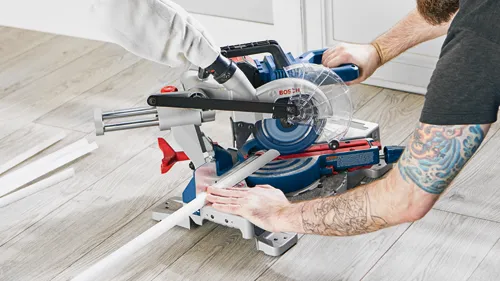

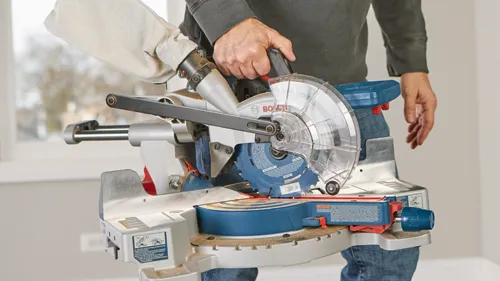

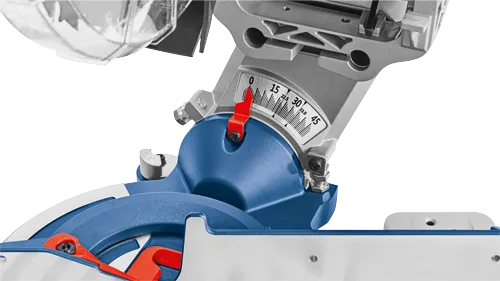

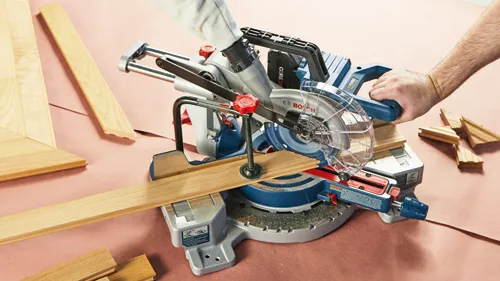

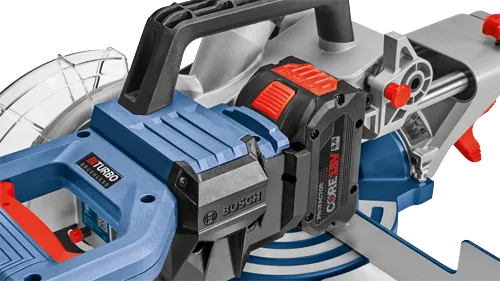

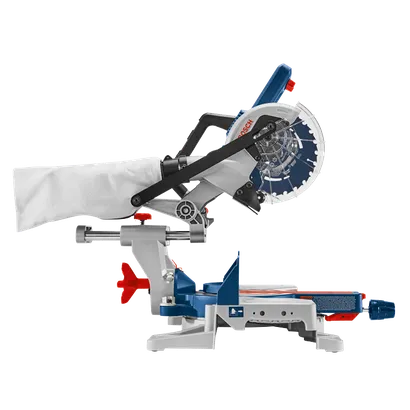

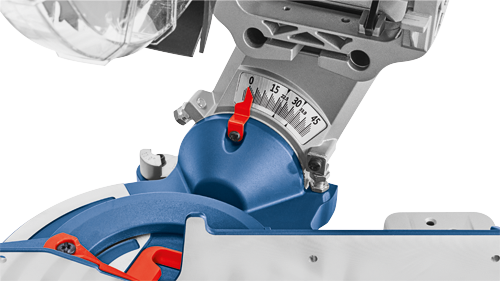

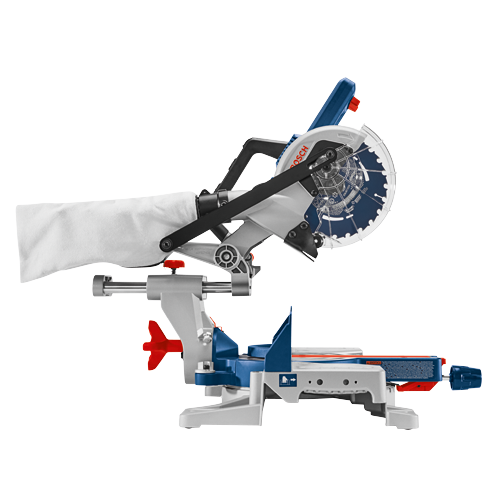

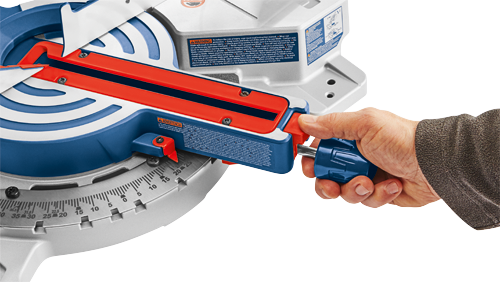

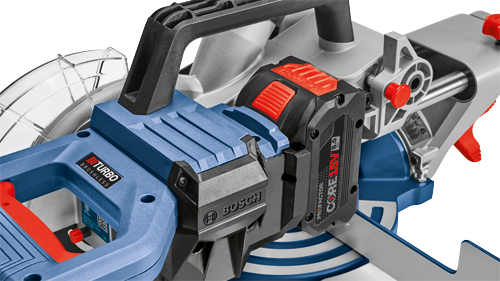

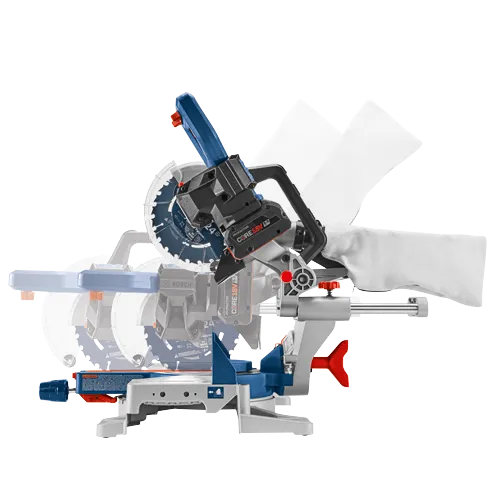

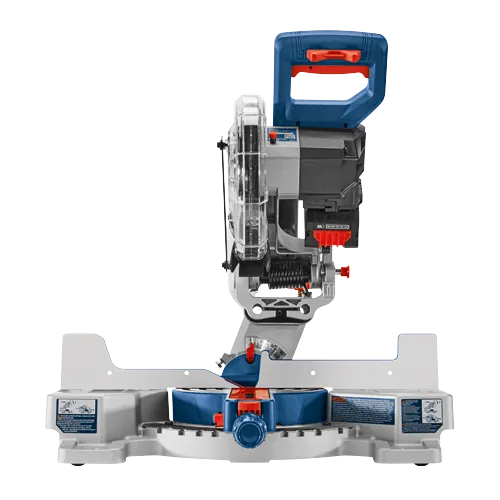

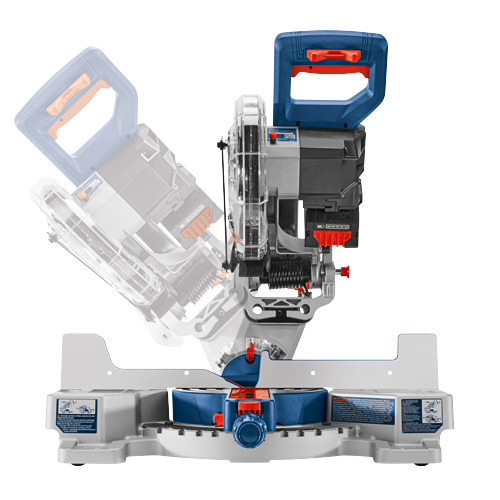

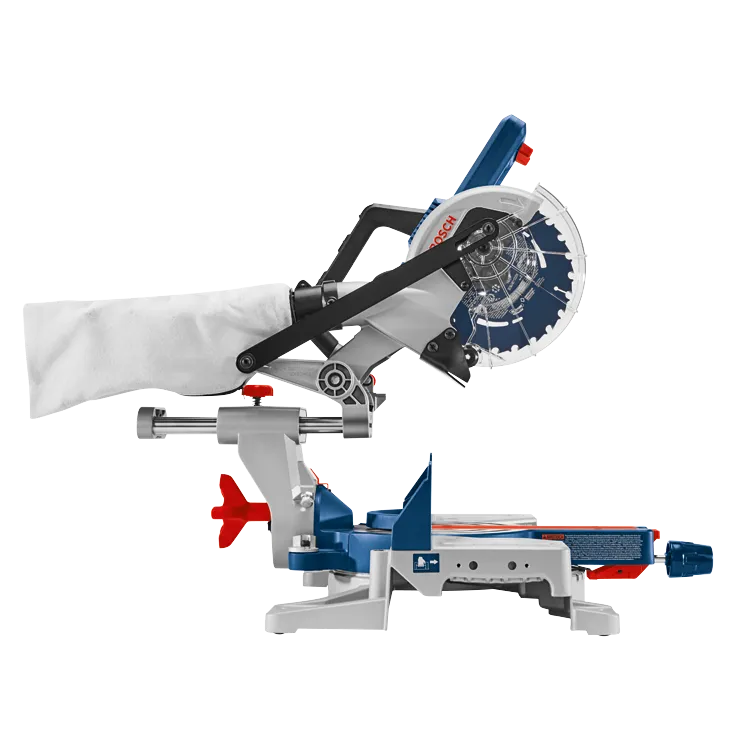

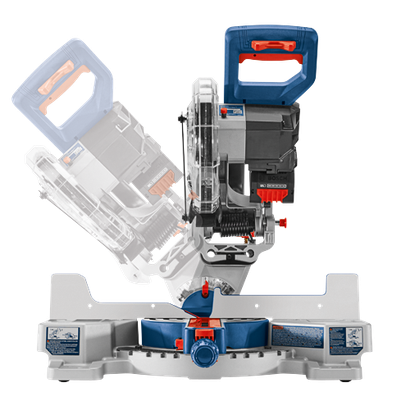

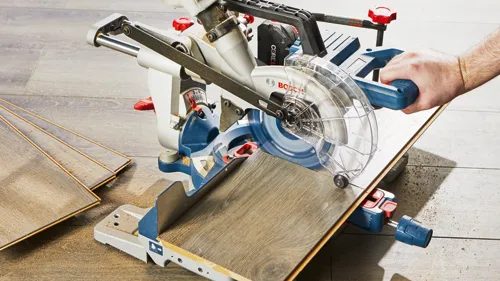

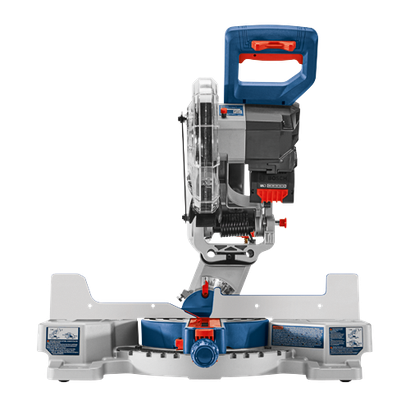

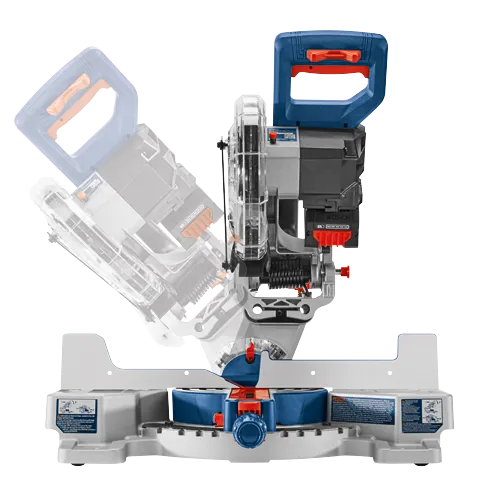

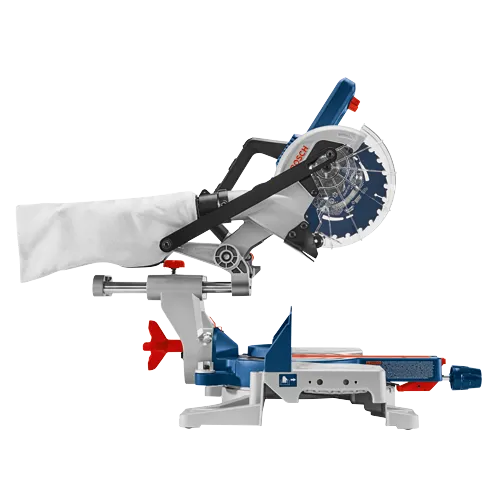

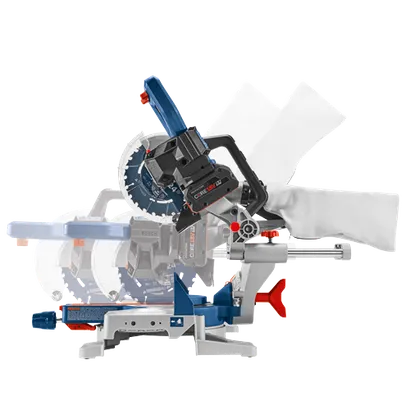

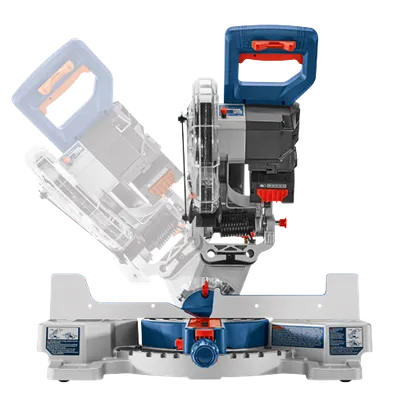

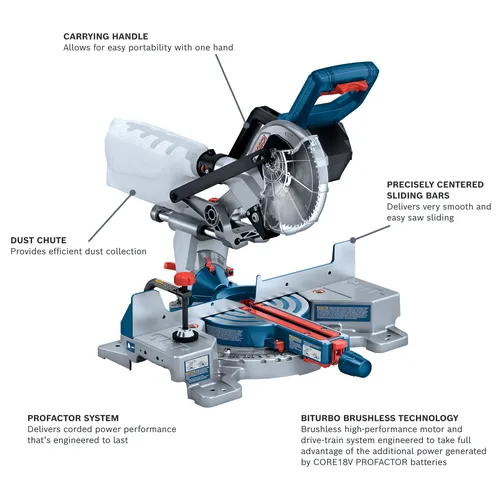

This Bosch miter saw combines professional cutting capacity with outstanding portability to deliver a truly mobile, cordless solution to the jobsite. The GCM18V-07SN bare tool kit features an 7-1/4 In. single-bevel, slide compound miter saw delivering a 3-3/4 In. nested crown cutting capacity, cutting 45° against the fence. The tall fence design supports taller material for accurate cuts. It features bevel detents at common angles. At a lightweight 26 Lbs. (tool only, not including battery), this saw features easy portability, featuring a carry handle, while still providing an 8-1/4 In. crosscut capacity. This saw is part of the PROFACTOR™ System, which pairs BITURBO Brushless™ Technology with a CORE18V® High Power Battery. BITURBO Brushless™ Technology is a high-performance motor and drive-train system designed to deliver power comparable to high-demand corded tools. The saw is engineered with precisely centered sliding bars, leading to a very smooth and easy saw sliding. It provides a dust chute and dust bag, providing efficient dust collection. The toolless workpiece clamp stabilizes workpieces while making your cut.
