Line Lasers
The most important data |
|
---|---|
Connected | Yes |
Height in | 5.8 " |
IP Rating | IP 65 |
Laser Beam Color | Green |
Laser Diode | <10 mW @ 500 nm -540 nm, Class 2 |
Length in | 6.4 " |
Leveling Type | Self-Leveling, Up to 4° |
Material | Plastic with over-mold |
Mount Threading | 1/4-20 |
Operating Temperature | 14° F / -10° C up to 113° F / 45° C |
Range | 125-ft. without receiver, 330-ft. with receiver |
Weight | 7.56 lb |
Weight (lbs.) | 7.56 |
Width in | 3.3 " |
Works With | Laser Receivers, LR8, Tripods, BT 150, Pole Mounting System, BP350, Grade Rods, GR 16, GR500, Mounts and Positioning Devices, RM20, LB10 |

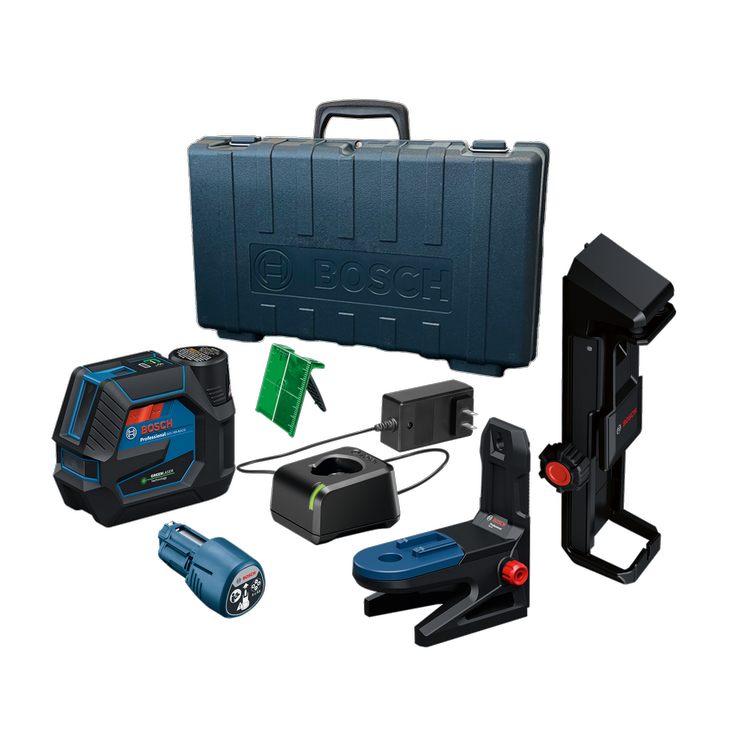

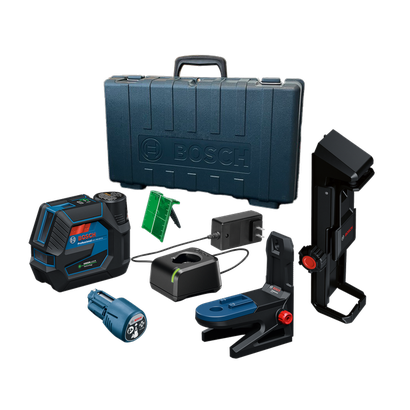

Includes |

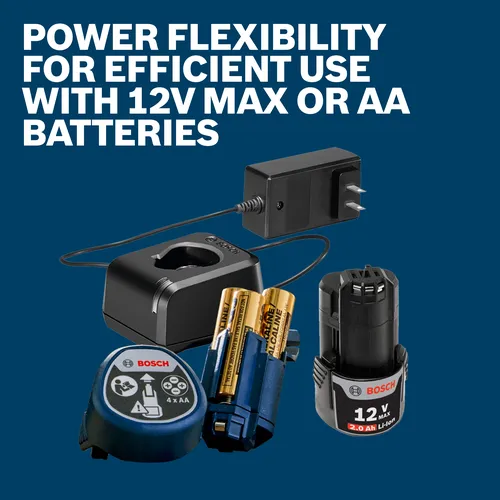

(1) GCL165-82CGL 12V Max Connected Green-Beam Cross-Line Laser with Plumb Points (1) AA1 Alkaline Battery Adapter (1) 12V Max Lithium-Ion 2.0 Ah Battery (1) 12V Max Lithium-Ion Battery Charger (1) Fine Adjustment Mount (1) DK20 Ceiling Clip (1) Laser Target Plate (1) Hard Carrying Case |

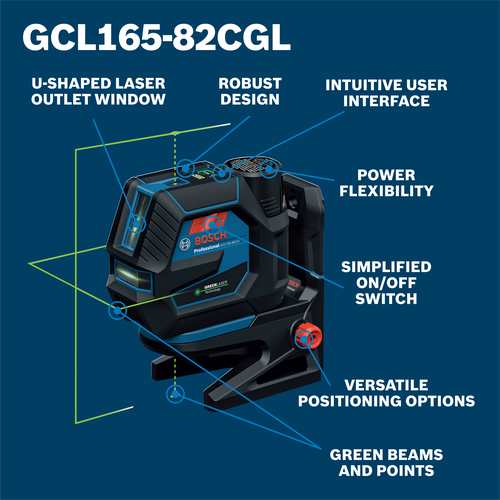

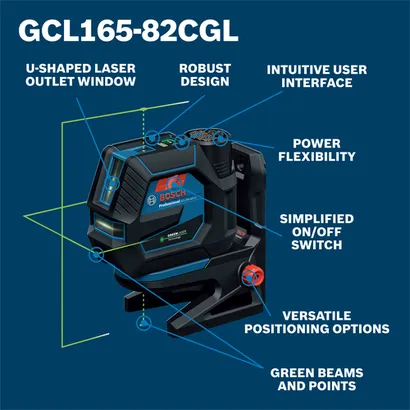

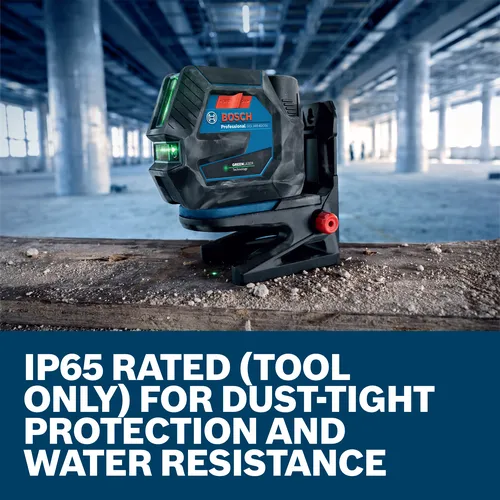

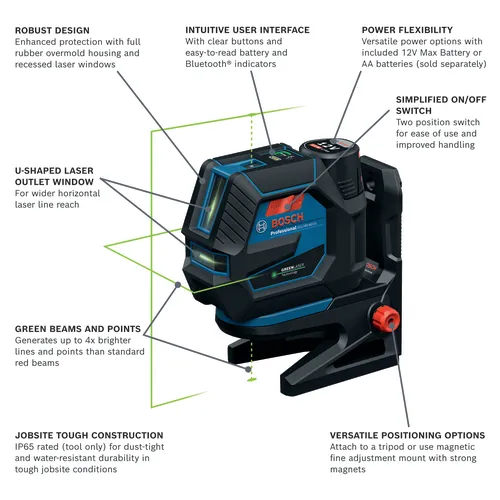

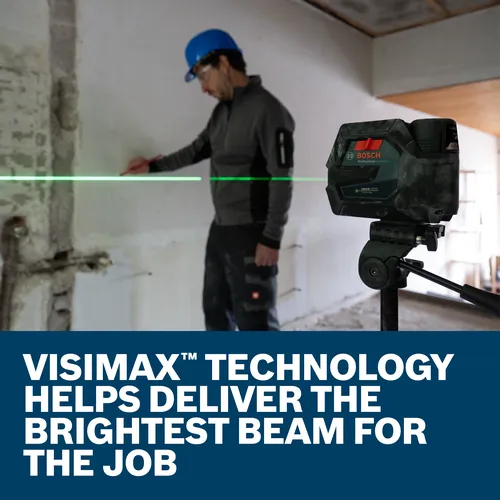

The Bosch GCL165-82CGL 12V Max Connected Green-Beam Cross-Line Laser with Plumb Points pairs remarkable power flexibility with green-beam technology to emit green lines up to 4X brighter than standard red beams. Use with the included 12V Max battery or AA batteries (sold separately) for enhanced versatility and longer runtime on the job. Built-in VisiMax™ technology monitors temperature and power consumption to deliver the brightest line for the application, optimize energy efficiency and provide long-term tool reliability. Full rubber overmold housing helps protect the level at every major impact point. IP65-rated (tool only), the laser can withstand tough, rainy conditions and is dust-tight for enhanced protection. The fine adjustment knob and pivot rotation provide accurate point-to-point alignment by allowing the laser to rotate around the point while turning. Fitted with a U-shaped laser outlet window to provide a wider horizontal reach of the laser line. With a working range of up to 125 Ft., the bright, thin lines provide an accuracy of 1/8 In. at 30 Ft. Further extend the range to 330 Ft. (measured at the horizontal line) with the level’s receiver compatibility (sold separately). Equipped with a Smart Pendulum System, the tool self-levels, will indicate any out-of-level condition and then locks when switched off for secure transport. Fully featured with Bluetooth® connectivity, control the setup of the laser from across the room with a paired smartphone and the free Bosch Leveling Remote App. Keep a handle on the laser with the rubber grip base and easily position using the strong magnets or ¼ In. threading mount. Complete with an outstanding operating time of 8 hours (using a Li-Ion battery), for all-day power and productivity.
