CSW41 Professional
Circular Saws

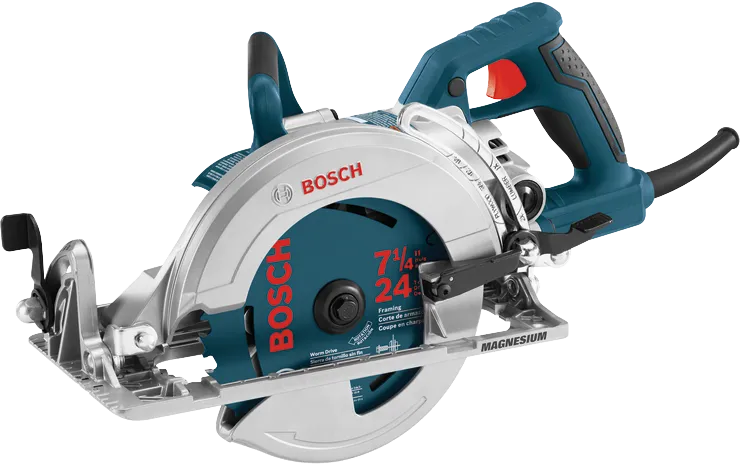

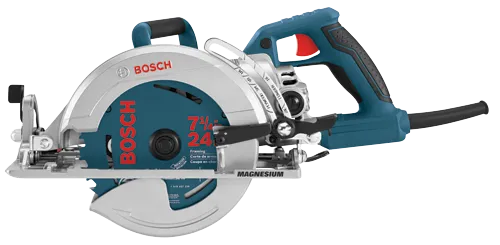

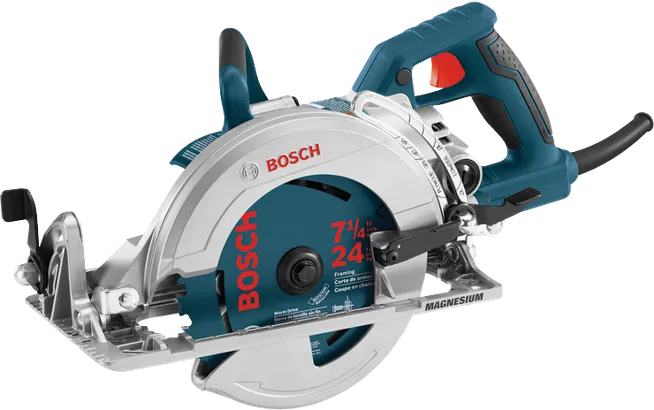

7-1/4 In. Blade-Left Worm Drive Saw
- Light weight magnesium motor housing and foot plate construction – lighter weight saw reduces user fatigue for less down time

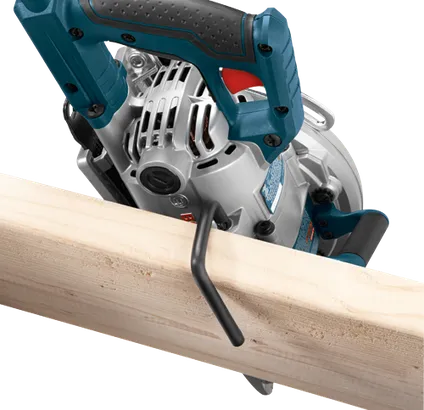

- Built-in saw hook – allows convenient saw storage between cuts
- Featherboard multi-function wrench – for blade and brush change, lever adjustments and blade diamond center knockout
- Accurate depth of cut system allows for quick accurate adjustment
- Left side blade design for unmatched clarity of cut line
- Anti-snag lower guard – provides smooth operation for small cut-off pieces
- Soft-grip handles for comfort and control
- 53˚ bevel capacity with positive detent stop at 45˚
- Large adjustment levers for fast, accurate bevel and depth adjustments
- Easy access spindle lock for easy blade changes
- Powerful 15 amp motor provides power for a variety of cutting applications
CSW41 Professional
Technical data
The most important data
Amperage
15
Arbor Size in
5/8"
Bevel
53°
Blade Diameter (in)
7.25
Blade Size
7-1/4"
Case Type
No Case Included
Depth of Cut
2-3/8"
Dust Blower
No
Dust Collection
No
Electric Motor Brake
No
Height in
9 "
Length in
20.75 "
Max. Bevel Capacity (°)
53
Max. Depth of Cut at 45 Deg.
1-15/16"
Max. Depth of Cut at 50 Deg.
1-13/16"
Max. Depth of Cut at 90 Deg.
2-3/8"
No Load RPM
5,300
Rating
120 V
Voltage
120V
Weight
12.3 lb
Works With
Rip Fence, WD7RIP, Worm-Drive Saw Lubricant Oil, BL8LB
Includes
(1) CSW41 7-1/4 In. Blade-Left Worm Drive Saw
(1) Multi-Function Blade Wrench
(1) Carbide Blade
(1) Built-In Saw Hook
(1) Multi-Function Blade Wrench
(1) Carbide Blade
(1) Built-In Saw Hook
CSW41 Professional: Further information
Product Highlights

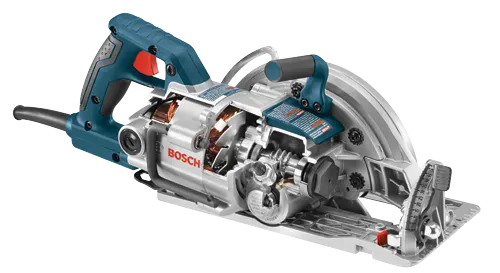

The worm drive system on the CSW41 features an enormous gearing ratio in a compact size and provides tremendous power in a manageable package. This model features sturdy magnesium housing and a die-cast magnesium footplate for true strength and a lifetime of reliable use. It also has easily serviceable brushes, large adjustment levers, a spindle lock, and a built-in saw hook for easy storage between tasks. Top it off with a soft grip handle for comfort, control, and accuracy, and this is an exceptional piece of equipment.
