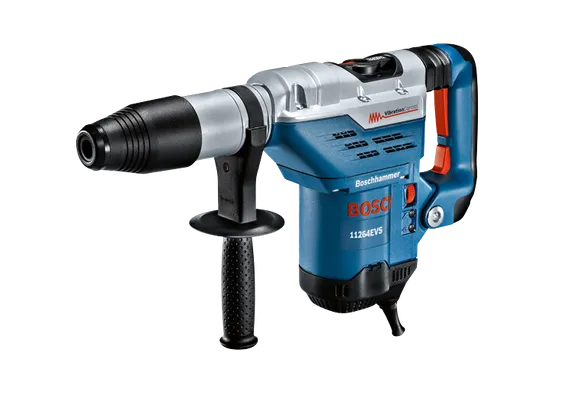

Bosch 11264EVS Boschhammer rotary hammer drill.

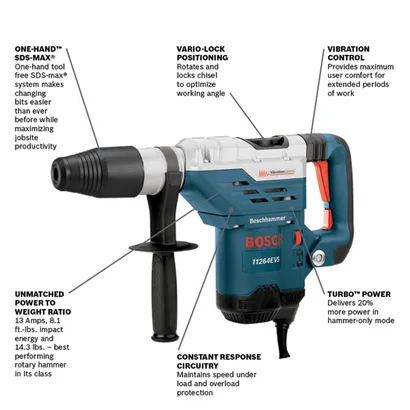

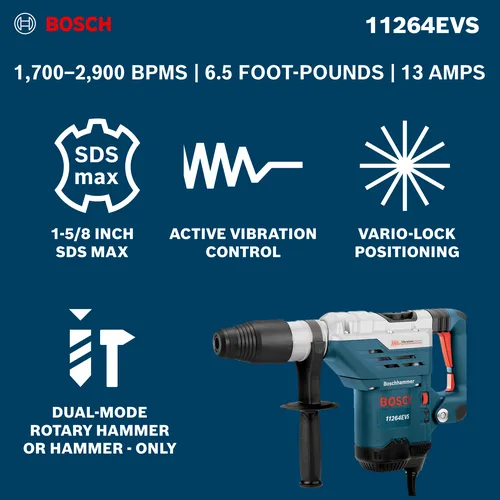

Bosch 11264EVS rotary hammer with features: ONE-HAND SDS-MAX, VARIO-LOCK POSITIONING, VIBRATION CONTROL, UNMATCHED POWER TO WEIGHT RATIO, CONSTANT RESPONSE CIRCUITRY, and TURBO POWER.

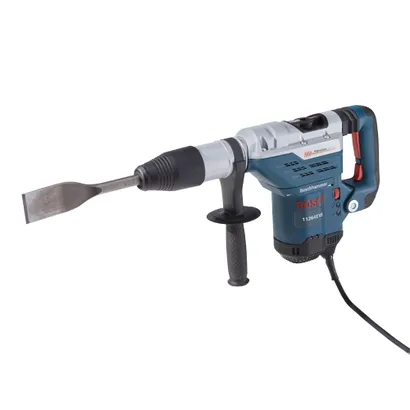

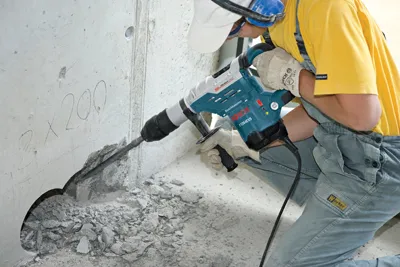

Boschhammer 11264EVS, with VibrationControl and a chisel attachment.

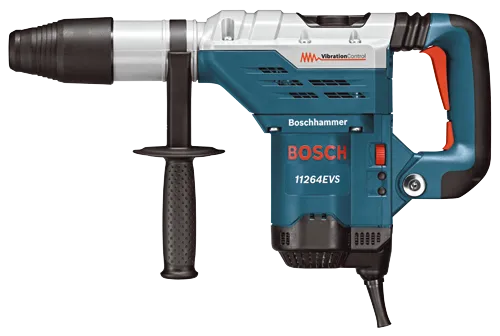

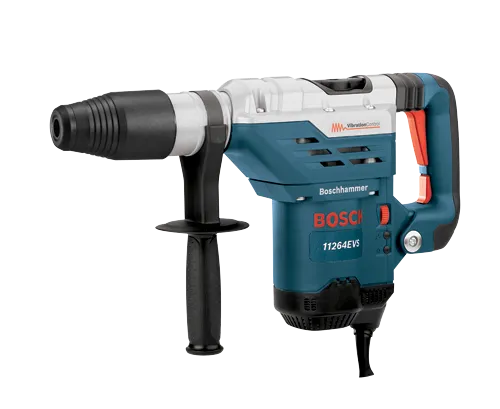

Bosch 11264EVS Boschhammer with VibrationControl.
Bosch Demolition Hammer, model TC264VE.

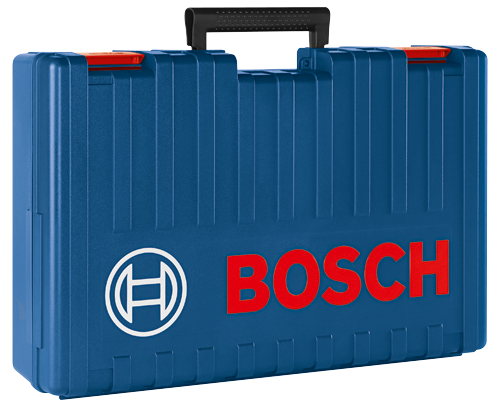

Bosch blue tool case with orange accents and black handle.

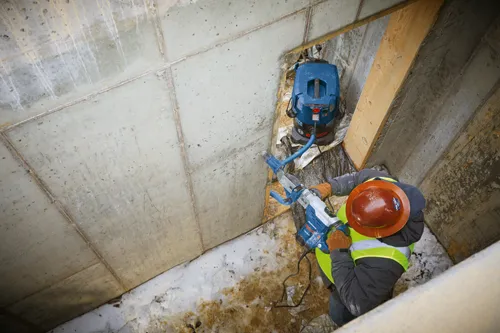

Person wearing a hard hat and safety vest uses a Bosch rotary hammer, while a Bosch HEPA READY vacuum is nearby.

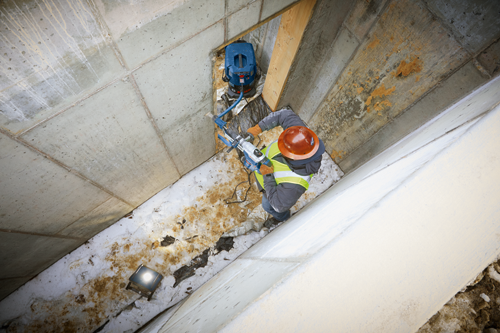

Person wearing a hard hat and safety vest uses a power tool on concrete wall; a vacuum cleaner is nearby.

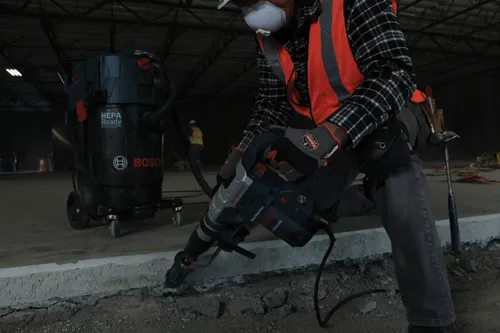

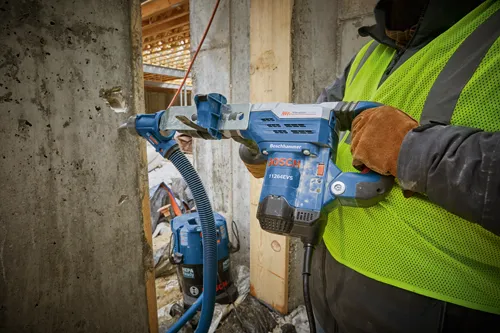

Bosch 11264EVS Boschhammer with VibrationControl, in use by a person wearing a safety vest and gloves. The tool is connected to a vacuum with "HEPA Ready" text.

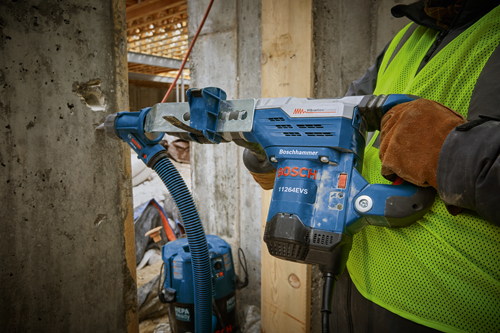

Boschhammer 11264EVS hammer drill in use by a person wearing a high visibility vest.

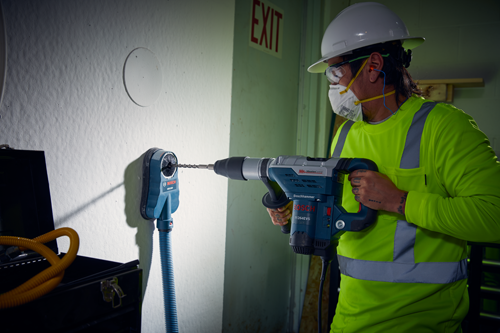

Person in safety attire using Boschhammer 11264EVS hammer drill. An additional Bosch HGC200 dust collection attachment is also mounted on the wall.

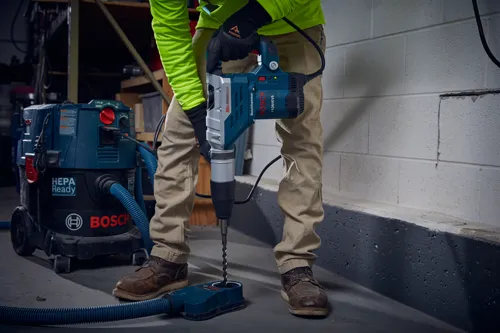

Bosch 11264EVS rotary hammer drill being used to drill into a surface, with HEPA Ready vacuum cleaner and dust collection attachment.

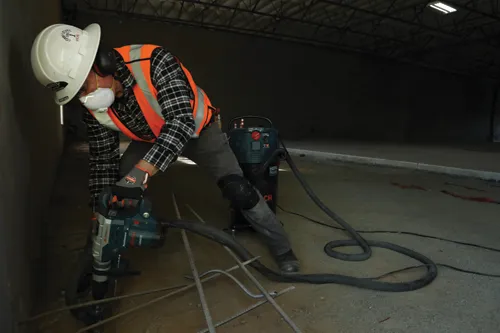

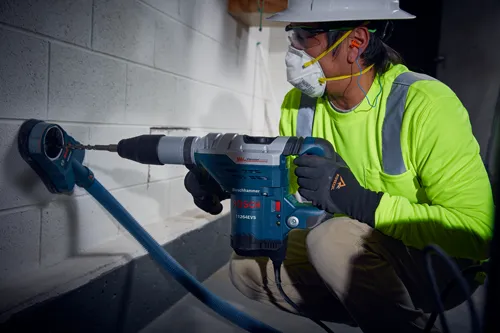

Person wearing hard hat, safety glasses, and mask operating a Boschhammer BOSCH 11264EVS, drilling into a concrete block wall.

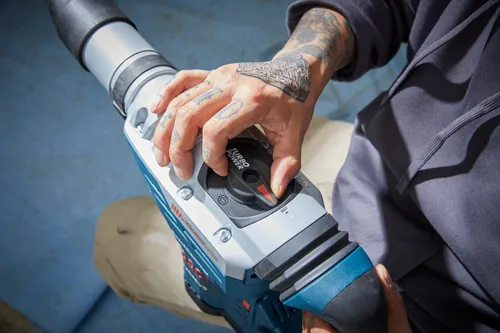

Man with tattoos on his hand turning the turbo power switch on the Bosch combination hammer.
Bosch SDS-max rotary hammer.
Bosch SDS-max rotary hammer.

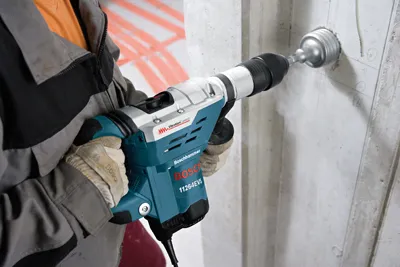

Worker using a Bosch hammer drill 11264EVS to drill into a concrete wall.
Person wearing protective eyewear and ear protection drilling into a concrete wall with a Bosch hammer, model 1125EVS.

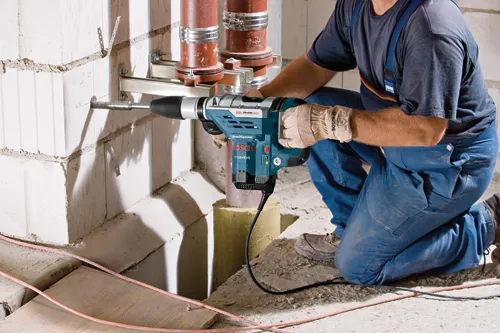

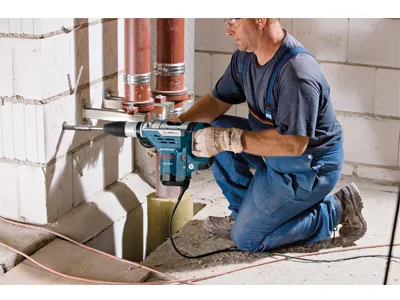

Person kneeling, wearing gloves, using a Bosch power tool to drill into a wall.

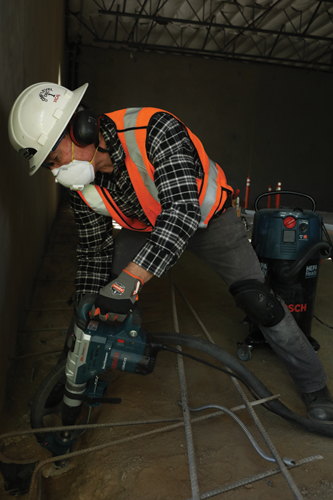

Person wearing protective gear operating a Bosch 11264EVS Boschhammer, vacuum positioned nearby.
Person wearing safety gear using a Bosch 11264EVS hammer drill with a vacuum nearby.
Man using Bosch 11264EVS Boschhammer with a HEPA Ready vacuum cleaner nearby.

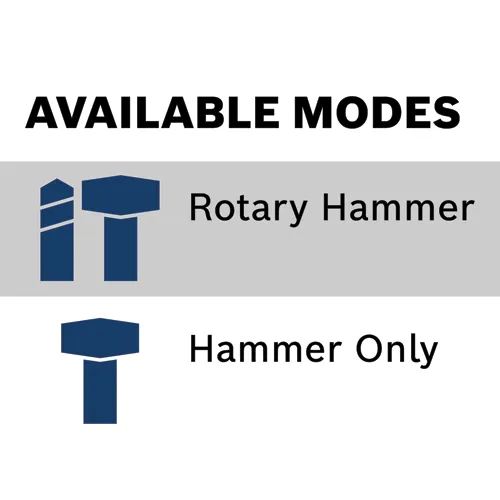

AVAILABLE MODES. Rotary Hammer with hammer icon. Hammer Only with hammer icon.
Bosch "Corded Tool" with LIMITED WARRANTY, 1 YEAR Tool. Effective 6/1/23, all 18V products are covered by this updated warranty. For updated terms, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99.
Bosch 11264EVS Boschhammer rotary hammer drill.
Bosch 11264EVS rotary hammer with features: ONE-HAND SDS-MAX, VARIO-LOCK POSITIONING, VIBRATION CONTROL, UNMATCHED POWER TO WEIGHT RATIO, CONSTANT RESPONSE CIRCUITRY, and TURBO POWER.
11264EVS
Boschhammer 11264EVS, with VibrationControl and a chisel attachment.
Bosch 11264EVS Boschhammer with VibrationControl.
Bosch Demolition Hammer, model TC264VE.
Bosch blue tool case with orange accents and black handle.
Person wearing a hard hat and safety vest uses a Bosch rotary hammer, while a Bosch HEPA READY vacuum is nearby.
Person wearing a hard hat and safety vest uses a power tool on concrete wall; a vacuum cleaner is nearby.
Bosch 11264EVS Boschhammer with VibrationControl, in use by a person wearing a safety vest and gloves. The tool is connected to a vacuum with "HEPA Ready" text.
Boschhammer 11264EVS hammer drill in use by a person wearing a high visibility vest.
Person in safety attire using Boschhammer 11264EVS hammer drill. An additional Bosch HGC200 dust collection attachment is also mounted on the wall.
Bosch 11264EVS rotary hammer drill being used to drill into a surface, with HEPA Ready vacuum cleaner and dust collection attachment.
Person wearing hard hat, safety glasses, and mask operating a Boschhammer BOSCH 11264EVS, drilling into a concrete block wall.
Man with tattoos on his hand turning the turbo power switch on the Bosch combination hammer.
Bosch SDS-max rotary hammer.
Bosch SDS-max rotary hammer.
Worker using a Bosch hammer drill 11264EVS to drill into a concrete wall.

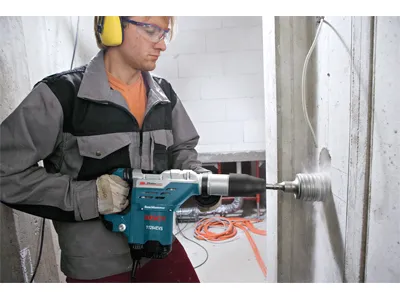

Person wearing protective eyewear and ear protection drilling into a concrete wall with a Bosch hammer, model 1125EVS.
Person kneeling, wearing gloves, using a Bosch power tool to drill into a wall.
Person wearing protective gear operating a Bosch 11264EVS Boschhammer, vacuum positioned nearby.
Person wearing safety gear using a Bosch 11264EVS hammer drill with a vacuum nearby.
Man using Bosch 11264EVS Boschhammer with a HEPA Ready vacuum cleaner nearby.
AVAILABLE MODES. Rotary Hammer with hammer icon. Hammer Only with hammer icon.
Bosch "Corded Tool" with LIMITED WARRANTY, 1 YEAR Tool. Effective 6/1/23, all 18V products are covered by this updated warranty. For updated terms, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99.

11264EVS Professional

SDS-max® Hammers

SDS-max® 1-5/8 In. Combination Hammer

  • Powerful 13.0 Amp motor – drives 6.5 Ft.-Lbs. of impact energy for professional results
  • Vibration Control – for all day jobs, tool allows for maximum user comfort
  • Constant Response circuitry — provides soft-start and maintains constant speed under load
  • Turbo Power — delivers 20 percent more power in hammer-only mode
  • Electro-pneumatic impact system maximizes impact force and minimizes vibration
  • SDS-max® bit system — tool-free bit changes with automatic bit-locking and maximum impact energy transfer rate
  • Dual-mode selector — Two modes of operation, rotary hammer and hammer only mode
  • Variable-speed dial — for accurate bit starting and controlled chipping applications
  • Vario-Lock positioning — rotates and locks chisel into 12 different positions to optimize working angle
  • Integral clutch — helps minimize torque reaction
View more View less
11264EVS Professional

Technical data

The most important data

Amperage
13
Chuck Design
Keyless
Drive System
SDS-max
Height in
10.5 "
Impact Energy/EPTA (ft. lbs.)
6.5 Ft.-Lbs. EPTA
Length in
19.25 "
Material
Metal, Plastic
Max Bit Diameter
1-5/8"
Max. Hole Diameter in Concrete
1-5/8"
Max. Hole Diameter in Concrete-Core Bit
4-1/8"
No Load BPM
1,700-2,900
No Load RPM
170-340
Rating
120V
Reverse
No
Variable Speed
Yes
Voltage
120V
Weight
15.2 lb
Weight (lbs.)
15.2
Width in
4 "
Works With
Dust Extraction/Collection Hoods, HDC200, HDC250, HDC300, SDS-max® Hammer Adapter for SDS-plus® Accessories, HA1030, SDS-max® Hammer Adapter for Spline Accessories, HA1031, SDS-max® Hammer Adapter for 1/2"-20 Thread Accessories, HA1032
Includes
(1) SDS-max® 1-5/8 In. Combination Hammer
(1) Auxiliary Handle
(1) Grease Tube
(1) Carrying Case

11264EVS Professional: Further information

Product Highlights

The Bosch 11264EVS SDS-max® 1-5/8- In. Combination Hammer features a powerful 13.0 Amp motor and has a dual-mode selector for combination versatility - rotary hammer or hammer-only mode. Providing 6.5 Ft.-Lbs. of impact energy, the tool weighs only 15.2 Lbs., for a top performance-to-weight ratio. The hammer has integral clutch that helps to minimize torque reaction. Concrete contractors will appreciate the production in drilling and chiseling applications. The hammer's 12-position Vario-Lock helps to optimize chiseling angles. Bosch's Vibration Control in the hammer mechanism and grip area provide improved user comfort. And with Constant Response circuitry, users benefit from smooth starts and constant load under pressure.
