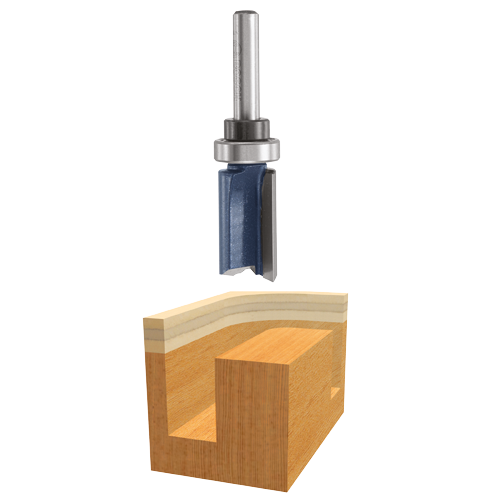

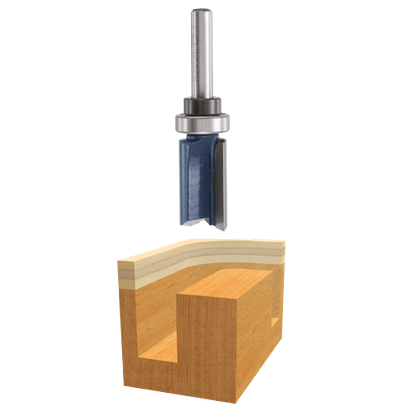

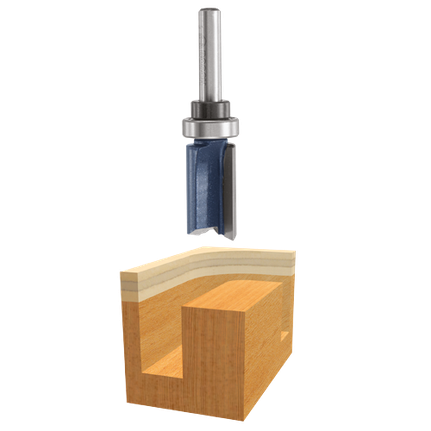

Bosch router bit, with a section of wood cut.

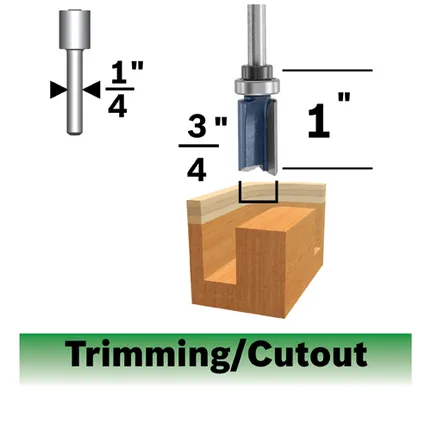

3/4 In. x 1 In. Carbide-Tipped Double-Flute Top-Bearing Straight Trim Router Bit_85682MC_LEFT
Bosch router bit, with a section of wood cut.
3/4 In. x 1 In. Carbide-Tipped Double-Flute Top-Bearing Straight Trim Router Bit_85682MC_LEFT
Carbide Tipped Trim Bit_OffsetBaseScribingFInal

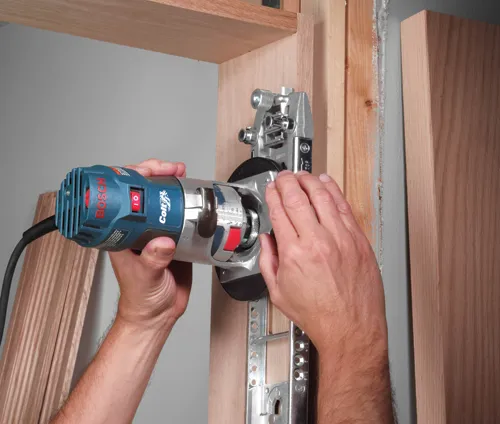

Carbide Tipped Trim Bit_PR004HingeMortising
Carbide Tipped Trim Bit_PR20EVSK_Deck

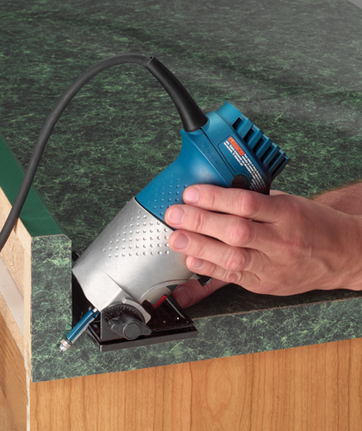

A person's hands hold a blue and silver electric tool against a green surface; the tool is cutting a corner of the surface.

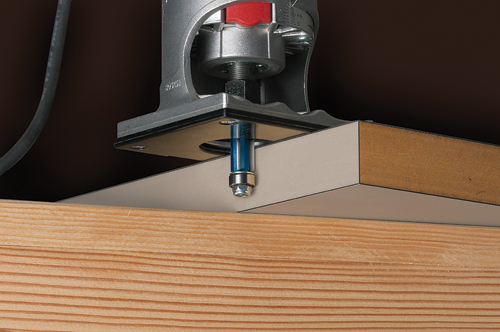

Bosch router cutting into wood.
Bosch router bit, with a section of wood cut.
3/4 In. x 1 In. Carbide-Tipped Double-Flute Top-Bearing Straight Trim Router Bit_85682MC_LEFT
Bosch router bit, with a section of wood cut.
3/4 In. x 1 In. Carbide-Tipped Double-Flute Top-Bearing Straight Trim Router Bit_85682MC_LEFT
Carbide Tipped Trim Bit_OffsetBaseScribingFInal
Carbide Tipped Trim Bit_PR004HingeMortising
Carbide Tipped Trim Bit_PR20EVSK_Deck
A person's hands hold a blue and silver electric tool against a green surface; the tool is cutting a corner of the surface.
Bosch router cutting into wood.

Carbide-Tipped Top Bearing Straight Trim Bits

For hand-held routers, For Palm Routers

  • Carbide-Tipped Top Bearing Straight Trim Bits are designed for pattern routing
  • Micrograin carbide-tip router bit design – ensures consistently smooth finish cuts, with superior wear resistance
  • Designed for pattern routing – top-mounted ball bearing rides against template, to execute pattern routing
  • Shielded, compact ball-bearing pilot – guides bit along edge of material
  • Reinforced shanks – feature fully hardened and tempered steel shanks that provide ultimate durability
View more View less
Materials
Hardwood
Particleboard
Medium density fibreboard
Plywood
Softwood
Select options
Shank Inch
Diameter (D) Inch
Working length (L) Inch
Choose a pack size
Select options

Shank Inch 2 options

Diameter (D) Inch 4 options

Working length (L) Inch 3 options

Choose a pack size 1

Available product options (7)
Carbide-Tipped Top Bearing Straight Trim Bits

High Cutting Performance for Flush Trimming

Bosch Carbide-Tipped Router Bits deliver precision and durability. They feature premium-quality micrograin carbide tips that are engineered with a special heat-treating process for an extra-fine finish. The tips provide maximum sharpness and edge retention. The fully hardened and tempered steel shanks provide ultimate durability.

View more

Product Options

Available product options: 7

Expand Part number Shank Inch Diameter (D) Inch Working length (L) Inch Pack quantity Availability

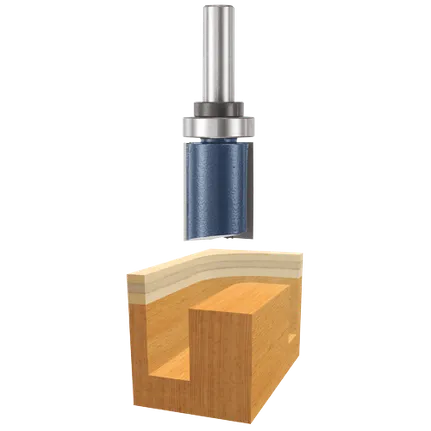

85671M 1/2 1 1/8 1 1/2 1

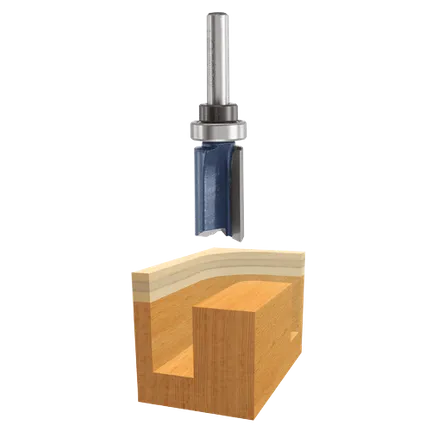

85672M 1/4 1/2 1 1/4 1
85680M 1/4 1/2 1 1
85680MC 1/4 1/2 1 1

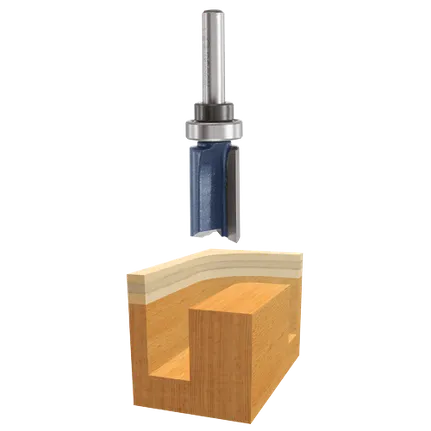

85681M 1/4 5/8 1 1

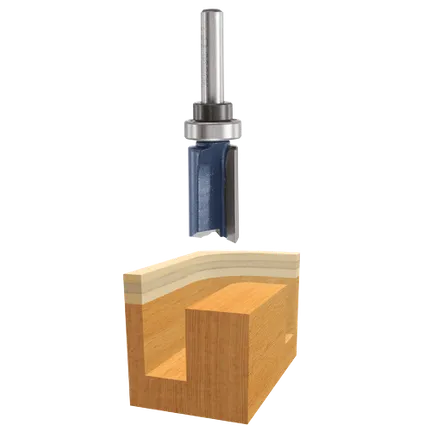

85682M 1/4 3/4 1 1
85682MC 1/4 3/4 1 1

out of products
