Carbide-Tipped Plywood Mortising Bits
For hand-held routers, For Palm Routers
- Carbide-Tipped Plywood Mortising Bits product a tight-fitting joint in plywood
- Creates cutting diameter to match thickness of the plywood
- Produces a tight fit when mortising standard plywood
- Balanced cutting with minimal vibration
- Micrograin carbide tips provide superior wear resistance and long life
Materials
Select options
Shank Inch
Select one option from the listed items below
Diameter (D) Inch
Select one option from the listed items below
Working length (L) Inch
Select one option from the listed items below
Choose a pack size
Select one option from the listed items below
Select options
Shank Inch 2 options
Diameter (D) Inch 3 options
Working length (L) Inch 3 options
Choose a pack size 1
Carbide-Tipped Plywood Mortising Bits
High Performance in General Routing
Premium-quality micrograin carbide tips are ground on specialized CNC equipment for an extra-fine finish with maximum sharpness and edge retention. Plywood mortising bits are nominally sized to match the actual thickness of the plywood to produce a tight-fitting joint. The fully hardened and tempered steel shank provides ultimate durability.
View more
Product Options
Available product options: 6
Expand
|
Part number
|
Shank Inch
|
Diameter (D) Inch
|
Working length (L) Inch
|
Pack quantity
|
Availability
|
|---|---|---|---|---|---|---|
| 84600M | 1/4 | 15/64 | 3/4 | 1 | ||
| 84601M | 1/4 | 31/64 | 3/4 | 1 | ||
| 84601MC | 1/4 | 31/64 | 3/4 | 1 | ||
| 84602MC | 1/4 | 22/32 | 3/4 | 1 | ||
| 84603M | 1/2 | 22/32 | 1 1/4 | 1 | ||
| 84625M | 1/2 | 31/64 | 1 | 1 |
out of products

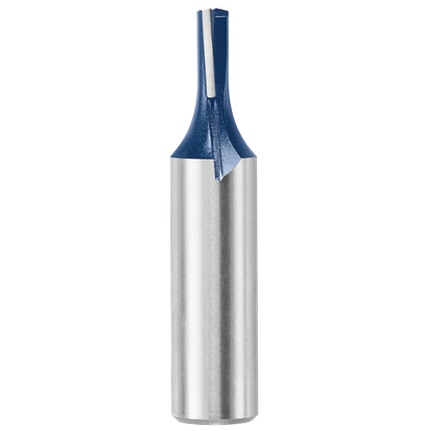

15/64 In. x 3/4 In. Carbide Tipped Plywood Mortising Bit
Model number 84600M
Pack quantity
1
Details
Shank Inch
1/4
Diameter (D) Inch
15/64
Working length (L) Inch
3/4

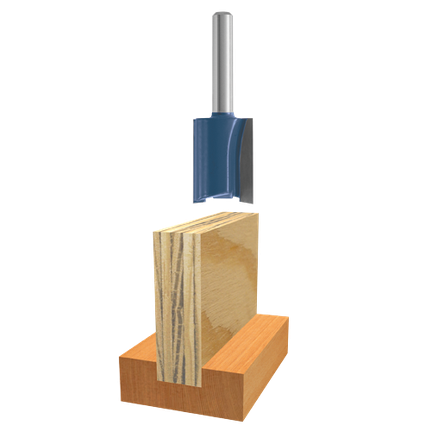

31/64 In. x 3/4 In. Carbide Tipped Plywood Mortising Bit
Model number 84601M
Pack quantity
1
Details
Shank Inch
1/4
Diameter (D) Inch
31/64
Working length (L) Inch
3/4
31/64" x 3/4" Carbide-Tipped Plywood Mortising Router Bit
Model number 84601MC
Pack quantity
1
Details
Shank Inch
1/4
Diameter (D) Inch
31/64
Working length (L) Inch
3/4

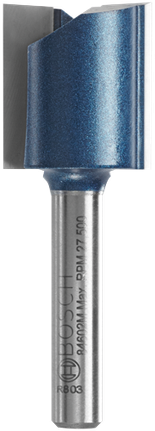

23/32 In. x 3/4 In. Carbide-Tipped Plywood Mortising Router Bit
Model number 84602MC
Pack quantity
1
Details
Shank Inch
1/4
Diameter (D) Inch
22/32
Working length (L) Inch
3/4

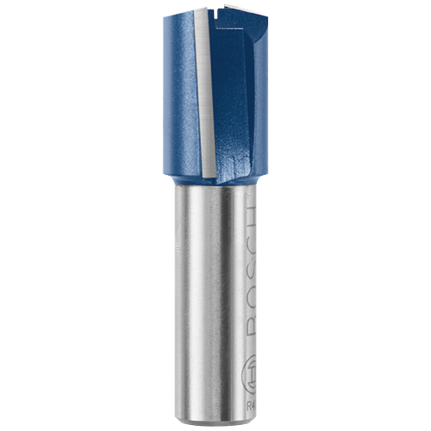

23/32 In. x 1-1/4 In. Carbide Tipped Plywood Mortising Bit
Model number 84603M
Pack quantity
1
Details
Shank Inch
1/2
Diameter (D) Inch
22/32
Working length (L) Inch
1 1/4

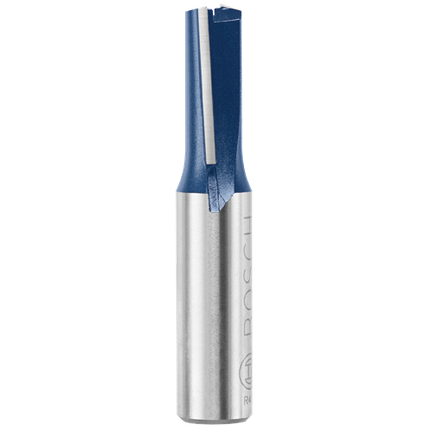

31/64 In. x 1 In. Carbide Tipped Plywood Mortising Bit
Model number 84625M
Pack quantity
1
Details
Shank Inch
1/2
Diameter (D) Inch
31/64
Working length (L) Inch
1
